0.4 kg (20x20x20 cm)
BW-06-0016, KP39-92
Nozzle ring assy. BW-06-0016 for turbos 54399700027, 54399700030, 54399700046, 54399700053, 54399700059, 54399700060, 54399700061, 54399700062, 54399700063, 54399700064.
See below for more info

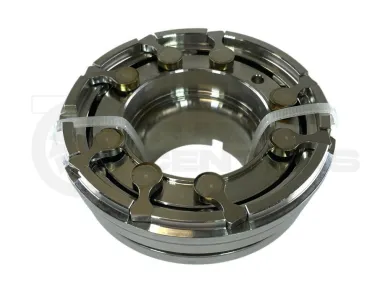

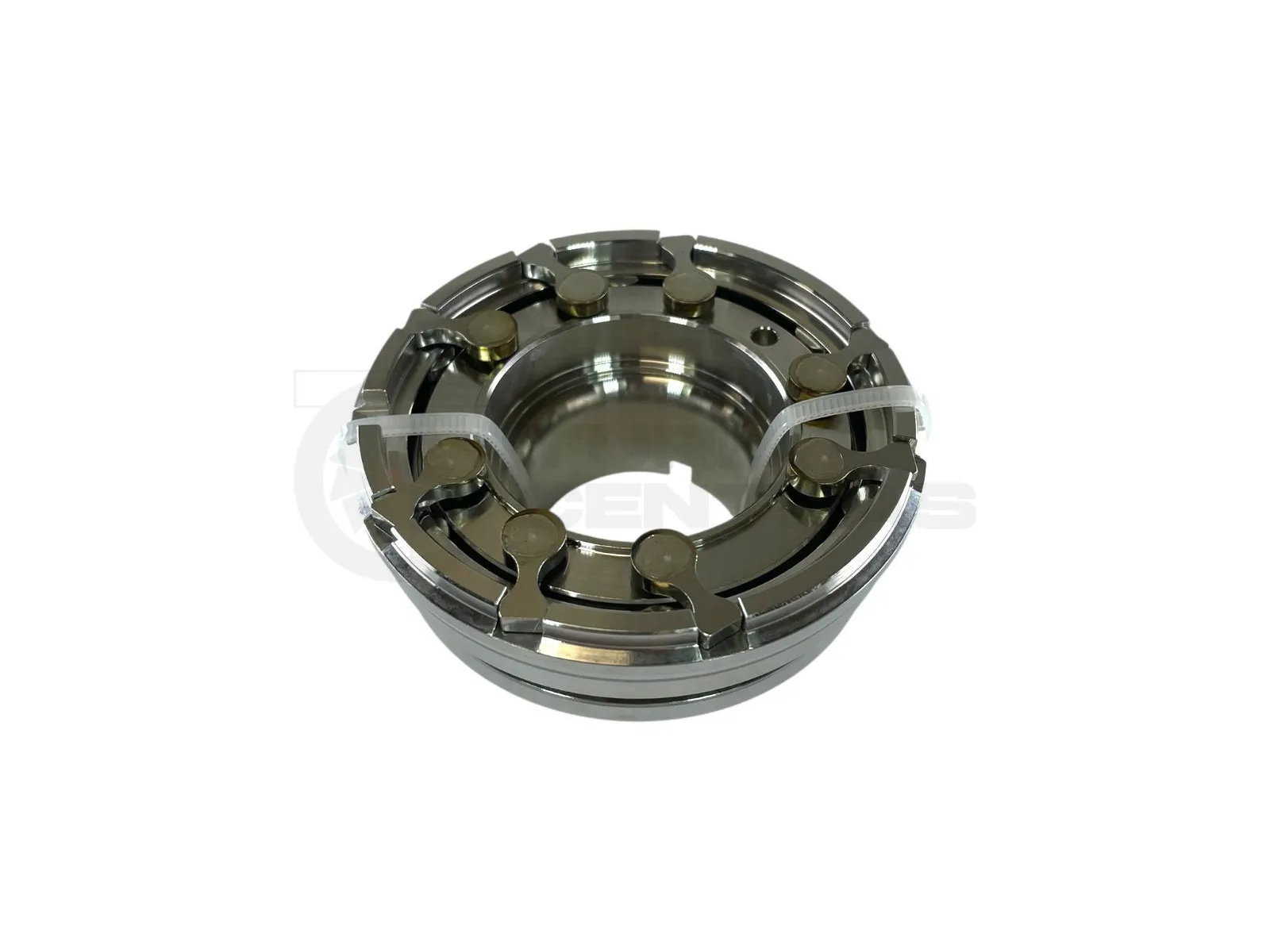

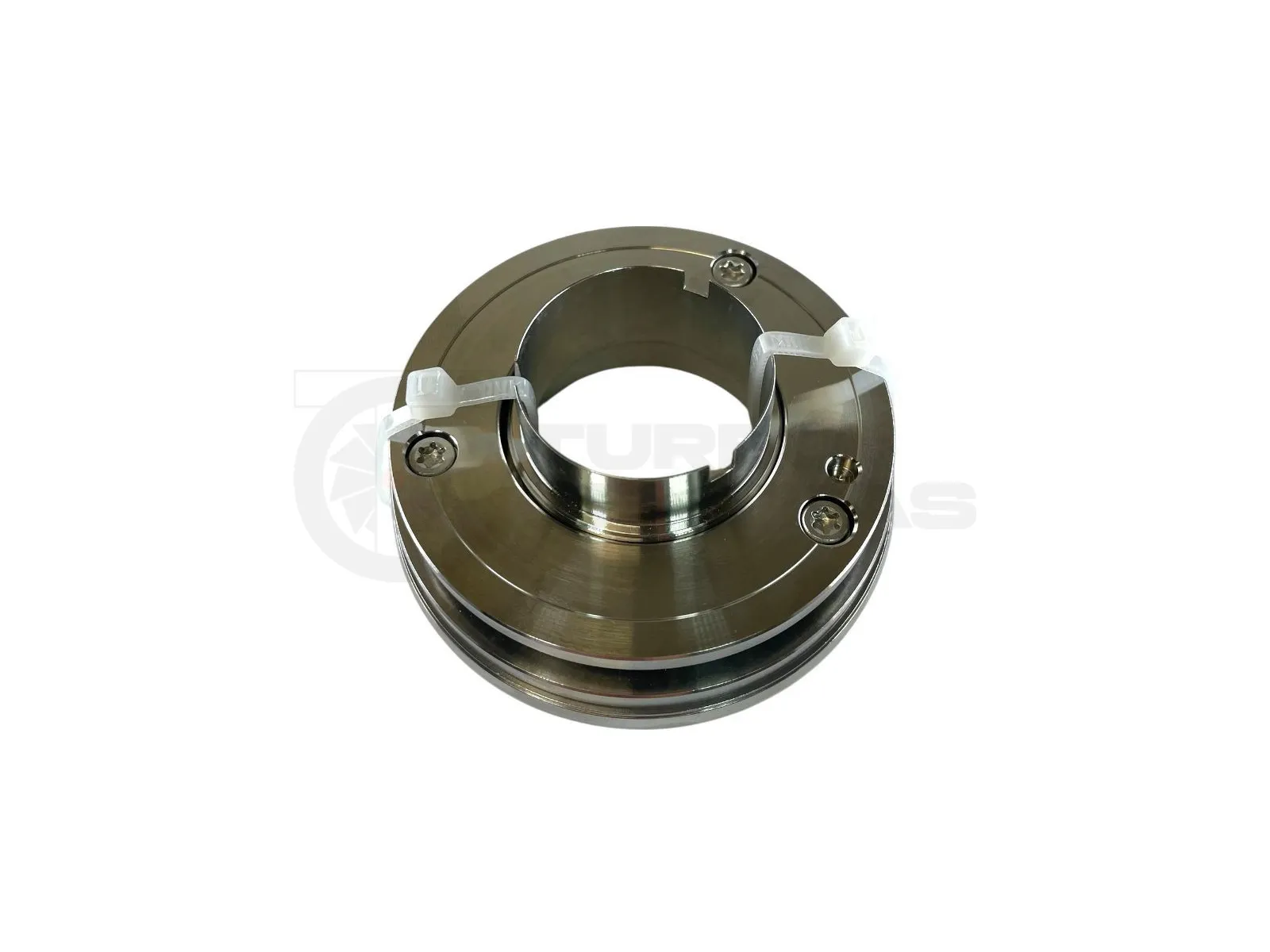

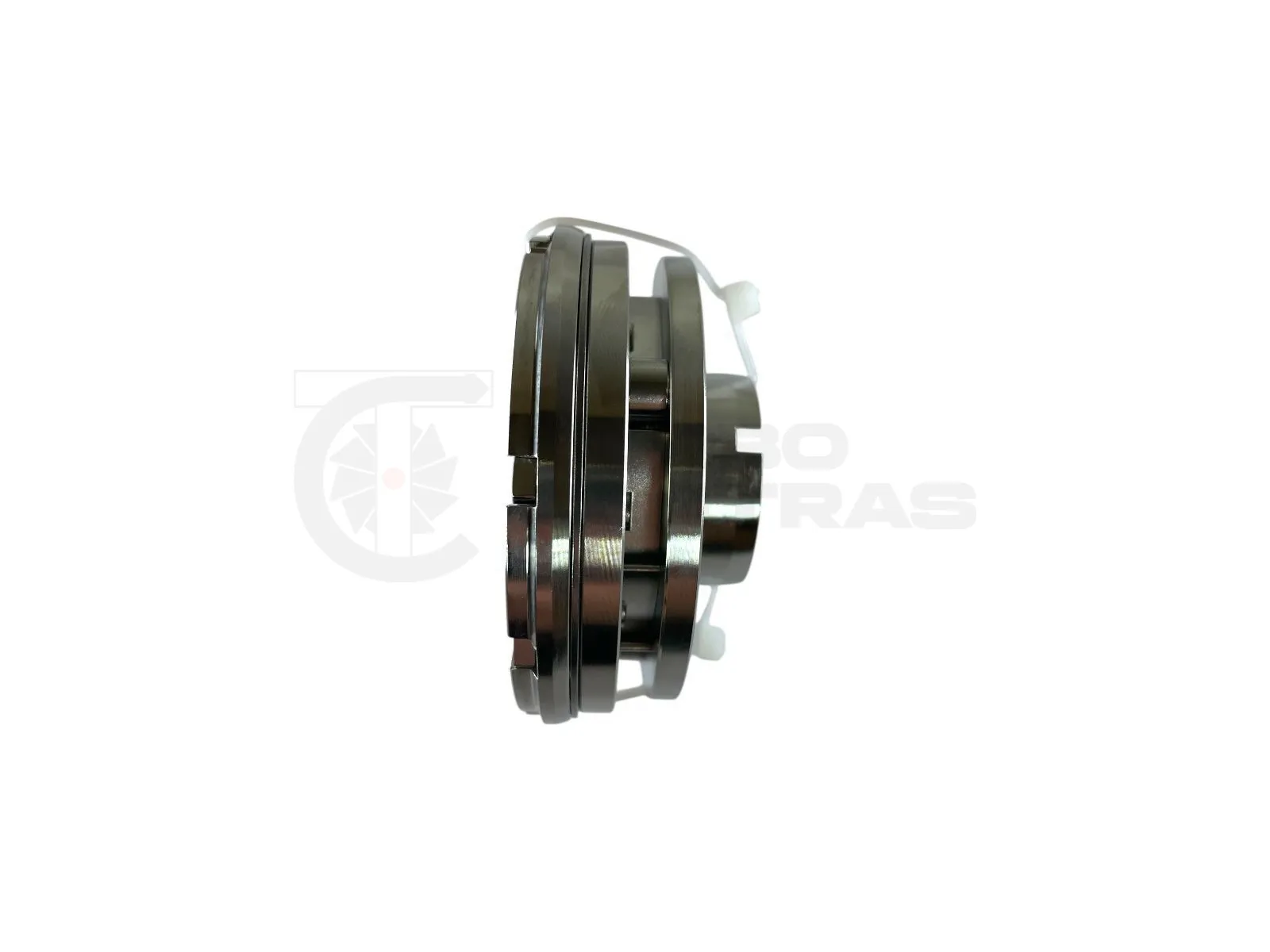

BW-06-0016 - Nozzle ring assy.
Brand: TurboCentras
TurboCentras Reference: BW-06-0016
BW-06-0016 - Alternative numbers
TCP (TurboCentras part number): BW-06-0016
TCO (TurboCentras old part number): KP39-92
BW-06-0016 - Compatibility table
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
---|---|---|---|---|
BorgWarner | BV39-1867CBK426.18AVAXH | 54399700027 | 5439 970 0027, 5439 998 0027 | 8200360800, 8200578315 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700030 | 5439 970 0030, 5439 998 0030 | 8200405203, 8200507856, 8200578381 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700046 | 5439 970 0046 | 8200678809 |
BorgWarner | BV39-1874DCB426.18BVAXC | 54399700053 | 5439 970 0053 | 038253014P |
BorgWarner | BV39-1874DCB426.18BVAXC | 54399700059 | 5439 970 0059, 5439 988 0059, 5439 990 0059 | 03G253010E, 03G253016D |
BorgWarner | BV39-1874DCB426.18BVAXC | 54399700060 | 5439 970 0060, 5439 988 0060 | 03G253010F, 03G253016E |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700061 | 5439 970 0061 | 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700062 | 5439 970 0062 | 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700063 | 5439 970 0063 | 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700064 | 5439 970 0064 | 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700066 | 5439 970 0066 | 8200552213, 8200588232 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399700070 | 5439 970 0070, 5439 990 0070, 5439 998 0070 | 8200625683 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399700070-R | 5439 970 0070, 5439 990 0070, 5439 998 0070 | 8200625683 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700080 | 5439 970 0080, 5439 998 0080 | 8200846770 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700080-R | 5439 970 0080, 5439 998 0080 | 8200846770 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399700090 | 5439 970 0090, 5439 998 0090 | 8200905276 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700110 | 5439 970 0110, 5439 988 0110 | 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700111 | 5439 970 0111, 5439 988 0111 | 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700112 | 5439 970 0112, 5439 988 0112 | 6H3Q6K682FF, LR021044 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700113 | 5439 970 0113, 5439 988 0113 | 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399710070 | 5439 971 0070, 5439 998 0070 | 144116751R |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399980030 | 5439 970 0030, 5439 998 0030 | 8200405203, 8200507856, 8200578381 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399980070 | 5439 970 0070, 5439 971 0070, 5439 998 0070 | 144116751R, 8200625683 |
BW-06-0016 - Part Properties
Blades (Nozzle Ring blades count): 8
A (Size A): 79.00
B (Size B): 44.00
C (Size C): 35.50
D (Size D): 5.00
E (Size E): 5.20
F (Size F): 20.50
BW-06-0016, KP39-92
54399980070, 54399710070, 54399700070, 54399980030, 54399700030, 54399980070, 54399710070, 54399880113, 54399700113, 54399880112, 54399700112, 54399880111, 54399700111, 54399880110, 54399700110, 54399980090, 54399700090, 54399980080, 54399700080, 54399980080, 54399700080, 54399980070, 54399900070, 54399700070, 54399980070, 54399900070, 54399700070, 54399700066, 54399700064, 54399700063, 54399700062, 6H4Q6K682HF, 54399700061, 54399880060, 54399700060, 54399900059, 54399880059, 54399700059, 54399700053, 54399700046, 54399980030, 54399700030, 54399980027, 54399700027, 5439 970 0027, 5439 998 0027, 8200360800, 8200578315, 5439 970 0030, 5439 998 0030, 8200405203, 8200507856, 8200578381, 5439 970 0046, 8200678809, 038253014P, 5439 970 0053, 03G253010E, 03G253016D, 5439 970 0059, 5439 988 0059, 5439 990 0059, 03G253010F, 03G253016E, 5439 970 0060, 5439 988 0060, 5439 970 0061, 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527, 5439 970 0062, 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526, 5439 970 0063, 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038, 5439 970 0064, 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037, 5439 970 0066, 8200552213, 8200588232, 5439 970 0070, 5439 990 0070, 5439 998 0070, 8200625683, 5439 970 0070, 5439 990 0070, 5439 998 0070, 8200625683, 5439 970 0080, 5439 998 0080, 8200846770, 5439 970 0080, 5439 998 0080, 8200846770, 5439 970 0090, 5439 998 0090, 8200905276, 5439 970 0110, 5439 988 0110, 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046, 5439 970 0111, 5439 988 0111, 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045, 5439 970 0112, 5439 988 0112, 6H3Q6K682FF, LR021044, 5439 970 0113, 5439 988 0113, 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043, 144116751R, 5439 971 0070, 5439 998 0070, 5439 970 0030, 5439 998 0030, 8200405203, 8200507856, 8200578381, 144116751R, 5439 970 0070, 5439 971 0070, 5439 998 0070, 8200625683
