0.4 kg (20x20x20 cm)
Геометрия (комплект) BW-06-0016
BW-06-0016
Новое
В наличии (28 шт.) 78,44 €
Без НДС Доставка в течении 3-8 дней
BW-06-0016, KP39-92

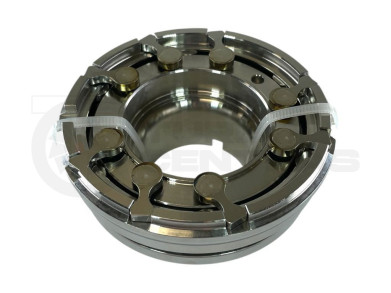

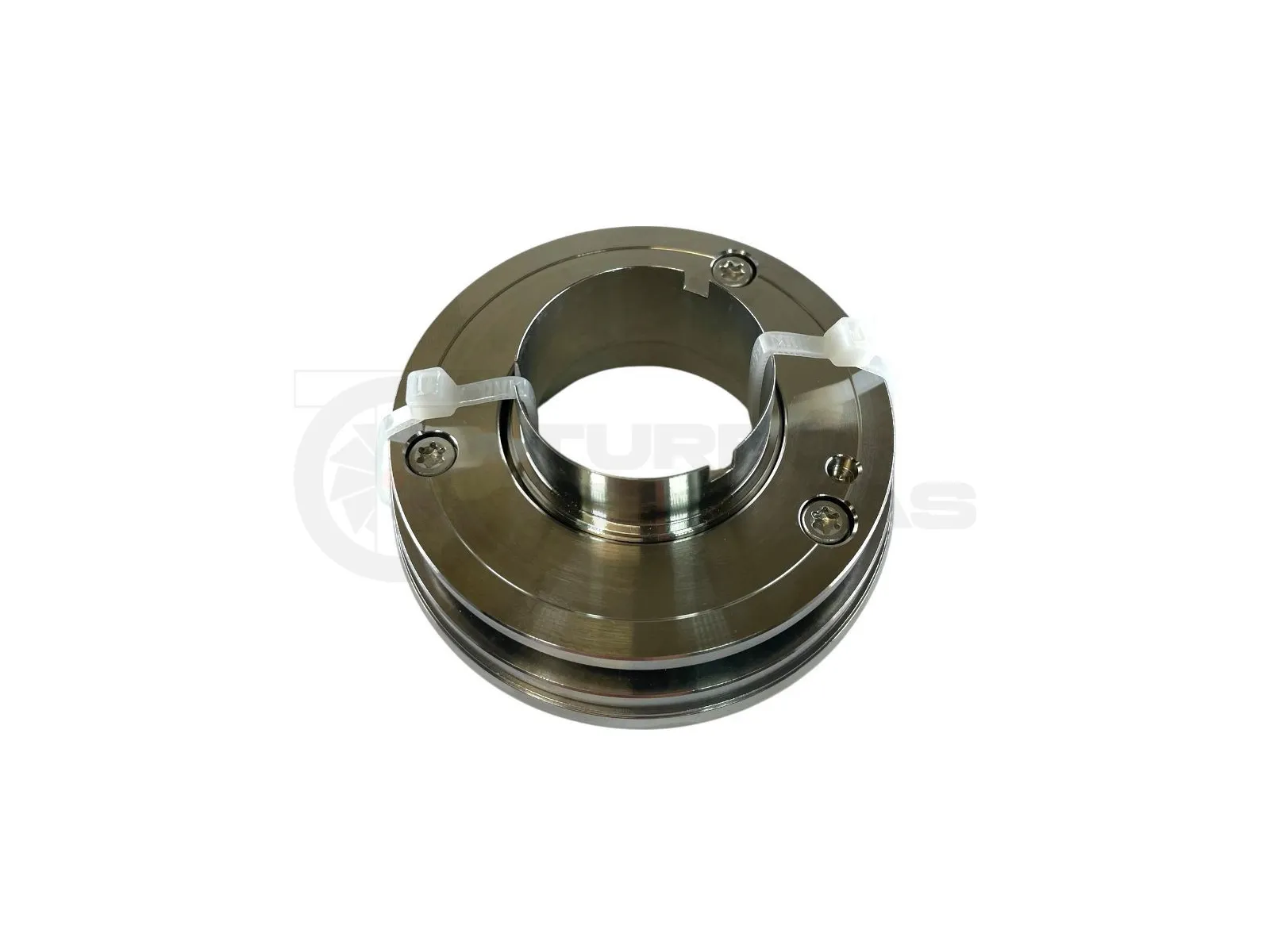

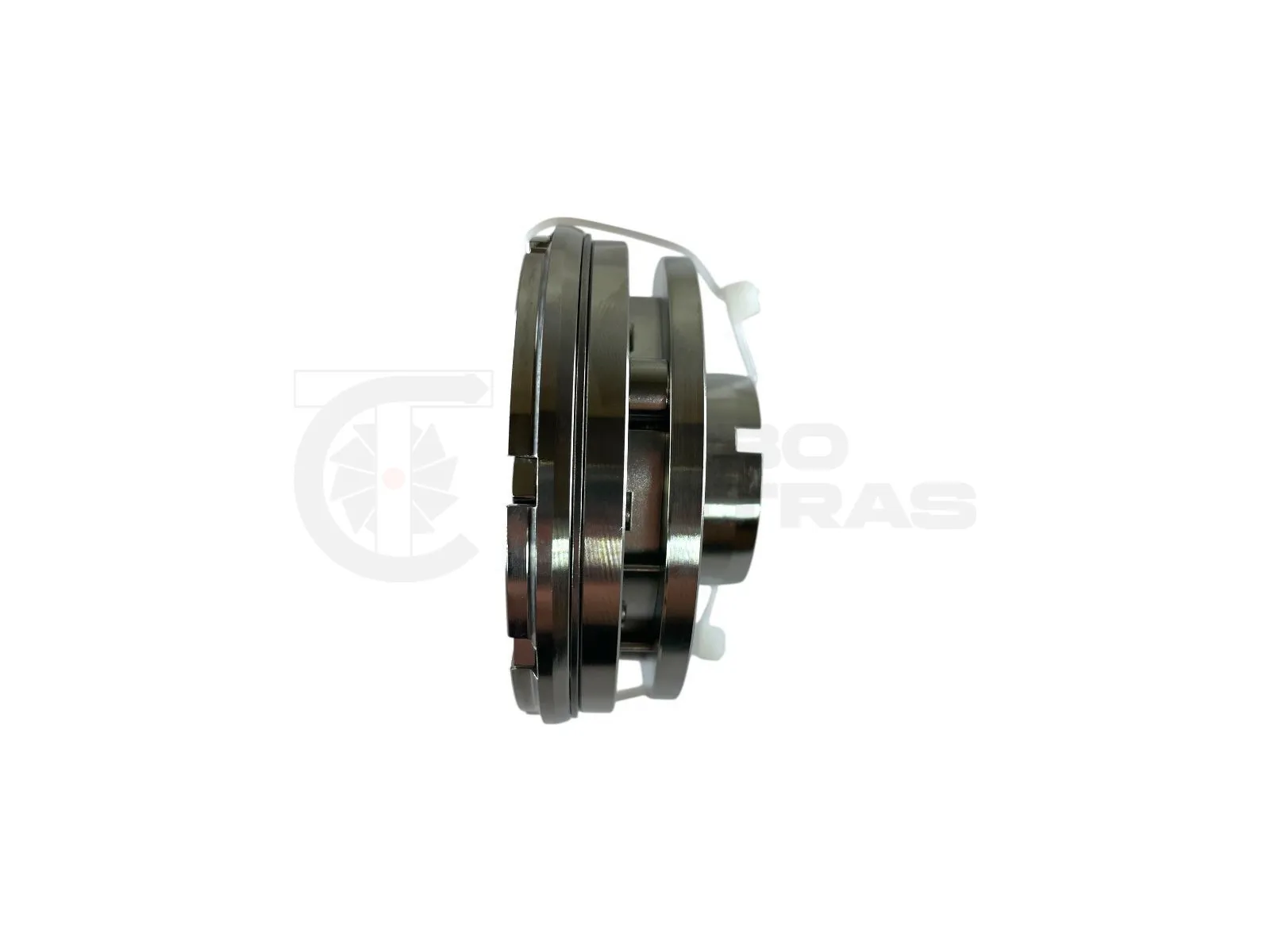

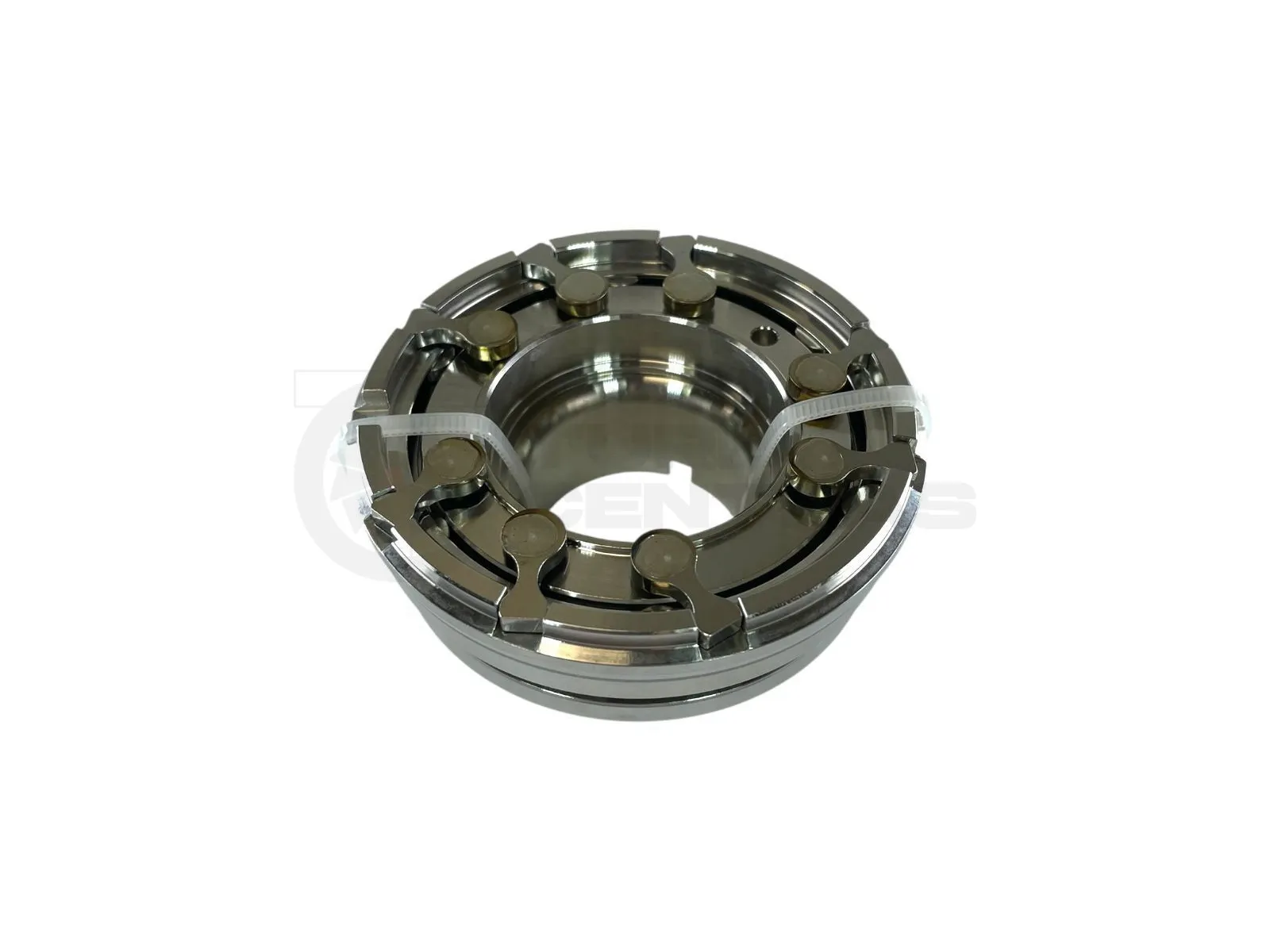

Геометрия (комплект) BW-06-0016 для турбин 54399700027, 54399700030, 54399700046, 54399700053, 54399700059, 54399700060, 54399700061, 54399700062, 54399700063, 54399700064.
Подробности ниже
BW-06-0016 - Геометрия (комплект)
Бренд: TurboCentras
TurboCentras Артикул: BW-06-0016
BW-06-0016 - Альтернативные номера
TCP (TurboCentras part number): BW-06-0016
TCO (TurboCentras old part number): KP39-92
BW-06-0016 - Таблица совместимости
ПРОИЗВОДИТЕЛЬ ТУРБИНЫ | МОДЕЛЬ ТУРБИНЫ | АРТИКУЛ ТУРБИНЫ | НОМЕР ТУРБИНЫ | OE НОМЕР ТУРБИНЫ |
---|---|---|---|---|
BorgWarner | BV39-1867CBK426.18AVAXH | 54399700027 | 5439 970 0027, 5439 998 0027 | 8200360800, 8200578315 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700030 | 5439 970 0030, 5439 998 0030 | 8200405203, 8200507856, 8200578381 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700046 | 5439 970 0046 | 8200678809 |
BorgWarner | BV39-1874DCB426.18BVAXC | 54399700053 | 5439 970 0053 | 038253014P |
BorgWarner | BV39-1874DCB426.18BVAXC | 54399700059 | 5439 970 0059, 5439 988 0059, 5439 990 0059 | 03G253010E, 03G253016D |
BorgWarner | BV39-1874DCB426.18BVAXC | 54399700060 | 5439 970 0060, 5439 988 0060 | 03G253010F, 03G253016E |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700061 | 5439 970 0061 | 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700062 | 5439 970 0062 | 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700063 | 5439 970 0063 | 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700064 | 5439 970 0064 | 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700066 | 5439 970 0066 | 8200552213, 8200588232 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399700070 | 5439 970 0070, 5439 990 0070, 5439 998 0070 | 8200625683 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399700070-R | 5439 970 0070, 5439 990 0070, 5439 998 0070 | 8200625683 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700080 | 5439 970 0080, 5439 998 0080 | 8200846770 |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399700080-R | 5439 970 0080, 5439 998 0080 | 8200846770 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399700090 | 5439 970 0090, 5439 998 0090 | 8200905276 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700110 | 5439 970 0110, 5439 988 0110 | 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700111 | 5439 970 0111, 5439 988 0111 | 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700112 | 5439 970 0112, 5439 988 0112 | 6H3Q6K682FF, LR021044 |
BorgWarner | BV39-1872FFAAA426.18BVAXC | 54399700113 | 5439 970 0113, 5439 988 0113 | 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399710070 | 5439 971 0070, 5439 998 0070 | 144116751R |
BorgWarner | BV39-1867DCG426.18AVAXH | 54399980030 | 5439 970 0030, 5439 998 0030 | 8200405203, 8200507856, 8200578381 |
BorgWarner | BV39-1867DCG426.18AVAXC | 54399980070 | 5439 970 0070, 5439 971 0070, 5439 998 0070 | 144116751R, 8200625683 |
BW-06-0016 - Свойства детали
Blades (Nozzle Ring blades count): 8
A (Size A): 79.00
B (Size B): 44.00
C (Size C): 35.50
D (Size D): 5.00
E (Size E): 5.20
F (Size F): 20.50
BW-06-0016, KP39-92
54399980070, 54399710070, 54399700070, 54399980030, 54399700030, 54399980070, 54399710070, 54399880113, 54399700113, 54399880112, 54399700112, 54399880111, 54399700111, 54399880110, 54399700110, 54399980090, 54399700090, 54399980080, 54399700080, 54399980080, 54399700080, 54399980070, 54399900070, 54399700070, 54399980070, 54399900070, 54399700070, 54399700066, 54399700064, 54399700063, 54399700062, 6H4Q6K682HF, 54399700061, 54399880060, 54399700060, 54399900059, 54399880059, 54399700059, 54399700053, 54399700046, 54399980030, 54399700030, 54399980027, 54399700027, 5439 970 0027, 5439 998 0027, 8200360800, 8200578315, 5439 970 0030, 5439 998 0030, 8200405203, 8200507856, 8200578381, 5439 970 0046, 8200678809, 038253014P, 5439 970 0053, 03G253010E, 03G253016D, 5439 970 0059, 5439 988 0059, 5439 990 0059, 03G253010F, 03G253016E, 5439 970 0060, 5439 988 0060, 5439 970 0061, 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527, 5439 970 0062, 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526, 5439 970 0063, 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038, 5439 970 0064, 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037, 5439 970 0066, 8200552213, 8200588232, 5439 970 0070, 5439 990 0070, 5439 998 0070, 8200625683, 5439 970 0070, 5439 990 0070, 5439 998 0070, 8200625683, 5439 970 0080, 5439 998 0080, 8200846770, 5439 970 0080, 5439 998 0080, 8200846770, 5439 970 0090, 5439 998 0090, 8200905276, 5439 970 0110, 5439 988 0110, 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046, 5439 970 0111, 5439 988 0111, 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045, 5439 970 0112, 5439 988 0112, 6H3Q6K682FF, LR021044, 5439 970 0113, 5439 988 0113, 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043, 144116751R, 5439 971 0070, 5439 998 0070, 5439 970 0030, 5439 998 0030, 8200405203, 8200507856, 8200578381, 144116751R, 5439 970 0070, 5439 971 0070, 5439 998 0070, 8200625683
