0.4 kg (20x20x20 cm)

Geometrija (komplektas) BW-06-0016

BW-06-0016
Nauja
Sandelyje (36 Prekės)
78,44 €
Pristatoma per 3-8 dienas

BW-06-0016, KP39-92

Geometrija (komplektas) BW-06-0016 tubinoms 54399700027, 54399700030, 54399700046, 54399700053, 54399700059, 54399700060, 54399700061, 54399700062, 54399700063, 54399700064.

Daugiau info rasite žemiau



BW-06-0016 - Geometrija (komplektas)

Markė: TurboCentras

TurboCentras Kodas: BW-06-0016

BW-06-0016 - Alternatyvūs numeriai

TCP (TurboCentras part number): BW-06-0016

TCO (TurboCentras old part number): KP39-92

BW-06-0016 - Suderinamumo lentelė

Geometrija (komplektas) BW-06-0016 - Suderinami turbokompresoriai
TURBINOS MARKĖTURBINOS MODELISTURBINOS KODASTURBINOS DALIES NUMERISTURBINOS OE NUMERIS
BorgWarnerBV39-1867CBK426.18AVAXH543997000275439 970 0027, 5439 998 00278200360800, 8200578315
BorgWarnerBV39-1867DCG426.18AVAXH543997000305439 970 00308200405203, 8200507856, 8200578381
BorgWarnerBV39-1867DCG426.18AVAXH543997000465439 970 00468200678809
BorgWarnerBV39-1874DCB426.18BVAXC543997000535439 970 0053038253014P
BorgWarnerBV39-1874DCB426.18BVAXC543997000595439 970 0059, 5439 988 0059, 5439 990 005903G253010E, 03G253016D
BorgWarnerBV39-1874DCB426.18BVAXC543997000605439 970 0060, 5439 988 006003G253010F, 03G253016E
BorgWarnerBV39-1872FFAAA426.18BVAXC543997000615439 970 00616H4Q 6K682HF, 6H4Q-6K682-HD, LR004527
BorgWarnerBV39-1872FFAAA426.18BVAXC543997000625439 970 00626H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526
BorgWarnerBV39-1872FFAAA426.18BVAXC543997000635439 970 00636H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038
BorgWarnerBV39-1872FFAAA426.18BVAXC543997000645439 970 00646H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037
BorgWarnerBV39-1867DCG426.18AVAXH543997000665439 970 00668200552213, 8200588232
BorgWarnerBV39-1867DCG426.18AVAXC543997000705439 970 0070, 5439 971 0070, 5439 990 0070, 5439 998 0070144116751R, 8200625683
BorgWarnerBV39-1867DCG426.18AVAXH543997000805439 970 0080, 5439 998 00808200846770
BorgWarnerBV39-1867DCG426.18AVAXC543997000905439 970 0090, 5439 998 00908200905276
BorgWarnerBV39-1872FFAAA426.18BVAXC543997001105439 970 0110, 5439 988 01106H4Q-6K682-HG, 6H4Q6K682HG, LR021046
BorgWarnerBV39-1872FFAAA426.18BVAXC543997001115439 970 0111, 5439 988 01116H4Q-6K682-GH, 6H4Q6K682GH, LR021045
BorgWarnerBV39-1872FFAAA426.18BVAXC543997001125439 970 0112, 5439 988 01126H3Q6K682FF, LR021044
BorgWarnerBV39-1872FFAAA426.18BVAXC543997001135439 970 0113, 5439 988 01136H3Q-6K682-EF, 6H3Q6K682EF, LR021043

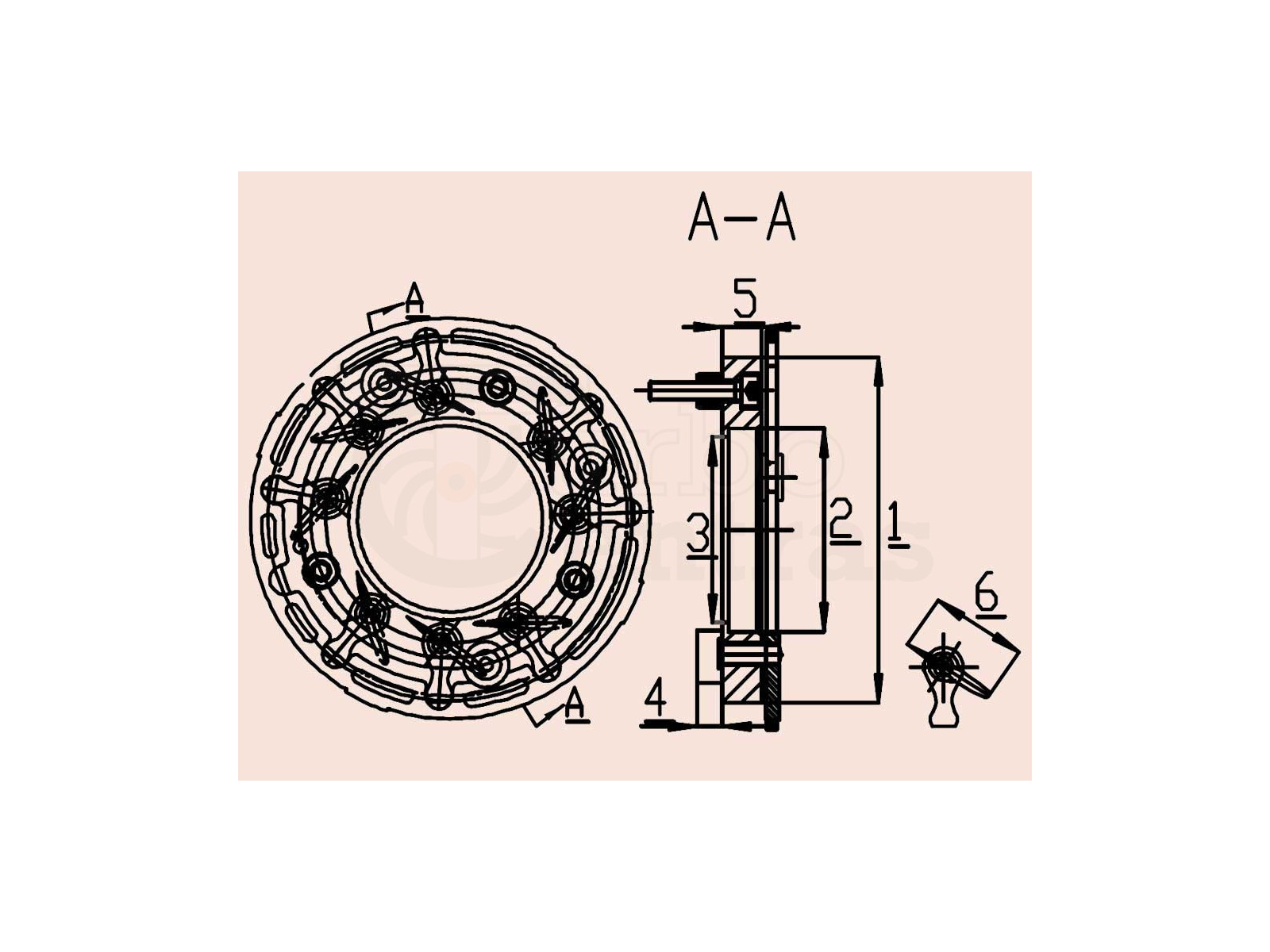

BW-06-0016 - Dalies savybės

Blades (Nozzle Ring blades count): 8

A (Size A): 79.00

B (Size B): 44.00

C (Size C): 35.50

D (Size D): 5.00

E (Size E): 5.20

F (Size F): 20.50

BW-06-0016

BW-06-0016, KP39-92
54399880113, 54399700113, 54399880112, 54399700112, 54399880111, 54399700111, 54399880110, 54399700110, 54399980090, 54399700090, 54399980080, 54399700080, 54399980070, 54399900070, 54399710070, 54399700070, 54399700066, 54399700064, 54399700063, 54399700062, 6H4Q6K682HF, 54399700061, 54399880060, 54399700060, 54399900059, 54399880059, 54399700059, 54399700053, 54399700046, 54399700030, 54399980027, 54399700027, 5439 970 0027, 5439 998 0027, 8200360800, 8200578315, 5439 970 0030, 8200405203, 8200507856, 8200578381, 5439 970 0046, 8200678809, 038253014P, 5439 970 0053, 03G253010E, 03G253016D, 5439 970 0059, 5439 988 0059, 5439 990 0059, 03G253010F, 03G253016E, 5439 970 0060, 5439 988 0060, 5439 970 0061, 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527, 5439 970 0062, 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526, 5439 970 0063, 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038, 5439 970 0064, 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037, 5439 970 0066, 8200552213, 8200588232, 144116751R, 5439 970 0070, 5439 971 0070, 5439 990 0070, 5439 998 0070, 8200625683, 5439 970 0080, 5439 998 0080, 8200846770, 5439 970 0090, 5439 998 0090, 8200905276, 5439 970 0110, 5439 988 0110, 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046, 5439 970 0111, 5439 988 0111, 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045, 5439 970 0112, 5439 988 0112, 6H3Q6K682FF, LR021044, 5439 970 0113, 5439 988 0113, 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043

Duomenys atnaujinti: 2023-07-12 15:17:11
