Nozzle ring assy GA-06-0034
GA-06-0034
New
In Stock (27 Items) €44.54
Tax excluded Delivered within 3-8 days
GA-06-0034, GT20-90
Nozzle ring assy. GA-06-0034 for turbos 454191-0001, 454191-0003, 454191-0004, 454191-0005, 454191-0006, 454191-0007, 454191-0008, 454191-0009, 454191-0010, 454191-0011.
See below for more info

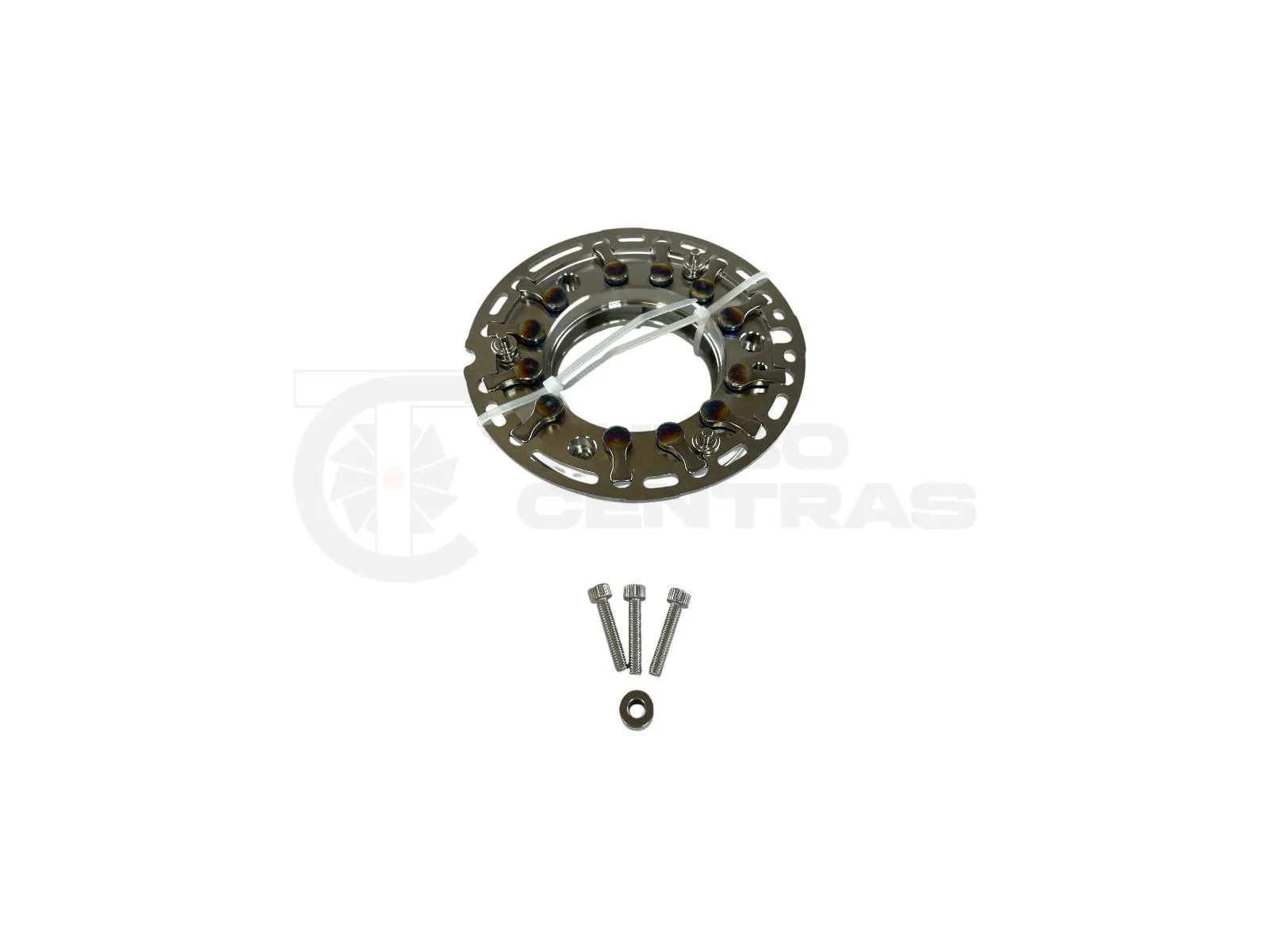

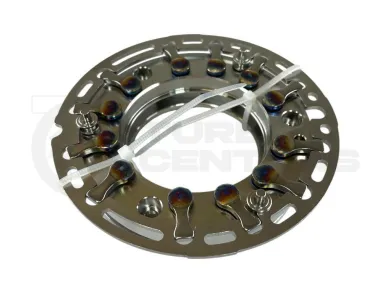

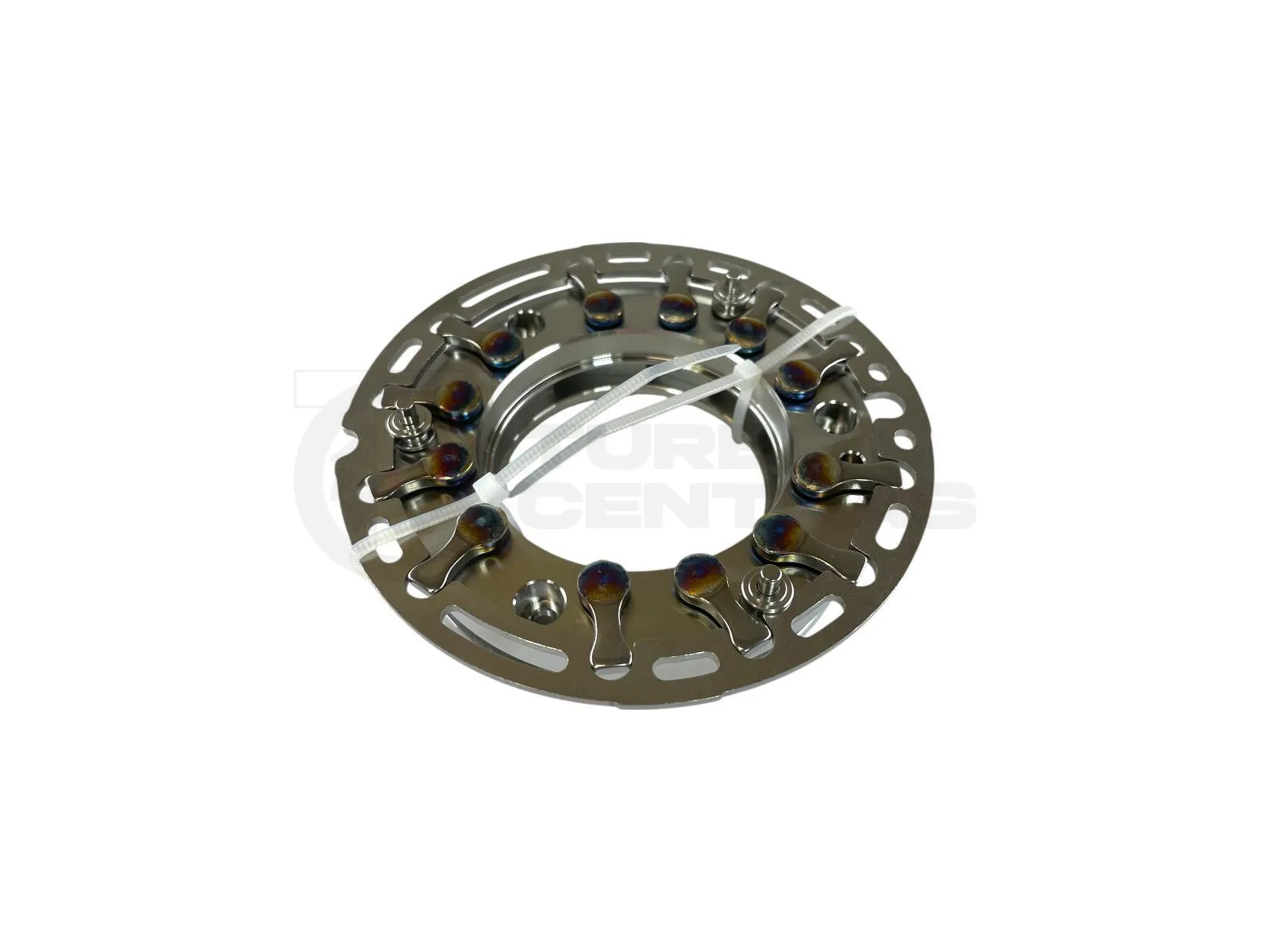

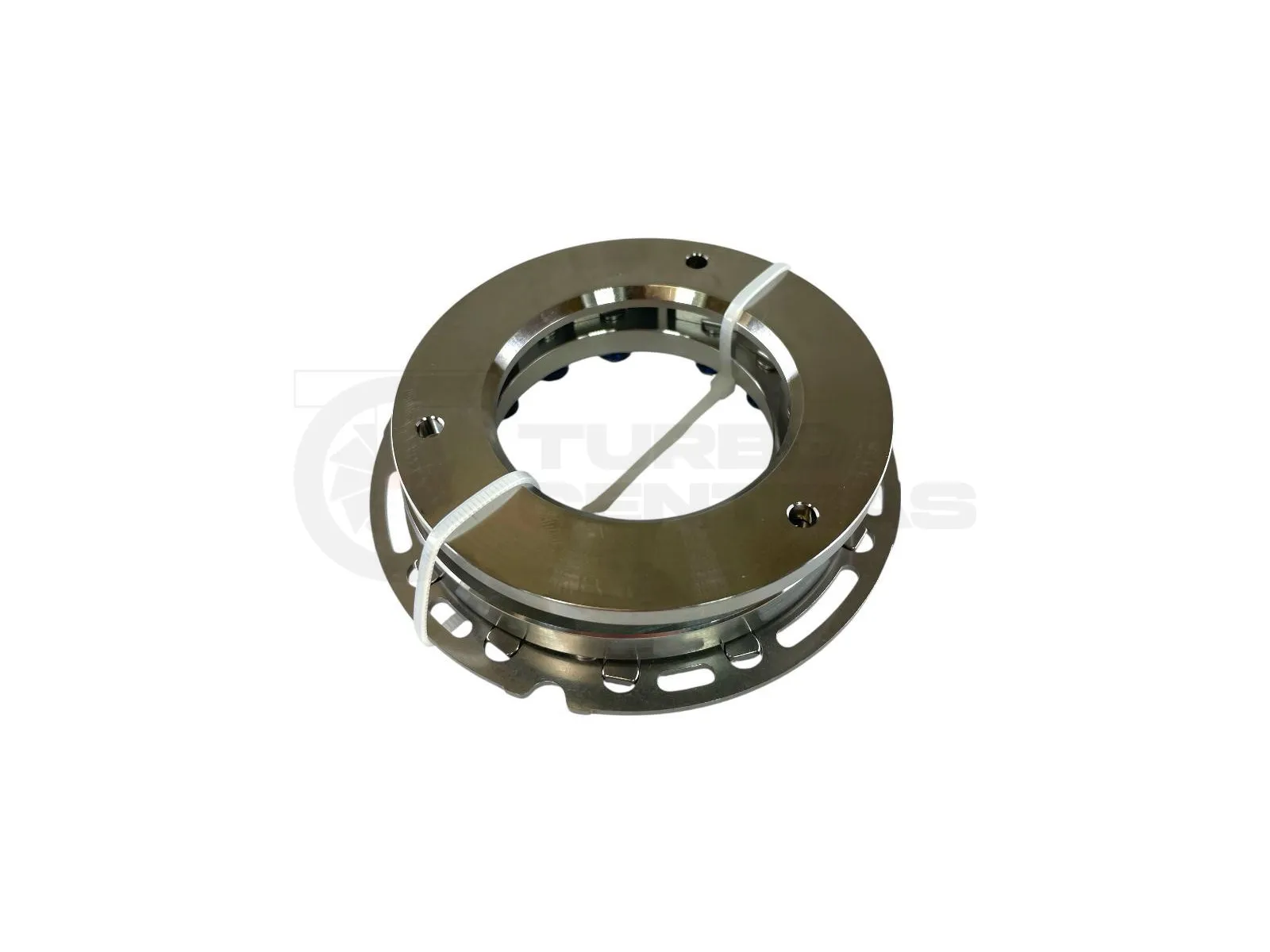

GA-06-0034 - Nozzle ring assy.
Brand: TurboCentras
TurboCentras Reference: GA-06-0034
GA-06-0034 - Alternative numbers
TCP (TurboCentras part number): GA-06-0034
TCO (TurboCentras old part number): GT20-90
GA-06-0034 - Compatibility table
| Nozzle ring assy. GA-06-0034 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| Garrett | GT2556V | 454191-0001 | 454191-0001 | -- |
| Garrett | GT2556V | 454191-0003 | 454191-0003, 454191-5003S | 11652248906, 11652248907, 2247691F |
| Garrett | GT2556V | 454191-0004 | 454191-0004, 454191-5004S | 22489079 |
| Garrett | GT2556V | 454191-0005 | 454191-0005, 454191-5005S | 22489069 |
| Garrett | GT2556V | 454191-0006 | 454191-0006, 454191-5006S | 11652248906, 11652248907, 2247691G |
| Garrett | GT2556V | 454191-0007 | 454191-0007, 454191-5007S | 2248906G |
| Garrett | GT2556V | 454191-0008 | 454191-0008, 454191-5008S | 11652248906, 11652248907, 2247691H |
| Garrett | GT2556V | 454191-0009 | 454191-0009, 454191-5009S | 2248906H |
| Garrett | GT2556V | 454191-0010 | 454191-0010, 454191-5010S | 2248906H |
| Garrett | GT2556V | 454191-0011 | 454191-0011, 454191-5011S | 11652248906, 11652248907, 2247691H |
| Garrett | GT2556V | 454191-0012 | 454191-0012, 454191-5012S | 2248906H |
| Garrett | GT2556V | 454191-0013 | 454191-0013, 454191-5013S | 2248907H |
| Garrett | GT2556V | 454191-0015 | 454191-0015, 454191-5015S | 2248906I08 |
| Garrett | GT2052V | 454192-0001 | 454192-0001 | 074145703E |
| Garrett | GT2252V | 454192-0005 | 454192-0005, 454192-5005S, 454192-9005W | 074145703E V248 |
| Garrett | GT2052V | 454205-0001 | 454205-0001, 454205-5001S | 074145701D |
| Garrett | GT2052V | 454205-0006 | 454205-0006, 454205-5006S | 074145701D, 074145701DV248 |
| Garrett | GT2056V | 700935-0001 | 700935-0001, 700935-5001S | 11657785992, 11657785993, 7785991B |
| Garrett | GT2056V | 700935-0003 | 700935-0003, 700935-5003S | 7785993B |
| Garrett | GT2256V | 704361-0001 | 704361-0001 | 2249950.9 |
| Garrett | GT2256V | 704361-0004 | 704361-0004, 704361-5004S | 11652249950, 11652249951, 11657785989, 11657785990, 11657786070, 11657786071, 2248834E |
| Garrett | GT2256V | 704361-0005 | 704361-0005, 704361-5005S | 11652249950, 11652249951, 11657785989, 11657785990, 11657786070, 11657786071, 22499519 |
| Garrett | GT2256V | 704361-0006 | 704361-0006, 704361-5006S | 22499509 |
| Garrett | GT2052V | 705954-0001 | 705954-0001 | -- |
| Garrett | GT2052V | 705954-0002 | 705954-0002, 705954-5002S | 144112W203 |
| Garrett | GT2052V | 705954-0003 | 705954-0003, 705954-5003S | 144112W203 |
| Garrett | GT2052V | 705954-0004 | 705954-0004, 705954-5004S | 144112W203 |
| Garrett | GT2052V | 705954-0005 | 705954-0005 | -- |
| Garrett | GT2052V | 705954-0007 | 705954-0007, 705954-5007S | 144112W203 |
| Garrett | GT2052V | 705954-0008 | 705954-0008, 705954-5008S | 14411VC100 |
| Garrett | GT2052V | 705954-0009 | 705954-0009, 705954-5009S | 14411VC100 |
| Garrett | GT2052V | 705954-0012 | 705954-0012, 705954-5012S | 144112W203 |
| Garrett | GT2052V | 705954-0014 | 705954-0014, 705954-5014S | 144112W203 |
| Garrett | GT2256V | 707114-0001 | 707114-0001, 707114-5001S | 500379251 |
| Garrett | GT2052V | 726442-0001 | 726442-0001, 726442-5001S | 14411-2W203, 14411-2W204 |
| Garrett | GT2256V | 750510-0001 | 750510-0001, 750510-5001S | 504084355 |
| Garrett | GT2256V | 751758-0001 | 751758-0001, 751758-5001S, 751758-9001S | 500379251 |
| Garrett | GT2256V | 751758-0002 | 751758-0002, 751758-5002S, 751758-9002S | 500379251 |
GA-06-0034 - Part Properties
Blades (Nozzle Ring blades count): 12
A (Size A): 90.00
B (Size B): 57.50
C (Size C): 55.00
D (Size D): 7.50
E (Size E): 8.50
F (Size F): 20.50
GA-06-0034, GT20-90
074145703EV248, 454191-0001, 11652248906, 11652248907, 2247691F, 454191-0003, 454191-5003S, 22489079, 454191-0004, 454191-5004S, 22489069, 454191-0005, 454191-5005S, 11652248906, 11652248907, 2247691G, 454191-0006, 454191-5006S, 2248906G, 454191-0007, 454191-5007S, 11652248906, 11652248907, 2247691H, 454191-0008, 454191-5008S, 2248906H, 454191-0009, 454191-5009S, 2248906H, 454191-0010, 454191-5010S, 11652248906, 11652248907, 2247691H, 454191-0011, 454191-5011S, 2248906H, 454191-0012, 454191-5012S, 2248907H, 454191-0013, 454191-5013S, 2248906I08, 454191-0015, 454191-5015S, 074145703E, 454192-0001, 074145703E V248, 454192-0005, 454192-5005S, 454192-9005W, 074145701D, 454205-0001, 454205-5001S, 074145701D, 074145701DV248, 454205-0006, 454205-5006S, 11657785992, 11657785993, 700935-0001, 700935-5001S, 7785991B, 700935-0003, 700935-5003S, 7785993B, 2249950.9, 704361-0001, 11652249950, 11652249951, 11657785989, 11657785990, 11657786070, 11657786071, 2248834E, 704361-0004, 704361-5004S, 11652249950, 11652249951, 11657785989, 11657785990, 11657786070, 11657786071, 22499519, 704361-0005, 704361-5005S, 22499509, 704361-0006, 704361-5006S, 705954-0001, 144112W203, 705954-0002, 705954-5002S, 144112W203, 705954-0003, 705954-5003S, 144112W203, 705954-0004, 705954-5004S, 705954-0005, 144112W203, 705954-0007, 705954-5007S, 14411VC100, 705954-0008, 705954-5008S, 14411VC100, 705954-0009, 705954-5009S, 144112W203, 705954-0012, 705954-5012S, 144112W203, 705954-0014, 705954-5014S, 500379251, 707114-0001, 707114-5001S, 14411-2W203, 14411-2W204, 726442-0001, 726442-5001S, 504084355, 750510-0001, 750510-5001S, 500379251, 751758-0001, 751758-5001S, 751758-9001S, 500379251, 751758-0002, 751758-5002S, 751758-9002S
