Nozzle ring assy. GA-06-0027 GT17-95
Nozzle ring assy. GA-06-0027 GT17-95
Nozzle ring assy. GA-06-0027 GT17-95
Nozzle ring assy. GA-06-0027 GT17-95
Nozzle ring assy. GA-06-0027 GT17-95
Nozzle ring assy. GA-06-0027 GT17-95

0.4 kg (20x20x20 cm)

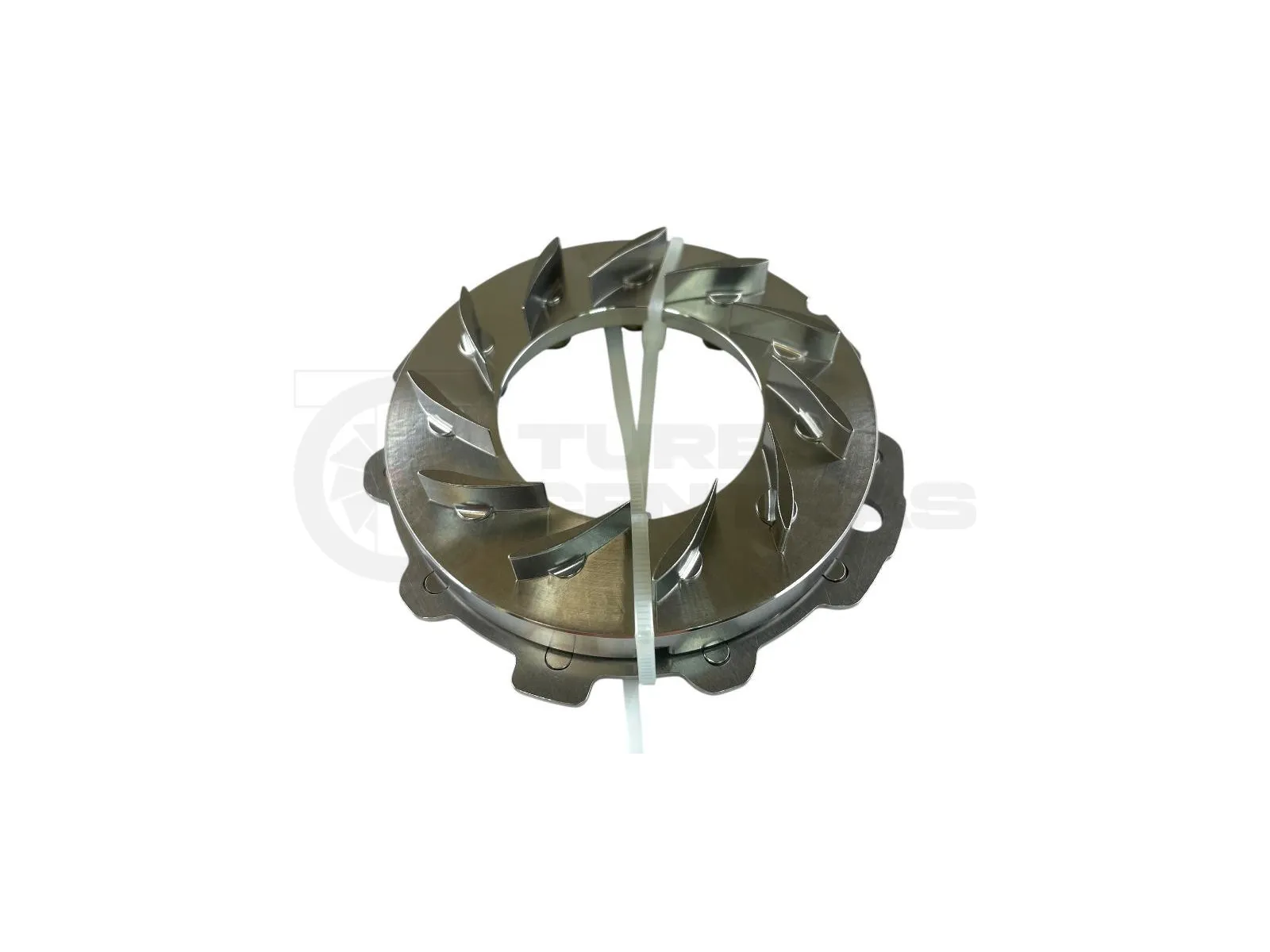

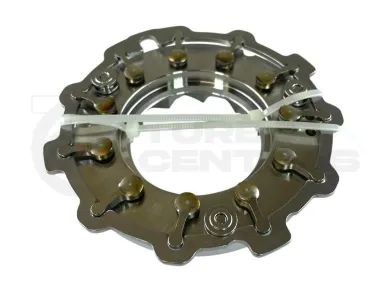

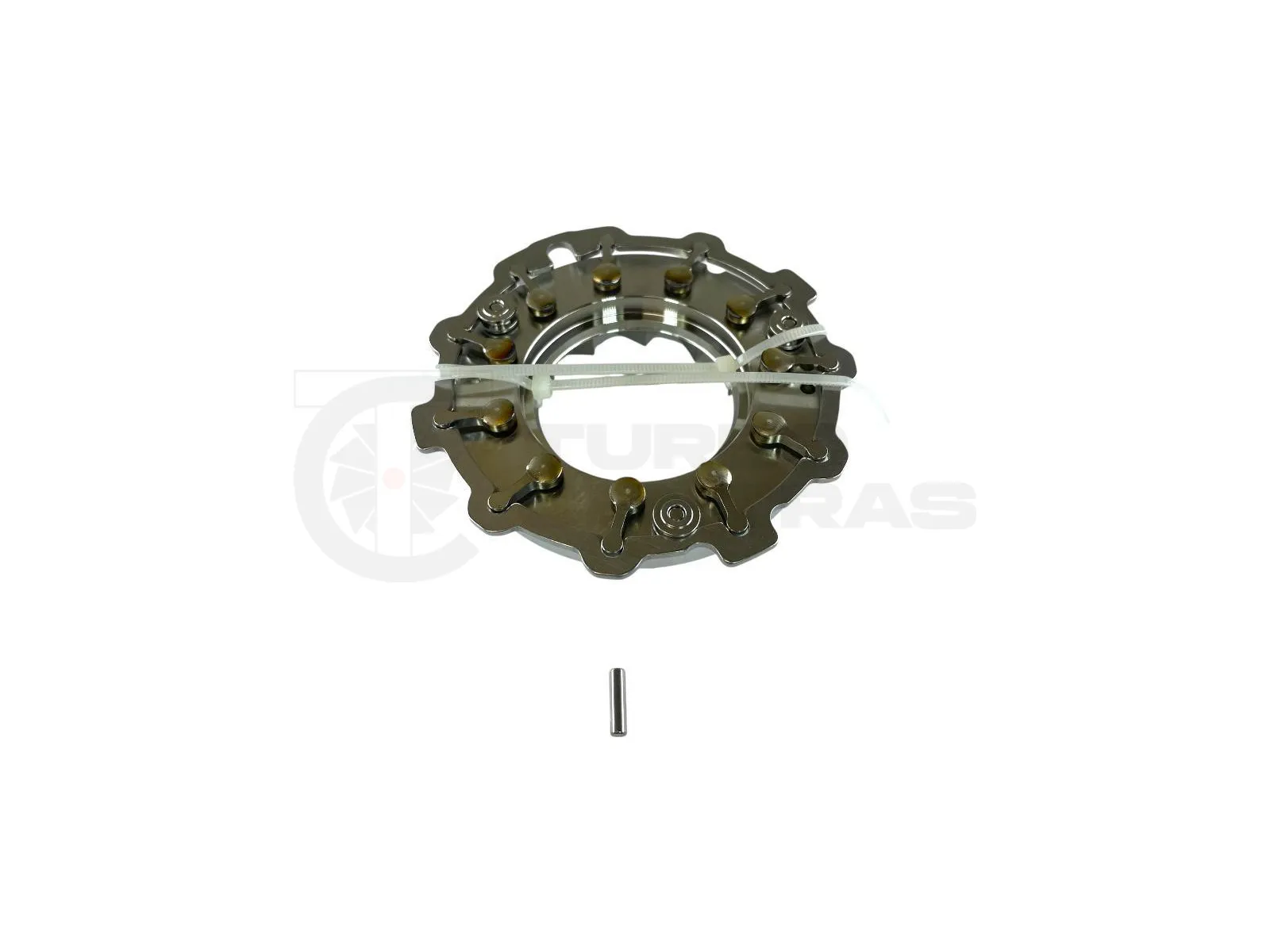

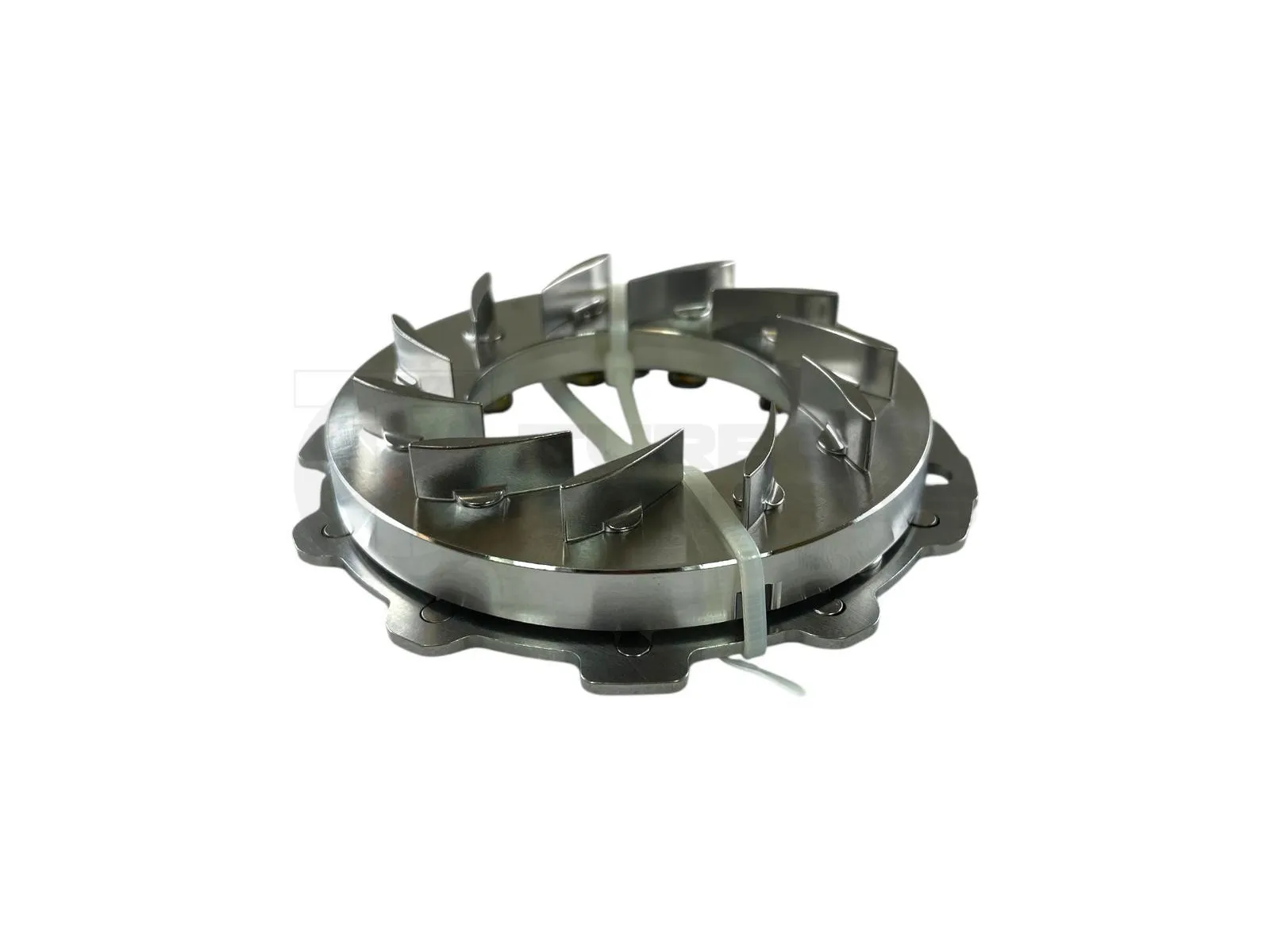

Nozzle ring assy GA-06-0027

GA-06-0027
New
In Stock (148 Items)
€42.96
Tax excluded Delivered within 3-8 days

GA-06-0027, GT17-95

Nozzle ring assy. GA-06-0027 for turbos 752990-0004, 752990-0006, 752990-0007, 752990-0007-R, 752990-5007S, 752990-9007S, 757042-0008, 757042-0010, 757042-0011, 757042-0013.

See below for more info

worldwide turbocharger market

GA-06-0027

Brand: TurboCentras
Reference: GA-06-0027

Part numbers

TCP: GA-06-0027
TCO: GT17-95

Part properties

Blades: 11
A: 83.00
B: 51.50
D: 8.00
E: 8.50
F: 20.00

Used in turbochargers

Garrett 752990-0004 GT17
Garrett 752990-0006 GT17
Garrett 752990-0007 GT17
Garrett 752990-0007-R GT17
Garrett 752990-5007S GT17
Garrett 752990-9007S GT17
Garrett 757042-0008 GT17
Garrett 757042-0010 GT17
Garrett 757042-0011 GT17
Garrett 757042-0013 GT17
Garrett 757042-0014 GT17
Garrett 757042-0015 GT17
Garrett 757042-0016 GT17
Garrett 757042-0018 GT17
Garrett 762965-0001 GT17
Garrett 762965-0002 GT17
Garrett 762965-0003 GT17
Garrett 762965-0007 GT17
Garrett 762965-0008 GT17
Garrett 762965-0009 GT17
Garrett 762965-0017 GT17
Garrett 762965-0020 GT17
Garrett 765176-0001 GT17
Garrett 765176-0002 GT17
Garrett 765176-0003 GT17
Garrett 765314-0003 GT17
Garrett 765314-0004 GT17
Garrett 769674-0002 GT17
Garrett 769674-0003 GT17
Garrett 769674-0004 GT17
Garrett 769674-0006 GT17
Garrett 769701-0001 GT17
Garrett 769701-0002 GT17
Garrett 769701-0003 GT17
Garrett 771953-0001 GT17
Garrett 775159-0001 GT17
Garrett 777159-0002 GT17
Garrett 777159-0003 GT17
Garrett 777162-0001 GT17
Garrett 778400-0001 GT17
Garrett 778400-0002 GT17
Garrett 778400-0003 GT17
Garrett 778400-0004 GT17
Garrett 778400-0005 GT17
Garrett 780502-0001 GT17
Garrett 782097-0001 GT17
Garrett 783887-0001 GT17
Garrett 786137-0001 GT15
Garrett 786137-0002 GT15
Garrett 786137-0003 GT15
Garrett 786880-0006 GT17
Garrett 786880-0006-R GT17
Garrett 786880-0008 GT17
Garrett 786880-0012 GT17
Garrett 786880-0019 GT17
Garrett 786880-0021 GT17
Garrett 786880-0023 GT17
Garrett 787556-0016 GT17
Garrett 787556-0017 GT17
Garrett 787556-0017-R GT17
Garrett 787556-0022 GT17
Garrett 788479-0003 GT17
Garrett 788479-0006 GT17
Garrett 790179-0002 GT17
Garrett 798015-0002 GT17
Garrett 798128-0002 GT17
Garrett 798128-0004 GT17
Garrett 798128-0006 GT17
Garrett 800089-0001 GT17
Garrett 800089-0003 GT17
Garrett 854800-0001 GT17


GA-06-0027 - Nozzle ring assy.

Brand: TurboCentras

TurboCentras Reference: GA-06-0027

GA-06-0027 - Alternative numbers

TCP (TurboCentras part number): GA-06-0027

TCO (TurboCentras old part number): GT17-95

GA-06-0027 - Compatibility table

Nozzle ring assy. GA-06-0027 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO PART NUMBERTURBO OE NUMBER
GarrettGTB1752VK752990-0004752990-0004, 752990-5004S, 752990-9007SA6460900980
GarrettGTB1752VK752990-0006752990-0006, 752990-5006S, 752990-9007SA6460901080
GarrettGTB1752VK752990-0007752990-0007, 752990-5007S, 752990-9007SA6460901080
GarrettGTB1752VK752990-0007-R752990-0007, 752990-5007S, 752990-9007SA6460901080
GarrettGTB1752VK752990-5007S752990-0007, 752990-5007S, 752990-9007SA6460901080
GarrettGTB1752VK752990-9007S752990-0007, 752990-5007S, 752990-9007SA6460901080
GarrettGTB1749MV757042-0008757042-0008, 757042-5008S03G253010AV100
GarrettGTB1749MV757042-0010757042-0010, 757042-5010S03G253019NV395
GarrettGTB1749MV757042-0011757042-0011, 757042-5011S03G253010AV100
GarrettGTB1749MV757042-0013757042-0013, 757042-5013S03G253014KV100
GarrettGTB1749MV757042-0014757042-0014, 757042-5014S03G253010A
GarrettGTB1749MV757042-0015757042-0015, 757042-5015S03G253010AV100
GarrettGTB1749MV757042-0016757042-0016, 757042-5016S03G253010AV100
GarrettGTB1749MV757042-0018757042-0018, 757042-5018S, 757042-9018S03G253010AV100
GarrettGTB1752VK762965-0001762965-0001, 762965-5001S11657794022, 7794020G
GarrettGTB1752VK762965-0002762965-0002, 762965-5002S11657794022, 7794020G
GarrettGTB1752VK762965-0003762965-0003, 762965-5003S7794022G
GarrettGTB1752V762965-0007762965-0007, 762965-5007S11657794022, 7794020H07
GarrettGTB1752VK762965-0008762965-0008, 762965-5008S11657794022, 7794021H07
GarrettGTB1752VK762965-0009762965-0009, 762965-5009S7794022H07
GarrettGTB1752VK762965-0017762965-0017, 762965-5017S7794021K10
GarrettGTB1752VK762965-0020762965-0020, 762965-5020S, 762965-9020S7794021K10
GarrettGTB1752LV765176-0001765176-0001, 765176-5001S8200611413A
GarrettGT1752V765176-0002765176-0002--
GarrettGTB1752LV765176-0003765176-0003--
GarrettGTB1756VK765314-0003765314-0003, 765314-5003S059145715M
GarrettGTB1756VK765314-0004765314-0004, 765314-5004S059145715R
GarrettGTB1752VK769674-0002769674-0002--
GarrettGTB1752VK769674-0003769674-0003, 769674-5003S0375N3, 0375S2, 9.68365788E9, 9683657880, MN982043
GarrettGTB1752VK769674-0004769674-0004, 769674-5004S0375N3, 0375S2, 9683657880, 9684849580, MN982043
GarrettGTB1752VKL769674-0006769674-0006, 769674-5006S0375N3, 0375S2, 9674628780, MN982043
GarrettGTB1756VK769701-0001769701-0001, 769701-5001S059145721E
GarrettGTB1756VK769701-0002769701-0002, 769701-5002S059145721E
GarrettGTB1756VK769701-0003769701-0003, 769701-5003S059145721F
GarrettGTB1756VK771953-0001771953-0001--
GarrettGTB1752LV775159-0001775159-00018200769142
GarrettGTB1756VK777159-0002777159-0002, 777159-5002S059145721G
GarrettGTB1756VK777159-0003777159-0003, 777159-5003S, 777159-9003S059145721G
GarrettGTB1756VK777162-0001777162-0001, 777162-5001S059145721D
GarrettGTB1749VK778400-0001778400-0001--
GarrettGTB1749VK778400-0002778400-0002--
GarrettGTB1749VK778400-0003778400-0003, 778400-5003S02C2C40364, AX2Q6K682CA, LR013202
GarrettGTB1749VK778400-0004778400-0004, 778400-5004SAX2Q6K682CB, C2Z19947, JDE36219
GarrettGTB1749VK778400-0005778400-0005, 778400-5005S, 778400-9005SAX2Q6K682CB
GarrettGTB1752VLK780502-0001780502-0001, 780502-5001S28231-2F100, 282312F100
GarrettGTB1752LV782097-0001782097-0001, 782097-5001S, 782097-9001W8200870469
GarrettGTB1752LV783887-0001783887-0001--
GarrettGTB1549V786137-0001786137-0001, 786137-5001S55570748
GarrettGTB1549VK786137-0002786137-0002--
GarrettGTB1549V786137-0003786137-0003, 786137-5003S, 786137-9003W55581063
GarrettGTB1749VK786880-0006786880-0006, 786880-5006S1741779, 1946738, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB
GarrettGTB1749VK786880-0006-R786880-0006, 786880-9006S1741779, 1946738, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB
GarrettGTB1749VK786880-0008786880-0008--
GarrettGTB1749VK786880-0012786880-0012, 786880-5012SBK2Q6K682HA
GarrettGTB1749VK786880-0019786880-0019, 786880-5019SBK2Q6K682HB
GarrettGTB1749VK786880-0021786880-0021, 786880-5021SBK2Q6K682GB
GarrettGTB1749VK786880-0023786880-0023, 786880-5023SBK2Q6K682HA, BK2Q6K682HC
GarrettGTB1749V787556-0016787556-0016, 787556-5016SBK3Q-6K682-PC, BK3Q6K682PC
GarrettGTB1749V787556-0017787556-0017, 787556-5017SBK3Q-6K682-CB, BK3Q6K682CB
GarrettGTB1749V787556-0017-R787556-0017, 787556-9017SBK3Q-6K682-CB, BK3Q6K682CB
GarrettGTB1749V787556-0022787556-0022, 787556-5022SBK3Q-6K682-CC, BK3Q6K682CC
GarrettGTB1749VK788479-0003788479-0003, 788479-5003SBH1Q-6K682-CA, BH1Q6K682CA
GarrettGTB1749VK788479-0006788479-0006, 788479-5006SBH1Q-6K682-CB, BH1Q6K682CB
GarrettGTB1549LV790179-0002790179-0002, 790179-5002S, 790179-9002W8200994322B
GarrettGTB1752VLK798015-0002798015-0002, 798015-5002S6710900380, A6710900380
GarrettGTB1749VK798128-0002798128-0002, 798128-5002S9676934380, CU3Q6K682AB
GarrettGTB1749VK798128-0004798128-0004, 798128-5004S9802446680, CU3Q6K682BA
GarrettGTB1749VK798128-0006798128-0006, 798128-5006S9802446680, CU3Q6K682BB
GarrettGTB1756VK800089-0001800089-0001AH4Q6K682GA, LR022790
GarrettGTB1756VK800089-0003800089-0003, 800089-5003SAH4Q6K682GB, LR022790
GarrettGTB1749V854800-0001854800-0001, 854800-5001W, 854800-9001WBK3Q-6K682-PC, BK3Q6K682PC

GA-06-0027 - Part Properties

Blades (Nozzle Ring blades count): 11

A (Size A): 83.00

B (Size B): 51.50

D (Size D): 8.00

E (Size E): 8.50

F (Size F): 20.00

GA-06-0027
GA-06-0027, GT17-95
752990-0004, 752990-5004S, 752990-9007S, A6460900980, 752990-0006, 752990-5006S, 752990-9007S, A6460901080, 752990-0007, 752990-5007S, 752990-9007S, A6460901080, 752990-0007, 752990-5007S, 752990-9007S, A6460901080, 752990-0007, 752990-5007S, 752990-9007S, A6460901080, 752990-0007, 752990-5007S, 752990-9007S, A6460901080, 03G253010AV100, 757042-0008, 757042-5008S, 03G253019NV395, 757042-0010, 757042-5010S, 03G253010AV100, 757042-0011, 757042-5011S, 03G253014KV100, 757042-0013, 757042-5013S, 03G253010A, 757042-0014, 757042-5014S, 03G253010AV100, 757042-0015, 757042-5015S, 03G253010AV100, 757042-0016, 757042-5016S, 03G253010AV100, 757042-0018, 757042-5018S, 757042-9018S, 11657794022, 762965-0001, 762965-5001S, 7794020G, 11657794022, 762965-0002, 762965-5002S, 7794020G, 762965-0003, 762965-5003S, 7794022G, 11657794022, 762965-0007, 762965-5007S, 7794020H07, 11657794022, 762965-0008, 762965-5008S, 7794021H07, 762965-0009, 762965-5009S, 7794022H07, 762965-0017, 762965-5017S, 7794021K10, 762965-0020, 762965-5020S, 762965-9020S, 7794021K10, 765176-0001, 765176-5001S, 8200611413A, 765176-0002, 765176-0003, 059145715M, 765314-0003, 765314-5003S, 059145715R, 765314-0004, 765314-5004S, 769674-0002, 0375N3, 0375S2, 769674-0003, 769674-5003S, 9.68365788E9, 9683657880, MN982043, 0375N3, 0375S2, 769674-0004, 769674-5004S, 9683657880, 9684849580, MN982043, 0375N3, 0375S2, 769674-0006, 769674-5006S, 9674628780, MN982043, 059145721E, 769701-0001, 769701-5001S, 059145721E, 769701-0002, 769701-5002S, 059145721F, 769701-0003, 769701-5003S, 771953-0001, 775159-0001, 8200769142, 059145721G, 777159-0002, 777159-5002S, 059145721G, 777159-0003, 777159-5003S, 777159-9003S, 059145721D, 777162-0001, 777162-5001S, 778400-0001, 778400-0002, 02C2C40364, 778400-0003, 778400-5003S, AX2Q6K682CA, LR013202, 778400-0004, 778400-5004S, AX2Q6K682CB, C2Z19947, JDE36219, 778400-0005, 778400-5005S, 778400-9005S, AX2Q6K682CB, 28231-2F100, 282312F100, 780502-0001, 780502-5001S, 782097-0001, 782097-5001S, 782097-9001W, 8200870469, 783887-0001, 55570748, 786137-0001, 786137-5001S, 786137-0002, 55581063, 786137-0003, 786137-5003S, 786137-9003W, 1741779, 1946738, 786880-0006, 786880-5006S, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB, 1741779, 1946738, 786880-0006, 786880-9006S, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB, 786880-0008, 786880-0012, 786880-5012S, BK2Q6K682HA, 786880-0019, 786880-5019S, BK2Q6K682HB, 786880-0021, 786880-5021S, BK2Q6K682GB, 786880-0023, 786880-5023S, BK2Q6K682HA, BK2Q6K682HC, 787556-0016, 787556-5016S, BK3Q-6K682-PC, BK3Q6K682PC, 787556-0017, 787556-5017S, BK3Q-6K682-CB, BK3Q6K682CB, 787556-0017, 787556-9017S, BK3Q-6K682-CB, BK3Q6K682CB, 787556-0022, 787556-5022S, BK3Q-6K682-CC, BK3Q6K682CC, 788479-0003, 788479-5003S, BH1Q-6K682-CA, BH1Q6K682CA, 788479-0006, 788479-5006S, BH1Q-6K682-CB, BH1Q6K682CB, 790179-0002, 790179-5002S, 790179-9002W, 8200994322B, 6710900380, 798015-0002, 798015-5002S, A6710900380, 798128-0002, 798128-5002S, 9676934380, CU3Q6K682AB, 798128-0004, 798128-5004S, 9802446680, CU3Q6K682BA, 798128-0006, 798128-5006S, 9802446680, CU3Q6K682BB, 800089-0001, AH4Q6K682GA, LR022790, 800089-0003, 800089-5003S, AH4Q6K682GB, LR022790, 854800-0001, 854800-5001W, 854800-9001W, BK3Q-6K682-PC, BK3Q6K682PC

Data updated: 2024-05-28 12:07:37
