1 kg (20x20x20 cm)

Nozzle ring assy GA-06-0009

GA-06-0009
New
In Stock (57 Items)
€40.18
Delivered within 3-8 days

GA-06-0009, GT14-93

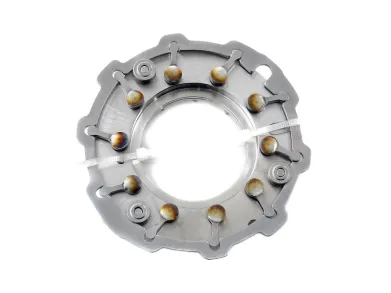

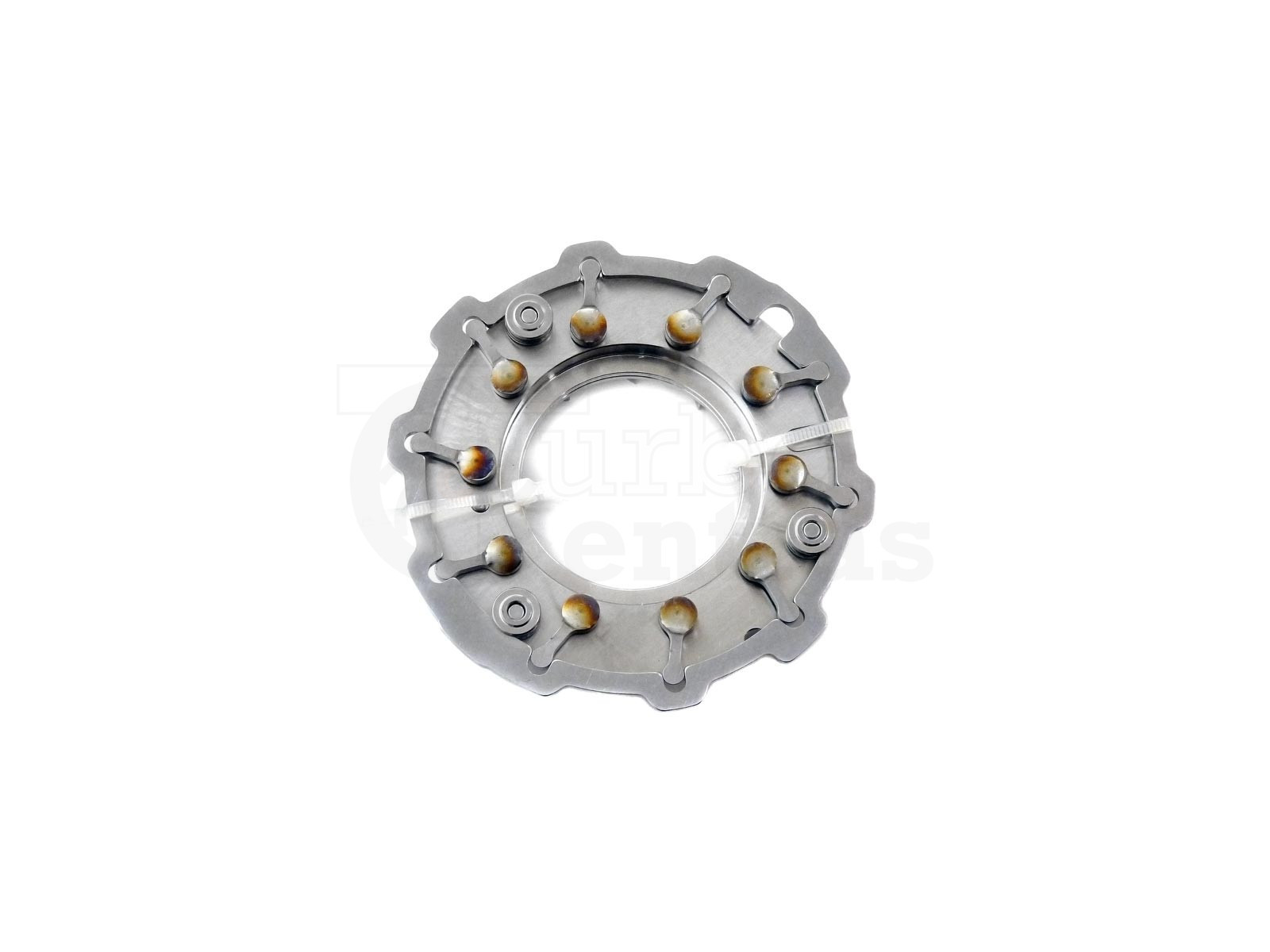

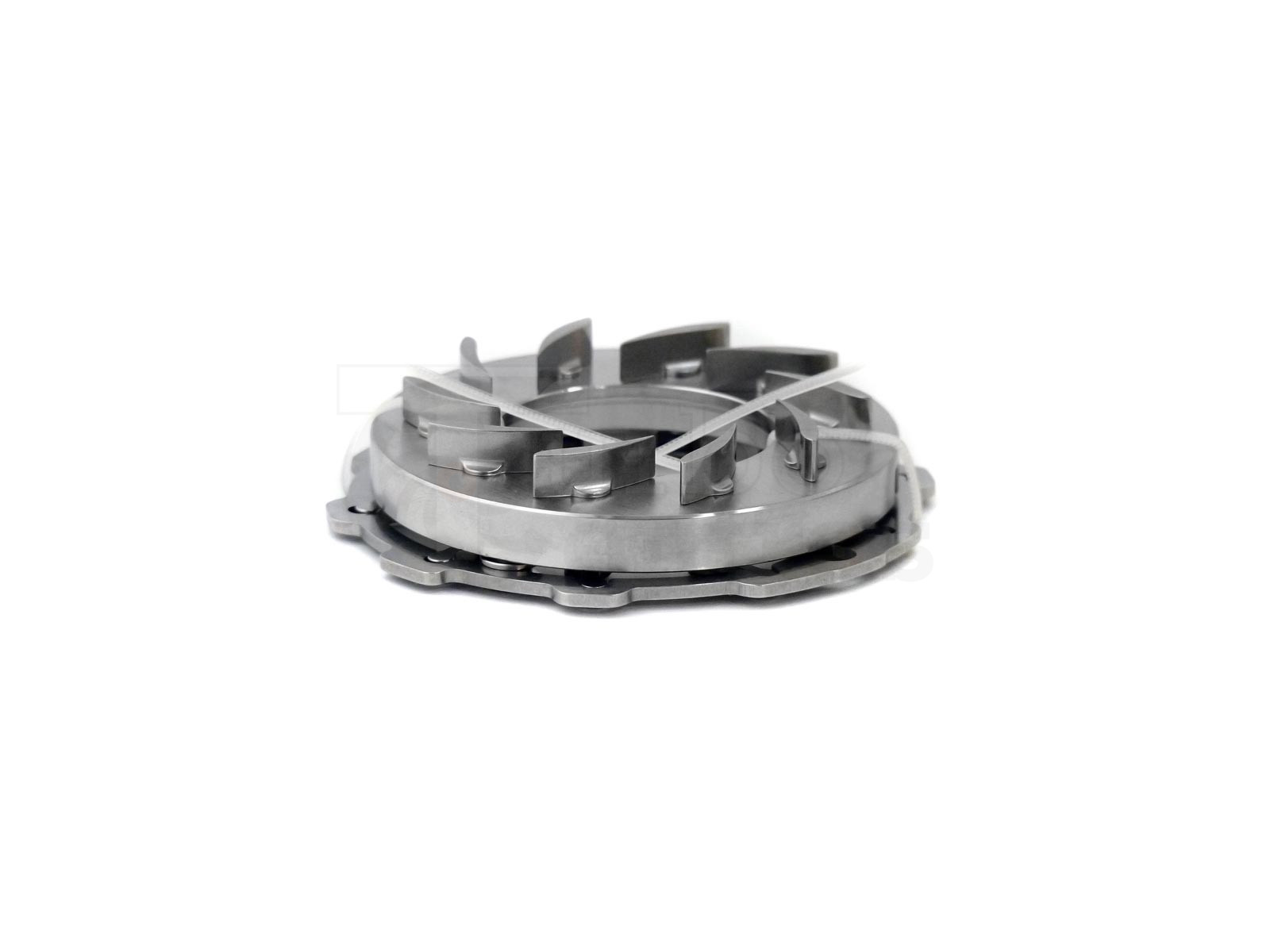

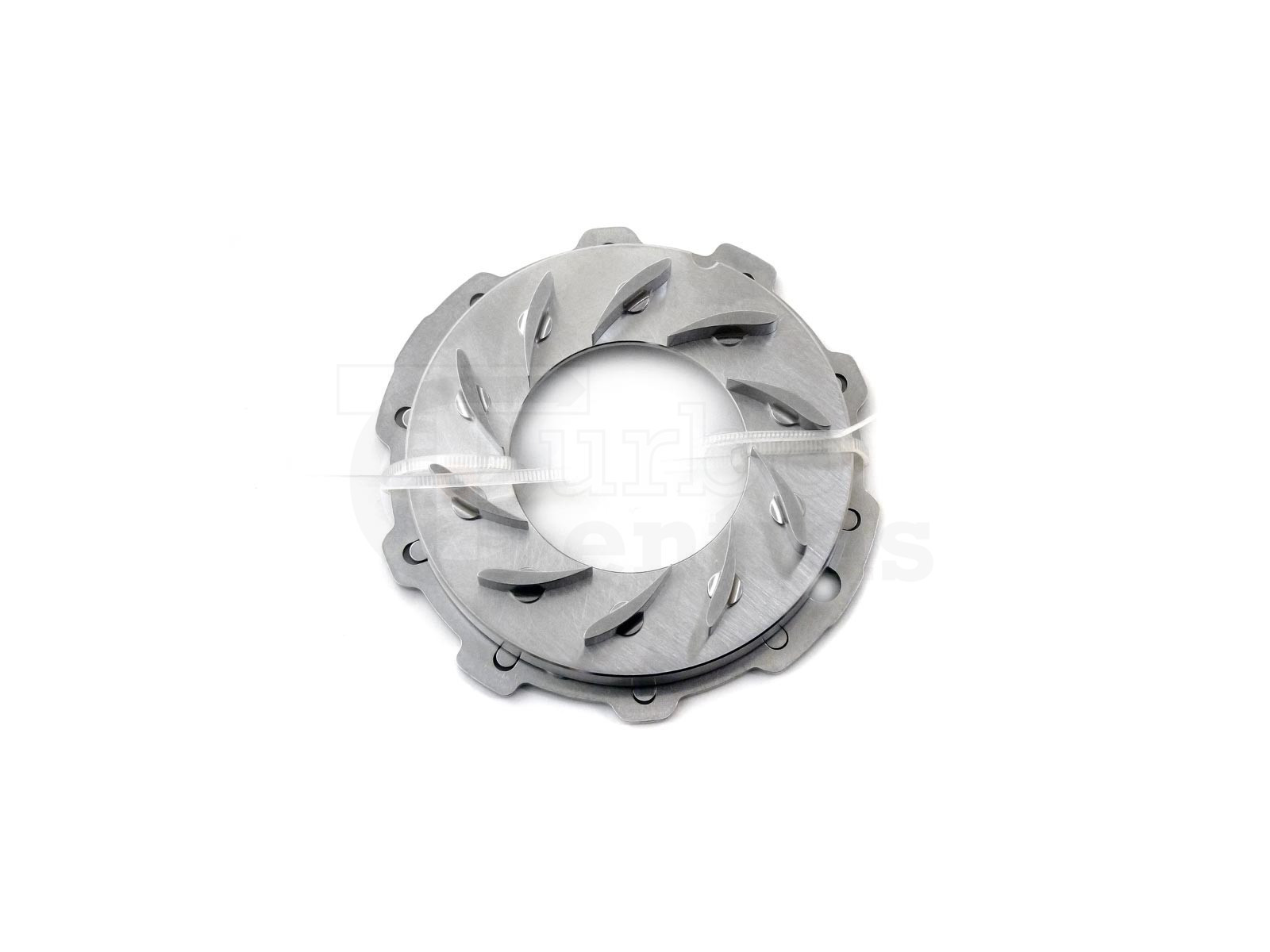

Nozzle ring assy. GA-06-0009 for turbos 766924-0001, 774193-0003, 774193-0004, 775274-0002, 775274-0003, 783248-0003, 783248-0004, 783248-0005, 783583-0003, 783583-0004.

See below for more info

GA-06-0009

Brand: TurboCentras
Reference: GA-06-0009

Part numbers

TCP: GA-06-0009
TCO: GT14-93

Part properties

Blades: 10
A: 78.10
B: 50.00
C: 41.20
D: 6.50
E: 8.50
F: 20.00

Used in turbochargers

Garrett 766924-0001 GT14
Garrett 774193-0003 GT14
Garrett 774193-0004 GT14
Garrett 775274-0002 GT14
Garrett 775274-0003 GT14
Garrett 783248-0003 GT14
Garrett 783248-0004 GT14
Garrett 783248-0005 GT14
Garrett 783583-0003 GT14
Garrett 783583-0004 GT14
Garrett 784521-0001 GT14
Garrett 792290-0002 GT14
Garrett 792290-0003 GT14
Garrett 792290-0004 GT14
Garrett 803956-0001 GT14
Garrett 803956-0002 GT14
Garrett 806497-0001 GT14
Garrett 806497-0002 GT14
Garrett 806497-0003 GT14
Garrett 806498-0001 GT14
Garrett 806498-0003 GT14

Included parts

VNT Nozzle ring GT14-93-1


GA-06-0009 - Nozzle ring assy.

Brand: TurboCentras

TurboCentras Reference: GA-06-0009

GA-06-0009 - Alternative numbers

TCP (TurboCentras part number): GA-06-0009

TCO (TurboCentras old part number): GT14-93

GA-06-0009 - Compatibility table

Nozzle ring assy. GA-06-0009 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO PART NUMBERTURBO OE NUMBER
GarrettGTB1446VZ766924-0001766924-0001, 766924-5001S55209153
GarrettGTB1446VZ774193-0003774193-0003, 774193-5003S8200753383G
GarrettGTB1446VZ774193-0004774193-0004, 774193-5004S, 774193-9004S8200753383H
GarrettGTB1444VZ775274-0002775274-0002, 775274-5002S28201-2A701, 282012A701, M28201-2A700, M28201-2A701, M282012A700, M282012A701
GarrettGTB1444VZ775274-0003775274-0003, 775274-5003S28201-2A710, 282012A710
GarrettGT14783248-0003783248-0003, 783248-5003S9688361580
GarrettGT14783248-0004783248-0004, 783248-5004S9688361580
GarrettGT14783248-0005783248-0005, 783248-5005S9688361580
GarrettGTB1449VZ783583-0003783583-0003, 783583-5004S9671413780
GarrettGTB1449VZ783583-0004783583-0004, 783583-5003S9671413780
GarrettGTB1446VZ784521-0001784521-000155209153, 55220701, 71724373, 71724374, 71794564
GarrettGTB1446VZ792290-0002792290-0002, 792290-5002S03L253016M
GarrettGTB1446VZ792290-0003792290-0003, 792290-5003S03L253016M
GarrettGTB1446VZ792290-0004792290-0004, 792290-5004S, 792290-9004S03L253016M, 03L253016MV700
GarrettGTB1446VZ803956-0001803956-0001, 803956-5001S55230178
GarrettGTB1446VZ803956-0002803956-0002, 803956-5002S55239695, 55246405
GarrettGTB1449VZ806497-0001806497-00019688361580
GarrettGTB1449VZ806497-0002806497-00029688361580
GarrettGTB1449VZ806497-0003806497-0003, 806497-5003S, 806497-9003S9677062780
GarrettGTB1449VZ806498-0001806498-0001, 806498-5001S9677063780
GarrettGTB1449VZ806498-0003806498-0003, 806498-5003S, 806498-9003S9677063780

GA-06-0009 - Part Properties

Blades (Nozzle Ring blades count): 10

A (Size A): 78.10

B (Size B): 50.00

C (Size C): 41.20

D (Size D): 6.50

E (Size E): 8.50

F (Size F): 20.00

GA-06-0009
GA-06-0009, GT14-93
55209153, 766924-0001, 766924-5001S, 774193-0003, 774193-5003S, 8200753383G, 774193-0004, 774193-5004S, 774193-9004S, 8200753383H, 28201-2A701, 282012A701, 775274-0002, 775274-5002S, M28201-2A700, M28201-2A701, M282012A700, M282012A701, 28201-2A710, 282012A710, 775274-0003, 775274-5003S, 783248-0003, 783248-5003S, 9688361580, 783248-0004, 783248-5004S, 9688361580, 783248-0005, 783248-5005S, 9688361580, 783583-0003, 783583-5004S, 9671413780, 783583-0004, 783583-5003S, 9671413780, 55209153, 55220701, 71724373, 71724374, 71794564, 784521-0001, 03L253016M, 792290-0002, 792290-5002S, 03L253016M, 792290-0003, 792290-5003S, 03L253016M, 03L253016MV700, 792290-0004, 792290-5004S, 792290-9004S, 55230178, 803956-0001, 803956-5001S, 55239695, 55246405, 803956-0002, 803956-5002S, 806497-0001, 9688361580, 806497-0002, 9688361580, 806497-0003, 806497-5003S, 806497-9003S, 9677062780, 806498-0001, 806498-5001S, 9677063780, 806498-0003, 806498-5003S, 806498-9003S, 9677063780

Data updated: 2022-04-27 11:47:41
