1 kg (20x20x20 cm)
GA-06-0008, GT14-92
Nozzle ring assy. GA-06-0008 for turbos 709050-0003, 795090-0003, 803955-0003, 803955-0005, 803955-0005-R, 803955-5005S, 809603-0001, 810164-0002, 810164-0003, 815479-0001.
See below for more info

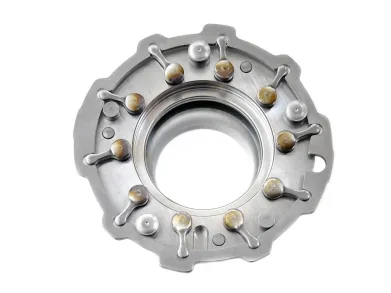

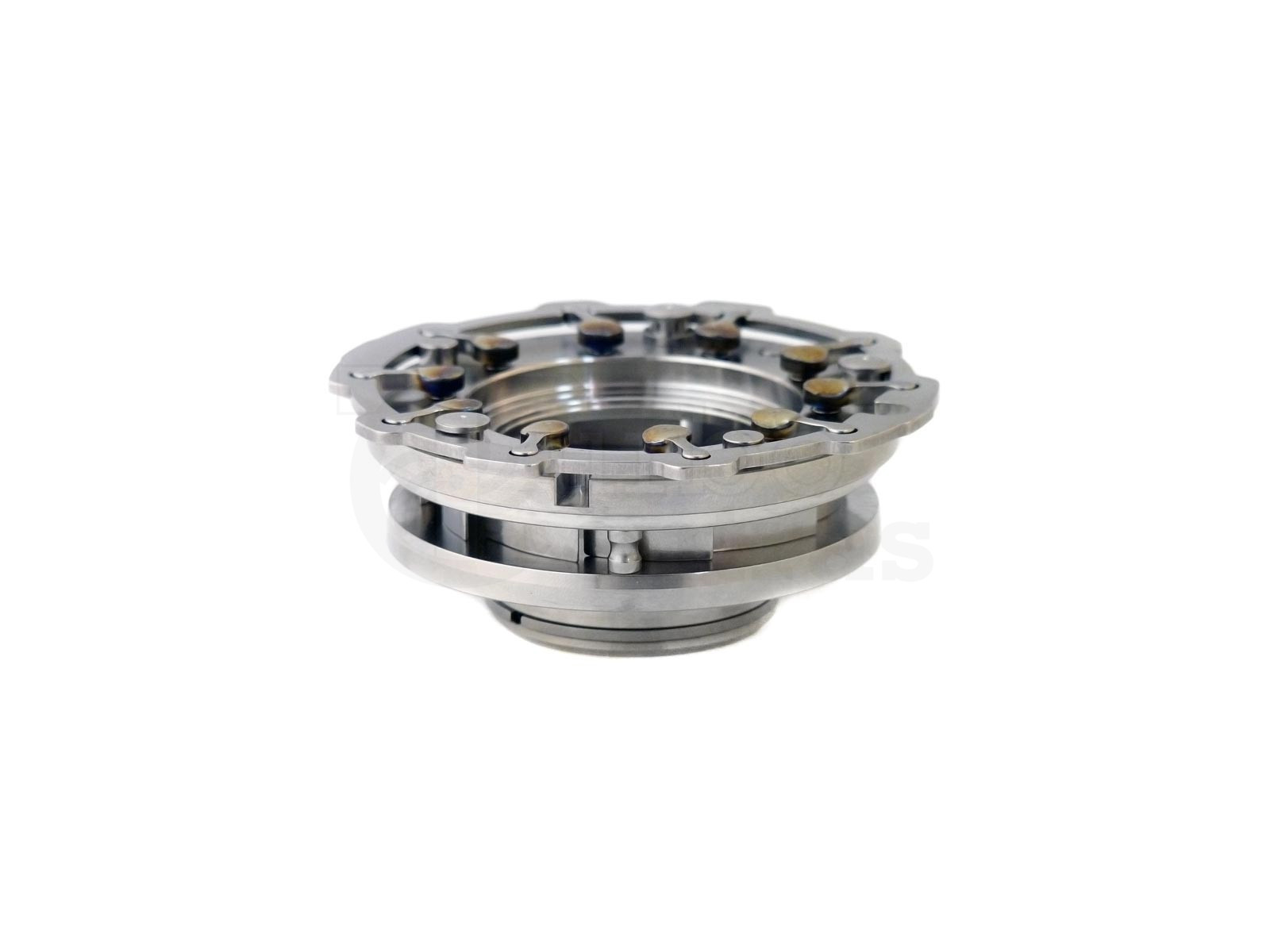

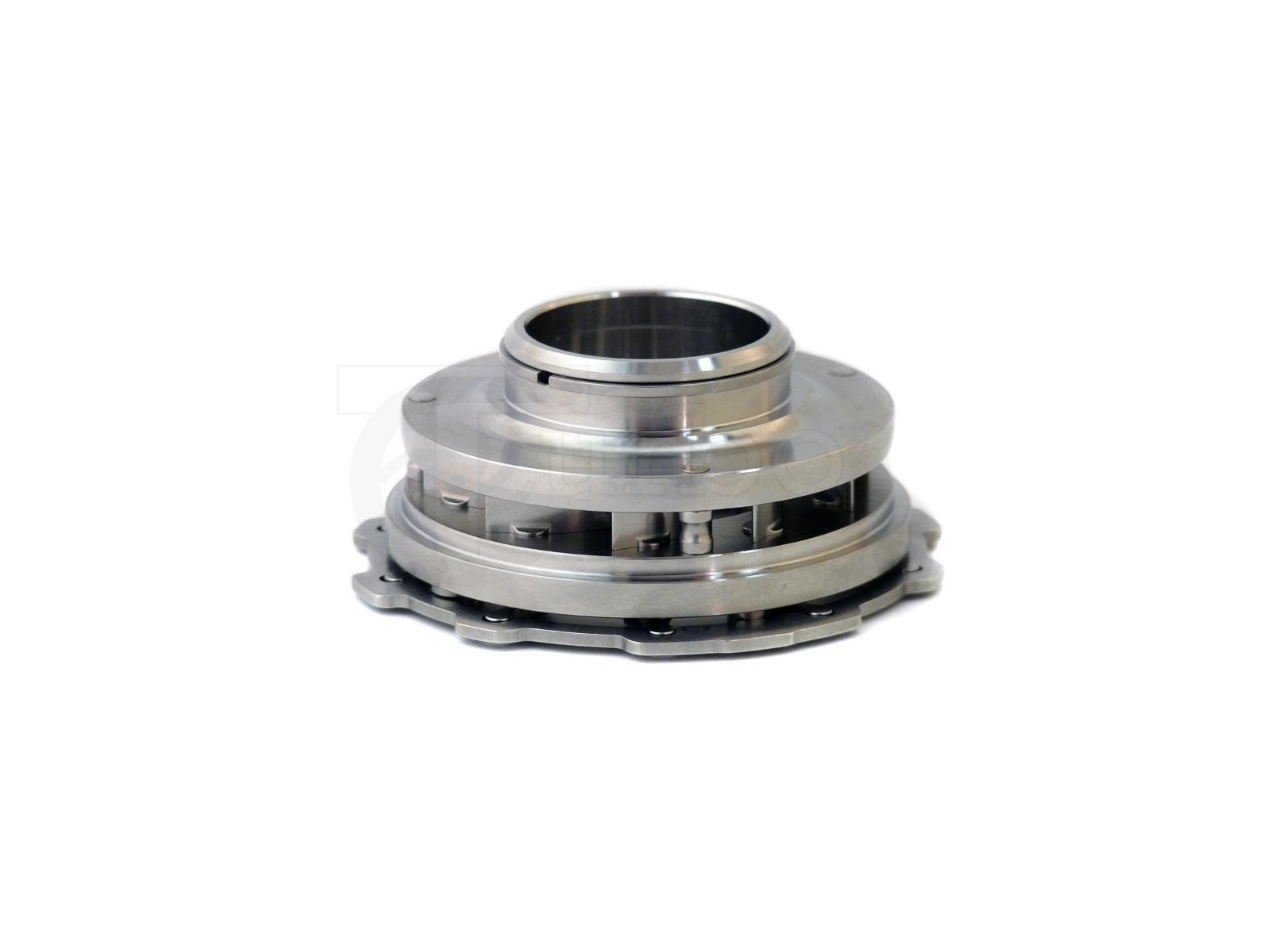

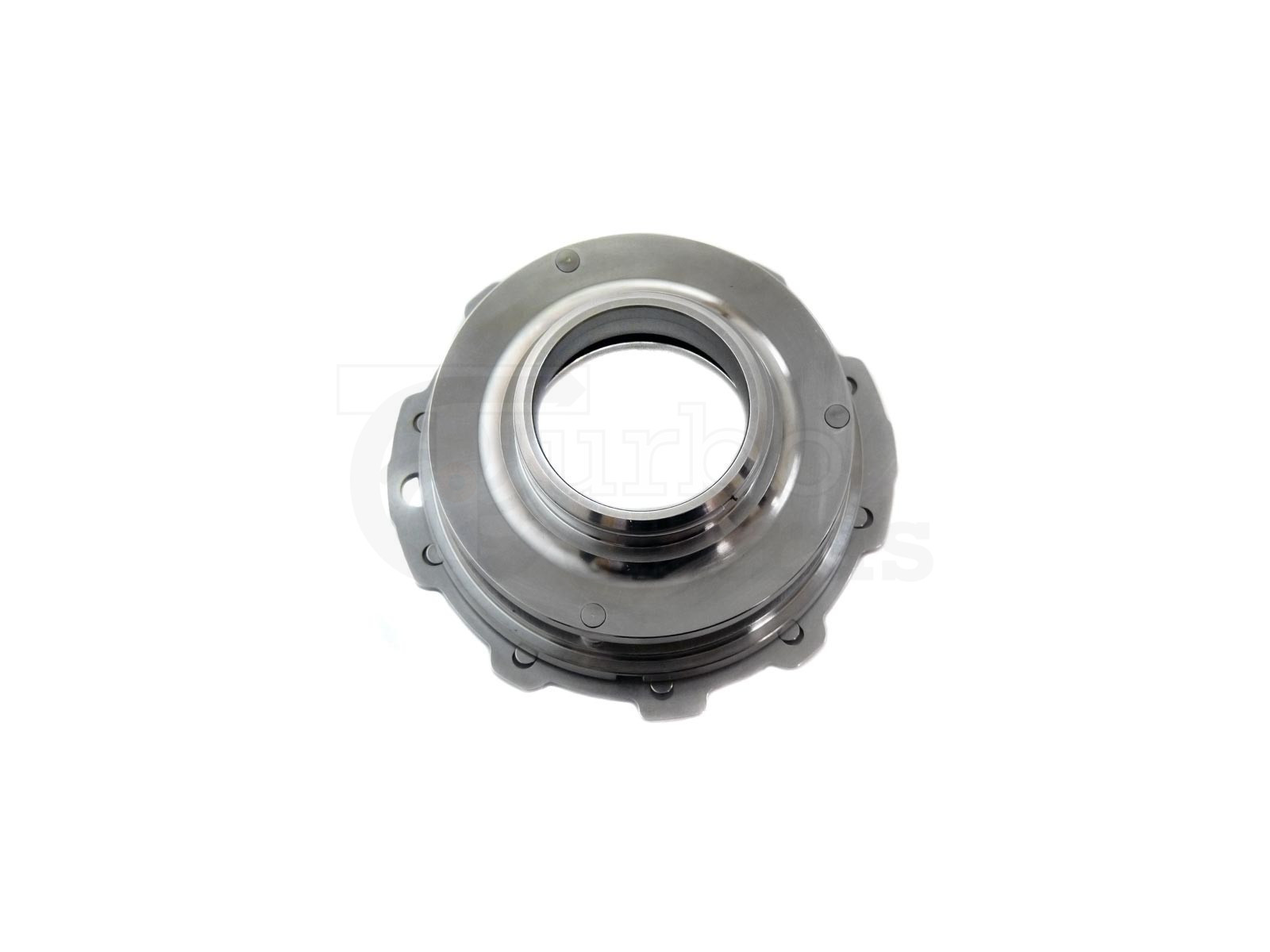

GA-06-0008 - Nozzle ring assy.
Brand: TurboCentras
TurboCentras Reference: GA-06-0008
GA-06-0008 - Alternative numbers
TCP (TurboCentras part number): GA-06-0008
TCO (TurboCentras old part number): GT14-92
GA-06-0008 - Compatibility table
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
---|---|---|---|---|
Garrett | GTC1446MVZ | 709050-0003 | 709050-0003 | 03L253016SV300 |
Garrett | GTC1446MVZ | 795090-0003 | 795090-0003, 795090-5003S | 03L253016S, 03L253016SV300 |
Garrett | GTC1446VMZ | 803955-0003 | 803955-0003, 803955-5003S | 03L253014AV300 |
Garrett | GTC1446VMZ | 803955-0005 | 803955-0005, 803955-5005S | 03L253014A, 03L253014AV351 |
Garrett | GTC1446VMZ | 803955-0005-R | 803955-0005, 803955-9005S | 03L253014AV351 |
Garrett | GTC1446VMZ | 803955-5005S | 803955-0005, 803955-5005S | 03L253014AV351 |
Garrett | GTC1446VMZ | 809603-0001 | 809603-0001, 809603-5001S | 03L253014A, 03L253014C |
Garrett | GTC1446VZ | 810164-0002 | 810164-0002 | K191536, X10004788 |
Garrett | GTC1446VZ | 810164-0003 | 810164-0003 | X191271 |
Garrett | GTC1446VZK | 815479-0001 | 815479-0001 | 1118100-XED12 |
Garrett | GTC1446VZK | 815479-0002 | 815479-0002, 815479-5002S | 1118100-XED12, 1118100XED12 |
Garrett | GTC1446VZK | 815479-0004 | 815479-0004, 815479-5004S | 1118100-XED12, 1118100XED15 |
Garrett | GTC1446VZK | 815479-0005 | 815479-0005, 815479-5005S | 1118100AED12 |
Garrett | GTC1446VZK | 815479-0007 | 815479-0007, 815479-5007S | 1118100-AED12, 1118100AED12 |
Garrett | GTC1446VZK | 815479-0010 | 815479-0010, 815479-5010S | 1118100-XED12, 1118100XED12 |
Garrett | GTC1446VZK | 815479-0011 | 815479-0011 | 1118100-XED15 |
Garrett | GTC1446VZ | 817081-0001 | 817081-0001, 817081-5001S | 03L145721A |
Garrett | GTC1446VZ | 818988-0001 | 818988-0001, 818988-5001S, 818988-9001S | 03L145721AV100 |
Garrett | GTC1446VZ | 818988-0002 | 818988-0002, 818988-5002S | 03L145721A, 03L145721AV100 |
Garrett | GTC1446VZK | 832453-0002 | 832453-0002 | YJ200-1118100-135 |
Garrett | GTC1446VZK | 848184-0001 | 848184-0001 | X10000707 |
Garrett | GTC1446VZK | 848184-0002 | 848184-0002 | 10168923 |
GA-06-0008 - Part Properties
Blades (Nozzle Ring blades count): 10
A (Size A): 79.00
B (Size B): 49.00
C (Size C): 36.00
D (Size D): 6.50
E (Size E): 8.50
F (Size F): 19.00
GA-06-0008, GT14-92
03L253016SV300, 709050-0003, 03L253016S, 03L253016SV300, 795090-0003, 795090-5003S, 03L253014AV300, 803955-0003, 803955-5003S, 03L253014A, 03L253014AV351, 803955-0005, 803955-5005S, 03L253014AV351, 803955-0005, 803955-9005S, 03L253014AV351, 803955-0005, 803955-5005S, 03L253014A, 03L253014C, 809603-0001, 809603-5001S, 810164-0002, K191536, X10004788, 810164-0003, X191271, 1118100-XED12, 815479-0001, 1118100-XED12, 1118100XED12, 815479-0002, 815479-5002S, 1118100-XED12, 1118100XED15, 815479-0004, 815479-5004S, 1118100AED12, 815479-0005, 815479-5005S, 1118100-AED12, 1118100AED12, 815479-0007, 815479-5007S, 1118100-XED12, 1118100XED12, 815479-0010, 815479-5010S, 1118100-XED15, 815479-0011, 03L145721A, 817081-0001, 817081-5001S, 03L145721AV100, 818988-0001, 818988-5001S, 818988-9001S, 03L145721A, 03L145721AV100, 818988-0002, 818988-5002S, 832453-0002, YJ200-1118100-135, 848184-0001, X10000707, 10168923, 848184-0002
Data updated: 2024-09-25 15:21:17
