Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform is engineered to increase engine performance while maintaining OEM installation specifications. Stage 1 (485 BHP*) and Stage 2 (600 BHP*) upgrades maximize efficiency and air flow compared to the OEM turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.
Make | Model | Year | Body & Trim | Engine | OEM Turbo |
Audi | TT | 2014 + | Base | 2.0L L4 - Gas | IS20 |
Audi | TTS | 2014 + | Base | 2.0L L4 - Gas | IS38 |
Audi | A3 | 2015 - 18 | Premium, Premium Plus, Prestige | 2.0L L4 - Gas | IS20 |
Audi | A3 Quattro | 2015 - 18 | Premium, Premium Plus, Prestige | 2.0L L4 - Gas | IS20 |
Audi | S3 | 2015 - 18 | Premium Plus, Prestige | 2.0L L4 - Gas | IS38 |
VW | Golf | 2015 | S, SE, SEL, Launch Edition | 2.0L L4 - Gas | IS12 |
VW | Golf GTI | 2015 | Autobahn, S, SE | 2.0L L4 - Gas | IS20 |
VW | Golf R | 2015 | Base | 2.0L L4 - Gas | IS38 |
VW | Golf | 2016 | Base, S, SE, SEL | 2.0L L4 - Gas | IS12 |
VW | Golf GTI | 2016 | Autobahn, S, SE | 2.0L L4 - Gas | IS20 |
VW | Golf R | 2016 | Base | 2.0L L4 - Gas | IS38 |
VW | Golf | 2017 | S, Wolfsburg Edition | 2.0L L4 - Gas | IS12 |
VW | Golf Alltrack | 2017 | S, SE, SEL | 2.0L L4 - Gas | IS12 |
VW | Golf GTI | 2017 | Autobahn, S, SE | 2.0L L4 - Gas | IS20 |
VW | Golf R | 2017 | Base | 2.0L L4 - Gas | IS38 |
VW | Golf | 2018 | S, SE, SEL | 2.0L L4 - Gas | IS12 |
VW | Golf Alltrack | 2018 | S, SE, SEL | 2.0L L4 - Gas | IS12 |
VW | Golf GTI | 2018 | Autobahn, S, SE | 2.0L L4 - Gas | IS20 |
VW | Golf R | 2018 | Base | 2.0L L4 - Gas | IS38 |
WARNING: Maximum allowable turbocharger speed is 185krpm (Stage 1) | 165krpm (Stage 2). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.
Part Number | Stage | Power | Model | Comp Ind | Comp Exd | Turb Ind | Turb Exd |
898200-5001W | Stage 2 | 600HP | 447kW | G25-660 | 54mm | 67mm | 54mm | 49mm |

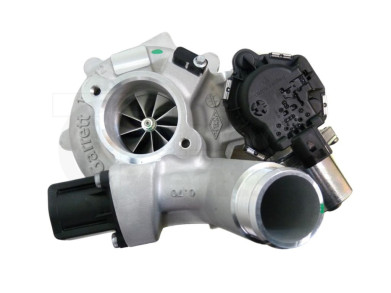

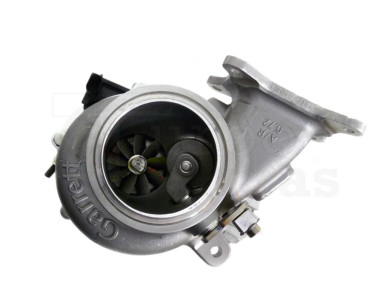

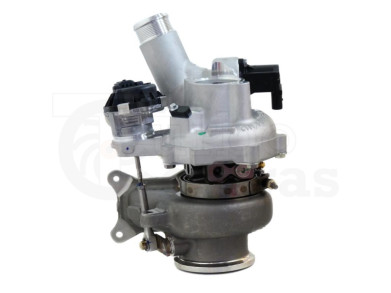

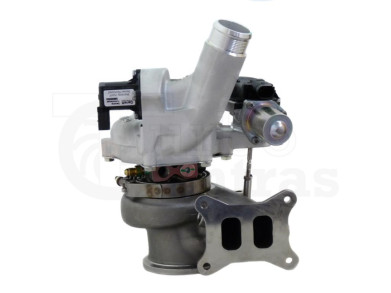

898200-5001W - Turbocharger G25-660
Brand: Garrett
Model: G25 - G25-660
Garrett Reference: 898200-5001W
898200-5001W - Alternative numbers
GHT (Garrett turbo number): 898200-5001W
898200-5001W - Turbo interchangeability
Interchangeable with: IHI JH5 06K145702E
Interchangeable with: IHI JH5 06K145702H
Interchangeable with: IHI JH5 06K145702J
Interchangeable with: IHI JH5 06K145702M
Interchangeable with: IHI JH5 06K145702N
Interchangeable with: IHI JH5 06K145702Q
Interchangeable with: IHI JH5 06K145702R
Interchangeable with: IHI JHJ-RHF4 06K145713E
Interchangeable with: IHI JHJ-RHF4 06K145713F
Interchangeable with: IHI JHJ-RHF4 06K145713G
Interchangeable with: IHI JHJ-RHF4 06K145713H
Interchangeable with: IHI JHJ-RHF4 06K145713K
Interchangeable with: IHI JHJ-RHF4 06K145713L
Interchangeable with: IHI JH5 06K145722A
Interchangeable with: IHI JH5 06K145722H
Interchangeable with: IHI JH5 06K145722L
Interchangeable with: IHI JH5 06K145722P
Interchangeable with: IHI JH5 06K145722T
Interchangeable with: IHI JH5 06K145874F
Interchangeable with: IHI JH5 06K145874L
Interchangeable with: IHI JH5 06K145874N
Interchangeable with: Garrett GT2260S 898199-5001W
Interchangeable with: IHI JH5 9VA04
Interchangeable with: IHI JHJ-RHF4 9VA07
Interchangeable with: IHI JH5 9VA09
Interchangeable with: IHI JHJ-RHF4 IS12
Interchangeable with: IHI JH5 IS20
Interchangeable with: IHI JH5 IS38
898200-5001W
