0.4 kg (20x20x20 cm)

Nozzle ring assy GA-06-0016

GA-06-0016
New
In Stock (15 Items)
€35.96
Tax excluded Delivered within 3-8 days

GA-06-0016, GT16-90

Nozzle ring assy. GA-06-0016 for turbos 742110-0002, 742110-0003, 742110-0004, 742110-0005, 742110-0006, 742110-0007, 742110-0007-R, 742110-0015, 742110-9007S-R, 756867-0001.

See below for more info



GA-06-0016 - Nozzle ring assy.

Brand: TurboCentras

TurboCentras Reference: GA-06-0016

GA-06-0016 - Alternative numbers

TCP (TurboCentras part number): GA-06-0016

TCO (TurboCentras old part number): GT16-90

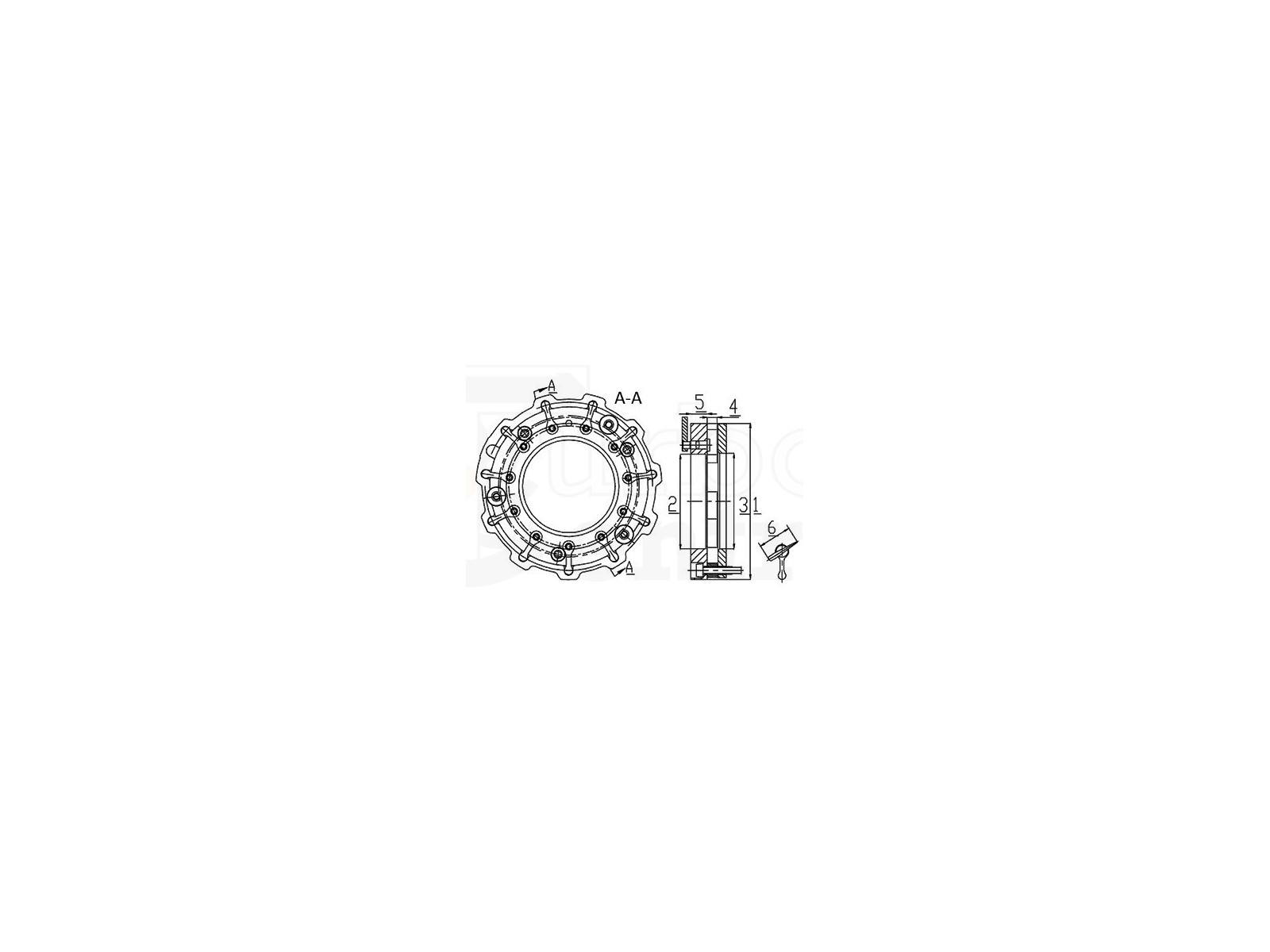

GA-06-0016 - Part Properties

Blades (Nozzle Ring blades count): 11

A (Size A): 83.00

B (Size B): 51.50

D (Size D): 7.50

E (Size E): 6.50

F (Size F): 20.00

GA-06-0016

Nozzle ring assy. GA-06-0016 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO PART NUMBERS TURBO OE NUMBERS
Garrett GTB1746VK 742110-0002 --
Garrett GTB1746VK 742110-0003 4M5Q6K682AF
Garrett GT1746V 742110-0004, 742110-5004S 4M5Q-6K682-AD, 4M5Q6K682AD
Garrett GTB1746VK 742110-0005 4M5Q6K682AF
Garrett GT1746V 742110-0006, 742110-5006S 4M5Q-6K682-AF, 4M5Q6K682AF
Garrett GT1746V 742110-0007, 742110-5007S, 742110-9007S 4M5Q-6K682-AG, 4M5Q6K682AG
Garrett GT1746V 742110-0007, 742110-5007S, 742110-9007S 4M5Q-6K682-AG, 4M5Q6K682AG
Garrett GTB1746VK 742110-0015 --
Garrett GT1746V 742110-0007, 742110-5007S, 742110-9007S 4M5Q-6K682-AG, 4M5Q6K682AG
Garrett GT1646V 756867-0001, 756867-5001S 03G253010, 03G253014N, 03G253019L
Garrett GT1646V 756867-0002 03G253010, 03G253014N, 03G253016H, 03G253019L
Garrett GT1646V 756867-0003, 756867-5003S 03G253010, 03G253014N, 03G253016H
Garrett GTB1646MV 756867-0008 --
Garrett GTB1649V 757886-0001 28231-27400
Garrett GTB1649V 757886-0003, 757886-5003S, 757886-5003W, 757886-9003W 2823127400
Garrett GTB1649V 757886-0004, 757886-5004S, 757886-5004W 2823127450
Garrett GTB1649V 757886-0005, 757886-5005S 2823127460
Garrett GTB1649V 757886-0006, 757886-5006S 2823127860
Garrett GTB1649V 757886-0007, 757886-5007S 2823127480
Garrett GTB1649V 757886-0008, 757886-5008S 2823127470
Garrett GTB1746VK 758532-0012, 758532-5012S 6G9Q-6K682-AC, 6G9Q6K682AC
Garrett GTB1746VK 758532-0019, 758532-5019S 6G9Q-6K682-AC, 6G9Q-6K682-AD, 6G9Q6K682AC, 6G9Q6K682AD
Garrett GTB1749V 760698-0002, 760698-5002S 070145701RV204
Garrett GTB1749V 760698-0003, 760698-5003S 070145701RV210
Garrett GTB1749V 760698-0004, 760698-5004S 070145701RV220
Garrett GTB1749V 760698-0004, 760698-0004-R 070145701RV220
Garrett GTB1749V 760698-0005, 760698-5005S 070145701RV220
Garrett GTB1749V 760698-0006, 760698-5006S 070145701RV220
Garrett GTB1549V 761433-0002, 761433-5002S A6640900780
Garrett GTB1549V 761433-0003, 761433-5003S A6640900880
Garrett GTB1549VK 762463-0002, 762463-5002S 96440365
Garrett GTB1549VK 762463-0003 96440365
Garrett GTB1549VK 762463-0004 96440365
Garrett GTB1549VK 762463-0006, 762463-5006S, 762463-9006S 96440365
Garrett GTB1549VK 762463-0006, 762463-5006S, 762463-9006S 96440365
Garrett GTB1549VK 762463-0006, 762463-5006S, 762463-9006S 96440365
Garrett GTB1746V 763647-0014, 763647-5014S 1453914, 1464596, 1478634, 1521485, 1567329, 4M5Q6K682AD, 4M5Q6K682AF, 7G9Q6K682BA, 7G9Q6K682BB, 7G9Q6K682BC, 7G9Q6K682BD
Garrett GTB1746V 763647-0019, 763647-5019S 1453914, 1464596, 1478634, 1521485, 1567329, 4M5Q6K682AD, 4M5Q6K682AF, 7G9Q6K682BA, 7G9Q6K682BB, 7G9Q6K682BC, 7G9Q6K682BD
Garrett GTB1746V 763647-0021, 763647-5021S, 763647-5021W, 763647-9021W 7G9Q6K682BD
Garrett GTB1646MV 765261-0002, 765261-5002S 03G253016HV100
Garrett GTB1646MV 765261-0003, 765261-5003S 03G257016HV110
Garrett GTB1646MV 765261-0004, 765261-5004S 03G253014N
Garrett GTB1646MV 765261-0005, 765261-5005S, 765261-9008S 03G253014NV100
Garrett GTB1646MV 765261-0006, 765261-5006S 03G253010
Garrett GTB1646MV 765261-0007, 765261-5007S 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104
Garrett GTB1646MV 765261-0008, 765261-5008S, 765261-9008S 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104
Garrett GTB1646VM 768652-0001 68000633AB, 68000633AC
Garrett GTB1646MVK 768652-0002 --
Garrett GTB1646VM 768652-0003 03G253019R, 03G253019RV100, 68000633AB, 68000633AC
Garrett GTB1646MV 768652-0004, 768652-5004S --
Garrett GTB1646MV 768652-0005, 768652-5005S 03G253019RV200
Garrett GTB1646MV 768652-0007, 768652-5007S, 768652-9007S --
Garrett GTB1646MVK 768652-0008 --
Garrett GTB1549V 781351-0001, 781351-5001S 55217494
Garrett GTB1549V 787274-0001, 787274-5001S 55221457
Garrett GTB1549V 787274-0002 --
Garrett GT15 788290-0001, 788290-5001S, 788290-9001S 55223264
Garrett GTB1549V 803957-0002, 803957-5002S 55246401
Garrett GTB1549V 803958-0001, 803958-5001S 55235243
Garrett GTB1549V 803958-0002, 803958-5002S, 803958-9002S 55246402
Garrett GTB1549VK 806874-0001, 806874-5001S 11181000B01
EE Turbo GTB1749V 760698-0002, 760698-0003, 760698-0004, 760698-0005, 760698-0006, 760698-5002S, 760698-5003S, 760698-5004S, 760698-5005S, 760698-5006S, Turbo-G118 070145701RV204, 070145701RV210, 070145701RV220

GA-06-0016 - Used in turbocharges

742110-0002, 4M5Q6K682AF, 742110-0003, 4M5Q-6K682-AD, 4M5Q6K682AD, 742110-0004, 742110-5004S, 742110-0005, 4M5Q-6K682-AF, 742110-0006, 742110-5006S, 4M5Q-6K682-AG, 4M5Q6K682AG, 742110-0007, 742110-5007S, 742110-9007S, 742110-0015, 03G253010, 03G253014N, 03G253019L, 756867-0001, 756867-5001S, 03G253016H, 756867-0002, 756867-0003, 756867-5003S, 756867-0008, 28231-27400, 757886-0001, 2823127400, 757886-0003, 757886-5003S, 757886-5003W, 757886-9003W, 2823127450, 757886-0004, 757886-5004S, 757886-5004W, 2823127460, 757886-0005, 757886-5005S, 2823127860, 757886-0006, 757886-5006S, 2823127480, 757886-0007, 757886-5007S, 2823127470, 757886-0008, 757886-5008S, 6G9Q-6K682-AC, 6G9Q6K682AC, 758532-0012, 758532-5012S, 6G9Q-6K682-AD, 6G9Q6K682AD, 758532-0019, 758532-5019S, 070145701RV204, 760698-0002, 760698-5002S, 070145701RV210, 760698-0003, 760698-5003S, 070145701RV220, 760698-0004, 760698-5004S, 760698-0004-R, 760698-0005, 760698-5005S, 760698-0006, 760698-5006S, 761433-0002, 761433-5002S, A6640900780, 761433-0003, 761433-5003S, A6640900880, 762463-0002, 762463-5002S, 96440365, 762463-0003, 762463-0004, 762463-0006, 762463-5006S, 762463-9006S, 1453914, 1464596, 1478634, 1521485, 1567329, 763647-0014, 763647-5014S, 7G9Q6K682BA, 7G9Q6K682BB, 7G9Q6K682BC, 7G9Q6K682BD, 763647-0019, 763647-5019S, 763647-0021, 763647-5021S, 763647-5021W, 763647-9021W, 03G253016HV100, 765261-0002, 765261-5002S, 03G257016HV110, 765261-0003, 765261-5003S, 765261-0004, 765261-5004S, 03G253014NV100, 765261-0005, 765261-5005S, 765261-9008S, 765261-0006, 765261-5006S, 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104, 765261-0007, 765261-5007S, 765261-0008, 765261-5008S, 68000633AB, 68000633AC, 768652-0001, 768652-0002, 03G253019R, 03G253019RV100, 768652-0003, 768652-0004, 768652-5004S, 03G253019RV200, 768652-0005, 768652-5005S, 768652-0007, 768652-5007S, 768652-9007S, 768652-0008, 55217494, 781351-0001, 781351-5001S, 55221457, 787274-0001, 787274-5001S, 787274-0002, 55223264, 788290-0001, 788290-5001S, 788290-9001S, 55246401, 803957-0002, 803957-5002S, 55235243, 803958-0001, 803958-5001S, 55246402, 803958-0002, 803958-5002S, 803958-9002S, 11181000B01, 806874-0001, 806874-5001S, Turbo-G118
