0.4 kg (20x20x20 cm)
GA-06-0024, GT17-92
Nozzle ring assy. GA-06-0024 for turbos 454158-0001, 454158-0003, 454161-0001, 454161-0003, 454195-0001, 454231-0001, 454231-0003, 454231-0004, 454231-0005, 454231-0006.
See below for more info

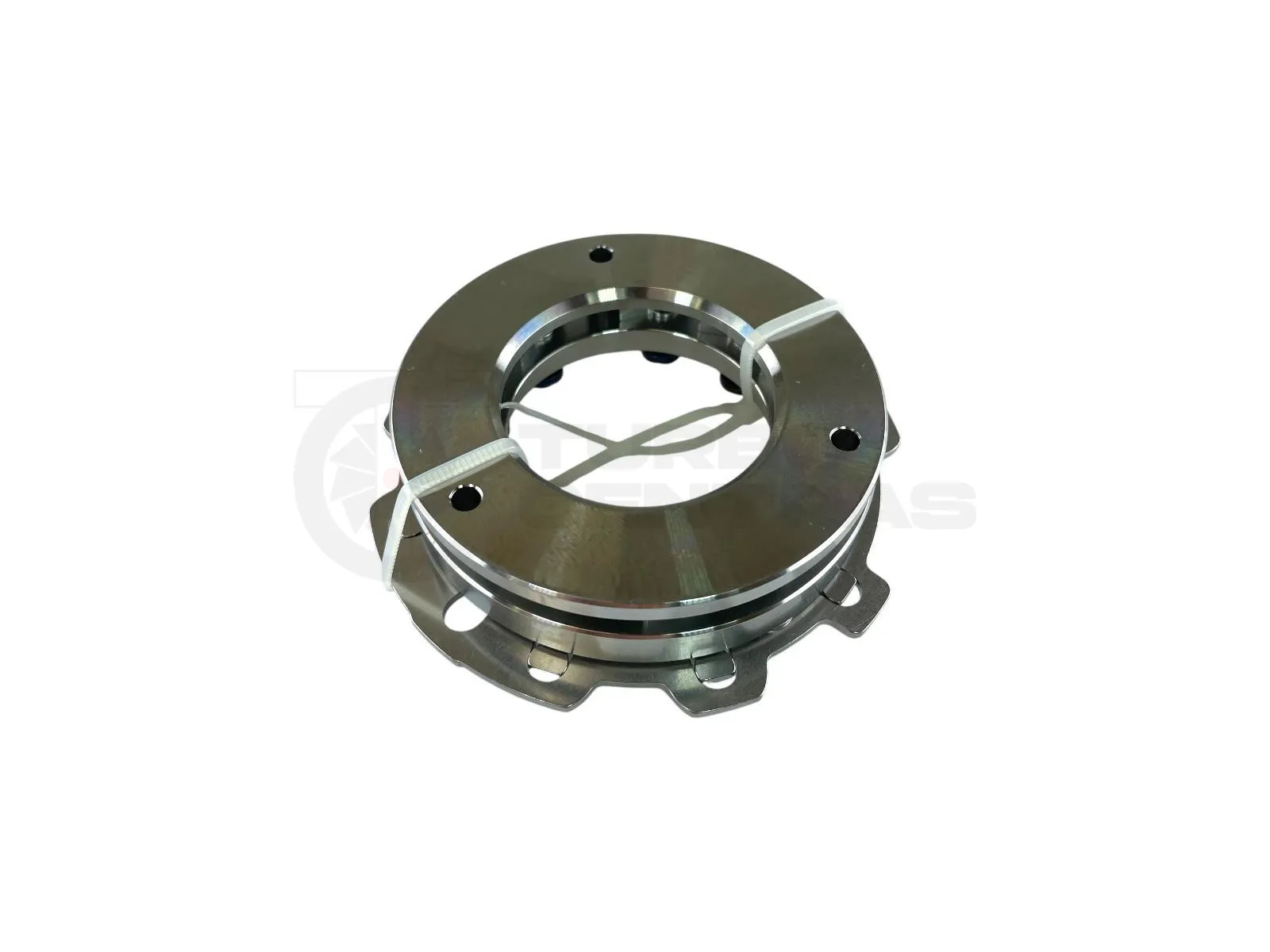

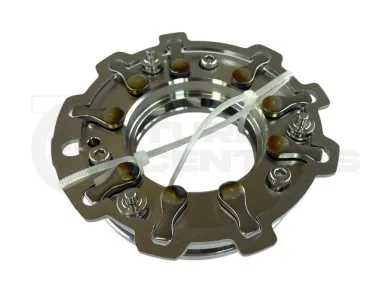

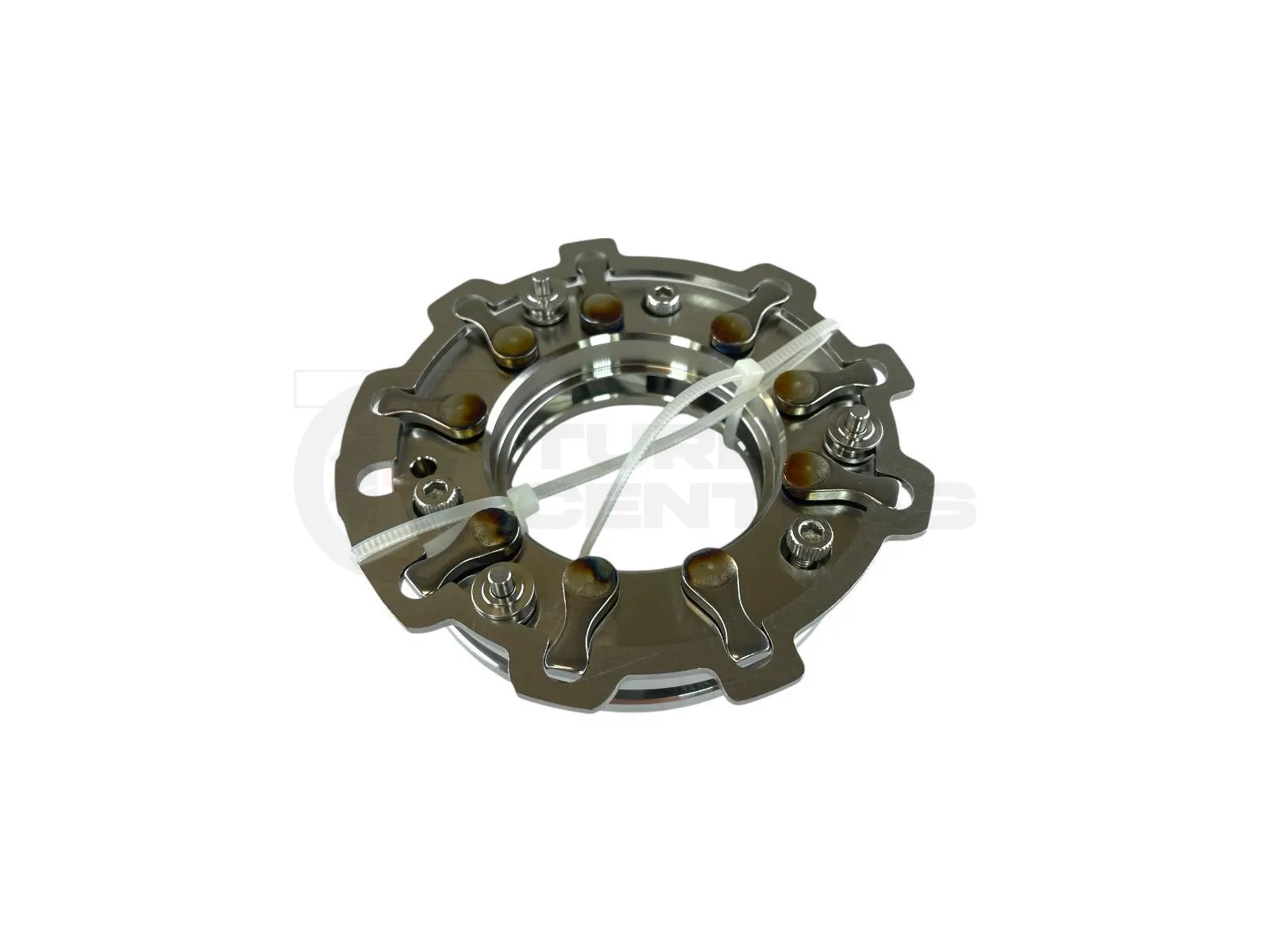

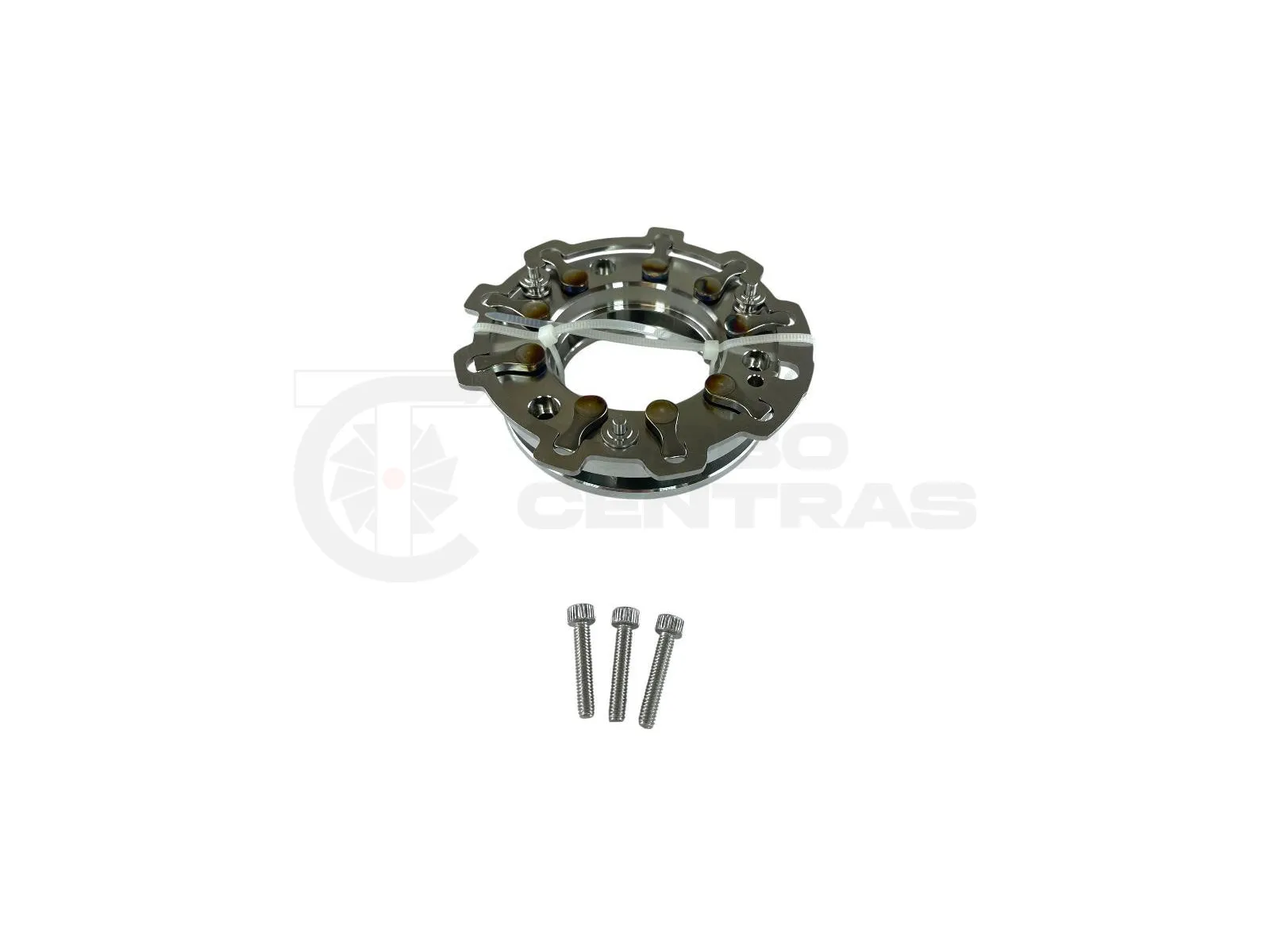

GA-06-0024 - Nozzle ring assy.
Brand: TurboCentras
TurboCentras Reference: GA-06-0024
GA-06-0024 - Alternative numbers
TCP (TurboCentras part number): GA-06-0024
TCO (TurboCentras old part number): GT17-92
GA-06-0024 - Compatibility table
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
---|---|---|---|---|
Garrett | GT1749V | 454158-0001 | 454158-0001 | -- |
Garrett | GT1749V | 454158-0003 | 454158-0003, 454158-5003S | 028145702C |
Garrett | GT1749V | 454161-0001 | 454161-0001 | 028145702D |
Garrett | GT1749V | 454161-0003 | 454161-0003, 454161-5003S | 028145702D |
Garrett | GT1749V | 454195-0001 | 454195-0001 | -- |
Garrett | GT1749V | 454231-0001 | 454231-0001, 454231-5001S | 028145702H |
Garrett | GT1749V | 454231-0003 | 454231-0003, 454231-5003S | 028145702H |
Garrett | GT1749V | 454231-0004 | 454231-0004, 454231-5004S | 028145702H |
Garrett | GT1749V | 454231-0005 | 454231-0005, 454231-5005S | 028145702H, 028145702HV225 |
Garrett | GTA1749V | 454231-0006 | 454231-0006, 454231-5006S | 028145702R, 028145702RV225, 038145702L |
Garrett | GTA1749V | 454231-0008 | 454231-0008, 454231-5008S | 028145702R, 028145702RV500, 038145702L |
Garrett | GT1749V | 454232-0001 | 454232-0001, 454232-5001S | 038253019, 038253019A |
Garrett | GT1749V | 454232-0003 | 454232-0003, 454232-5003S | 038253019, 038253019A, 03G253016K |
Garrett | GT1749V | 454232-0004 | 454232-0004, 454232-5004S | 038253019, 038253019A |
Garrett | GT1749V | 454232-0005 | 454232-0005, 454232-5005S | 038253019, 038253019A, 038253019AV200 |
Garrett | GT1749MV | 454232-0009 | 454232-0009 | -- |
Garrett | GT1549V | 700447-0001 | 700447-0001 | 11652247297, 11652248901, 11652248905, 2247297F |
Garrett | GT1549V | 700447-0003 | 700447-0003 | 11652247297, 11652248901, 11652248905, 2247297G |
Garrett | GT1549V | 700447-0004 | 700447-0004 | 2248901G, 2248905G |
Garrett | GT1549V | 700447-0005 | 700447-0005 | 11652247297, 11652248901, 11652248905, 2247297H |
Garrett | GT1549V | 700447-0006 | 700447-0006 | 11652247297, 11652248901, 11652248905, 2247905H |
Garrett | GT1549V | 700447-0007 | 700447-0007 | 11652247297, 11652248901, 11652248905, 2247901H |
Garrett | GT1549V | 700447-0008 | 700447-0008, 700447-5008S, 700447-9009S | 11652247297, 11652248901, 11652248905, 2247901104, 2247901H |
Garrett | GT1749V | 701855-0001 | 701855-0001, 701855-5001S | 028145702P, 1094742, 95VW 9G438 BA, 95VW9G438BA |
Garrett | GT1749MV | 701855-0003 | 701855-0003 | -- |
Garrett | GT1749V | 706476-0002 | 706476-0002, 706476-5002S | 144114N100 |
Garrett | GT1749V | 708366-0001 | 708366-0001, 708366-5001S | 7781450B, LR006108, STC4546 |
Garrett | GT1749V | 708366-0002 | 708366-0002, 708366-5002S | 77814759 |
Garrett | GT1749V | 708366-0003 | 708366-0003, 708366-5003S | 77814769 |
Garrett | GT1749V | 708366-0006 | 708366-0006, 708366-5006S | 7781476C03 |
Garrett | GT1749V | 713672-0001 | 713672-0001 | 038253019C, 03G253016L |
Garrett | GT1749V | 713672-0002 | 713672-0002, 713672-5002S | 038253019C, 03G253014R, 03G253016L |
Garrett | GT1749V | 713672-0003 | 713672-0003, 713672-5003S | 038253019C, 038253019CV225, 03G253014R, 03G253016L |
Garrett | GT1749V | 713672-0004 | 713672-0004, 713672-5004S | 038253019C, 038253019CV500, 03G253014R, 03G253016L |
Garrett | GT1749V | 713672-0005 | 713672-0005, 713672-5005S | 038253019CV500, 03G253014R, 03G253016L |
Garrett | GT1749V | 713672-0006 | 713672-0006, 713672-5006S | 038253019C, 03G253014R, 03G253016L, 03G253016N |
Garrett | GT1749V | 768329-0001 | 768329-0001, 768329-5001S | 038253016K, 038253019A, 03G253016K, 38253019 |
Garrett | GT1749V | 768331-0001 | 768331-0001, 768331-5001S | 038253019C, 03G253014R, 03G253016L |
Garrett | GT1749V | 768331-0002 | 768331-0002, 768331-5002S | 038253019C, 03G253014R, 03G253016L |
GA-06-0024 - Part Properties
Blades (Nozzle Ring blades count): 9
A (Size A): 81.50
B (Size B): 49.50
C (Size C): 45.50
D (Size D): 5.00
E (Size E): 8.50
F (Size F): 21.00
GA-06-0024, GT17-92
95VW9G438BA, 454158-0001, 028145702C, 454158-0003, 454158-5003S, 028145702D, 454161-0001, 028145702D, 454161-0003, 454161-5003S, 454195-0001, 028145702H, 454231-0001, 454231-5001S, 028145702H, 454231-0003, 454231-5003S, 028145702H, 454231-0004, 454231-5004S, 028145702H, 028145702HV225, 454231-0005, 454231-5005S, 028145702R, 028145702RV225, 038145702L, 454231-0006, 454231-5006S, 028145702R, 028145702RV500, 038145702L, 454231-0008, 454231-5008S, 038253019, 038253019A, 454232-0001, 454232-5001S, 038253019, 038253019A, 03G253016K, 454232-0003, 454232-5003S, 038253019, 038253019A, 454232-0004, 454232-5004S, 038253019, 038253019A, 038253019AV200, 454232-0005, 454232-5005S, 454232-0009, 11652247297, 11652248901, 11652248905, 2247297F, 700447-0001, 11652247297, 11652248901, 11652248905, 2247297G, 700447-0003, 2248901G, 2248905G, 700447-0004, 11652247297, 11652248901, 11652248905, 2247297H, 700447-0005, 11652247297, 11652248901, 11652248905, 2247905H, 700447-0006, 11652247297, 11652248901, 11652248905, 2247901H, 700447-0007, 11652247297, 11652248901, 11652248905, 2247901104, 2247901H, 700447-0008, 700447-5008S, 700447-9009S, 028145702P, 1094742, 701855-0001, 701855-5001S, 95VW 9G438 BA, 95VW9G438BA, 701855-0003, 144114N100, 706476-0002, 706476-5002S, 708366-0001, 708366-5001S, 7781450B, LR006108, STC4546, 708366-0002, 708366-5002S, 77814759, 708366-0003, 708366-5003S, 77814769, 708366-0006, 708366-5006S, 7781476C03, 038253019C, 03G253016L, 713672-0001, 038253019C, 03G253014R, 03G253016L, 713672-0002, 713672-5002S, 038253019C, 038253019CV225, 03G253014R, 03G253016L, 713672-0003, 713672-5003S, 038253019C, 038253019CV500, 03G253014R, 03G253016L, 713672-0004, 713672-5004S, 038253019CV500, 03G253014R, 03G253016L, 713672-0005, 713672-5005S, 038253019C, 03G253014R, 03G253016L, 03G253016N, 713672-0006, 713672-5006S, 038253016K, 038253019A, 03G253016K, 38253019, 768329-0001, 768329-5001S, 038253019C, 03G253014R, 03G253016L, 768331-0001, 768331-5001S, 038253019C, 03G253014R, 03G253016L, 768331-0002, 768331-5002S
Data updated: 2024-06-19 11:00:13
