0.4 kg (20x20x20 cm)
GA-06-0014, GT15-90
Nozzle ring assy. GA-06-0014 for turbos 723340-0011, 723340-0012, 723340-0013, 740611-0001, 740611-0002, 740611-0003, 740611-0005, 740821-0001, 740821-0002, 750030-0001.
See below for more info

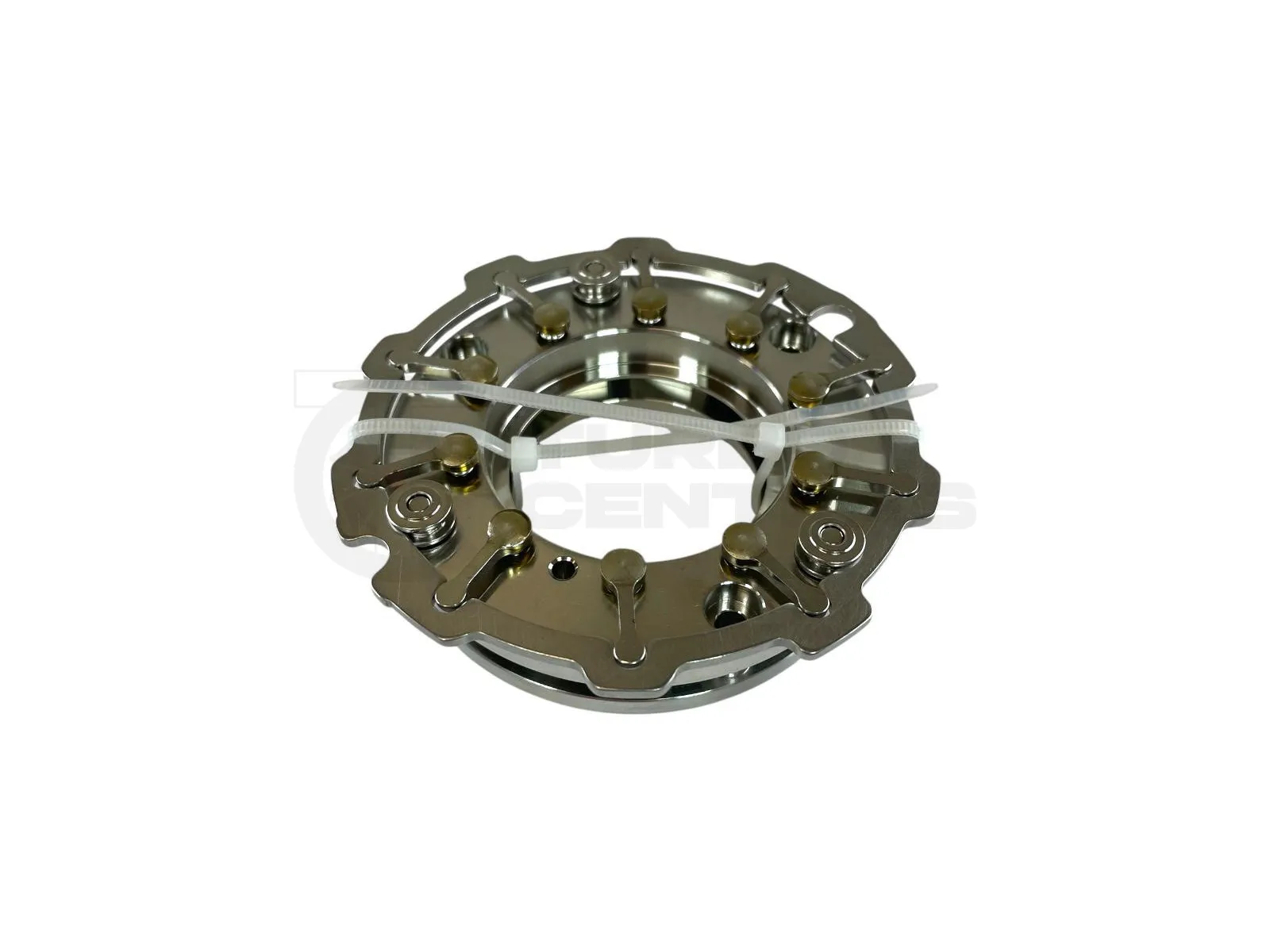

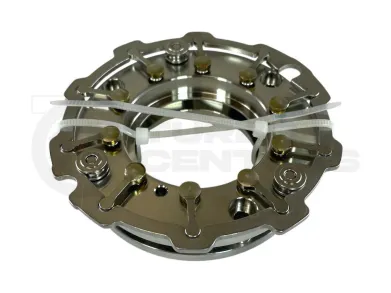

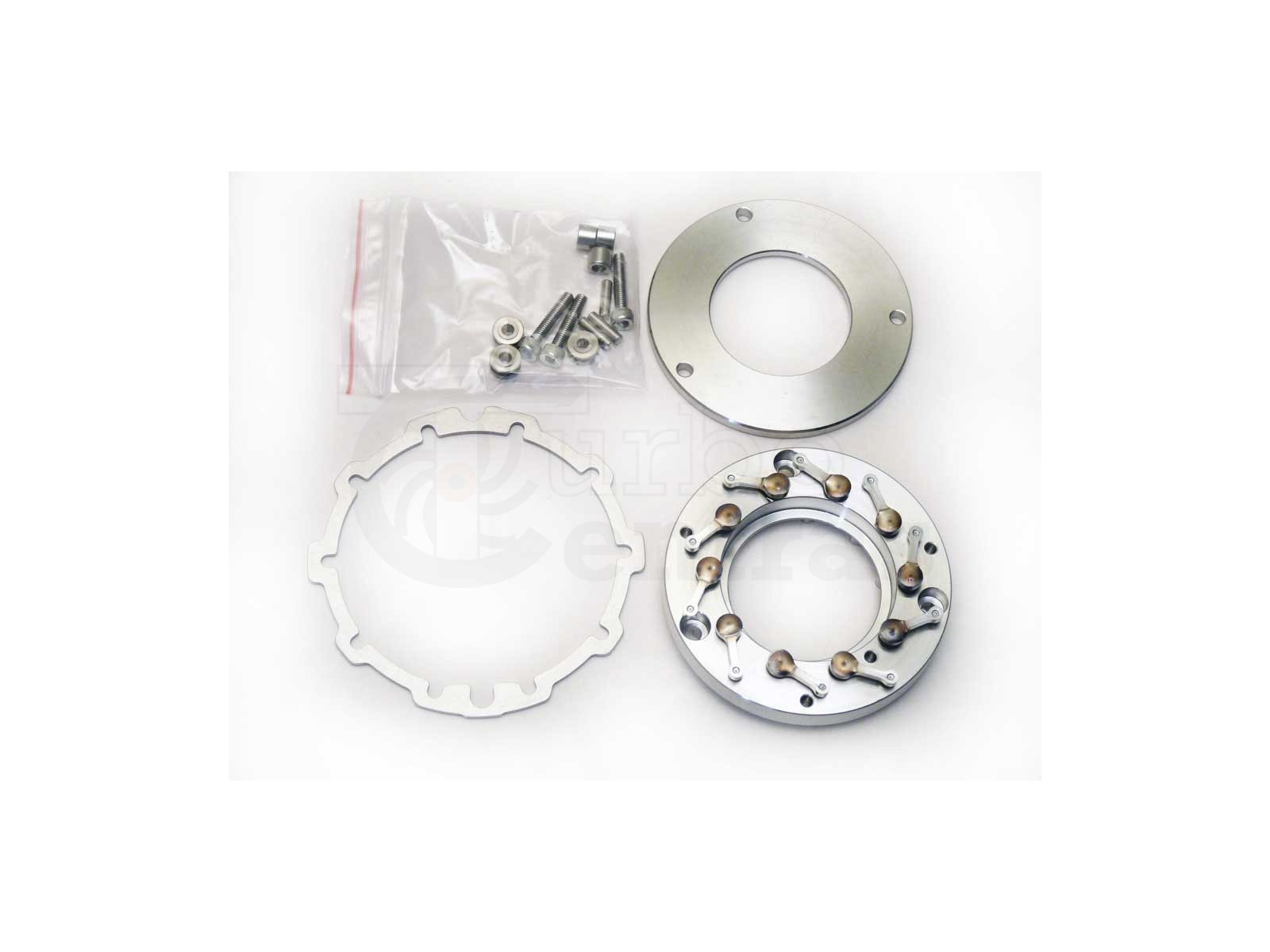

GA-06-0014 - Nozzle ring assy.
Brand: TurboCentras
TurboCentras Reference: GA-06-0014
GA-06-0014 - Alternative numbers
TCP (TurboCentras part number): GA-06-0014
TCO (TurboCentras old part number): GT15-90
GA-06-0014 - Compatibility table
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
---|---|---|---|---|
Garrett | GT1544V | 723340-0011 | 723340-0011 | -- |
Garrett | GTA1544VK | 723340-0012 | 723340-0012, 723340-5012S | 4U3Q6K682BJ |
Garrett | GTA1544VK | 723340-0013 | 723340-0013, 723340-5013S, 723340-9013S | 0375K4, 4U3Q6K682BK |
Garrett | GT1544V | 740611-0001 | 740611-0001, 740611-5001S | 28201-2A100, 282012A100 |
Garrett | GT1544V | 740611-0002 | 740611-0002, 740611-5002S, 740611-5002W, 740611-9002W | 28201-2A400, 282012A400 |
Garrett | GT1544V | 740611-0003 | 740611-0003, 740611-5003S | 282012A110 |
Garrett | GT1544V | 740611-0005 | 740611-0005, 740611-5005S | 282112A510A |
Garrett | GT1544V | 740821-0001 | 740821-0001 | 0375J6, 0375J8, 9650764480 |
Garrett | GT1544V | 740821-0002 | 740821-0002 | 0375J6, 0375J8, 9651839880 |
Garrett | GT1544V | 750030-0001 | 750030-0001 | 9654128780 |
Garrett | GT1544V | 750030-0002 | 750030-0002, 750030-5002S | 9654128780 |
Garrett | GT1544V | 753420-0002 | 753420-0002 | 9656125880 |
Garrett | GT1544V | 753420-0003 | 753420-0003 | 0375J6, 3M5Q6K682AF, 9657248680 |
Garrett | GT1544V | 753420-0004 | 753420-0004, 753420-5004S | 1373584, 3M5Q6K682AH, 8603746, 9660641380 |
Garrett | GT1544V | 753420-0005 | 753420-0005, 753420-5005S | 0375J6, 1479055, 36002480, 3M5Q6K682AK, 9663199280 |
Garrett | GT1544V | 762328-0001 | 762328-0001, 762328-5001S | 9660493580 |
Garrett | GT1544V | 762328-0002 | 762328-0002, 762328-5002S, 762328-9002W | 9663199080 |
Garrett | GT1544V | 762328-5003S | 762328-0003, 762328-5003S | 9663199080 |
Garrett | GT1544V | 766111-0001 | 766111-0001, 766111-5001, 766111-5001S, 766111-9001S | 282012A610 |
Garrett | GT1544V | 766111-0001-R | 766111-0001, 766111-5001, 766111-5001S, 766111-9001S | 282012A610 |
Garrett | GT1544V | 766111-5001 | 766111-0001, 766111-5001, 766111-5001S, 766111-9001S | 282012A610 |
Garrett | GT1544V | 782403-0001 | 782403-0001, 782403-5001S | 28201A100 |
Garrett | GT1544V | 782404-0001 | 782404-0001, 782404-5001S | 282012A410 |

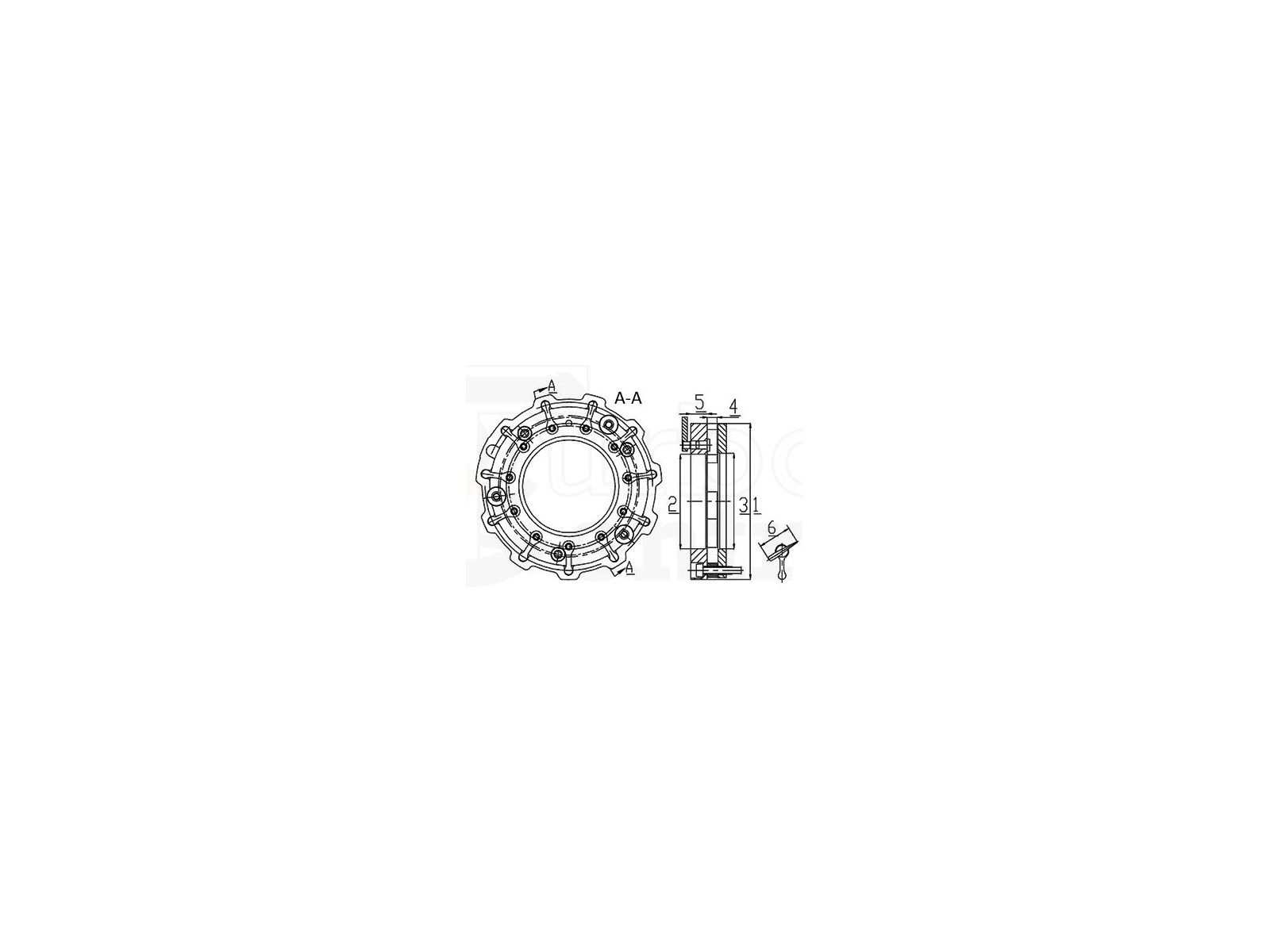

GA-06-0014 - Part Properties
Blades (Nozzle Ring blades count): 10
A (Size A): 78.00
B (Size B): 47.50
C (Size C): 41.50
D (Size D): 5.00
E (Size E): 8.50
F (Size F): 12.20
GA-06-0014, GT15-90
723340-0011, 4U3Q6K682BJ, 723340-0012, 723340-5012S, 0375K4, 4U3Q6K682BK, 723340-0013, 723340-5013S, 723340-9013S, 28201-2A100, 282012A100, 740611-0001, 740611-5001S, 28201-2A400, 282012A400, 740611-0002, 740611-5002S, 740611-5002W, 740611-9002W, 282012A110, 740611-0003, 740611-5003S, 282112A510A, 740611-0005, 740611-5005S, 0375J6, 0375J8, 740821-0001, 9650764480, 0375J6, 0375J8, 740821-0002, 9651839880, 750030-0001, 9654128780, 750030-0002, 750030-5002S, 9654128780, 753420-0002, 9656125880, 0375J6, 3M5Q6K682AF, 753420-0003, 9657248680, 1373584, 3M5Q6K682AH, 753420-0004, 753420-5004S, 8603746, 9660641380, 0375J6, 1479055, 36002480, 3M5Q6K682AK, 753420-0005, 753420-5005S, 9663199280, 762328-0001, 762328-5001S, 9660493580, 762328-0002, 762328-5002S, 762328-9002W, 9663199080, 762328-0003, 762328-5003S, 9663199080, 282012A610, 766111-0001, 766111-5001, 766111-5001S, 766111-9001S, 282012A610, 766111-0001, 766111-5001, 766111-5001S, 766111-9001S, 282012A610, 766111-0001, 766111-5001, 766111-5001S, 766111-9001S, 28201A100, 782403-0001, 782403-5001S, 282012A410, 782404-0001, 782404-5001S
Data updated: 2024-09-25 14:56:36
