Heat shield IH-05-0013
IH-05-0013
New
In Stock (30 Items) €4.30
Tax excluded Delivered within 3-8 days
IH-05-0013, RHF4-326
Heat shield IH-05-0013 for turbos VB31, VB32, VB35.
See below for more info
IH-05-0013 - Heat shield
Brand: TurboCentras
TurboCentras Reference: IH-05-0013
IH-05-0013 - Alternative numbers
TCP (TurboCentras part number): IH-05-0013
TCO (TurboCentras old part number): RHF4-326
IH-05-0013 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHV4 | VB31 | VB31 | -- |
| IHI | RHV4 | VB32 | VB32 | -- |
| IHI | RHF4 | VB35 | VB35 | -- |

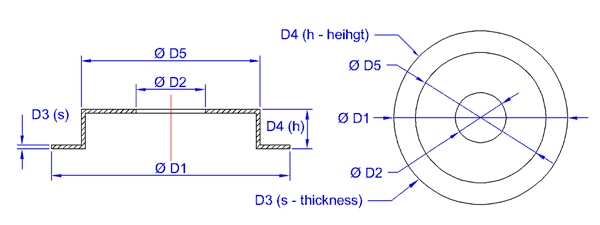

IH-05-0013 - Part Properties
D1 (OD) (D1 outer diameter mm): 50.00
D2 (ID) (D2 inner diameter mm): 20.00
D3 (s) (D3 metal thickness (s) mm): 2.00
D4 (h) (D4 Height mm): 4.80
D5 (IND) (D5 Inducer area diameter mm): 46.00
IH-05-0013, RHF4-326
VB31, VB32, VB35
