Product package: 2 kg (20x20x20 cm)

Cartridge IH-00-0014

Name: Cartridge IH-00-0014
Brand: TurboCentras
SKU: IH-00-0014
Price: 97.68 EUR
Availability: OutOfStock

Reference IH-00-0014

Condition New

Out-of-Stock

€97.68

IH-00-0014, RHF4-215

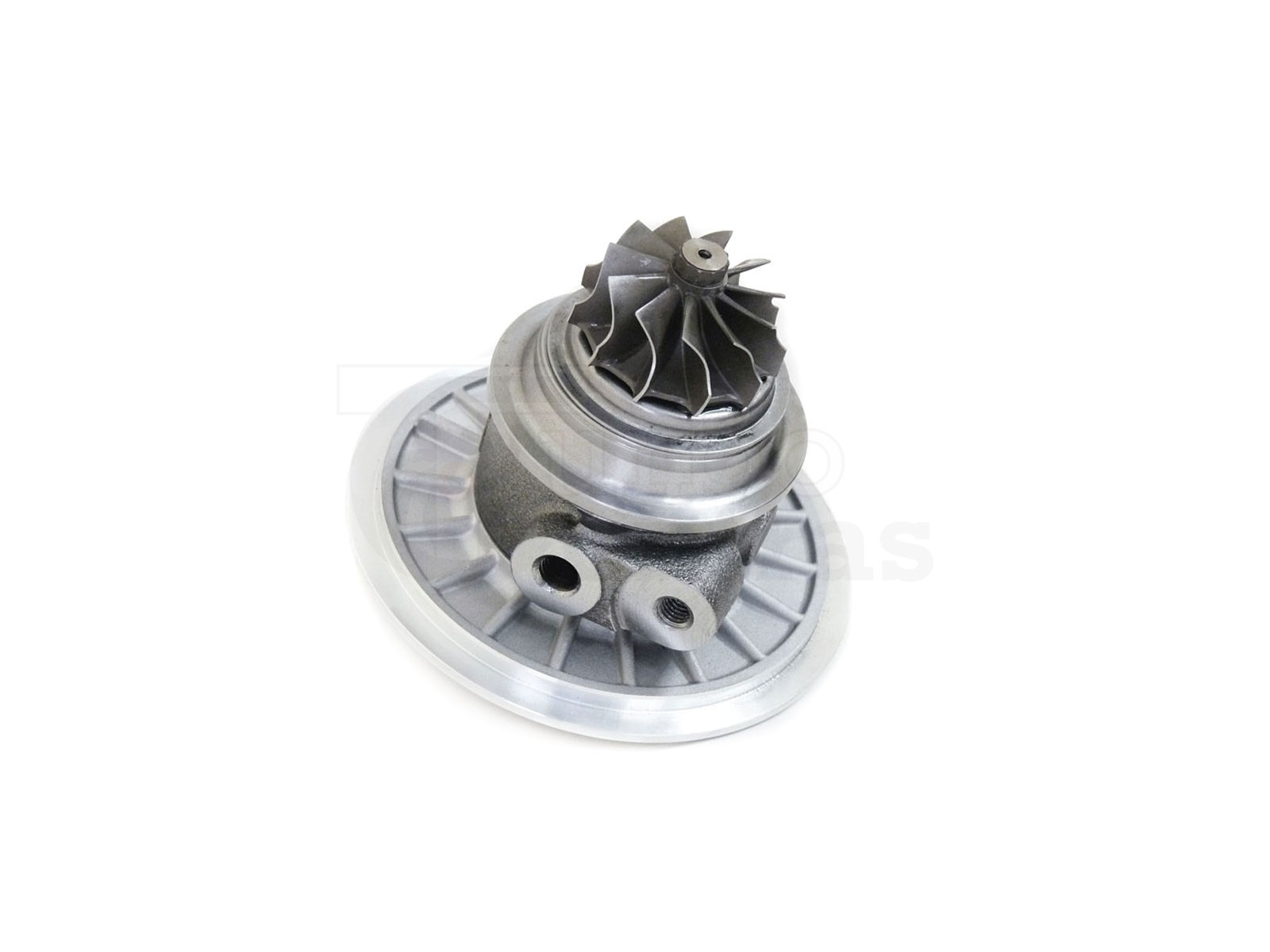

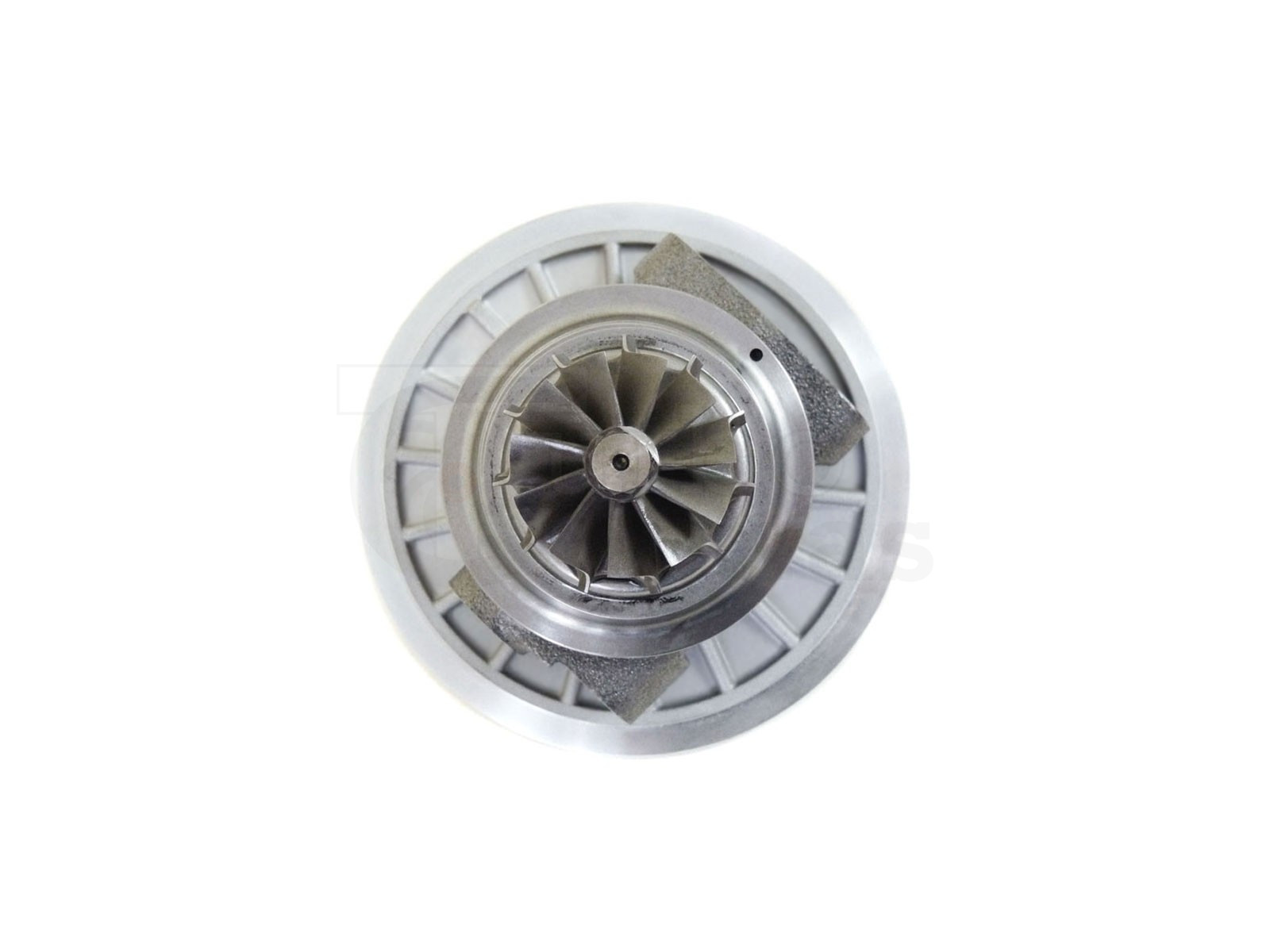

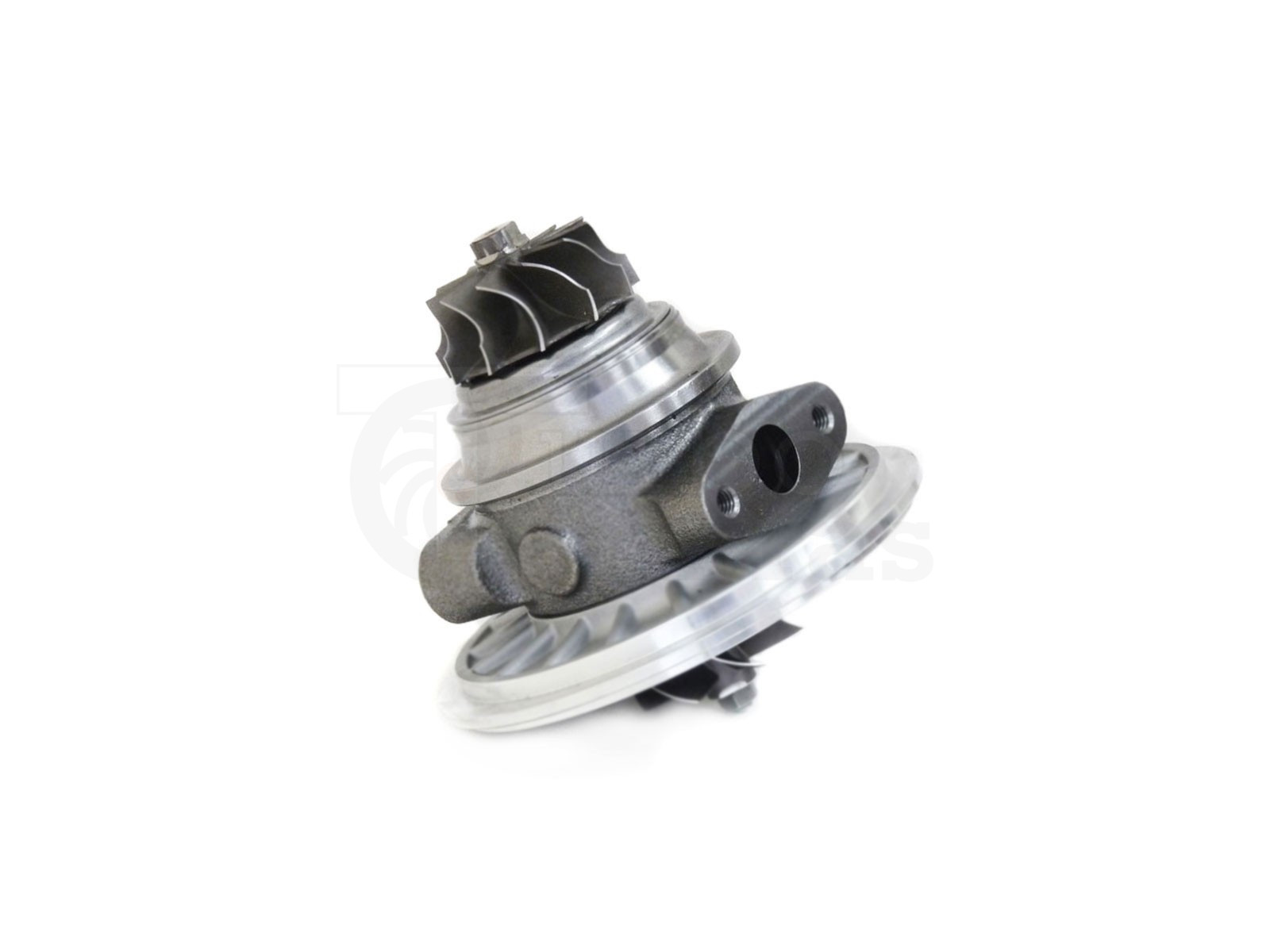

Cartridge IH-00-0014 for turbos VB14, VB17, VB25.

See below for more info

RHF4-215

IH-00-0014

Brand: TurboCentras

Reference: IH-00-0014

Part numbers

TCP: IH-00-0014

TCO: RHF4-215

Used in turbochargers

IHI VB14 RHF4

IHI VB17 RHF4

IHI VB25 RHF4

Included parts

Bearing housing IH-01-0018

Shaft and wheel IH-02-0020

Compressor wheel IH-03-0011

Heat shield IH-05-0011

Back plate IH-08-0006

Journal bearing RHF4-100

Thrust bearing RHF4-121

Thrust flinger RHF4-130

Retaining ring RHF4-145

Thrust washer RHF4-146

Piston ring RHF4-160

Piston ring RHF4-170

Shaft nut RHF4-180

Screw SC-96-0002

Screw SC-96-0006

Gasket oil outlet T-1

IH-00-0014 - Cartridge

Brand: TurboCentras

TurboCentras Reference: IH-00-0014

IH-00-0014 - Alternative numbers

TCP (TurboCentras part number): IH-00-0014

TCO (TurboCentras old part number): RHF4-215

IH-00-0014 - Compatibility table

Cartridge IH-00-0014 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
IHI	RHF4V	VB14	VB14	17201-0R010, 17201-0R011
IHI	RHF4	VB17	VB17	17201-26020, 17201-26021
IHI	RHF4V	VB25	VB25	--

IH-00-0014, RHF4-215

17201-0R010, 17201-0R011, VB14, 17201-26020, 17201-26021, VB17, VB25
