Product package: 2.5 kg (20x20x20 cm)

Cartridge GA-00-0181

Reference GA-00-0181

Condition New

Out-of-Stock

€100.80

GA-00-0181, GT20-234

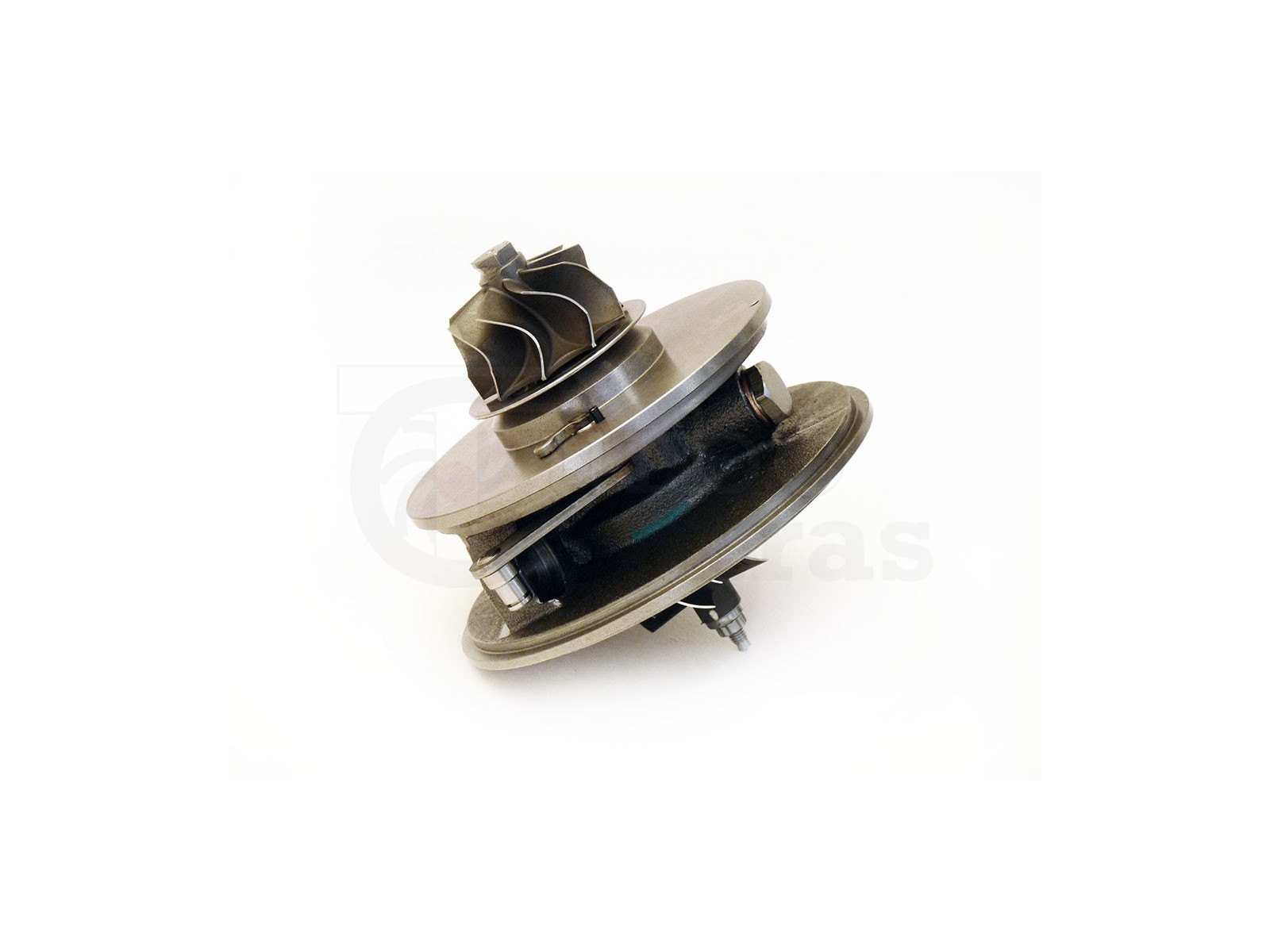

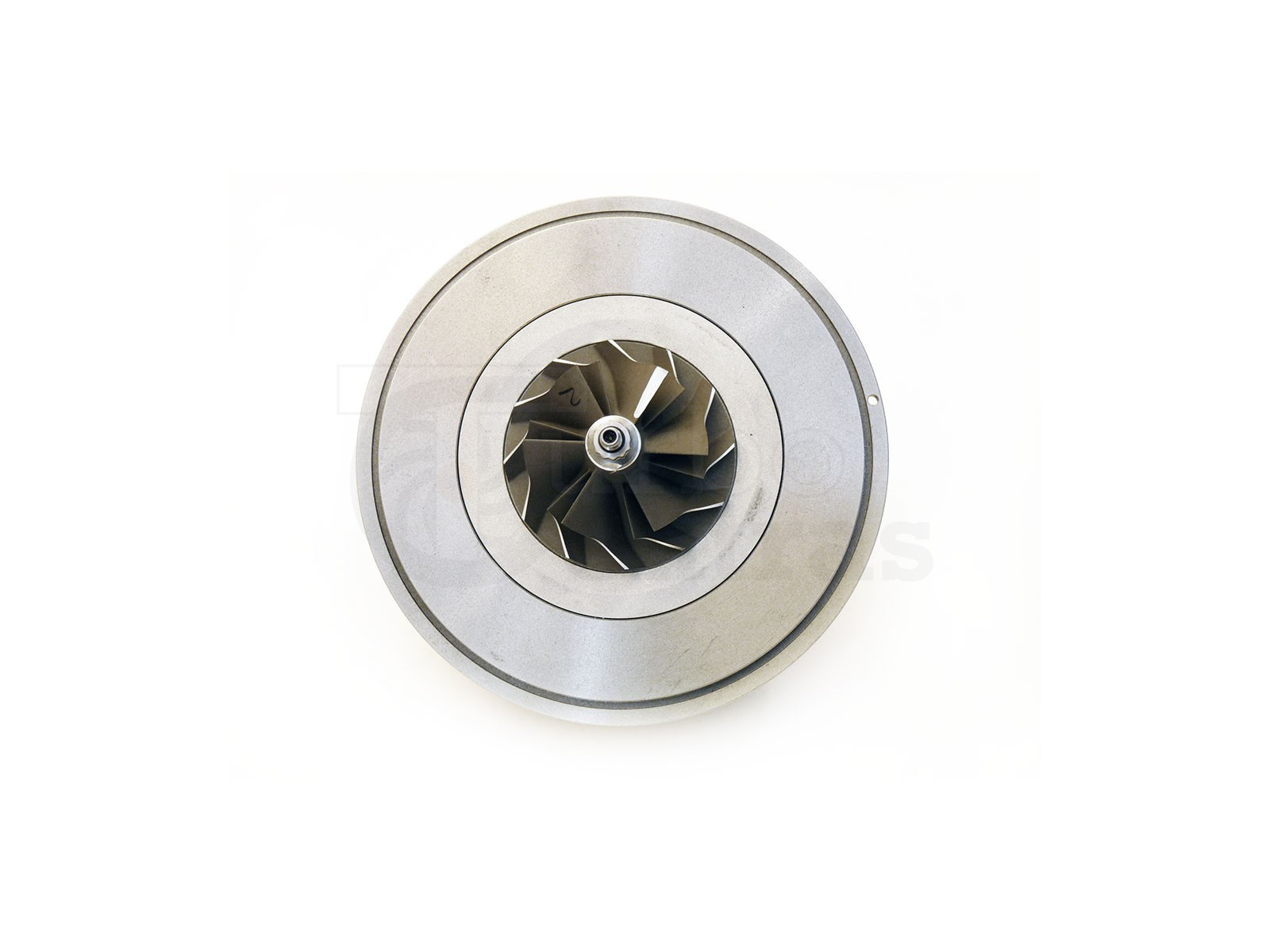

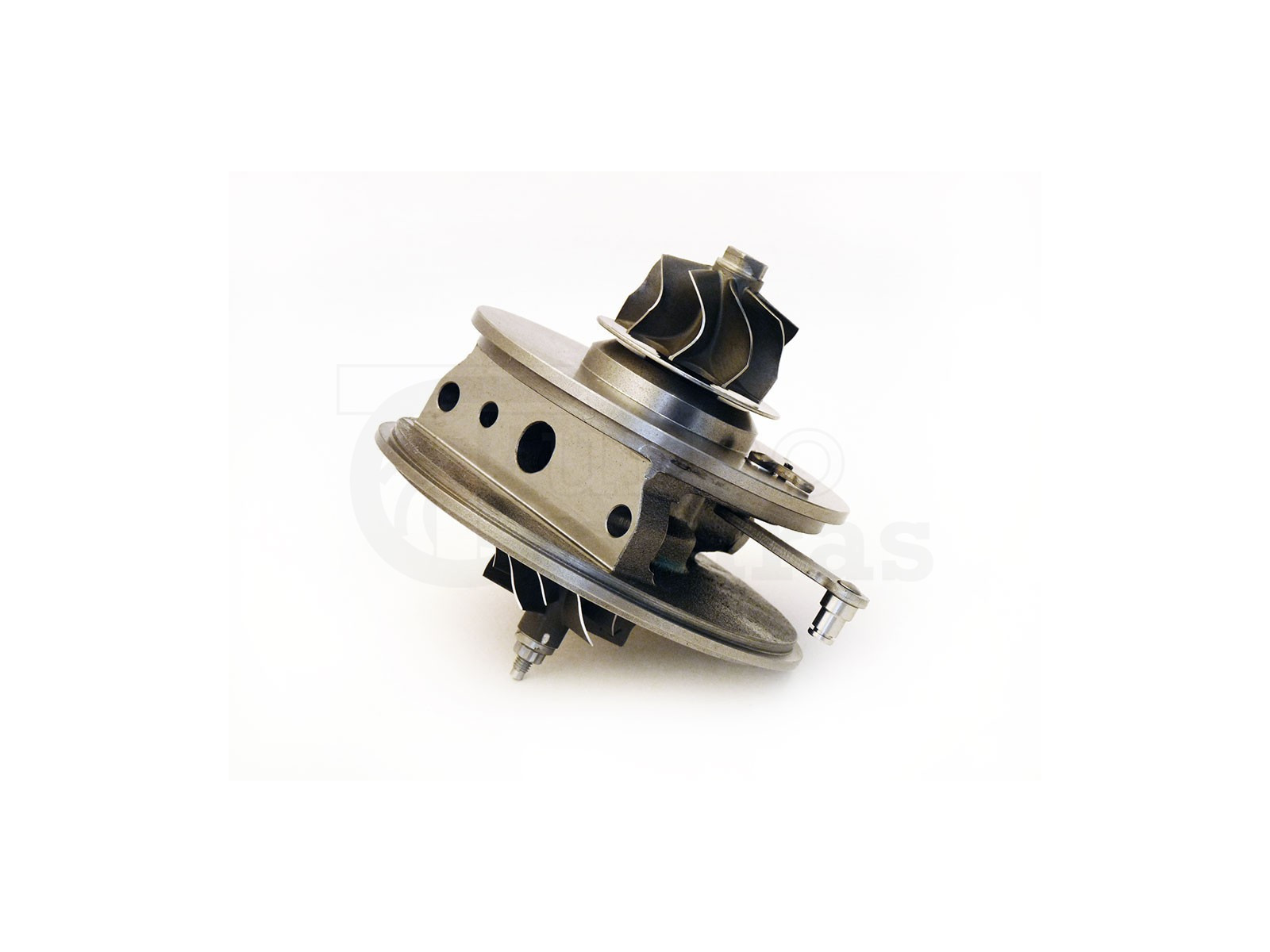

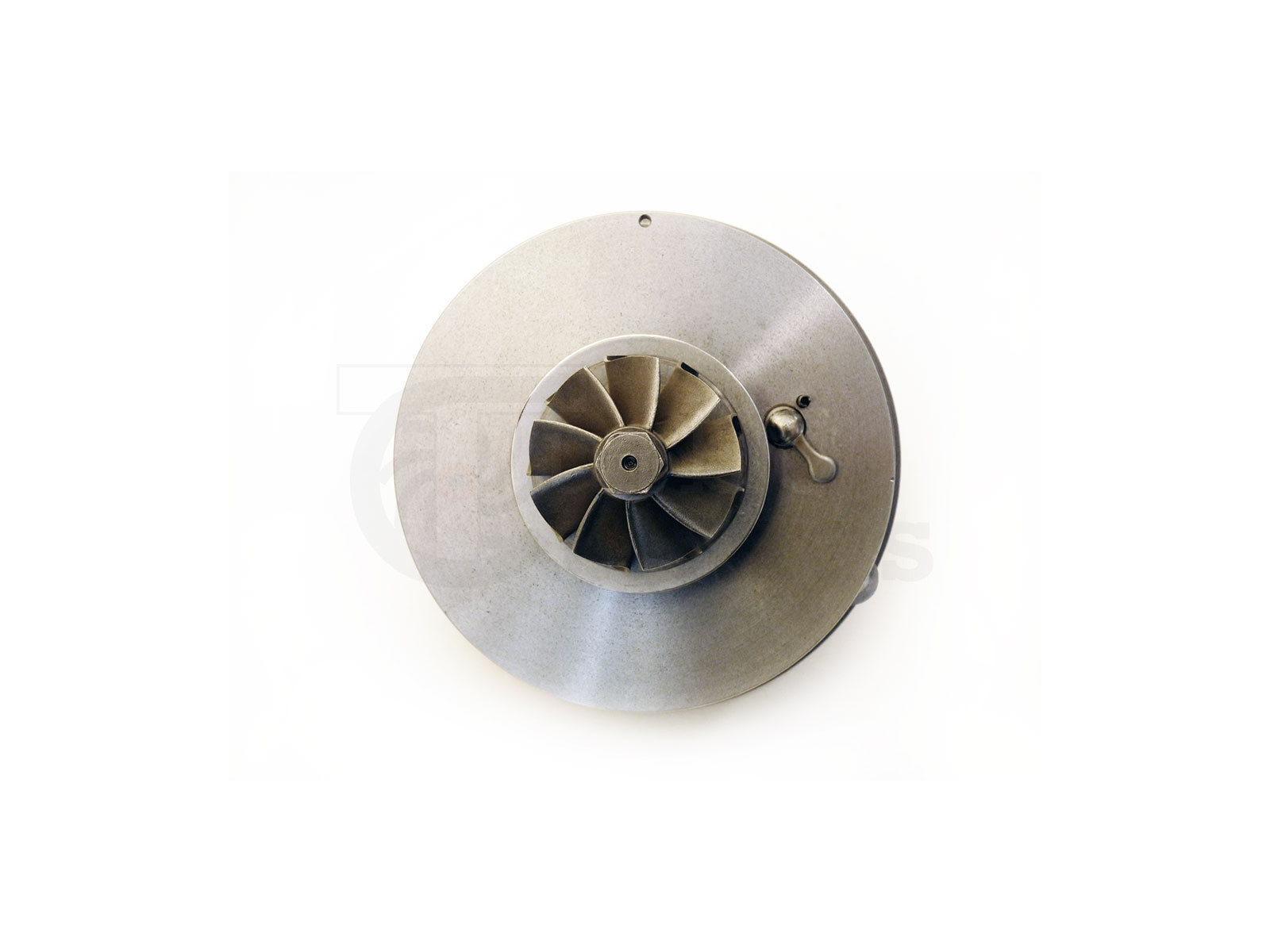

Cartridge GA-00-0181 for turbos 757608-0001, 761399-0001, 761399-0002.

See below for more info

GT20-234

GA-00-0181

Brand: TurboCentras

Reference: GA-00-0181

Part numbers

TCP: GA-00-0181

TCO: GT20-234

Used in turbochargers

Garrett 757608-0001 GT20

Garrett 761399-0001 GT20

Garrett 761399-0002 GT20

Included parts

Bearing housing GA-01-0122

Shaft and wheel GA-02-0091

Compressor wheel GA-03-0072

Heat shield GA-05-0012

Back plate GA-08-0043

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

Shaft nut GT15-180

O-ring GT15-205

O-ring GT15-207

Anti-rotation pin GT15-330

Screw SC-96-0007

Gasket oil outlet T-6

GA-00-0181 - Cartridge

Brand: TurboCentras

TurboCentras Reference: GA-00-0181

GA-00-0181 - Alternative numbers

TCP (TurboCentras part number): GA-00-0181

TCO (TurboCentras old part number): GT20-234

GA-00-0181 - Compatibility table

Cartridge GA-00-0181 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GTA2052GVK	757608-0001	757608-0001, 757608-5001S	A6420900280
Garrett	GTA2056VK	761399-0001	761399-0001, 761399-5001S	A6420900180
Garrett	GTA2056VK	761399-0002	761399-0002, 761399-5002S	A6420900180

GA-00-0181, GT20-234

757608-0001, 757608-5001S, A6420900280, 761399-0001, 761399-5001S, A6420900180, 761399-0002, 761399-5002S, A6420900180

Data updated: 2023-10-10 08:45:13

Condition New

Thrust flinger GT15-130

In Stock

Thrust flingers

Thrust flinger GT15-130

Thrust flinger GT15-130 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452194-0001, 452202-0003.See below for more info.

Thrust Collar GT15-135

In Stock

Thrust Collars

Thrust Collar GT15-135

Thrust Collar GT15-135 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452194-0001, 452202-0003.See below for more info.

Thrust bearing GT15-120

In Stock

Thrust Bearings

Thrust bearing GT15-120

Thrust bearing GT15-120 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452191-0001, 452191-0002.See below for more info.

Actuator clip GR.5

In Stock

Actuator clips

Actuator clip GR.5

Actuator clip GR.5 for turbos 452014-0003, 452014-0005, 452014-0006, 452038-0001, 452039-0001, 452044-0001, 452044-0003, 452044-0004, 452047-0001, 452047-0002.See below for more info

Bearing housing GA-01-0122 GT20-308

Bearing housing GA-01-0122 GT20-308 2

In Stock

Bearing housings

Bearing housing GA-01-0122

GA-01-0122, GT20-308Bearing housing GA-01-0122 for turbos 757608-0001, 761399-0001, 761399-0002.See below for more info

Back plate 730078-0002 GA-08-0043 GT20-60

Back plate 730078-0002 GA-08-0043 GT20-60 2

In Stock

Back plates

Back plate GA-08-0043

730078-0002, GA-08-0043, GT20-60Back plate GA-08-0043 for turbos 757608-0001, 757608-0002, 757608-0003, 757608-0004, 757608-0005, 757608-0006, 757779-0004, 757779-0010, 757779-0020, 757779-0021.See below for more info

Piston ring GT15-160

In Stock

Piston rings

Piston ring GT15-160

GT15-160, PR-37-0040Piston ring GT15-160 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Piston ring GT15-170

In Stock

Piston rings

Piston ring GT15-170

GT15-170, PR-37-0003Piston ring GT15-170 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Heat shield GA-05-0012 GT15-323

Heat shield GA-05-0012 GT15-323 2

In Stock

Heat Shields

Heat shield GA-05-0012

GA-05-0012, GT15-323Heat shield GA-05-0012 for turbos 454081-0001, 454096-0001, 454103-0001, 454135-0001, 454135-0002, 454135-0003, 454135-0005, 454135-0006, 454135-0007, 454135-0008.See below for more info

Journal bearing GT15-101

Journal bearing GT15-101 2

In Stock

Journal Bearings

Journal bearing GT15-101

GA-41-0016, GT15-101See below for more info

Compressor wheel 737689-0001 784366-0001 GA-03-0072 GT20-01

Compressor wheel 737689-0001 784366-0001 GA-03-0072 GT20-01 2

In Stock

Compressor wheels

Compressor wheel GA-03-0072

737689-0001, 784366-0001, GA-03-0072, GT20-01Compressor wheel GA-03-0072 for turbos 757608-0001, 757608-0002, 757608-0003, 757608-0004, 757608-0005, 757608-0006, 761399-0001, 761399-0002, 763263-0005, 764381-0001.See below for more info

Gasket oil outlet T-6

Gasket oil outlet T-6 2

In Stock

Gasket oil outlet

Gasket oil outlet T-6

Gasket oil outlet T-6 for turbos 743507-0009, 757608-0001, 761399-0001, 761399-0002, 764381-0002, 764381-0004, 764809-0002, 764809-0004, 765155-0004, 765155-0007. See below for more info.

Shaft and wheel GA-02-0091

In Stock

Shaft & Wheels

Shaft and wheel GA-02-0091

GA-02-0091, GT20-44Shaft and wheel GA-02-0091 for turbos 757608-0001, 757608-0002, 757608-0003, 757608-0004, 757608-0005, 757608-0006, 761399-0001, 761399-0002, 765155-0004, 765155-0007.See below for more info

Screw M5X18 SC-96-0007

Screw M5X18 SC-96-0007 2

In Stock

Bolts, nuts, screws, washers

Screw SC-96-0007

Screw M5X18 TX 20 10.9 (Backplate Garrett GT/VNT 15-25 series)M5X18, SC-96-0007Screw SC-96-0007 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Shaft nut GT15-180

In Stock

Shaft Nuts

Shaft nut GT15-180

GA-21-0005, GT15-180Shaft nut GT15-180 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Anti-rotation pin GT15-330

In Stock

Anti-rotation pins

Anti-rotation pin GT15-330

GA-46-0001, GT15-330Anti-rotation pin GT15-330 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452191-0001, 452191-0002.See below for more info.

Retaining ring GT15-143

In Stock

Retaining rings

Retaining ring GT15-143

Retaining ring GT15-143 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

O-ring GT15-207

In Stock

O-rings

O-ring GT15-207

GT15-207, OR-38-0026See below for more info

O-ring GT15-205

In Stock

O-rings

O-ring GT15-205

GT15-205, OR-38-0066See below for more info
