Product package: 2 kg (20x20x20 cm)

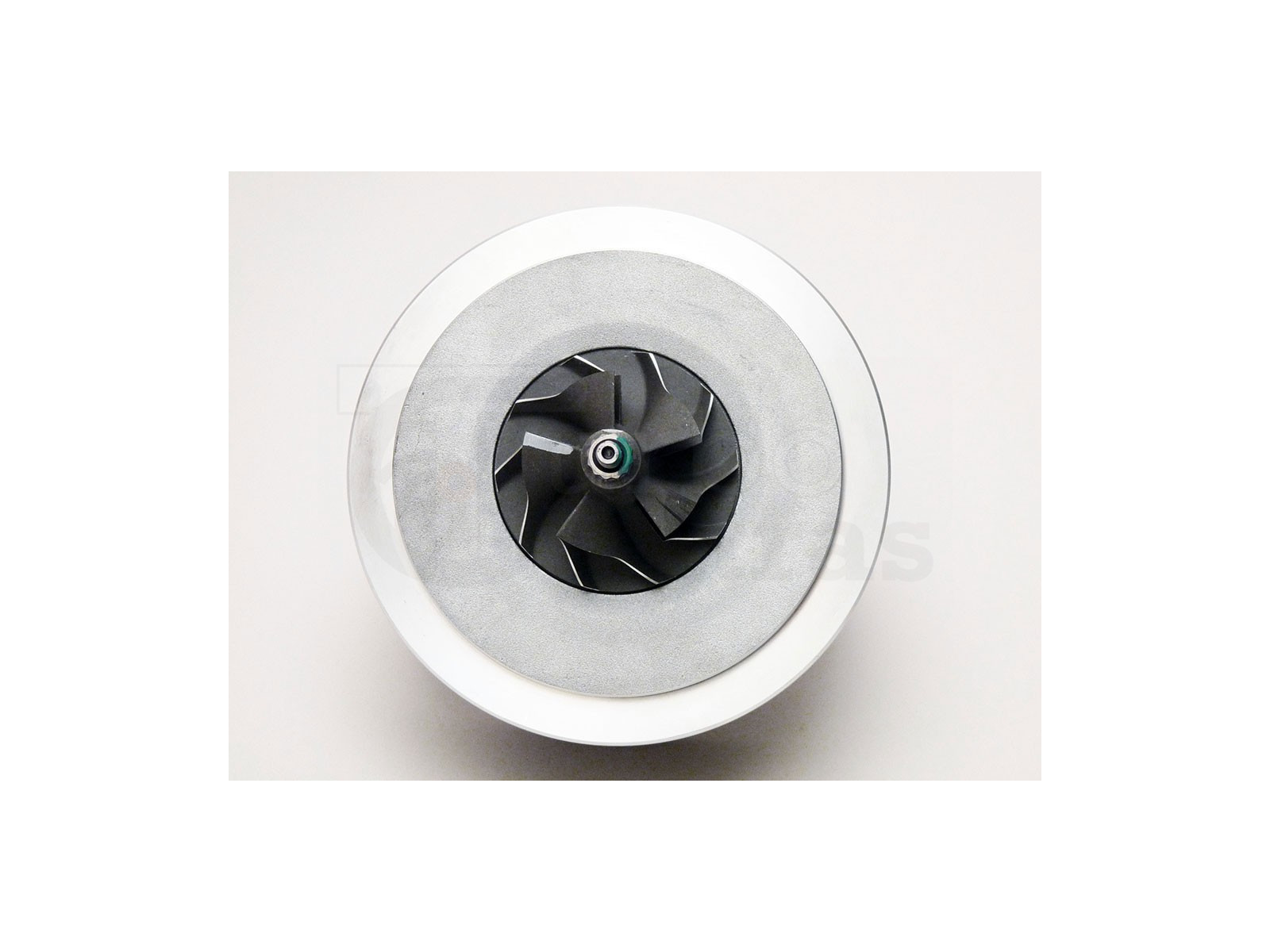

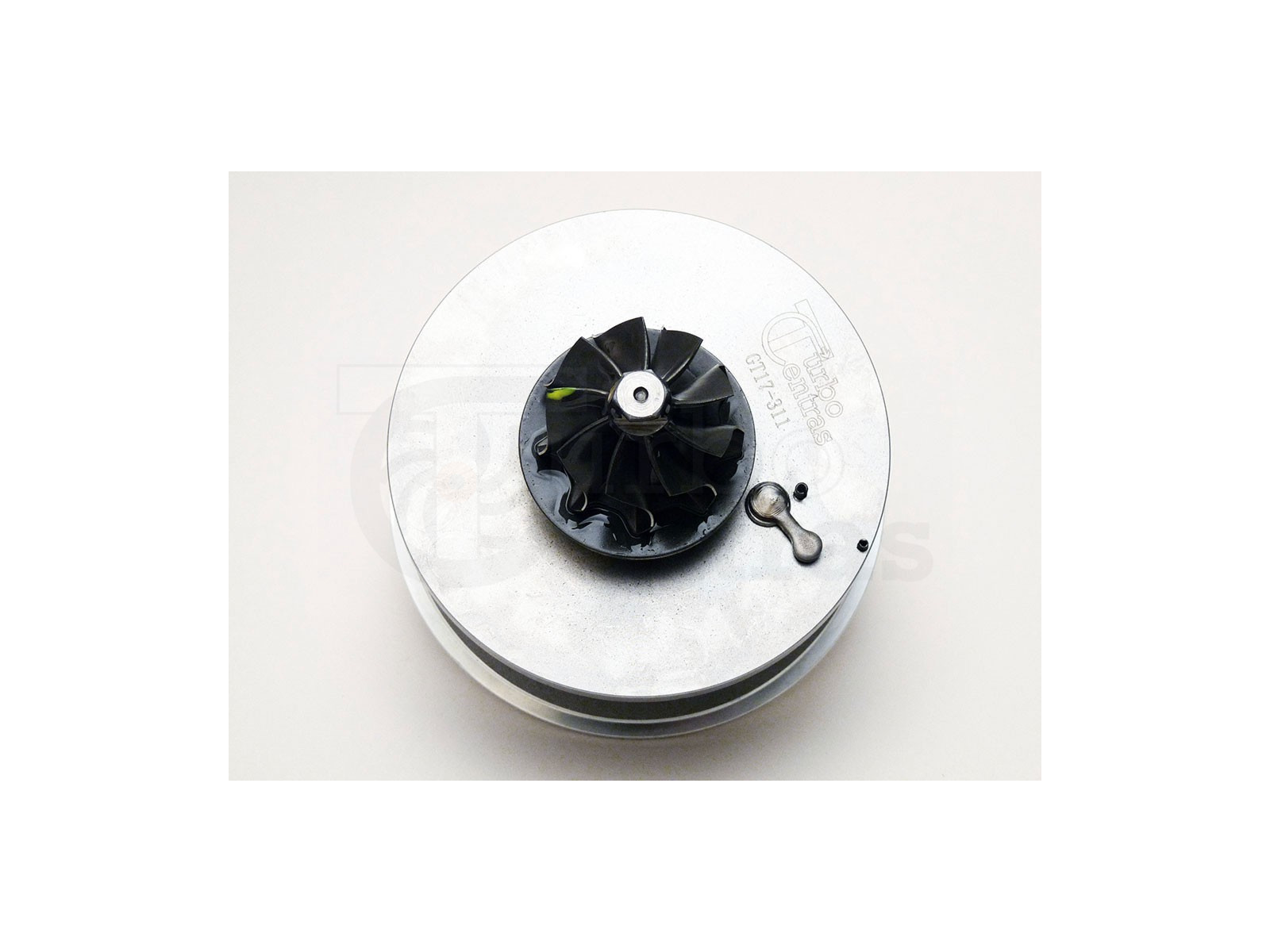

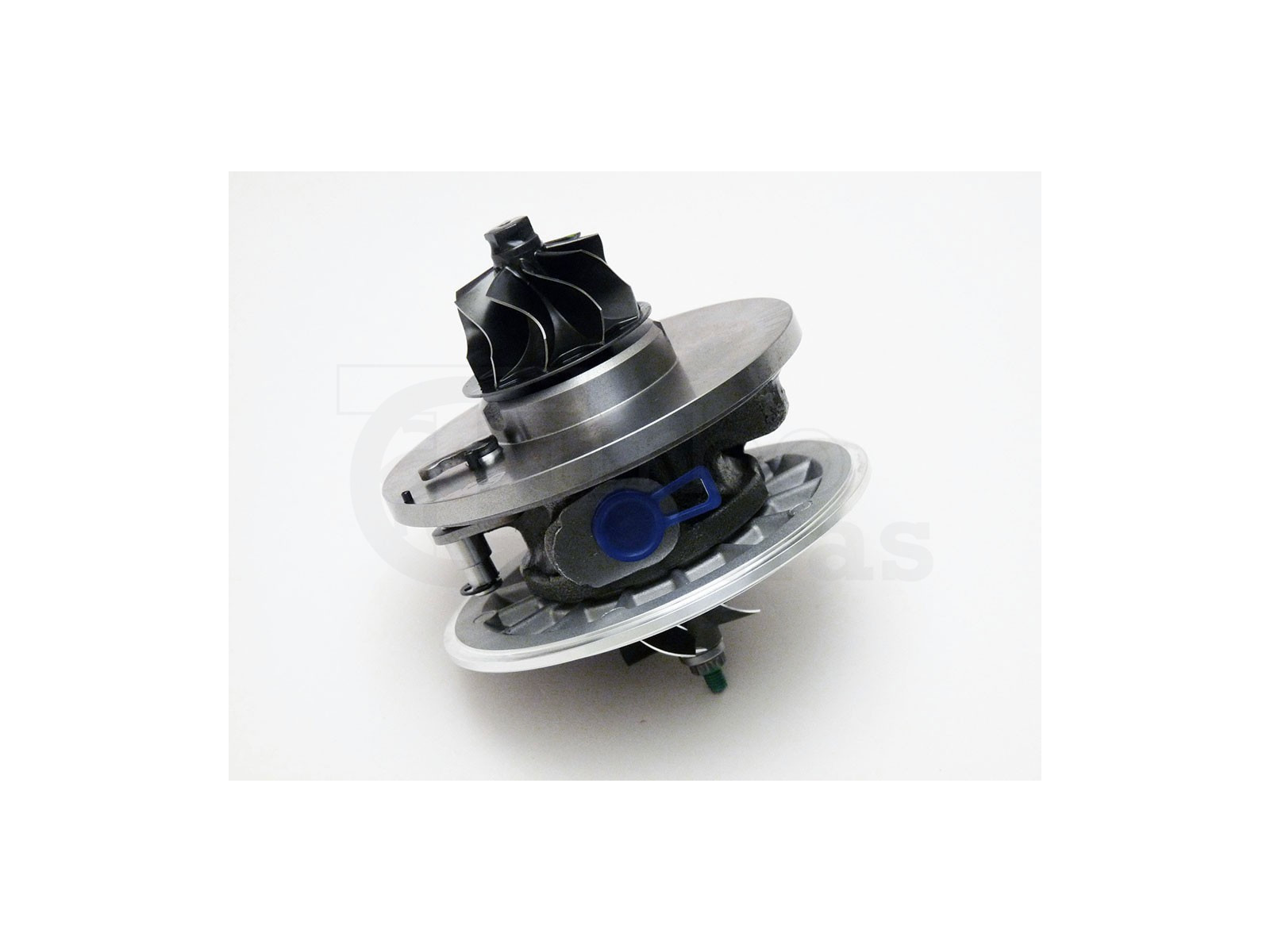

Cartridge GA-00-0113

Reference GA-00-0113

Condition New

Last items in stock (1 Item)

€98.52

Delivered within 3-8 days

GA-00-0113, GT17-229

Cartridge GA-00-0113 for turbos 755046-0001, 755046-0002, 755046-0003, 755046-0004, 762660-0002, 766340-0001, 766340-0002, 773720-0001.

See below for more info

GT17-229

GA-00-0113

Brand: TurboCentras

Reference: GA-00-0113

Part numbers

TCP: GA-00-0113

TCO: GT17-229

Used in turbochargers

Garrett 755046-0001 GT17

Garrett 755046-0002 GT17

Garrett 755046-0003 GT17

Garrett 755046-0004 GT17

Garrett 762660-0002 GT17

Garrett 766340-0001 GT17

Garrett 766340-0002 GT17

Garrett 773720-0001 GT17

Included parts

Bearing housing GA-01-0100

Shaft and wheel GA-02-0078

Compressor wheel GA-03-0056

Heat shield GA-05-0013

Back plate GA-08-0034

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

Shaft nut GT15-180

O-ring GT15-202

O-ring GT15-206

Anti-rotation pin GT15-330

Screw SC-96-0007

Gasket oil outlet T-1

GA-00-0113 - Cartridge

Brand: TurboCentras

TurboCentras Reference: GA-00-0113

GA-00-0113 - Alternative numbers

TCP (TurboCentras part number): GA-00-0113

TCO (TurboCentras old part number): GT17-229

GA-00-0113 - Compatibility table

Cartridge GA-00-0113 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT1749MV	755046-0001	755046-0001	55196859
Garrett	GT1749MV	755046-0002	755046-0002	55196766
Garrett	GT1749MV	755046-0003	755046-0003	55205356
Garrett	GT1749MV	755046-0004	755046-0004, 755046-5004S, 755046-9004S	7550460004
Garrett	GT1749MV	762660-0002	762660-0002, 762660-5002S	55203091
Garrett	GT1749MV	766340-0001	766340-0001, 766340-5001S	55205483
Garrett	GT1749MV	766340-0002	766340-0002, 766340-5002S, 766340-9002S	55190872, 55196766, 55196859, 55205356, 55205483
Garrett	GT1749MV	773720-0001	773720-0001	--

GA-00-0113, GT17-229

55196859, 755046-0001, 55196766, 755046-0002, 55205356, 755046-0003, 755046-0004, 755046-5004S, 755046-9004S, 7550460004, 55203091, 762660-0002, 762660-5002S, 55205483, 766340-0001, 766340-5001S, 55190872, 55196766, 55196859, 55205356, 55205483, 766340-0002, 766340-5002S, 766340-9002S, 773720-0001

Data updated: 2023-10-10 08:44:51

In stock 1 Item

Condition New

Thrust flinger GT15-130

In Stock

Thrust flingers

Thrust flinger GT15-130

Thrust flinger GT15-130 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452194-0001, 452202-0003.See below for more info.

Thrust Collar GT15-135

In Stock

Thrust Collars

Thrust Collar GT15-135

Thrust Collar GT15-135 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452194-0001, 452202-0003.See below for more info.

Thrust bearing GT15-120

In Stock

Thrust Bearings

Thrust bearing GT15-120

Thrust bearing GT15-120 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452191-0001, 452191-0002.See below for more info.

Actuator clip GR.5

In Stock

Actuator clips

Actuator clip GR.5

Actuator clip GR.5 for turbos 452014-0003, 452014-0005, 452014-0006, 452038-0001, 452039-0001, 452044-0001, 452044-0003, 452044-0004, 452047-0001, 452047-0002.See below for more info

Bearing housing GA-01-0100 GT17-311

Bearing housing GA-01-0100 GT17-311 2

In Stock

Bearing housings

Bearing housing GA-01-0100

GA-01-0100, GT17-311Bearing housing GA-01-0100 for turbos 740080-0002, 752814-0001, 754821-0001, 755042-0001, 755042-0002, 755042-0003, 755046-0001, 755046-0002, 755046-0003, 755046-0004.See below for more info

Back plate GA-08-0034 GT15-89

Back plate GA-08-0034 GT15-89 2

In Stock

Back plates

Back plate GA-08-0034

GA-08-0034, GT15-89Back plate GA-08-0034 for turbos 736168-0002, 736168-0003, 740080-0002, 752814-0001, 753519-0007, 753519-0008, 753519-0009, 754821-0001, 755042-0001, 755042-0002.See below for more info

Piston ring GT15-160

In Stock

Piston rings

Piston ring GT15-160

GT15-160, PR-37-0040Piston ring GT15-160 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Piston ring GT15-170

In Stock

Piston rings

Piston ring GT15-170

GT15-170, PR-37-0003Piston ring GT15-170 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Heat shield GA-05-0013 GT15-324

Heat shield GA-05-0013 GT15-324 2

In Stock

Heat Shields

Heat shield GA-05-0013

GA-05-0013, GT15-324Heat shield GA-05-0013 for turbos 454158-0001, 454158-0003, 454158-0004, 454161-0001, 454161-0003, 454161-0004, 454183-0001, 454183-0002, 454183-0003, 454183-0004.See below for more info

Journal bearing GT15-101

Journal bearing GT15-101 2

In Stock

Journal Bearings

Journal bearing GT15-101

GA-41-0016, GT15-101See below for more info

Compressor wheel 717694-0016 GA-03-0056 GT17-01

Compressor wheel 717694-0016 GA-03-0056 GT17-01 2

In Stock

Compressor wheels

Compressor wheel GA-03-0056

717694-0016, GA-03-0056, GT17-01Compressor wheel GA-03-0056 for turbos 740067-0001, 740067-0002, 755046-0001, 755046-0002, 755046-0003, 762660-0002, 762660-0003, 766340-0001, 766340-0002, 766340-0003.See below for more info

Gasket oil outlet T-1

In Stock

Gasket oil outlet

Gasket oil outlet T-1

Gasket oil outlet T-1 for turbos 030TC11002000, 030TC11003000, 030TC11004000, 030TC11005000, 06H145702G, 06H145702L, 06H145702Q, 06H145702R, 06H145702S, 10009700005.See below for more info.

Shaft and wheel GA-02-0078 GT17-48

Shaft and wheel GA-02-0078 GT17-48 2

In Stock

Shaft & Wheels

Shaft and wheel GA-02-0078

GA-02-0078, GT17-48Shaft and wheel GA-02-0078 for turbos 736168-0002, 736168-0003, 753519-0007, 753519-0008, 753519-0009, 758021-0002, 764609-0001, 764609-0003, 782053-0001.See below for more info

Screw M5X18 SC-96-0007

Screw M5X18 SC-96-0007 2

In Stock

Bolts, nuts, screws, washers

Screw SC-96-0007

Screw M5X18 TX 20 10.9 (Backplate Garrett GT/VNT 15-25 series)M5X18, SC-96-0007Screw SC-96-0007 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Shaft nut GT15-180

In Stock

Shaft Nuts

Shaft nut GT15-180

GA-21-0005, GT15-180Shaft nut GT15-180 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Anti-rotation pin GT15-330

In Stock

Anti-rotation pins

Anti-rotation pin GT15-330

GA-46-0001, GT15-330Anti-rotation pin GT15-330 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452191-0001, 452191-0002.See below for more info.

Retaining ring GT15-143

In Stock

Retaining rings

Retaining ring GT15-143

Retaining ring GT15-143 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

O-ring GT15-206

In Stock

O-rings

O-ring GT15-206

GT15-206, OR-38-0067See below for more info

O-ring GT15-202

In Stock

O-rings

O-ring GT15-202

GT15-202, OR-38-0069See below for more info
