1.7 kg (20x20x20 cm)

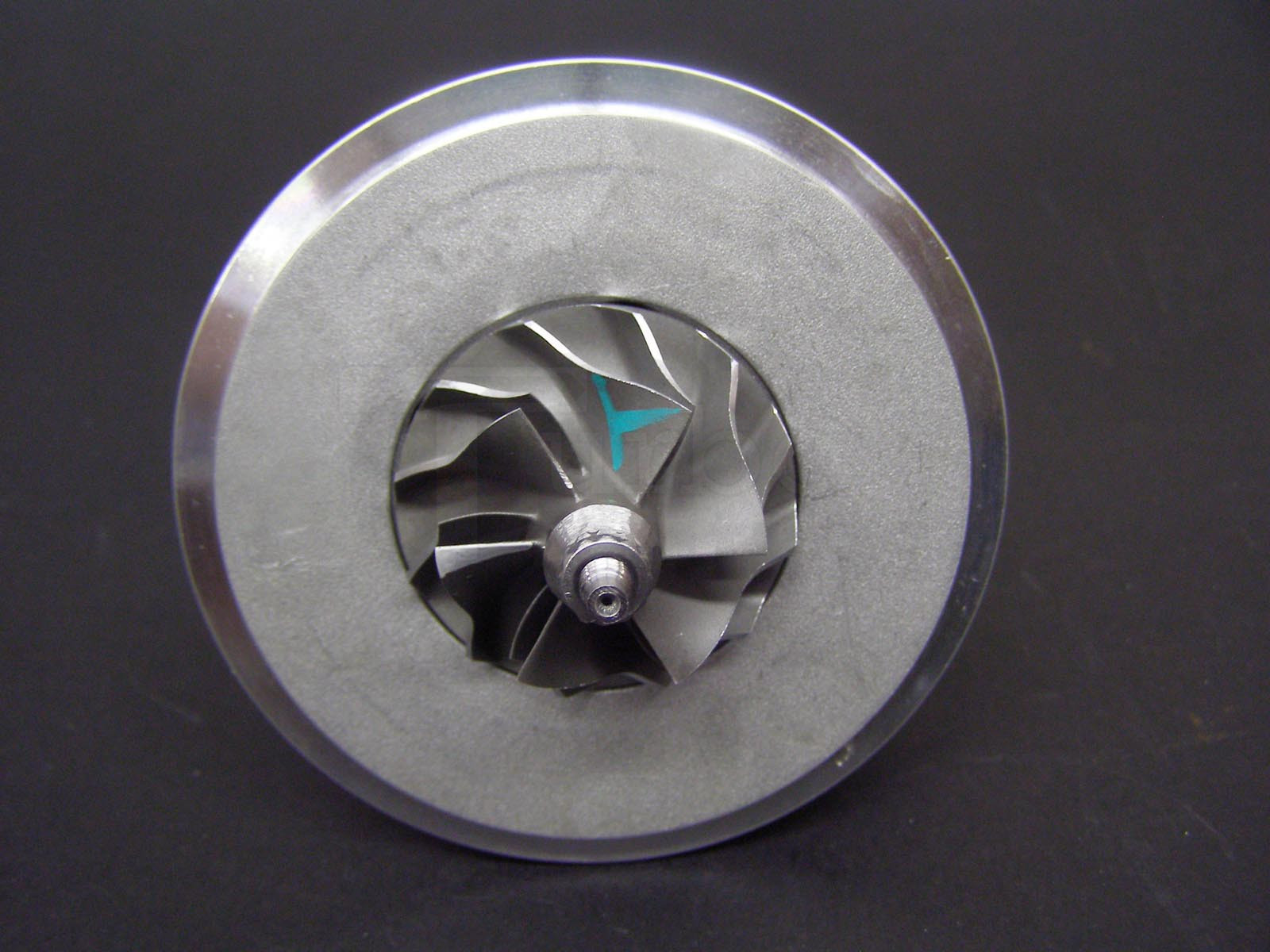

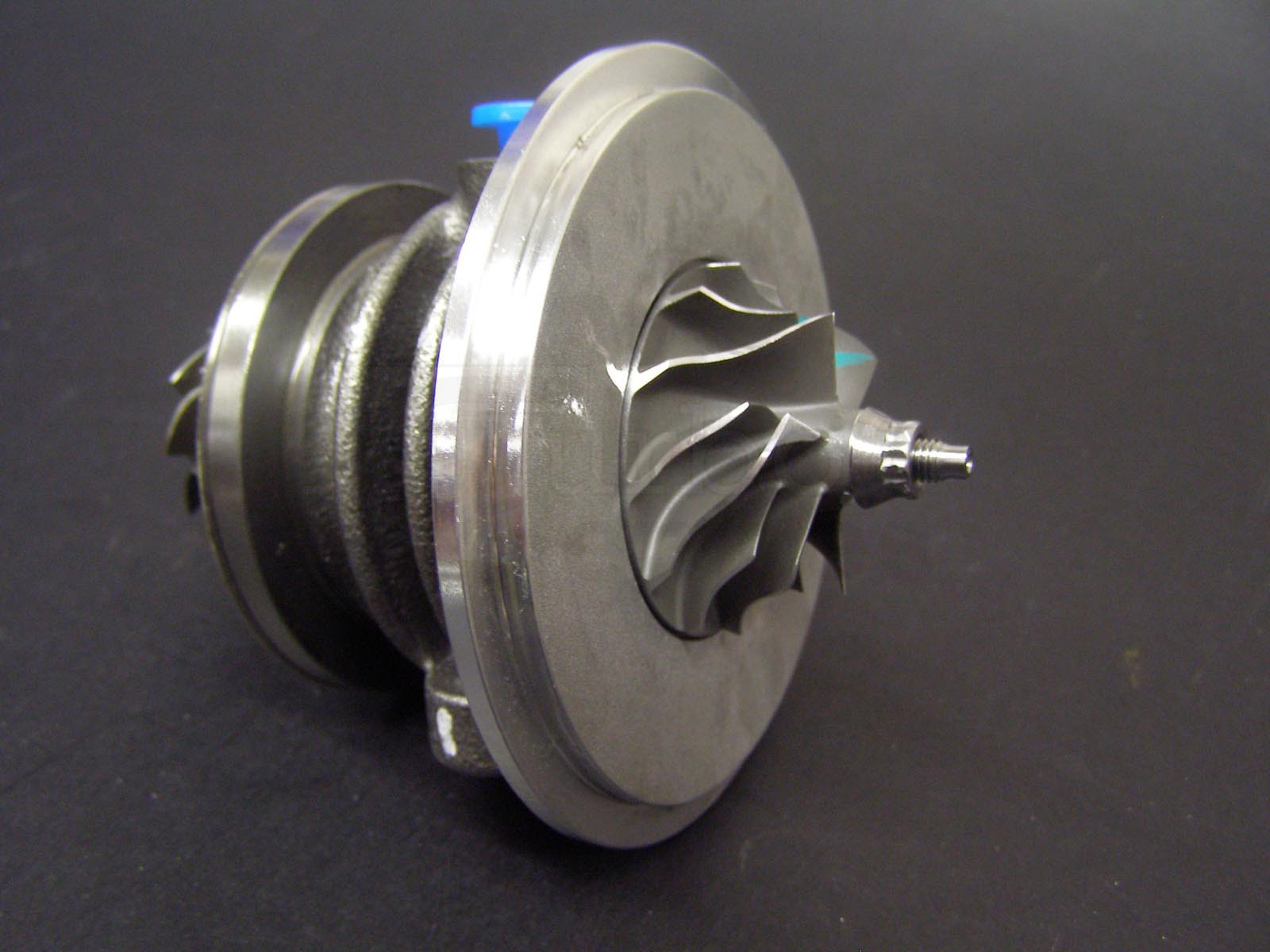

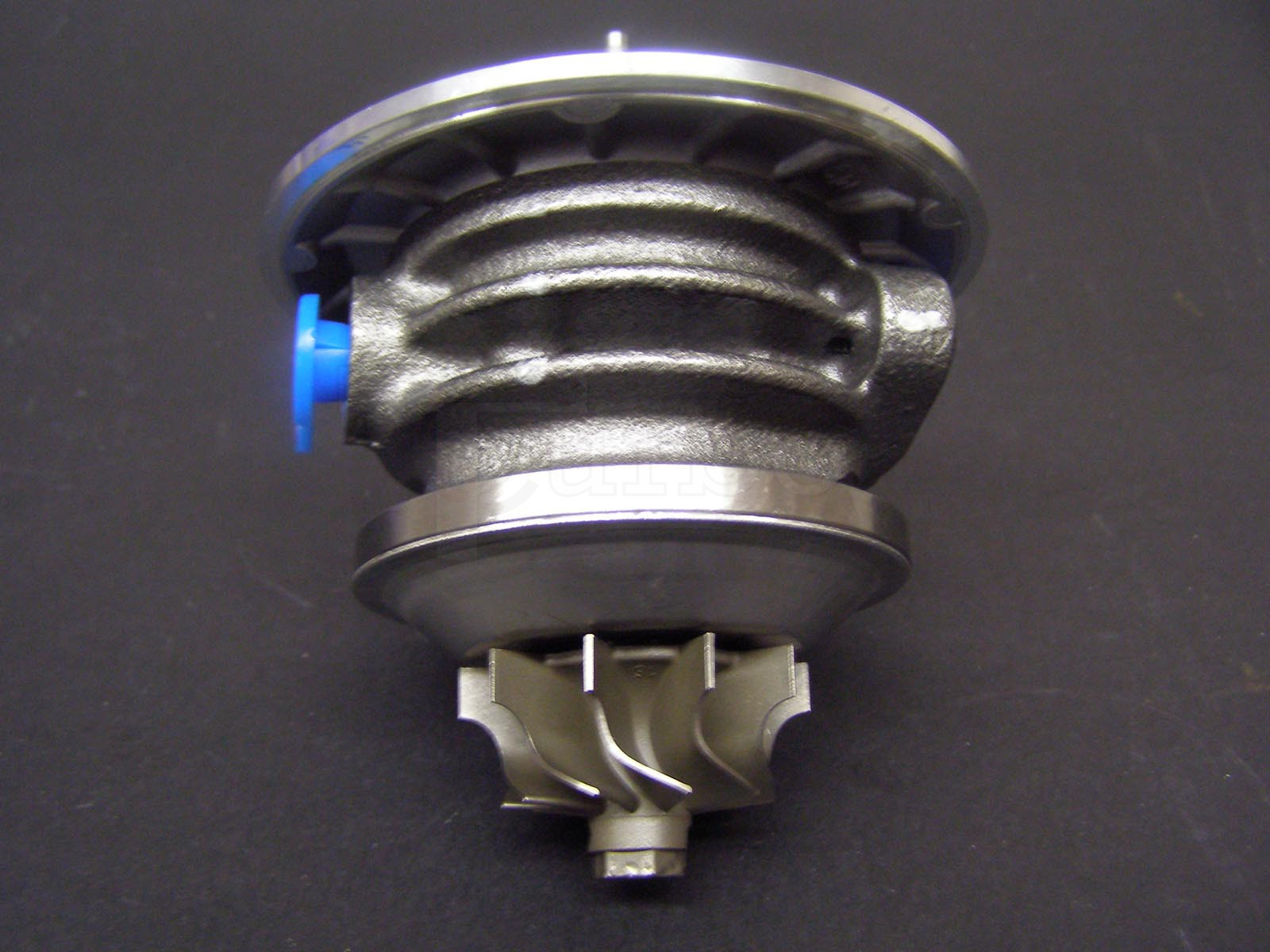

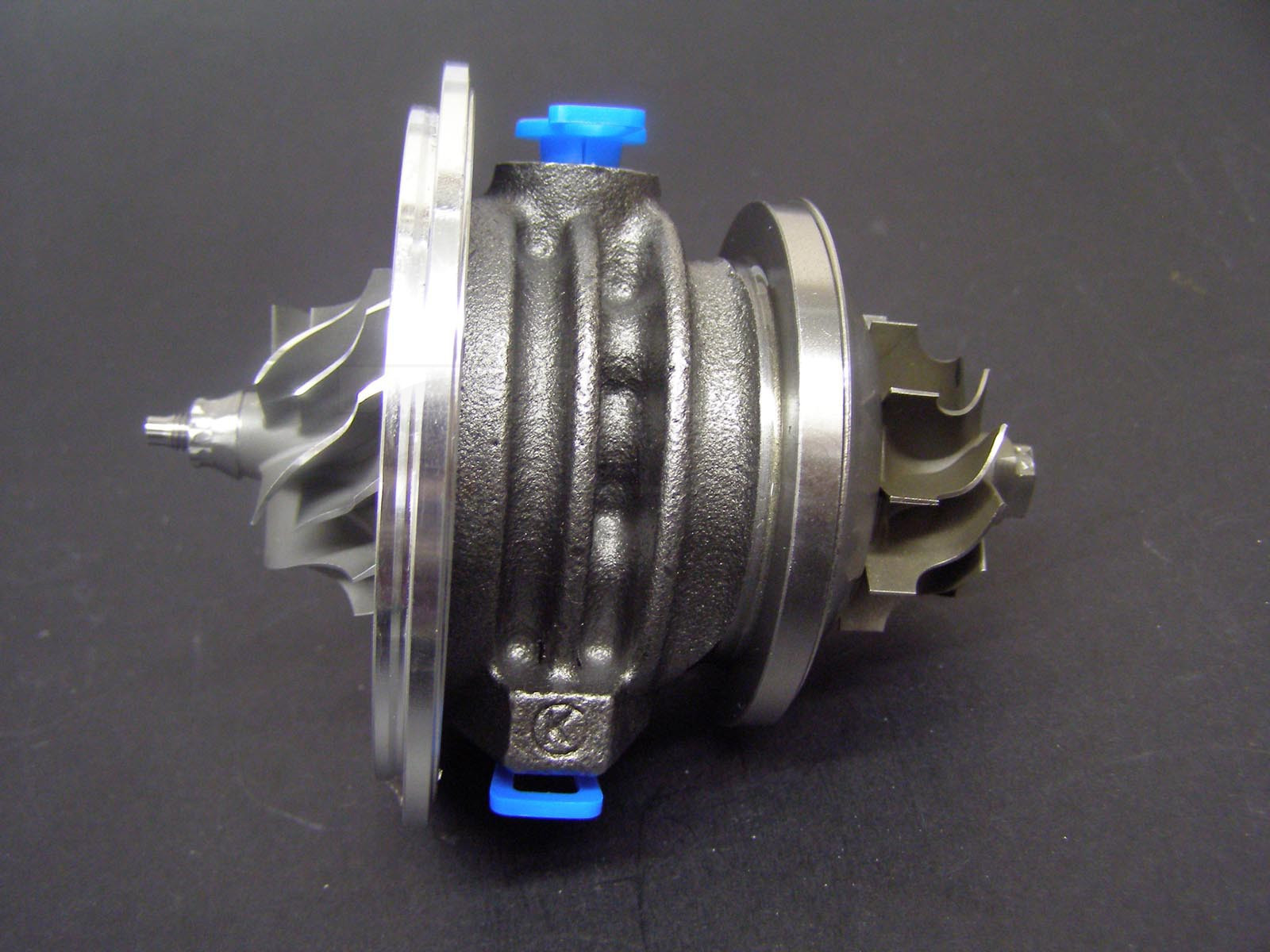

Cartridge GA-00-0035

GA-00-0035
New
In Stock (6 Items)
€87.16
Tax excluded Delivered within 3-8 days

433289-0119, GA-00-0035, GT15-218

Cartridge GA-00-0035 for turbos 454082-0002, 454083-0002, 454093-0003, 454093-0004, 454097-0002, 454098-0002, 454098-0003, 454098-0004, 454159-0001, 454159-0002.

See below for more info

GA-00-0035

Brand: TurboCentras
Reference: GA-00-0035

Part numbers

GHP: 433289-0119
TCP: GA-00-0035
TCO: GT15-218

Used in turbochargers

Garrett 454082-0002 GT15
Garrett 454083-0002 GT15
Garrett 454093-0003 GT15
Garrett 454093-0004 GT15
Garrett 454097-0002 GT15
Garrett 454098-0002 GT15
Garrett 454098-0003 GT15
Garrett 454098-0004 GT15
Garrett 454159-0001 GT15
Garrett 454159-0002 GT15
Garrett 454172-0002 GT15
Garrett 454187-0001 GT15
Garrett 703674-0001 GT15
Garrett 703674-0002 GT15

Included parts

Bearing housing GA-01-0050
Shaft and wheel GA-02-0045
Compressor wheel GA-03-0041
Heat shield GA-05-0014
Back plate GA-08-0013
Shaft nut GA-21-0005
Journal bearing GT15-101
Thrust bearing GT15-120
Thrust flinger GT15-130
Thrust Collar GT15-135
Retaining ring GT15-143
Piston ring GT15-160
Piston ring GT15-170
O-ring GT15-201
O-ring GT15-206
Anti-rotation pin GT15-330
Screw SC-96-0007
Gasket oil outlet T-1


GA-00-0035 - Cartridge

Brand: TurboCentras

TurboCentras Reference: GA-00-0035

GA-00-0035 - Alternative numbers

GHP (Garrett original part number): 433289-0119

TCP (TurboCentras part number): GA-00-0035

TCO (TurboCentras old part number): GT15-218

GA-00-0035 - Compatibility table

Cartridge GA-00-0035 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO PART NUMBERTURBO OE NUMBER
GarrettGT1544S454082-0002454082-0002--
GarrettGT1544S454083-0002454083-0002, 454083-5002S028145701J, 028145701Q, 1002829, 95VW-6K682-AA, 95VW6K682AA
GarrettGT1544S454093-0003454093-0003--
GarrettGT1544S454093-0004454093-0004, 454093-5004S2245901
GarrettGT1544S454097-0002454097-0002, 454097-5002S28145702
GarrettGT1544S454098-0002454098-0002--
GarrettGT1544S454098-0003454098-0003, 454098-5003S24442213
GarrettGT1544S454098-0004454098-0004--
GarrettGT1544S454159-0001454159-0001038145701A
GarrettGT1544S454159-0002454159-0002, 454159-5002S038145701A
GarrettGT1544S454172-0002454172-0002028145702F
GarrettGT1544H454187-0001454187-0001, 454187-5001S90530995
GarrettGT1544S703674-0001703674-0001, 703674-5001S038145701F
GarrettGT1544S703674-0002703674-0002--
433289-0119, GA-00-0035, GT15-218
454082-0002, 028145701J, 028145701Q, 1002829, 454083-0002, 454083-5002S, 95VW-6K682-AA, 95VW6K682AA, 454093-0003, 2245901, 454093-0004, 454093-5004S, 28145702, 454097-0002, 454097-5002S, 454098-0002, 24442213, 454098-0003, 454098-5003S, 454098-0004, 038145701A, 454159-0001, 038145701A, 454159-0002, 454159-5002S, 028145702F, 454172-0002, 454187-0001, 454187-5001S, 90530995, 038145701F, 703674-0001, 703674-5001S, 703674-0002

Data updated: 2023-10-10 08:44:14
