Product package: 1.7 kg (20x20x20 cm)

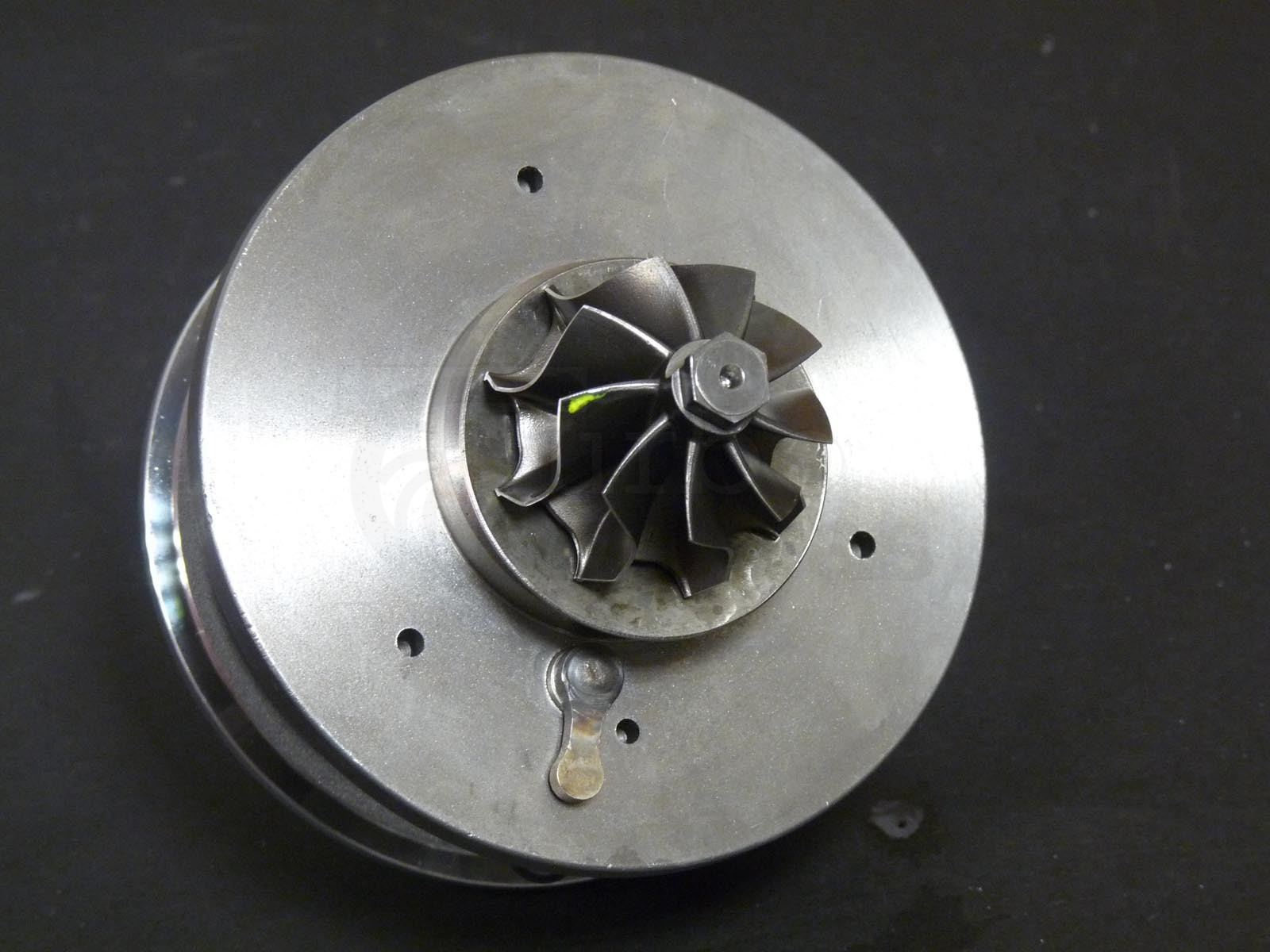

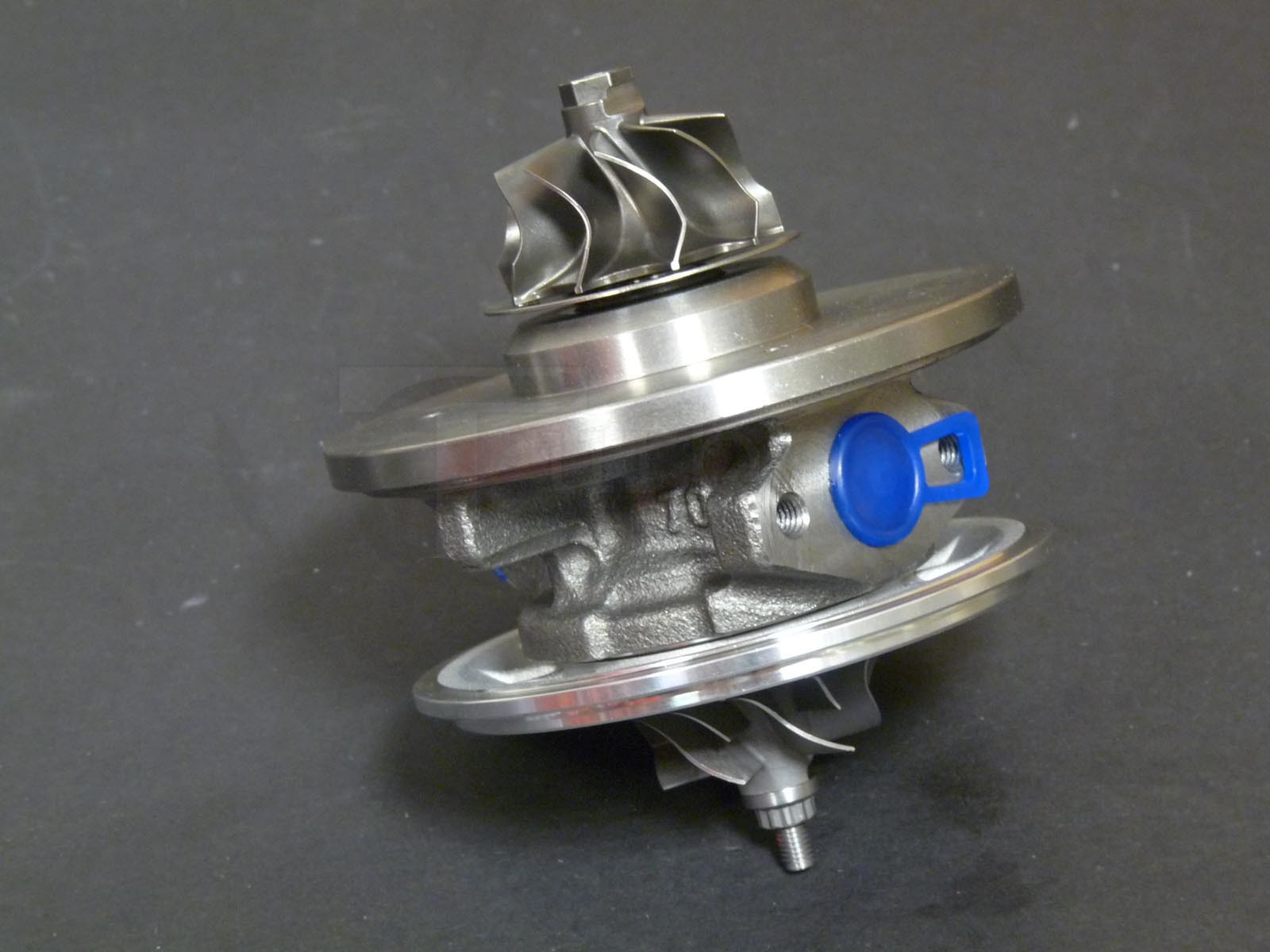

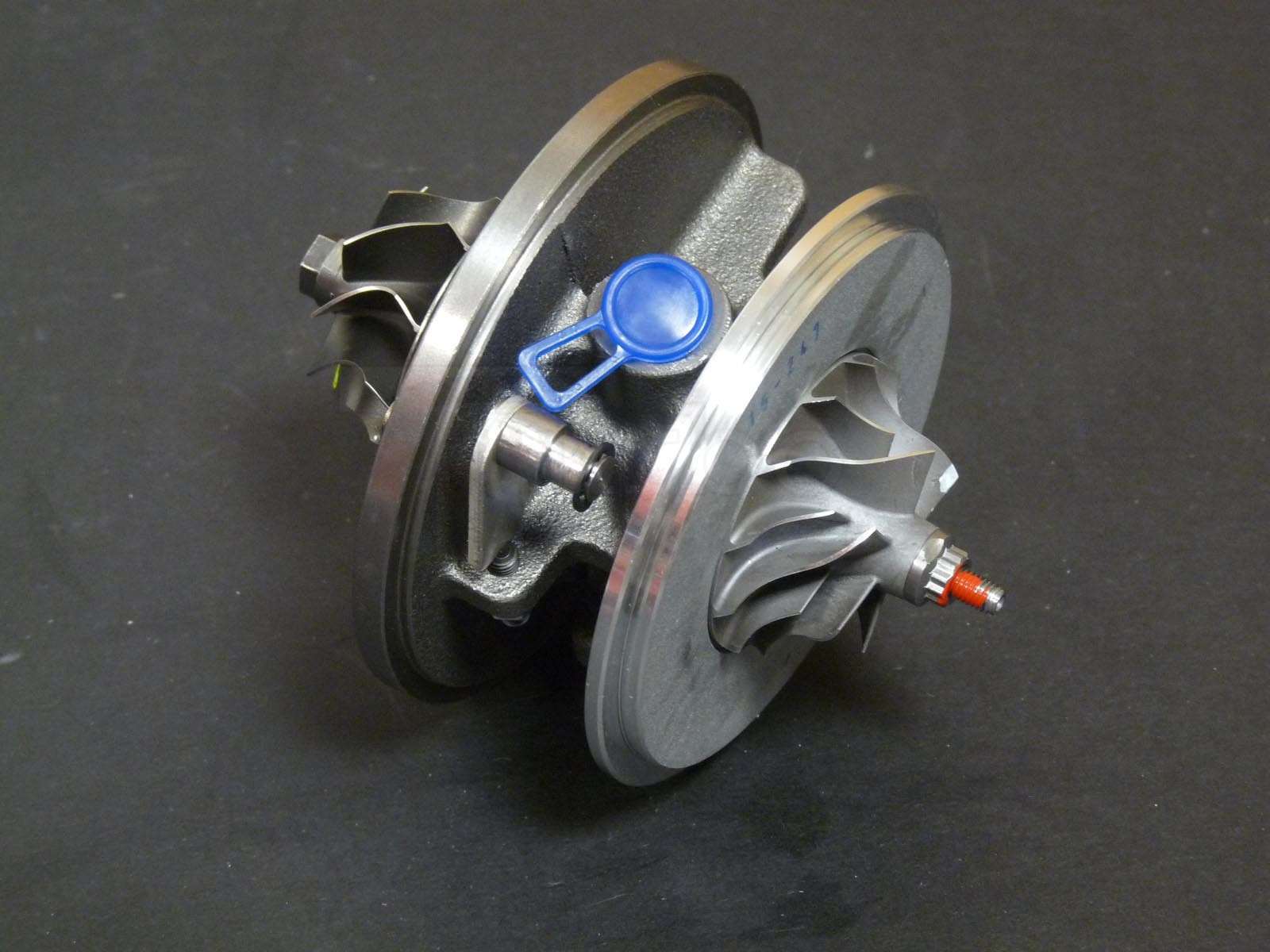

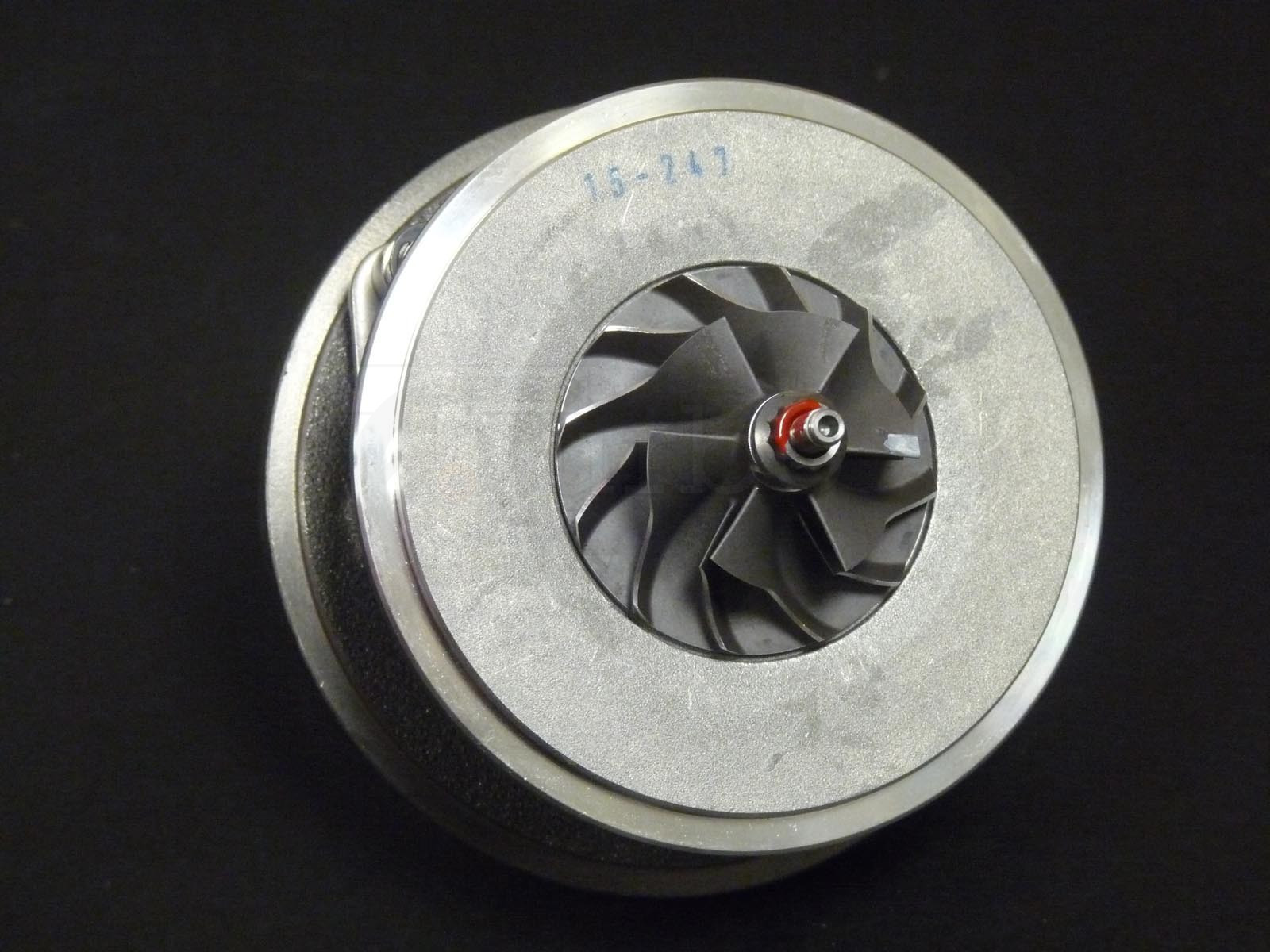

Cartridge GA-00-0065

Reference GA-00-0065

Condition New

In Stock (2 Items)

€96.50

Tax excluded Delivered within 3-8 days

706287-0001, GA-00-0065, GT15-247

Cartridge GA-00-0065 for turbos 700447-0001, 700447-0003, 700447-0004, 700447-0005, 700447-0006, 700447-0007, 700447-0008, 700447-0009.

See below for more info

GA-00-0065

Brand: TurboCentras

Reference: GA-00-0065

Part numbers

GHP: 706287-0001

TCP: GA-00-0065

TCO: GT15-247

Used in turbochargers

Garrett 700447-0001

Garrett 700447-0003

Garrett 700447-0004

Garrett 700447-0005

Garrett 700447-0006

Garrett 700447-0007

Garrett 700447-0008

Garrett 700447-0009

Included parts

Bearing housing GA-01-0055

Shaft and wheel GA-02-0071

Compressor wheel GA-03-0030

Heat shield GA-05-0013

Back plate GA-08-0005

Shaft nut GA-21-0005

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

O-ring GT15-202

O-ring GT15-206

Anti-rotation pin GT15-330

Screw SC-96-0007

Gasket oil outlet T-1

GA-00-0065 - Cartridge

Brand: TurboCentras

TurboCentras Reference: GA-00-0065

GA-00-0065 - Alternative numbers

GHP (Garrett original part number): 706287-0001

TCP (TurboCentras part number): GA-00-0065

TCO (TurboCentras old part number): GT15-247

GA-00-0065 - Compatibility table

Cartridge GA-00-0065 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT1549V	700447-0001	700447-0001	11652247297, 11652248901, 11652248905, 2247297F
Garrett	GT1549V	700447-0003	700447-0003	11652247297, 11652248901, 11652248905, 2247297G
Garrett	GT1549V	700447-0004	700447-0004	2248901G, 2248905G
Garrett	GT1549V	700447-0005	700447-0005	11652247297, 11652248901, 11652248905, 2247297H
Garrett	GT1549V	700447-0006	700447-0006	11652247297, 11652248901, 11652248905, 2247905H
Garrett	GT1549V	700447-0007	700447-0007	11652247297, 11652248901, 11652248905, 2247901H
Garrett	GT1549V	700447-0008	700447-0008, 700447-5008S, 700447-9009S	11652247297, 11652248901, 11652248905, 2247901104, 2247901H
Garrett	GT1549V	700447-0009	700447-0009, 700447-5009S, 700447-9009S	11652247297, 11652248901, 11652248905, 2247901104, 2247901H

706287-0001, GA-00-0065, GT15-247

11652247297, 11652248901, 11652248905, 2247297F, 700447-0001, 11652247297, 11652248901, 11652248905, 2247297G, 700447-0003, 2248901G, 2248905G, 700447-0004, 11652247297, 11652248901, 11652248905, 2247297H, 700447-0005, 11652247297, 11652248901, 11652248905, 2247905H, 700447-0006, 11652247297, 11652248901, 11652248905, 2247901H, 700447-0007, 11652247297, 11652248901, 11652248905, 2247901104, 2247901H, 700447-0008, 700447-5008S, 700447-9009S, 11652247297, 11652248901, 11652248905, 2247901104, 2247901H, 700447-0009, 700447-5009S, 700447-9009S

Data updated: 2023-10-10 08:44:01
