Product package: 3 kg (20x20x20 cm)

Cartridge GA-00-0183

Reference GA-00-0183

Condition New

Out-of-Stock

€122.12

GA-00-0183, GT20-236

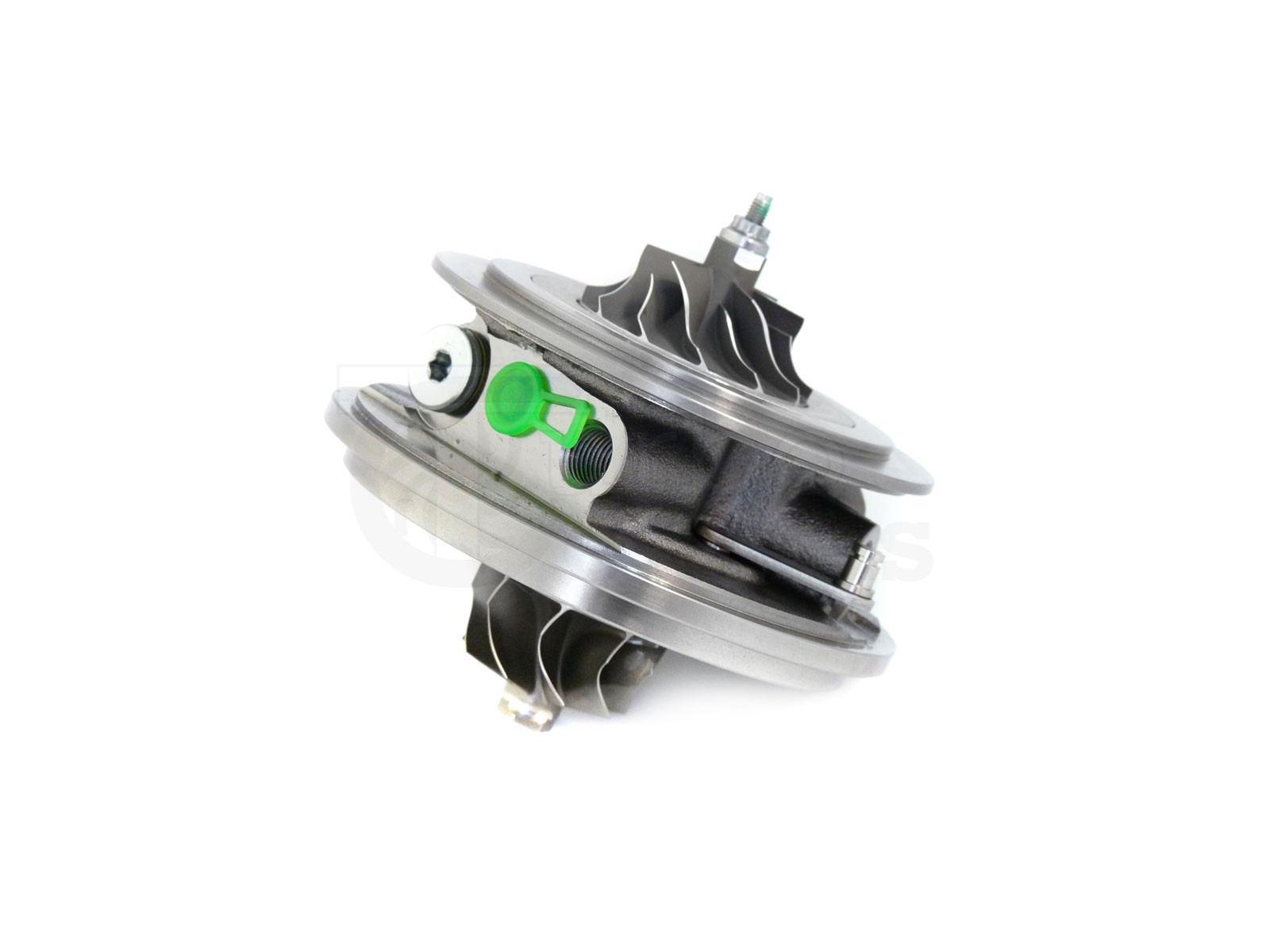

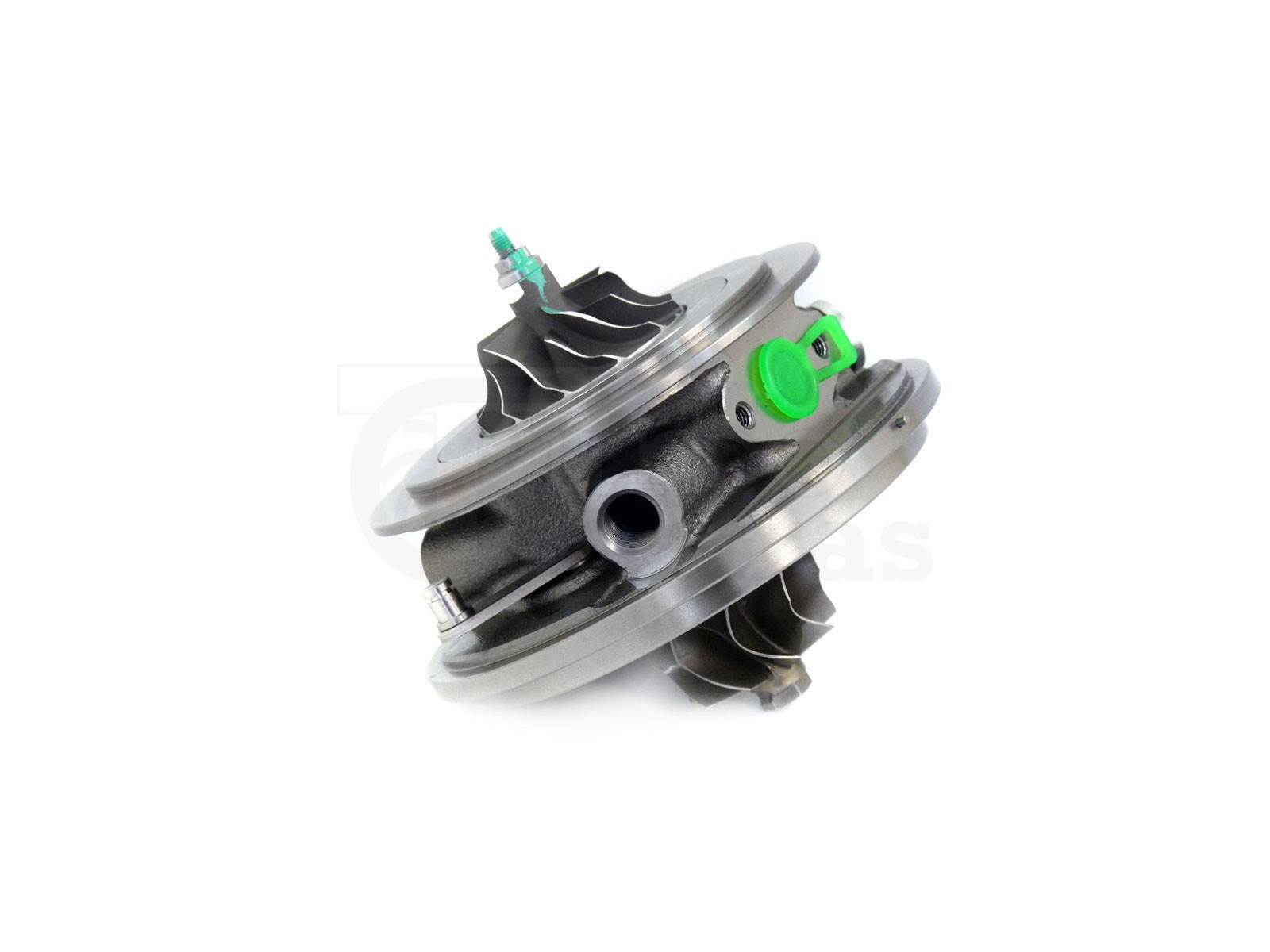

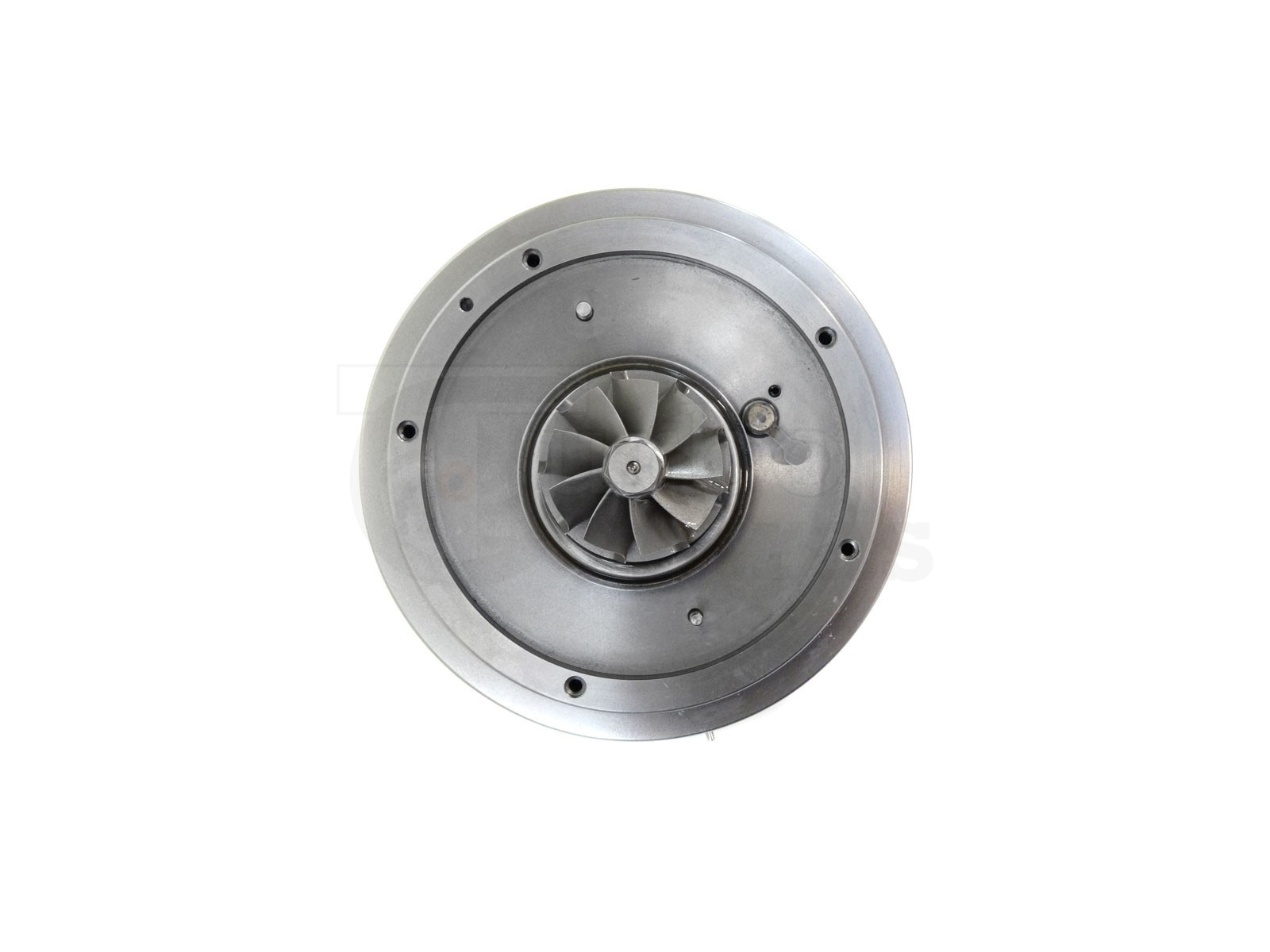

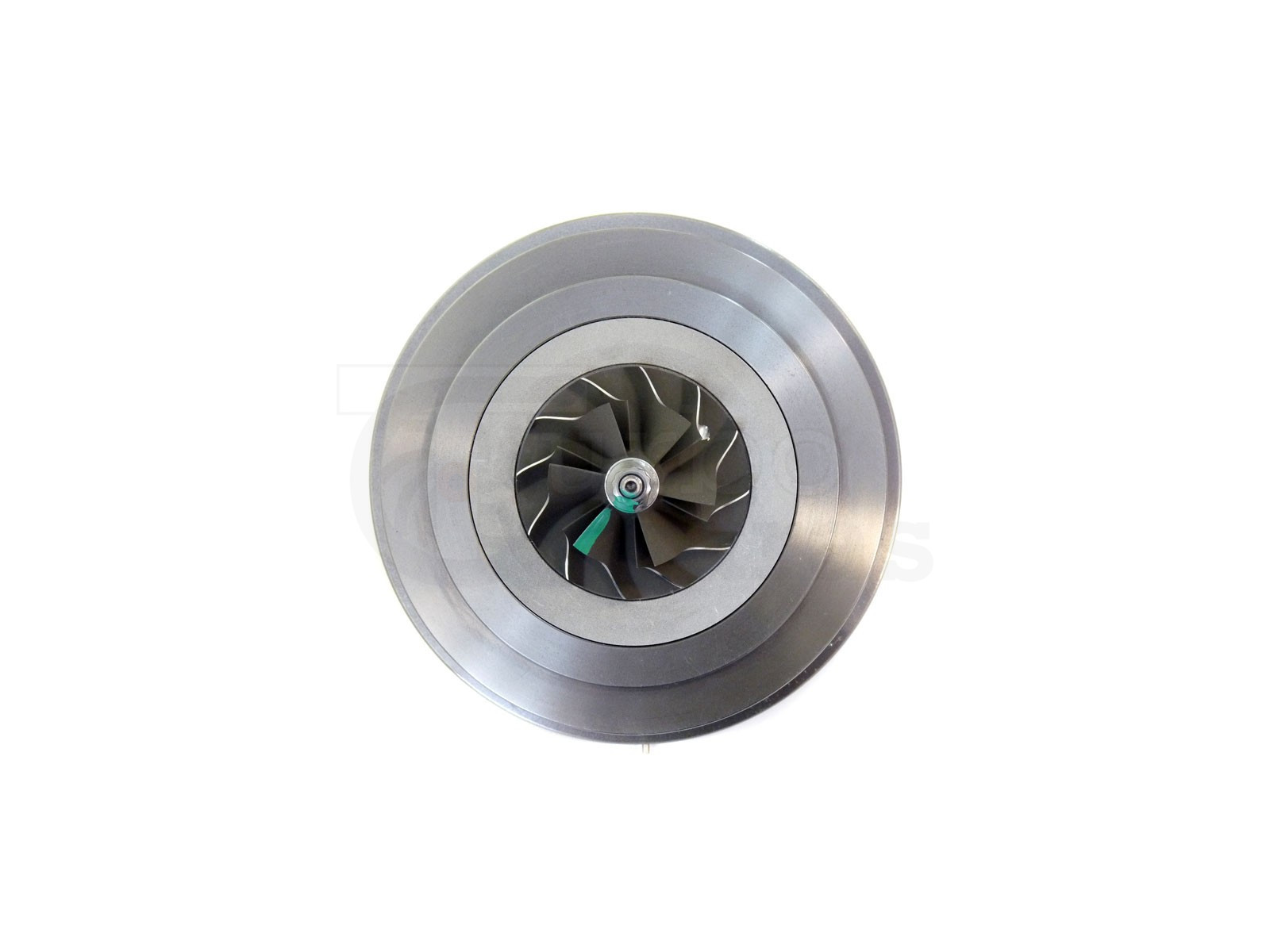

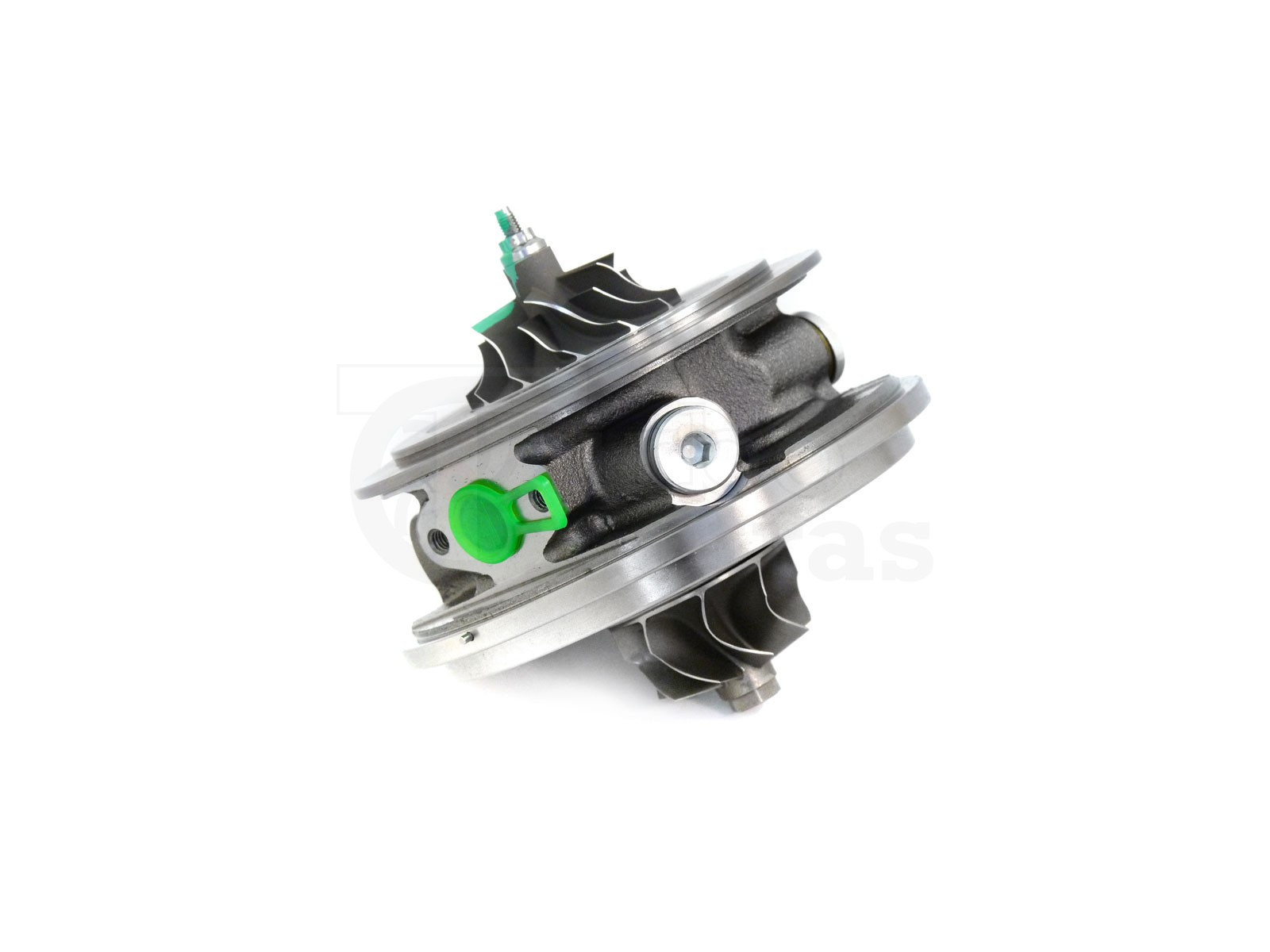

Cartridge GA-00-0183 for turbos 762060-0006, 762060-0008, 762060-0009, 762060-0013, 762060-0016.

See below for more info

GT20-236

GA-00-0183

Brand: TurboCentras

Reference: GA-00-0183

Part numbers

TCP: GA-00-0183

TCO: GT20-236

Used in turbochargers

Garrett 762060-0006 GT20

Garrett 762060-0008 GT20

Garrett 762060-0009 GT20

Garrett 762060-0013 GT20

Garrett 762060-0016 GT20

Included parts

Bearing housing GA-01-0131

Shaft and wheel GA-02-0089

Compressor wheel GA-03-0044

Heat shield GA-05-0018

Back plate GA-08-0043

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

Shaft nut GT15-180

O-ring GT15-203

Anti-rotation pin GT15-330

O-ring K03/04-200

Screw SC-96-0007

Gasket oil outlet T-1

GA-00-0183 - Cartridge

Brand: TurboCentras

TurboCentras Reference: GA-00-0183

GA-00-0183 - Alternative numbers

TCP (TurboCentras part number): GA-00-0183

TCO (TurboCentras old part number): GT20-236

GA-00-0183 - Compatibility table

Cartridge GA-00-0183 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT2056V	762060-0006	762060-0006, 762060-5006S	50442292
Garrett	GT2056V	762060-0008	762060-0008, 762060-5008S	5048265
Garrett	GT2056V	762060-0009	762060-0009, 762060-5009S	50493434
Garrett	GT2056V	762060-0013	762060-0013, 762060-5013S	31219697
Garrett	GT2056V	762060-0016	762060-0016, 762060-5016S	31293029

GA-00-0183, GT20-236

50442292, 762060-0006, 762060-5006S, 5048265, 762060-0008, 762060-5008S, 50493434, 762060-0009, 762060-5009S, 31219697, 762060-0013, 762060-5013S, 31293029, 762060-0016, 762060-5016S

Data updated: 2023-10-10 08:45:46
