Product package: 1.7 kg (20x20x20 cm)

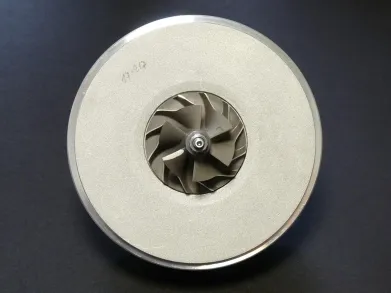

Cartridge GA-00-0101

Reference GA-00-0101

Condition New

Out-of-Stock

€91.58

Tax excluded

GA-00-0101, GT17-217

Cartridge GA-00-0101 for turbos 753847-0002, 753847-0006, 760774-0003, 760774-0005, 765993-0004.

See below for more info

GT17-217

GA-00-0101

Brand: TurboCentras

Reference: GA-00-0101

Part numbers

TCP: GA-00-0101

TCO: GT17-217

Used in turbochargers

Garrett 753847-0002 GT17

Garrett 753847-0006 GT17

Garrett 760774-0003 GT17

Garrett 760774-0005 GT17

Garrett 765993-0004 GT17

Included parts

Bearing housing GA-01-0108

Shaft and wheel GA-02-0077

Compressor wheel GA-03-0035

Heat shield GA-05-0013

Back plate GA-08-0014

Shaft nut GA-21-0005

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

O-ring GT15-205

O-ring GT15-206

Anti-rotation pin GT15-330

Screw SC-96-0007

Gasket oil outlet T-1

GA-00-0101 - Cartridge

Brand: TurboCentras

TurboCentras Reference: GA-00-0101

GA-00-0101 - Alternative numbers

TCP (TurboCentras part number): GA-00-0101

TCO (TurboCentras old part number): GT17-217

GA-00-0101 - Compatibility table

Cartridge GA-00-0101 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GTA1749V	753847-0002	753847-0002, 753847-5002S	1331247, 9654931780
Garrett	GTA1749V	753847-0006	753847-0006, 753847-5006S	1406472, 9659667380
Garrett	GT1749V	760774-0003	760774-0003, 760774-5003S	1483819, 30725134, 36002265, 3M5Q6K682CD, 9662464980
Garrett	GT1749V	760774-0005	760774-0005, 760774-5005S, 760774-9005S	1483819, 30725134, 36002265, 3M5Q6K682CD, 9662464980
Garrett	GT1749V	765993-0004	765993-0004, 765993-5004S, 765993-9004S	8V4Q6K682AA

GA-00-0101, GT17-217

1331247, 753847-0002, 753847-5002S, 9654931780, 1406472, 753847-0006, 753847-5006S, 9659667380, 1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-0003, 760774-5003S, 9662464980, 1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-0005, 760774-5005S, 760774-9005S, 9662464980, 765993-0004, 765993-5004S, 765993-9004S, 8V4Q6K682AA

Data updated: 2023-10-10 08:43:56

Condition New

Thrust flinger GT15-130

In Stock

Thrust flingers

Thrust flinger GT15-130

GA-35-0010, GT15-130Thrust flinger GT15-130 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452194-0001, 452202-0003, 452202-0004.See below for more info

Thrust Collar GT15-135

In Stock

Thrust Collars

Thrust Collar GT15-135

Thrust Collar GT15-135 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452194-0001, 452202-0003, 452202-0004.See below for more info

Thrust bearing GT15-120

In Stock

Bearings

Thrust bearing GT15-120

Thrust bearing GT15-120 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Actuator clip GR.5

In Stock

Actuator clips

Actuator clip GR5

Actuator clip GR.5 for turbos 452014-0003, 452014-0005, 452014-0006, 452038-0001, 452039-0001, 452044-0001, 452044-0003, 452044-0004, 452047-0001, 452047-0002.See below for more info

Bearing housing GA-01-0108 GT17-319

Bearing housing GA-01-0108 GT17-319 2

In Stock

Bearing housings

Bearing housing GA-01-0108

GA-01-0108, GT17-319Bearing housing GA-01-0108 for turbos 728768-0002, 728768-0003, 728768-0004, 728768-0005, 753847-0002, 753847-0004, 753847-0006, 760774-0002, 760774-0003, 760774-0005.See below for more info

Back plate GT15-69

Back plate GT15-69 2

In Stock

Back plates

Back plate GA-08-0014

703682-0014, GA-08-0014, GT15-69Back plate GA-08-0014 for turbos 452098-0004, 452151-0004, 452202-0002, 452202-0003, 452202-0004, 452283-0002, 452283-0003, 713667-0001, 713667-0002, 713667-0003.See below for more info

Piston ring GT15-160 PR-37-0040

In Stock

Piston rings

Piston ring GT15-160

GT15-160, PR-37-0040Piston ring GT15-160 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Piston ring GT15-170 PR-37-0003

In Stock

Piston rings

Piston ring GT15-170

GT15-170, PR-37-0003Piston ring GT15-170 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Heat shield GA-05-0013 GT15-324

Heat shield GA-05-0013 GT15-324 2

In Stock

Heat Shields

Heat shield GA-05-0013

GA-05-0013, GT15-324Heat shield GA-05-0013 for turbos 454158-0001, 454158-0003, 454158-0004, 454161-0001, 454161-0003, 454161-0004, 454183-0001, 454183-0002, 454183-0003, 454183-0004.See below for more info

Journal bearing GT15-101

Journal bearing GT15-101 2

In Stock

Bearings

Journal bearing GT15-101

GA-41-0016, GT15-101See below for more info

Compressor wheel GT15-07

Compressor wheel GT15-07 2

In Stock

Compressor wheels

Compressor wheel GA-03-0035

702489-0001, 702489-0004, 702489-0005, 702489-0007Compressor wheel GA-03-0035 for turbos 701164-0002, 701470-0003, 701470-0004, 702404-0002, 705650-0001, 708366-0001, 708366-0002, 708366-0003, 708366-0004, 708366-0005.See below for more info

Gasket oil outlet T-1

In Stock

Gasket oil outlet

Gasket oil outlet T-1

Gasket oil outlet T-1 for turbos 030TC11002000, 030TC11005000, 04L253010B, 04L253010K, 04L253019A, 04L253019P, 04L253019Q-R, 04L253020N, 10009700005, 10009700005-KP35.See below for more info

Shaft and wheel GA-02-0077 GT17-47

Shaft and wheel GA-02-0077 GT17-47 2

In Stock

Shaft & Wheels

Shaft and wheel GA-02-0077

GA-02-0077, GT17-47Shaft and wheel GA-02-0077 for turbos 710060-0001, 710060-0003, 733952-0001, 733952-0004, 750441-0005, 750441-0008, 753556-0002, 753556-0006, 753847-0002, 753847-0004.See below for more info

Bolt M5X18

Bolt M5X18 2

In Stock

Bolts, nuts, screws, washers

Screw SC-96-0007

Screw M5X18 TX 20 10.9 (Backplate Garrett GT/VNT 15-25 series)M5X18, SC-96-0007Screw SC-96-0007 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Shaft nut GA-21-0005

In Stock

Shaft Nuts

Shaft nut GA-21-0005

GA-21-0005, GT15-180Shaft nut GA-21-0005 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Anti-rotation pin GT15-330

In Stock

Anti-rotation pins

Anti-rotation pin GT15-330

GA-46-0001, GT15-330Anti-rotation pin GT15-330 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452191-0001, 452191-0002.See below for more info.

Retaining ring GT15-143

In Stock

Retaining rings

Retaining ring GT15-143

Retaining ring GT15-143 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

O-ring GT15-205

In Stock

O-rings

O-ring GT15-205

GT15-205, OR-38-0066See below for more info

O-ring GT15-206

In Stock

O-rings

O-ring GT15-206

GT15-206, OR-38-0067See below for more info
