0.3 kg (10x6x10 cm)

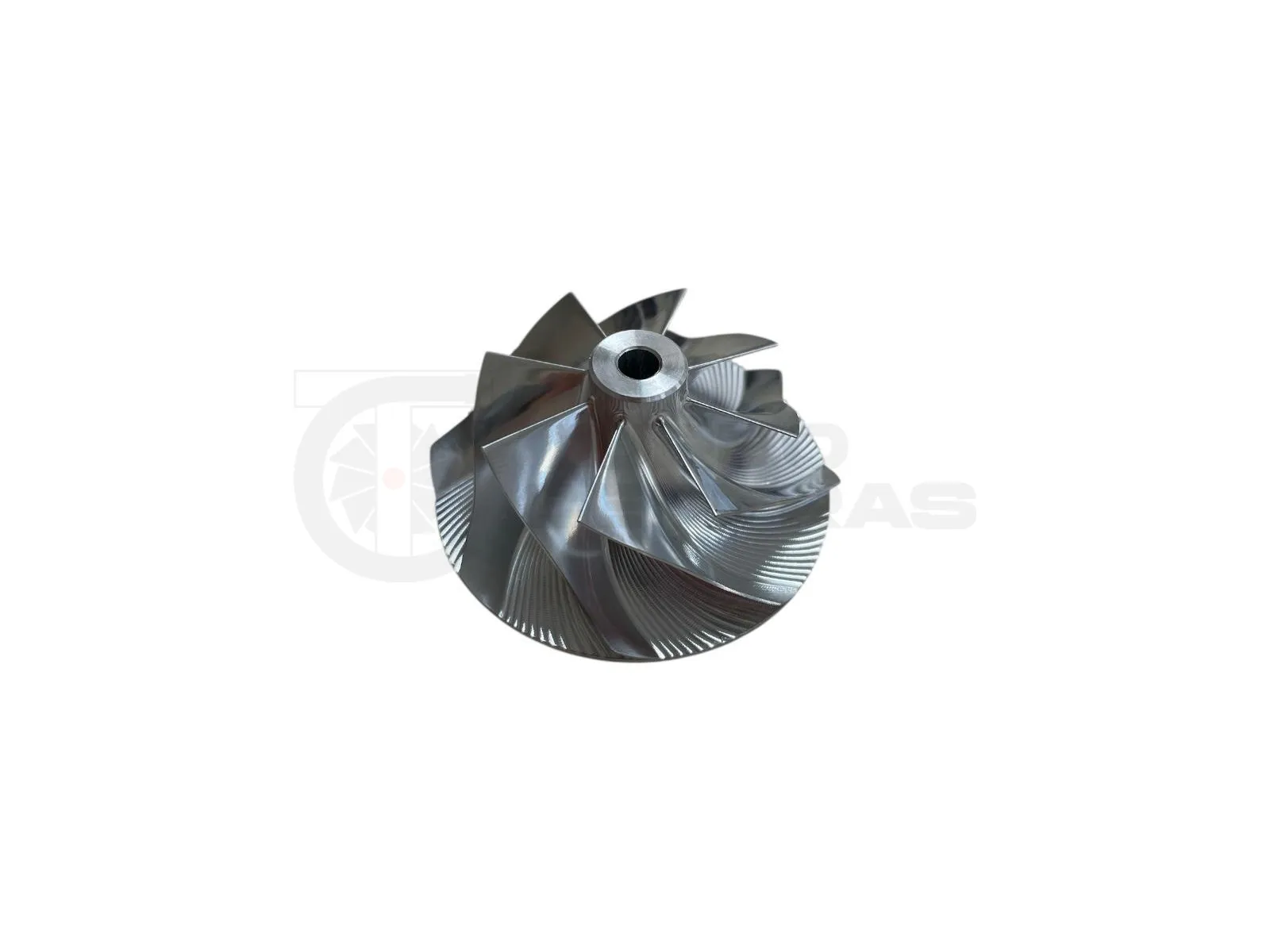

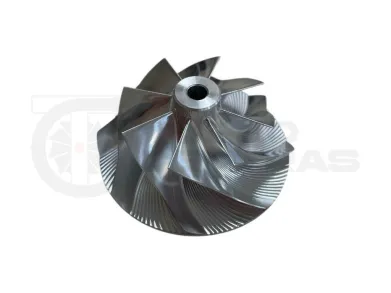

Compressor wheel GA-03-0157
Compressor wheel GA-03-0157 for turbos 838417-0001, 838417-0002, 838417-0003, 838417-0004, 838417-5003S, 838417-5006S, 838452-0001, 838452-0002, 838452-0003, 838452-0004.
See below for more info
GA-03-0157 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: GA-03-0157
GA-03-0157 - Alternative numbers
TCP (TurboCentras part number): GA-03-0157
GA-03-0157 - Part Properties
Blades (Compressor wheel blades count): 8
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Billet

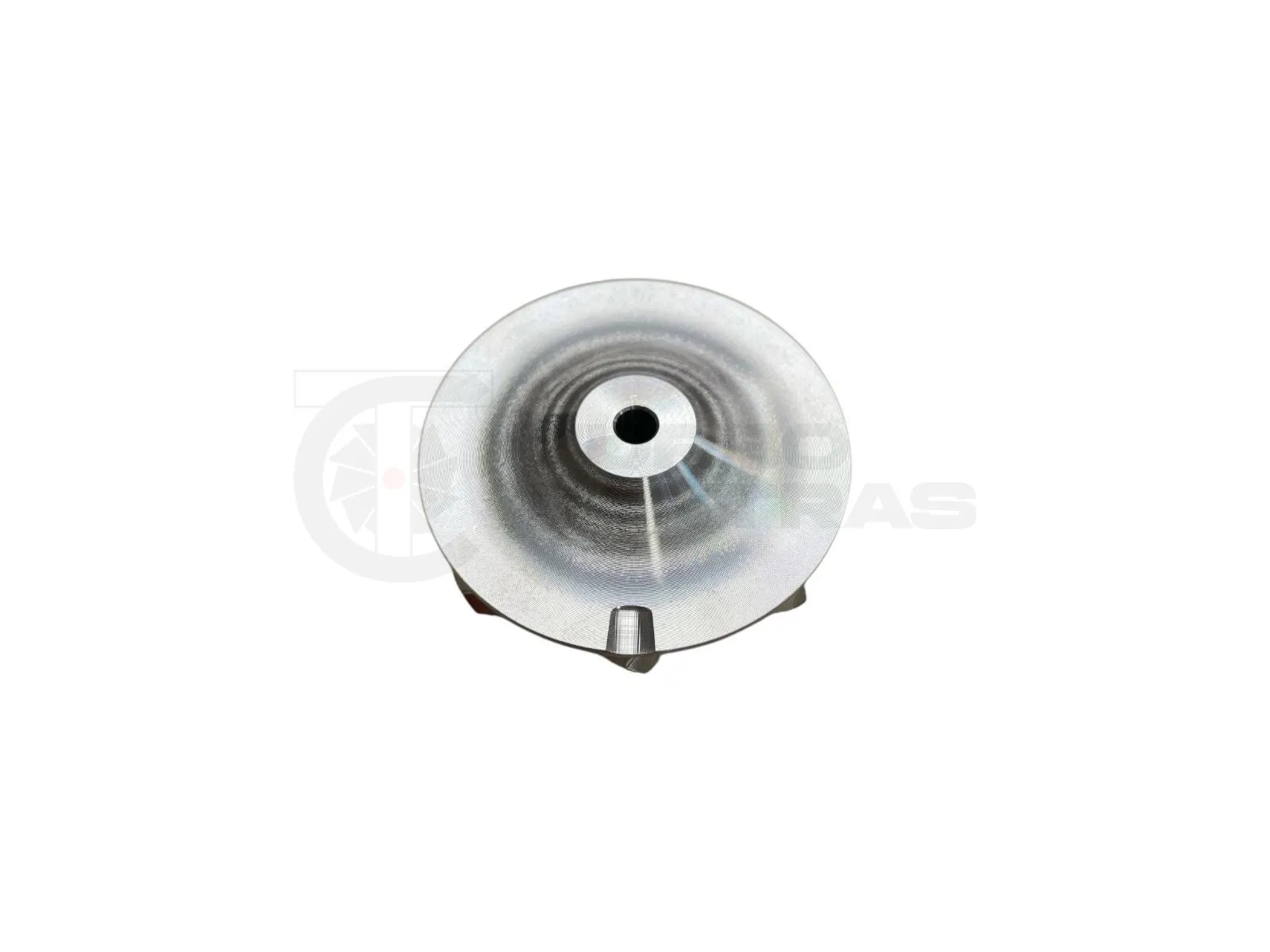

Back (Compressor wheel back design): Super
A (Size A): 44.00
A1 (Size A1): 45.60
B (Size B): 33.25
C (Size C): 3.94
C1 (Size C1): 4.00
D (Size D): 24.20
E (Size E): 4.08

TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
---|---|---|---|
Garrett | GTD1444VZ | 838417-0001, 838417-5001S | -- |
Garrett | GTD1444VZ | 838417-0002, 838417-5002S | GK2Q6K682BB |
Garrett | GTD1444VZ | 838417-0003, 838417-5003S, 838417-9003S | GK2Q-6K682-BB, GK2Q6K682BB |
Garrett | GTD14V | 838417-0004, 838417-5004S | GK2Q6K682BE |
Garrett | GTD1444VZ | 838417-0003, 838417-5003S, 838417-9003S | GK2Q-6K682-BB, GK2Q6K682BB |
Garrett | GTD14V | 838417-0006, 838417-5006S | GK2Q-6K682-BE, GK2Q6K682BE |
Garrett | GTD1444V | 838452-0001 | GK3Q6K682AA |
Garrett | GTD1444V | 838452-0002, 838452-5002S | GK3Q6K682AB |
Garrett | GTD1444V | 838452-0003, 838452-5003S | GK3Q-6K68-2AC, GK3Q6K682AC |
Garrett | GTD1444KVZ | 838452-0004, 838452-5004S | GK3Q6K682AD |
Garrett | GTD1444KVZ | 838452-0007, 838452-5007S | GK3Q6K682AE |
Garrett | GTD1444V | 838452-0003, 838452-5003S | GK3Q-6K68-2AC, GK3Q6K682AC |
Garrett | GTD1444KVZ | 838452-0007, 838452-5007S | GK3Q6K682AE |
GA-03-0157 - Used in turbocharges
838417-0001, 838417-5001S, 838417-0002, 838417-5002S, GK2Q6K682BB, 838417-0003, 838417-5003S, 838417-9003S, GK2Q-6K682-BB, 838417-0004, 838417-5004S, GK2Q6K682BE, 838417-0006, 838417-5006S, GK2Q-6K682-BE, 838452-0001, GK3Q6K682AA, 838452-0002, 838452-5002S, GK3Q6K682AB, 838452-0003, 838452-5003S, GK3Q-6K68-2AC, GK3Q6K682AC, 838452-0004, 838452-5004S, GK3Q6K682AD, 838452-0007, 838452-5007S, GK3Q6K682AEData updated: 2025-06-04 09:39:24
