0.3 kg (10x6x10 cm)

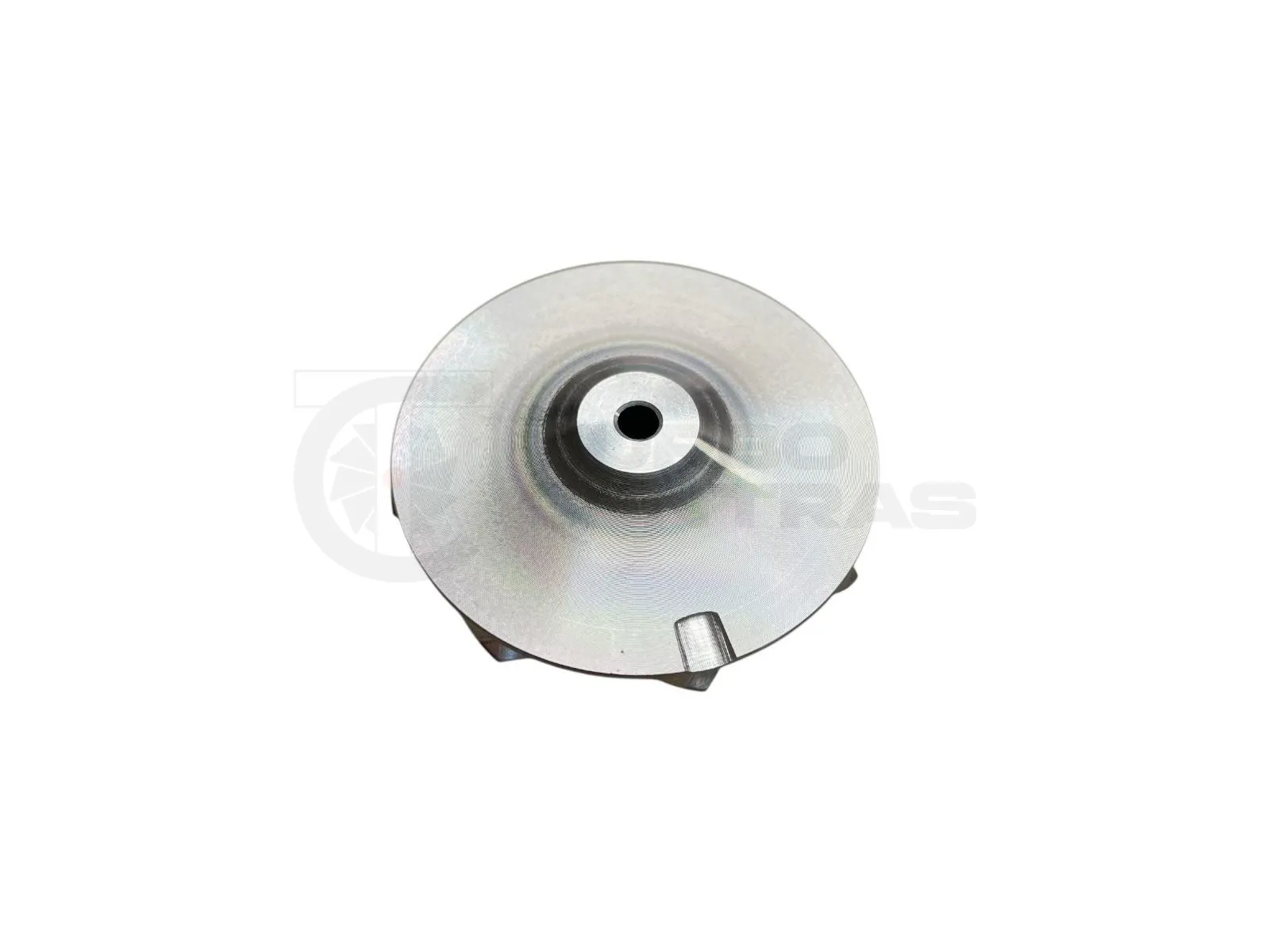

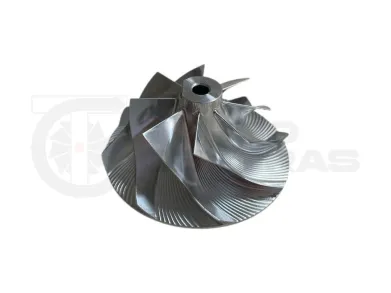

Compressor wheel GA-03-0156
GA-03-0156
New
€25.62
Tax excluded
Compressor wheel GA-03-0156 for turbos 821785-0002, 821785-0005, 821785-0006, 822072-0004, 822751-0002, 822751-0003, 822751-0005, 823665-0001, 832642-0002, 832642-0003.
See below for more info
GA-03-0156 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: GA-03-0156
GA-03-0156 - Alternative numbers
TCP (TurboCentras part number): GA-03-0156
GA-03-0156 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Garrett | GTD1449VKZ | 821785-0002 | 821785-0002, 821785-5002S | 55258240 |
| Garrett | GTD1449VKZ | 821785-0005 | 821785-0005 | 55282309 |
| Garrett | GTD1449VKZ | 821785-0006 | 821785-0006 | 46336044 |
| Garrett | GTD1449VZ | 822072-0004 | 822072-0004, 822072-5004S | 55487664 |
| Garrett | GTD1449VKZ | 822751-0002 | 822751-0002 | 55256683 |
| Garrett | GTD1449VKZ | 822751-0003 | 822751-0003 | -- |
| Garrett | GTD1449VKZ | 822751-0005 | 822751-0005 | -- |
| Garrett | GTD1449VZK-Evo | 823665-0001 | 823665-0001, 823665-5001S | 28231-4A600, 282314A600 |
| Garrett | GTD1449VZK | 832642-0002 | 832642-0002 | -- |
| Garrett | GTD1449VZK | 832642-0003 | 832642-0003 | -- |
| Garrett | GTD1449VZK | 832642-0005 | 832642-0005, 832642-5005S | 55282310 |
| Garrett | GTD1449VZK | 832642-0006 | 832642-0006 | -- |
| Garrett | GTD1449VZK | 844572-0004 | 844572-0004, 844572-5004S | 55495595 |
| Garrett | GTD1449VKZ | 857039-0001 | 857039-0001, 857039-5001S | 55274549 |
GA-03-0156 - Part Properties
Blades (Compressor wheel blades count): 8
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Billet
Back (Compressor wheel back design): Super
A (Size A): 49.00
A1 (Size A1): 50.60
B (Size B): 35.00
C (Size C): 3.97
C1 (Size C1): 4.00
D (Size D): 26.50
E (Size E): 4.08
GA-03-0156
55258240, 821785-0002, 821785-5002S, 55282309, 821785-0005, 46336044, 821785-0006, 55487664, 822072-0004, 822072-5004S, 55256683, 822751-0002, 822751-0003, 822751-0005, 28231-4A600, 282314A600, 823665-0001, 823665-5001S, 832642-0002, 832642-0003, 55282310, 832642-0005, 832642-5005S, 832642-0006, 55495595, 844572-0004, 844572-5004S, 55274549, 857039-0001, 857039-5001S
Data updated: 2024-11-29 09:12:13
