0.2 kg (10x10x10 cm)

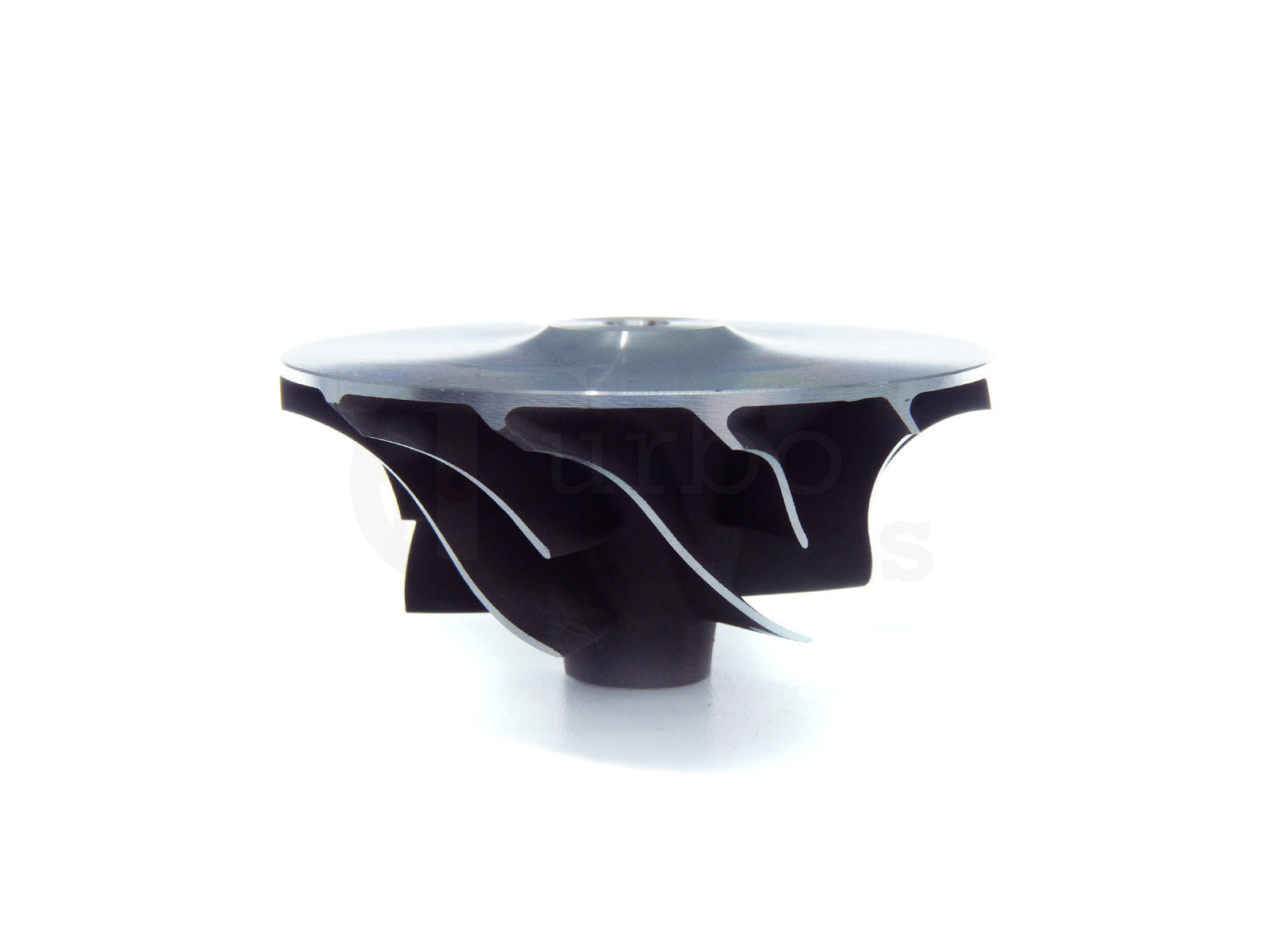

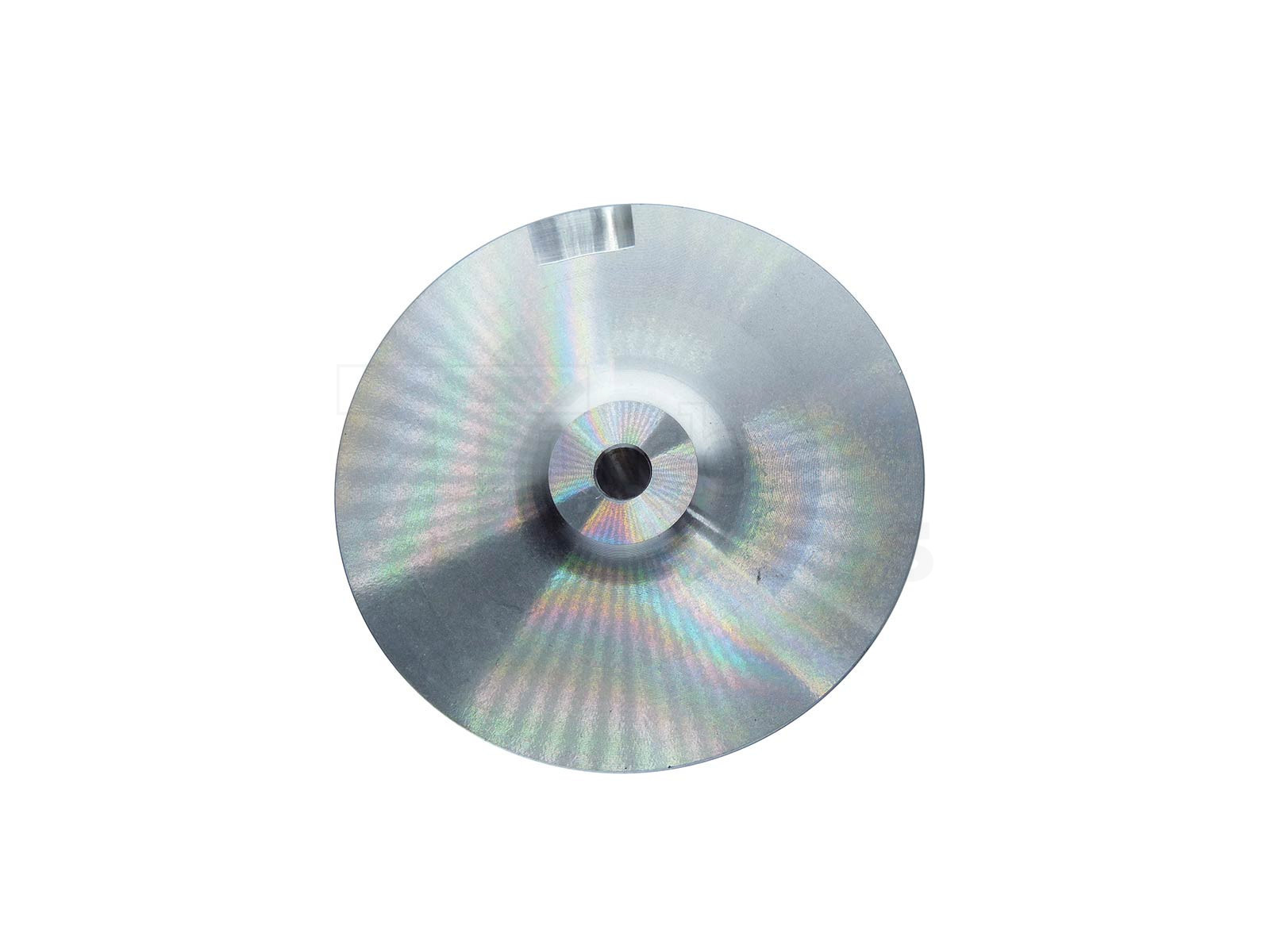

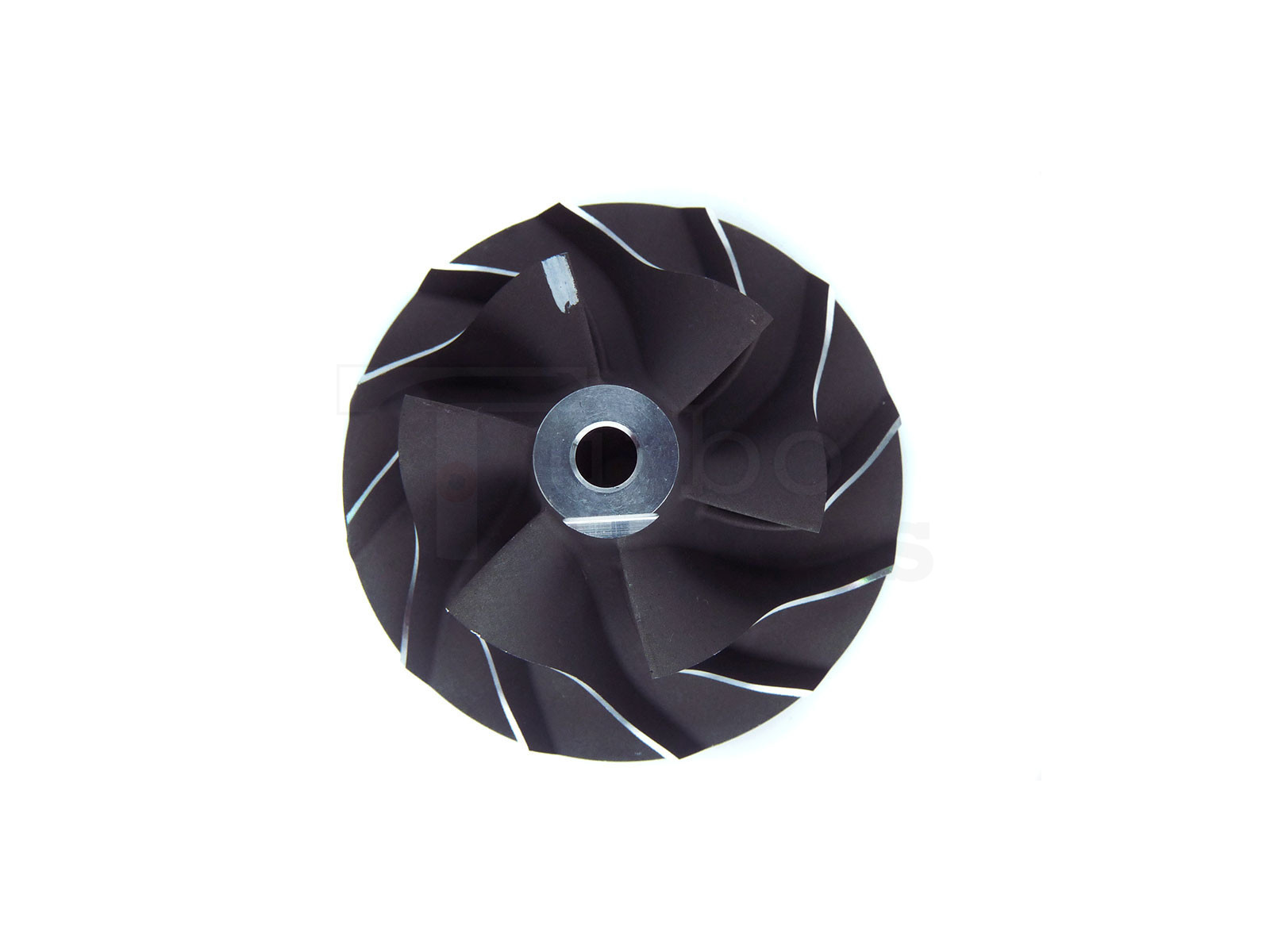

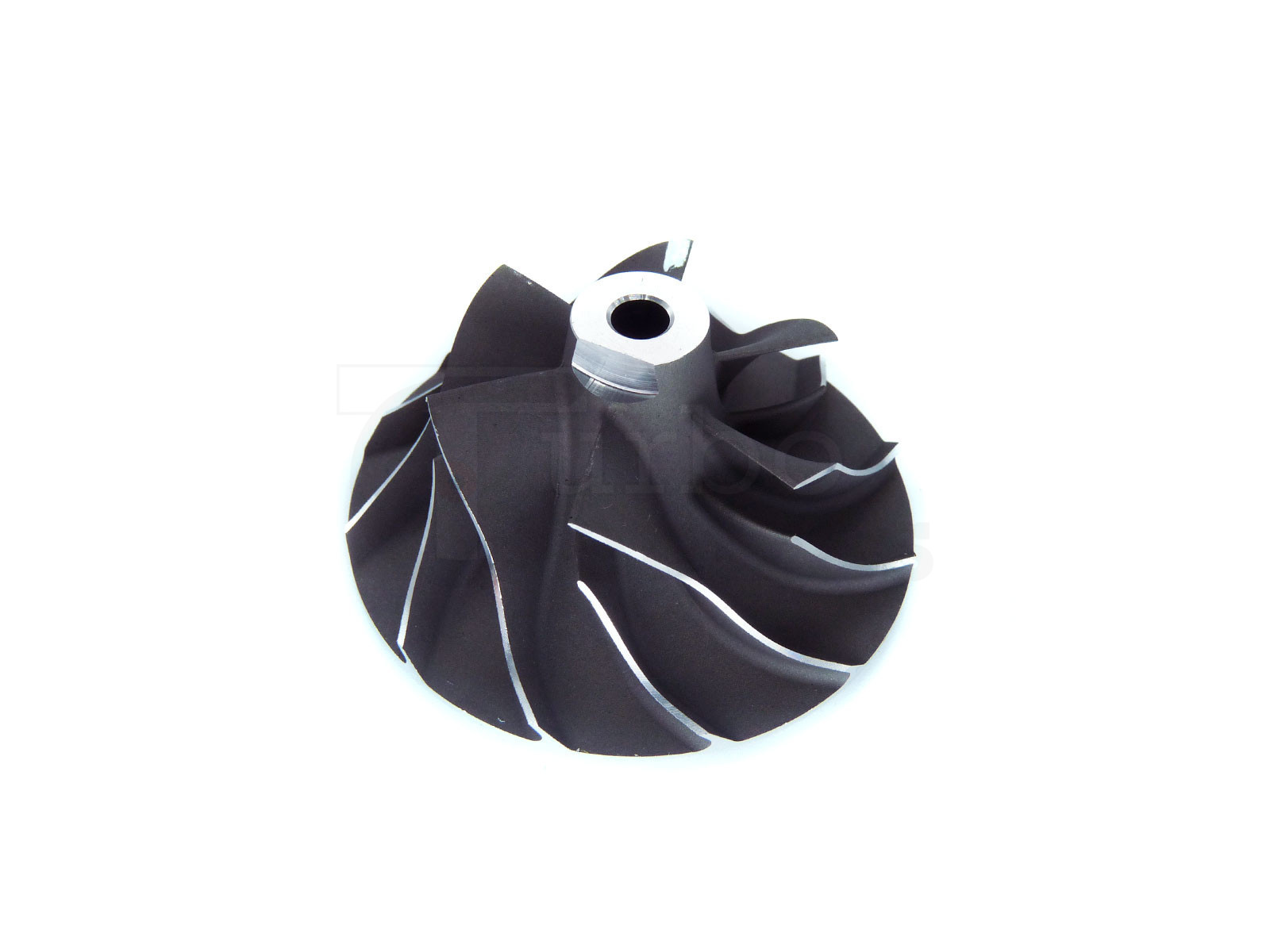

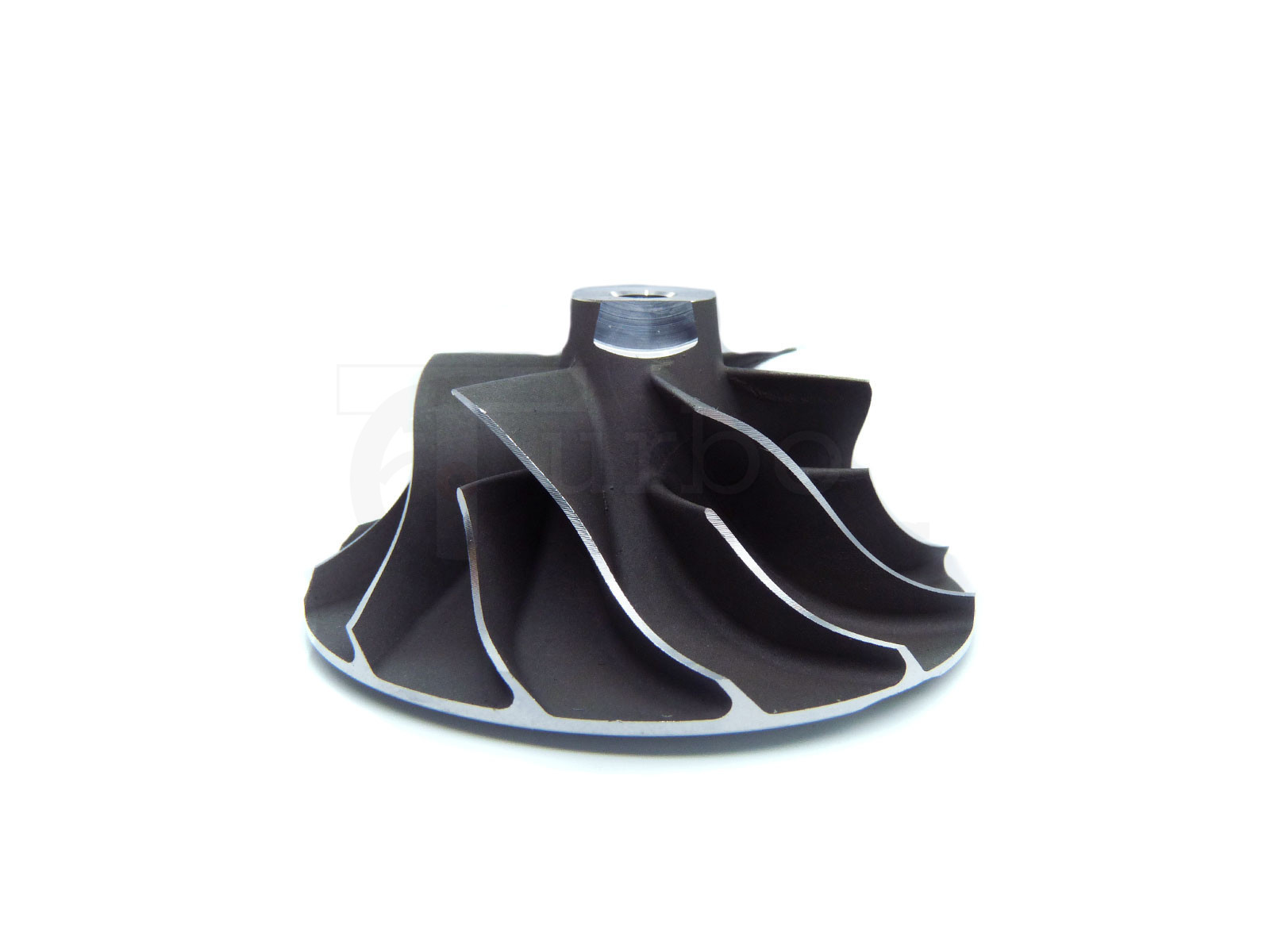

BW-03-0085 (5304-123-2034) - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: BW-03-0085
OEM Numbers: 5304-123-2034
BW-03-0085 - Alternative numbers
TCP (TurboCentras part number): BW-03-0085
TCO (TurboCentras old part number): K03/04-15
BW-03-0085 - Compatibility table
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
---|---|---|---|---|
BorgWarner | K04-2067CCB495.10BVAXK | 53049700032 | 5304 970 0032, 5304 988 0032, 5304 990 0032 | 070145701E, 070145701K |
BorgWarner | K04-2067CCB495.10BVAXK | 53049700032-R | 5304 970 0032, 5304 988 0032, 5304 990 0032 | 070145701E, 070145701K |
BW-03-0085 - Part Properties
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 51.00
A1 (Size A1): 51.00
B (Size B): 34.20
C (Size C): 3.70
C1 (Size C1): 1.80
D (Size D): 25.70
E (Size E): 4.61
5304-123-2034, BW-03-0085, K03/04-15
53049900032, 53049880032, 53049700032, 53049900032, 53049880032, 53049700032, 070145701E, 070145701K, 5304 970 0032, 5304 988 0032, 5304 990 0032, 070145701E, 070145701K, 5304 970 0032, 5304 988 0032, 5304 990 0032
Data updated: 2024-06-20 12:20:59
