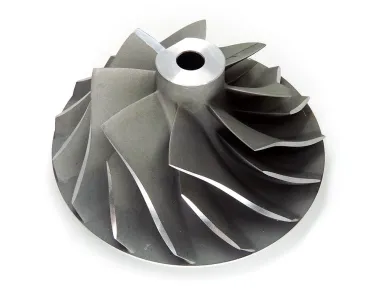

Compressor wheel HO-03-0010
HO-03-0010
New
In Stock (5 Items) €29.40
Tax excluded Delivered within 3-8 days
3524996, HO-03-0010, HX50-00
Compressor wheel HO-03-0010 for turbos 3525237, 3525743, 3525745, 3525994, 3526465, 3528016, 3531566, 3531567, 3531719, 3531772.
See below for more info
HO-03-0010 (3524996) - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: HO-03-0010
OEM Numbers: 3524996
HO-03-0010 - Alternative numbers
TCP (TurboCentras part number): HO-03-0010
TCO (TurboCentras old part number): HX50-00
HO-03-0010 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Holset | H2D | 3525237 | 168824, 3525237, 3525238H | -- |
| Holset | H2D | 3525743 | 3525743 | -- |
| Holset | H2D | 3525745 | 3525745, 3525746 | -- |
| Holset | H2D | 3525994 | 3525994, 3525995, 4033917H, 466818-0003 | 3-7500031, 422856, 422934, 422935 |
| Holset | H2D | 3526465 | 3526465, 3526466, 4033135H | 424778 |
| Holset | H2D | 3528016 | 3528016 | -- |
| Holset | WH2D | 3531566 | 3530961, 3531566 | 3803558 |
| Holset | WH2D | 3531567 | 3531567 | 3803558 |
| Holset | H2D | 3531719 | 311023, 312158, 312159, 312283, 3531719, 3531753, 3531753H, 466950-0004 | 1114892, 1115567, 1115749, 1677956 |
| Holset | H2D | 3531772 | 3531772, 3531773, 3531773H | 3803570 |
| Holset | WH2D | 3531822 | 3531822, 3531823 | -- |
| Holset | H2D | 3532033 | 3532033, 3532034 | -- |
| Holset | H2D | 3532474 | 3532474, 3532475, 3532475H | 3803639, 5452262 |
| Holset | WH2D | 3533687 | 3533687, 3533688 | -- |
| Holset | H2D | 3533812 | 3533812, 3533813 | 3533812 |
| Holset | WH2D | 3534034 | 3534034, 3534035, 3534035H | -- |
| Holset | WH2D | 3534036 | 3534036, 3534037 | 3803878 |
| Holset | WH2D | 3534038 | 3534038, 3534039 | 3803879 |
| Holset | WH2D | 3534100 | 3534100, 3534101 | 1341286, 571606 |
| Holset | HX50W | 3537446 | 3537446, 3537447, 3537823 | 3804748 |
| Holset | H2D | 3538905 | 3538905, 3538906, 4033244, 4033244H | 1387996 |
| Holset | HX50W | 3539234 | 3539234, 3539332, 3539333 | 3804831 |
| Holset | H2D | 3580707 | 3580707 | 3-7500041 |
| Holset | H2D | 3580790 | 312702, 312787, 312814, 313697, 314981, 3580790, 4032908H, 5329 988 6402, 5329 988 6705 | 51.09100-7261, 51.09100-7276, 51.09100-7286, 51.09100-7289, 51.09100-7290, 51.09100-7386 |
| Holset | HX50W | 3594941 | 3594941, 3594942 | 65.09100-7066 |
| Holset | HX50W | 3596121 | 3596121, 3596122 | 65.09100-7070 |
| Holset | HX50W | 3596462 | 3596462, 3596463, 3786800 | 1477130 |
| Holset | HX50G | 4040662 | 4040662, 4040663 | 65.09100-7070A |
HO-03-0010 - Part Properties
Blades (Compressor wheel blades count): 8/8
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 94.00
A1 (Size A1): 94.00
B (Size B): 61.60
C (Size C): 6.35
C1 (Size C1): 6.00
D (Size D): 43.50
E (Size E): 8.00
3524996, HO-03-0010, HX50-00
53299886705, 53299886402, 168824, 3525237, 3525238H, 3525743, 3525745, 3525746, 3-7500031, 3525994, 3525995, 4033917H, 422856, 422934, 422935, 466818-0003, 3526465, 3526466, 4033135H, 424778, 3528016, 3530961, 3531566, 3803558, 3531567, 3803558, 1114892, 1115567, 1115749, 1677956, 311023, 312158, 312159, 312283, 3531719, 3531753, 3531753H, 466950-0004, 3531772, 3531773, 3531773H, 3803570, 3531822, 3531823, 3532033, 3532034, 3532474, 3532475, 3532475H, 3803639, 5452262, 3533687, 3533688, 3533812, 3533812, 3533813, 3534034, 3534035, 3534035H, 3534036, 3534037, 3803878, 3534038, 3534039, 3803879, 1341286, 3534100, 3534101, 571606, 3537446, 3537447, 3537823, 3804748, 1387996, 3538905, 3538906, 4033244, 4033244H, 3539234, 3539332, 3539333, 3804831, 3-7500041, 3580707, 312702, 312787, 312814, 313697, 314981, 3580790, 4032908H, 51.09100-7261, 51.09100-7276, 51.09100-7286, 51.09100-7289, 51.09100-7290, 51.09100-7386, 5329 988 6402, 5329 988 6705, 3594941, 3594942, 65.09100-7066, 3596121, 3596122, 65.09100-7070, 1477130, 3596462, 3596463, 3786800, 4040662, 4040663, 65.09100-7070A
Data updated: 2024-06-10 17:15:32
