In Stock
Core assemblies
Compressor wheel TO-03-0003
TO-03-0003
New
€8.58
Tax excluded Delivered within 3-8 days
17291-0L040, CT16-00, TO-03-0003
Compressor wheel TO-03-0003 for turbos 17201-0L040, 17201-0L040, 17201-0L040, 17201-0L041, 17201-0L041, 17201-0L042, 17201-0L090, 17201-30060, 17201-30100, 17201-30100.
See below for more info

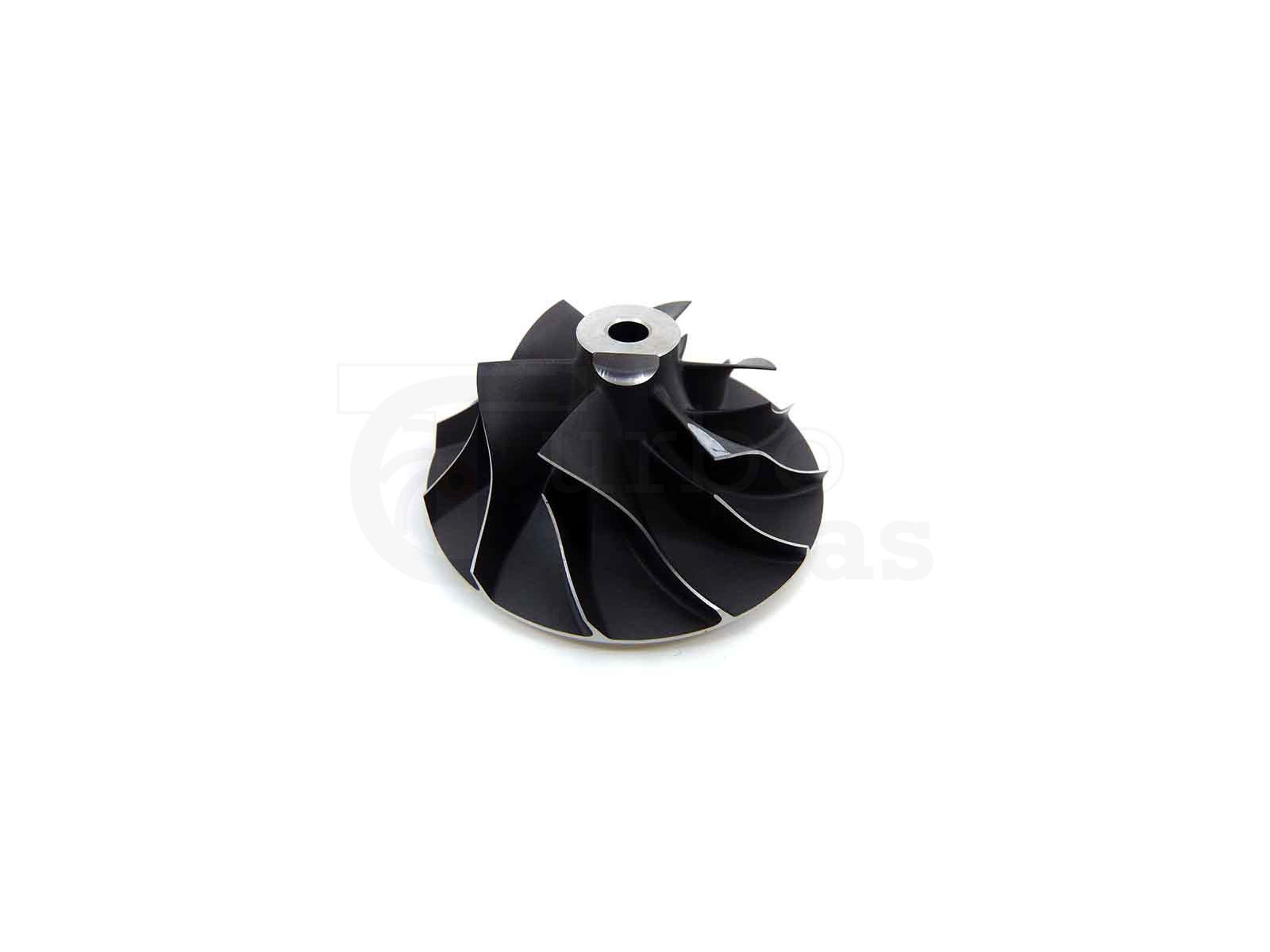

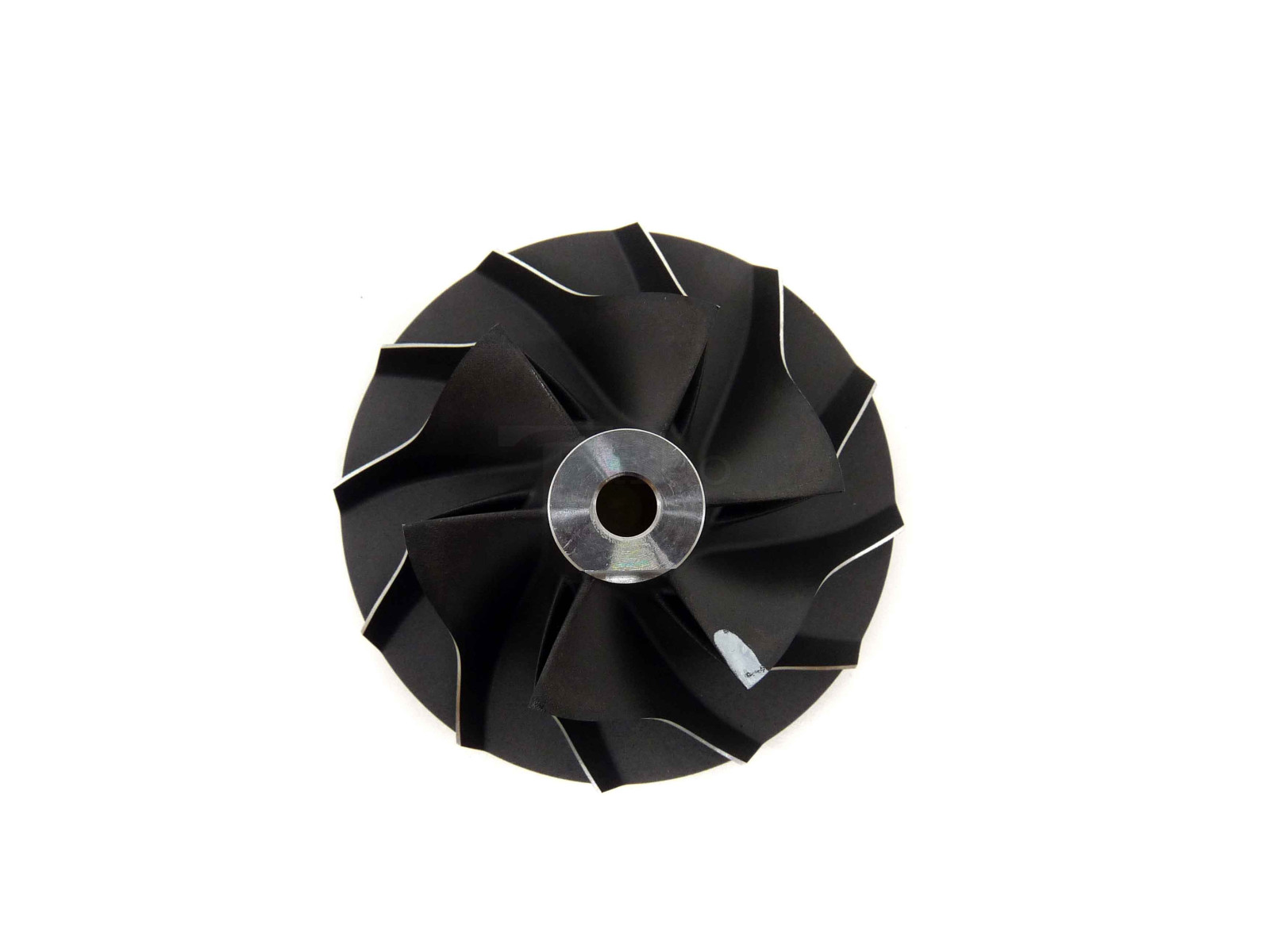

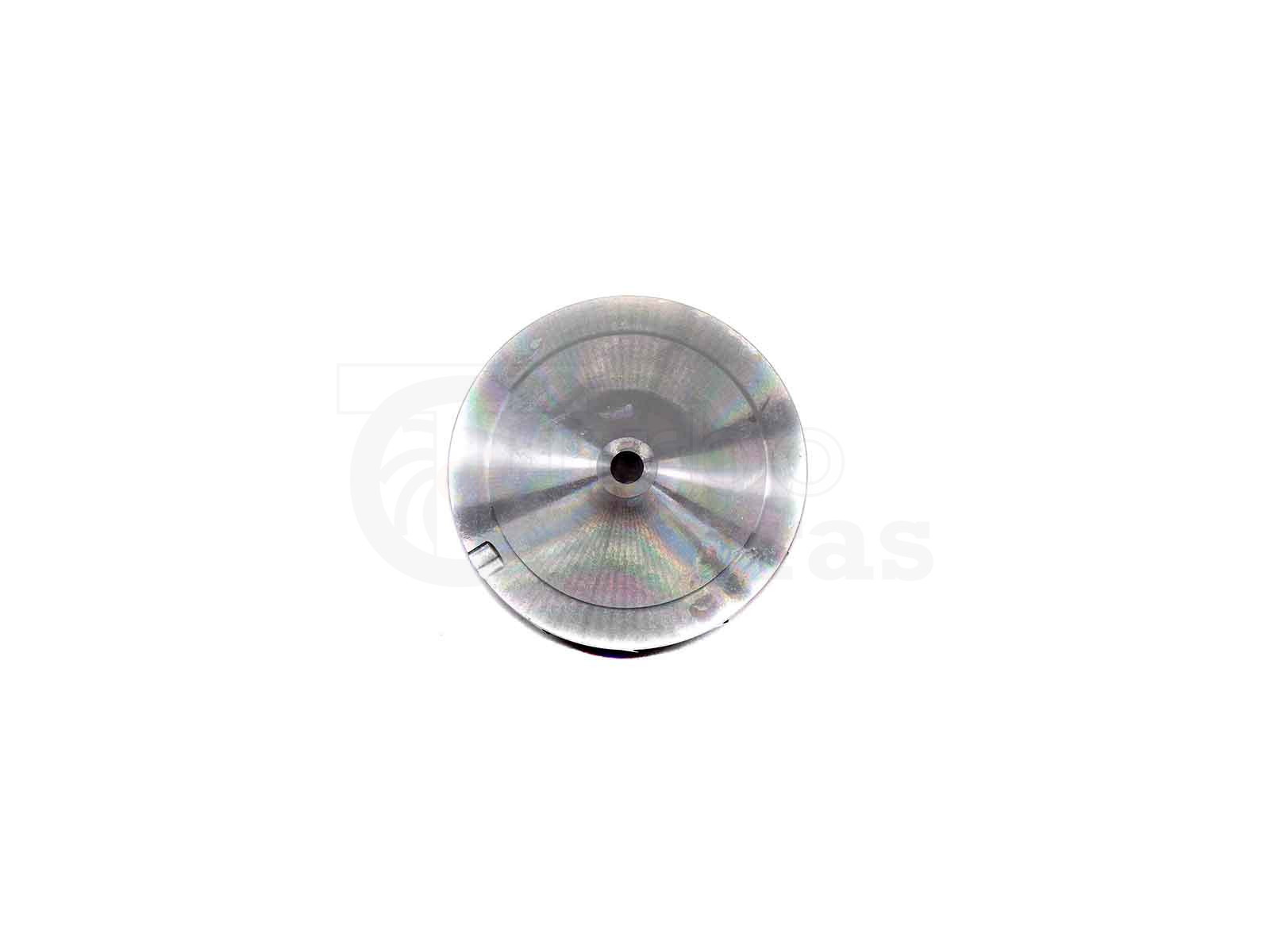

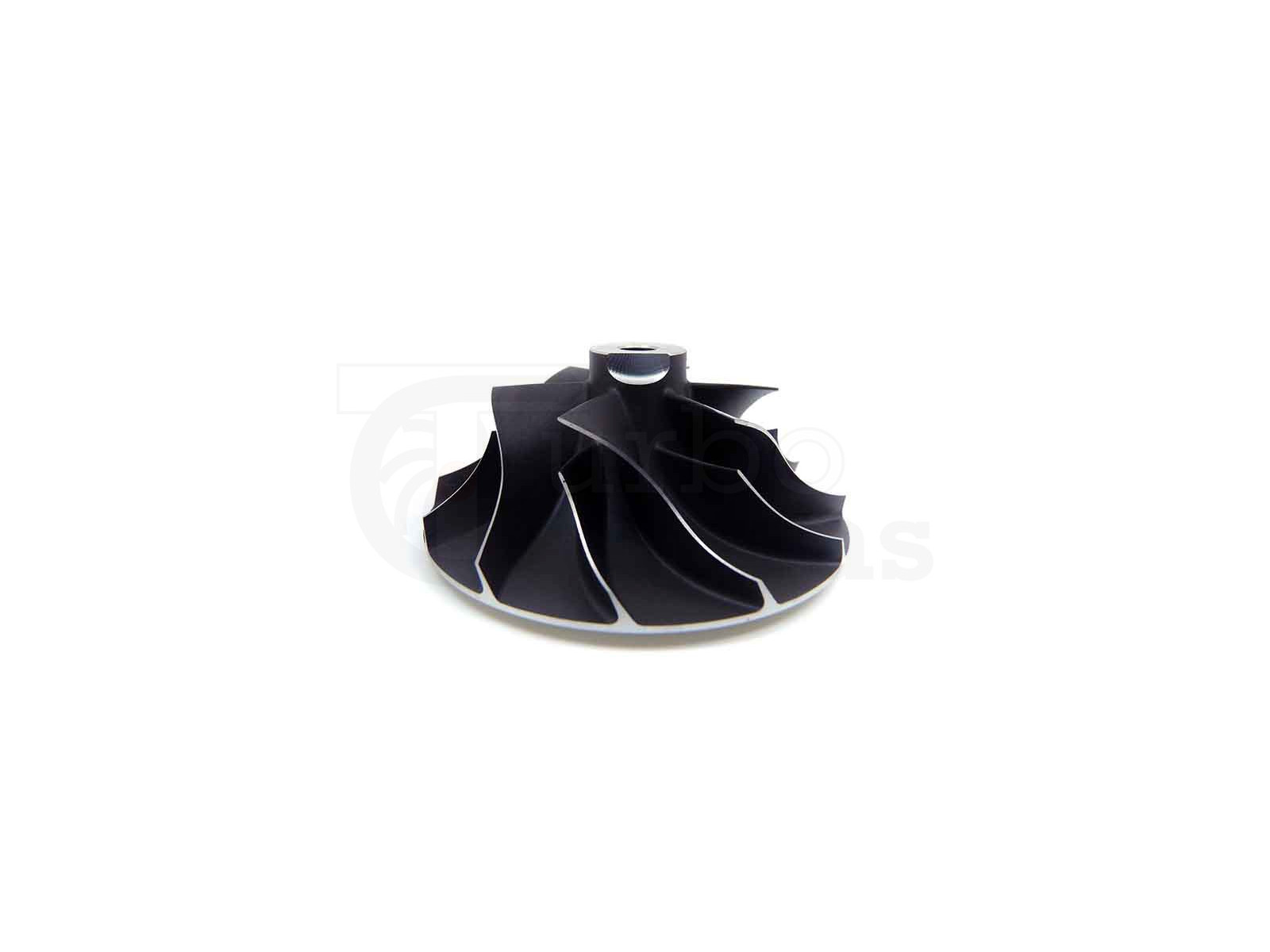

TO-03-0003 (17291-0L040) - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: TO-03-0003
OEM Numbers: 17291-0L040
TO-03-0003 - Alternative numbers
TCO (TurboCentras old part number): CT16-00
TCP (TurboCentras part number): TO-03-0003
TO-03-0003 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Toyota | CT-VNT | 17201-0L040 | 17201-0L040 | -- |
| Toyota | CT12CV | 17201-0L040 | 17201-0L040 | -- |
| Toyota | CTVGT | 17201-0L040 | 17201-0L040 | -- |
| Toyota | CT12CV | 17201-0L041 | 17201-0L041 | -- |
| Toyota | CT-VNT | 17201-0L041 | 17201-0L041 | -- |
| Toyota | CT12CV | 17201-0L042 | 17201-0L042 | -- |
| Toyota | CT12CV | 17201-0L090 | 17201-0L090 | TC3VET-S0012B |
| Toyota | CT12CV | 17201-30060 | 17201-30060 | -- |
| Toyota | CT-VNT | 17201-30100 | 17201-30100 | -- |
| Toyota | CT12CV | 17201-30100 | 17201-30100 | -- |
| Toyota | CT-VNT | 17201-30101 | 17201-30101 | -- |
| Toyota | CT12CV | 17201-30101 | 17201-30101 | -- |
| Toyota | CT-VNT | 17201-30110 | 17201-30110 | -- |
| Toyota | CT12CV | 17201-30110 | 17201-30110 | -- |
| Toyota | CT12CV | 17201-30150 | 17201-30150 | -- |
| Toyota | CT-VNT | 17201-30160 | 17201-30160 | -- |
| Toyota | CT12CV | 17201-30160 | 17201-30160 | -- |
| Toyota | CT-VNT | 17201-30161 | 17201-30161 | -- |
| Toyota | CT12CV | 17201-30161 | 17201-30161 | -- |
| Toyota | CT12CV | 17201-30180 | 17201-30180 | -- |
| Toyota | CT12CV | 17201-30181 | 17201-30181 | -- |
| Toyota | CT12CV | 17201-30210 | 17201-30210 | -- |
| IHI | CT12CV | 9B002 | 9B002, TC1VED-S0017B | 17201-30160, 17201-30161 |
TO-03-0003 - Part Properties
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 58.00
A1 (Size A1): 58.00
B (Size B): 39.10
C (Size C): 4.40
C1 (Size C1): 2.60
D (Size D): 26.50
E (Size E): 5.10
17291-0L040, CT16-00, TO-03-0003
17201-0L040, 17201-0L040, 17201-0L040, 17201-0L041, 17201-0L041, 17201-0L042, 17201-0L090, TC3VET-S0012B, 17201-30060, 17201-30100, 17201-30100, 17201-30101, 17201-30101, 17201-30110, 17201-30110, 17201-30150, 17201-30160, 17201-30160, 17201-30161, 17201-30161, 17201-30180, 17201-30181, 17201-30210, 17201-30160, 17201-30161, 9B002, TC1VED-S0017B
Data updated: 2023-11-06 08:17:50
