Cartridge 433395-0004 GA-00-0051 GT15-234

Product package: 2 kg (20x20x20 cm)

Cartridge GA-00-0051

Name: Cartridge GA-00-0051
Brand: TurboCentras
SKU: GA-00-0051
Price: 98 EUR
Availability: InStock

Reference GA-00-0051

Condition New

In Stock (12 Items)

€98.00

Tax excluded Delivered within 3-8 days

433395-0004, GA-00-0051, GT15-234

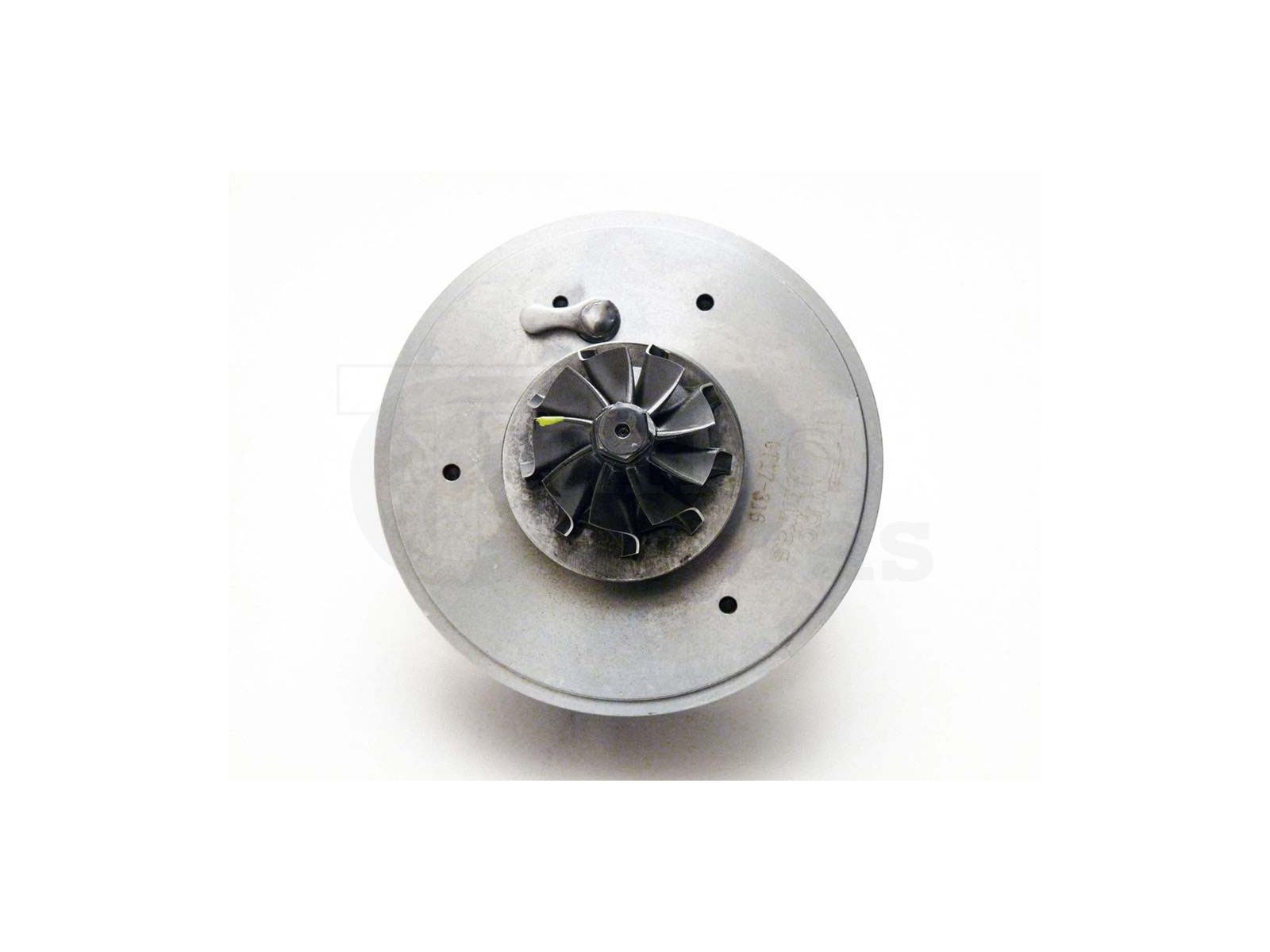

Cartridge GA-00-0051 for turbos 454158-0001, 454161-0001, 454161-0003.

See below for more info

GA-00-0051

Brand: TurboCentras

Reference: GA-00-0051

Part numbers

GHP: 433395-0004

TCP: GA-00-0051

TCO: GT15-234

Used in turbochargers

Garrett 454158-0001 GT17

Garrett 454161-0001 GT17

Garrett 454161-0003 GT17

Included parts

Bearing housing GA-01-0105

Shaft and wheel GA-02-0071

Compressor wheel GA-03-0041

Heat shield GA-05-0013

Shaft nut GA-21-0005

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-133

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-173

O-ring GT15-201

O-ring GT15-206

Anti-rotation pin GT15-330

Screw SC-96-0007

Gasket oil outlet T-1

GA-00-0051 - Cartridge

Brand: TurboCentras

TurboCentras Reference: GA-00-0051

GA-00-0051 - Alternative numbers

GHP (Garrett original part number): 433395-0004

TCP (TurboCentras part number): GA-00-0051

TCO (TurboCentras old part number): GT15-234

GA-00-0051 - Compatibility table

Cartridge GA-00-0051 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT1749V	454158-0001	454158-0001	--
Garrett	GT1749V	454161-0001	454161-0001	028145702D
Garrett	GT1749V	454161-0003	454161-0003, 454161-5003S	028145702D

433395-0004, GA-00-0051, GT15-234

454158-0001, 028145702D, 454161-0001, 028145702D, 454161-0003, 454161-5003S

Data updated: 2023-10-10 08:44:39
