Product package: 2 kg (20x20x20 cm)

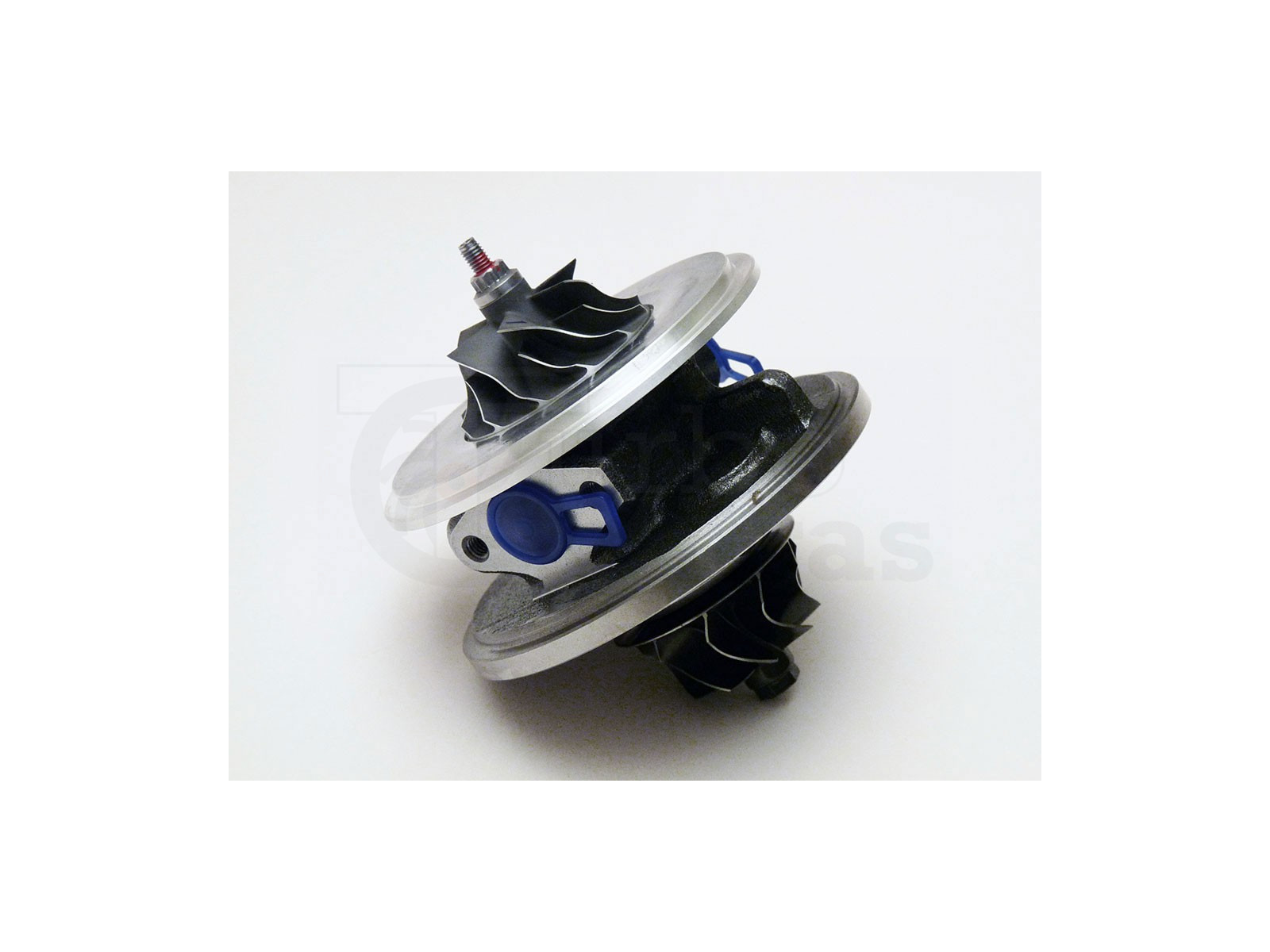

Cartridge GA-00-0061

Reference GA-00-0061

Condition New

In Stock (12 Items)

€85.76

Tax excluded Delivered within 3-8 days

706287-0002, GA-00-0061, GT15-243

Cartridge GA-00-0061 for turbos 708366-0001, 708366-0002, 708366-0003, 708366-0004, 708366-0006, 708366-0007, 708366-0008.

See below for more info

GA-00-0061

Brand: TurboCentras

Reference: GA-00-0061

Part numbers

GHP: 706287-0002

TCP: GA-00-0061

TCO: GT15-243

Used in turbochargers

Garrett 708366-0001 GT17

Garrett 708366-0002 GT17

Garrett 708366-0003 GT17

Garrett 708366-0004 GT17

Garrett 708366-0006 GT17

Garrett 708366-0007 GT17

Garrett 708366-0008 GT17

Included parts

Bearing housing GA-01-0004

Shaft and wheel GA-02-0071

Compressor wheel GA-03-0035

Heat shield GA-05-0013

Back plate GA-08-0005

Shaft nut GA-21-0005

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

O-ring GT15-202

O-ring GT15-206

Anti-rotation pin GT15-330

Screw SC-96-0007

Gasket oil outlet T-1

GA-00-0061 - Cartridge

Brand: TurboCentras

TurboCentras Reference: GA-00-0061

GA-00-0061 - Alternative numbers

GHP (Garrett original part number): 706287-0002

TCP (TurboCentras part number): GA-00-0061

TCO (TurboCentras old part number): GT15-243

GA-00-0061 - Compatibility table

Cartridge GA-00-0061 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT1749V	708366-0001	708366-0001, 708366-5001S	7781450B, LR006108, STC4546
Garrett	GT1749V	708366-0002	708366-0002, 708366-5002S	77814759
Garrett	GT1749V	708366-0003	708366-0003, 708366-5003S	77814769
Garrett	GT1749V	708366-0004	708366-0004, 708366-5004S	7781450C03
Garrett	GT1749V	708366-0006	708366-0006, 708366-5006S	7781476C03
Garrett	GT1749V	708366-0007	708366-0007, 708366-5007S, 708366-9007S	7781476C03
Garrett	GT1749V	708366-0008	708366-0008	--

706287-0002, GA-00-0061, GT15-243

708366-0001, 708366-5001S, 7781450B, LR006108, STC4546, 708366-0002, 708366-5002S, 77814759, 708366-0003, 708366-5003S, 77814769, 708366-0004, 708366-5004S, 7781450C03, 708366-0006, 708366-5006S, 7781476C03, 708366-0007, 708366-5007S, 708366-9007S, 7781476C03, 708366-0008

Data updated: 2023-10-10 08:44:39

In stock 12 Items

Condition New

Thrust flinger GT15-130

In Stock

Thrust flingers

Thrust flinger GT15-130

GA-35-0010, GT15-130Thrust flinger GT15-130 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452194-0001, 452202-0003, 452202-0004.See below for more info

Thrust Collar GT15-135

In Stock

Thrust Collars

Thrust Collar GT15-135

Thrust Collar GT15-135 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452194-0001, 452202-0003.See below for more info.

Thrust bearing GT15-120

In Stock

Thrust Bearings

Thrust bearing GT15-120

Thrust bearing GT15-120 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452191-0001, 452191-0002.See below for more info.

Actuator clip GR.5

In Stock

Actuator clips

Actuator clip GR.5

Actuator clip GR.5 for turbos 452014-0003, 452014-0005, 452014-0006, 452038-0001, 452039-0001, 452044-0001, 452044-0003, 452044-0004, 452047-0001, 452047-0002.See below for more info

Bearing housing 706288-0002 GA-01-0004 GT117-303

Bearing housing 706288-0002 GA-01-0004 GT117-303 2

In Stock

Bearing housings

Bearing housing GA-01-0004

706288-0002, GA-01-0004, GT117-303Bearing housing GA-01-0004 for turbos 708366-0001, 708366-0002, 708366-0003, 708366-0004, 708366-0005, 708366-0006, 708366-0007.See below for more info

Back plate GT15-60

Back plate GT15-60 2

In Stock

Back plates

Back plate GA-08-0005

700593-0006, GA-08-0005, GT15-60Back plate GA-08-0005 for turbos 454183-0001, 454183-0002, 454183-0003, 454183-0004, 454183-0005, 454195-0001, 454216-0001, 454216-0002, 454216-0003, 454219-0001.See below for more info

Piston ring GT15-160 PR-37-0040

In Stock

Piston rings

Piston ring GT15-160

GT15-160, PR-37-0040Piston ring GT15-160 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Piston ring GT15-170 PR-37-0003

In Stock

Piston rings

Piston ring GT15-170

GT15-170, PR-37-0003Piston ring GT15-170 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Heat shield GA-05-0013 GT15-324

Heat shield GA-05-0013 GT15-324 2

In Stock

Heat Shields

Heat shield GA-05-0013

GA-05-0013, GT15-324Heat shield GA-05-0013 for turbos 454158-0001, 454158-0003, 454158-0004, 454161-0001, 454161-0003, 454161-0004, 454183-0001, 454183-0002, 454183-0003, 454183-0004.See below for more info

Journal bearing GT15-101

Journal bearing GT15-101 2

In Stock

Journal Bearings

Journal bearing GT15-101

GA-41-0016, GT15-101See below for more info

Compressor wheel GT15-07

Compressor wheel GT15-07 2

In Stock

Compressor wheels

Compressor wheel GA-03-0035

702489-0001, 702489-0004, 702489-0005, 702489-0007Compressor wheel GA-03-0035 for turbos 701164-0002, 701470-0003, 701470-0004, 702404-0002, 705650-0001, 708366-0001, 708366-0002, 708366-0003, 708366-0004, 708366-0005.See below for more info

Gasket oil outlet T-1

In Stock

Gasket oil outlet

Gasket oil outlet T-1

Gasket oil outlet T-1 for turbos 030TC11002000, 030TC11003000, 030TC11004000, 030TC11005000, 06H145702G, 06H145702L, 06H145702Q, 06H145702R, 06H145702S, 10009700005.See below for more info.

Shaft and wheel GA-02-0071

In Stock

Shaft & Wheels

Shaft and wheel GA-02-0071

434533-0002, 434533-0039, GA-02-0071, GT17-41Shaft and wheel GA-02-0071 for turbos 454158-0001, 454158-0003, 454158-0004, 454161-0001, 454161-0003, 454161-0004, 454183-0001, 454183-0002, 454183-0003, 454195-0001.See below for more info

Bolt M5X18

Bolt M5X18 2

In Stock

Bolts, nuts, screws, washers

Screw SC-96-0007

Screw M5X18 TX 20 10.9 (Backplate Garrett GT/VNT 15-25 series)M5X18, SC-96-0007Screw SC-96-0007 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Shaft nut GA-21-0005

In Stock

Shaft Nuts

Shaft nut GA-21-0005

GA-21-0005, GT15-180Shaft nut GA-21-0005 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Anti-rotation pin GT15-330

In Stock

Anti-rotation pins

Anti-rotation pin GT15-330

GA-46-0001, GT15-330Anti-rotation pin GT15-330 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452124-0006, 452191-0001, 452191-0002.See below for more info.

Retaining ring GT15-143

In Stock

Retaining rings

Retaining ring GT15-143

Retaining ring GT15-143 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

O-ring GT15-206

In Stock

O-rings

O-ring GT15-206

GT15-206, OR-38-0067See below for more info

O-ring GT15-202

In Stock

O-rings

O-ring GT15-202

GT15-202, OR-38-0069See below for more info
