756062-0003-R Turbo parts
| Part Name | Brand | Reference | Price | Action |
|---|---|---|---|---|
| Cartridge | TurboCentras | GA-00-0059 [x1] | 94.90 € | |
| Cartridge | EE Turbo | GT15-035 [x1] | 79.80 € | |
| Nozzle ring assy. | TurboCentras | GA-06-0022 [x1] | 36.24 € | |
| Repair kit | TurboCentras | GA-04-0015 [x1] | 11.26 € | |
| Bearing housing | TurboCentras | GA-01-0090 [x1] | 20.96 € | |
| Shaft and wheel | TurboCentras | GA-02-0068 [x1] | 20.58 € | |
| Compressor wheel | TurboCentras | GA-03-0029 [x1] | 7.20 € | |
| Heat shield | TurboCentras | GA-05-0013 [x1] | 5.46 € | |
| Back plate | TurboCentras | GA-08-0005 [x1] | 5.48 € | |

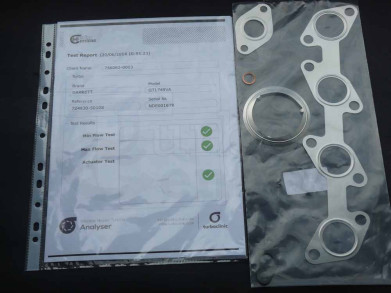

| Gasket kit | TurboCentras | TC1017 [x1] | 13.04 € | |
| Shaft nut | TurboCentras | GA-21-0005 [x1] | 1.84 € | |
| VNT Ring | TurboCentras | GT17-90-1 [x1] | 33.06 € | |
| Gasket oil outlet | TurboCentras | T-1 [x1] | 0.36 € | |
| Actuator clip | TurboCentras | GR.5 [x1] | 0.04 € | |
| Thrust Collar | TurboCentras | GT15-135 [x1] | 2.24 € | |
| Thrust bearing | TurboCentras | GT15-120 [x1] | 7.44 € | |
| Bolt | TurboCentras | BO-98-0004 [x6] | 1.05 € | |
| Bolt | TurboCentras | BO-98-0005 [x6] | 1.00 € | |
| Anti-rotation pin | TurboCentras | GT15-330 [x1] | 1.88 € | |
| Retaining ring | TurboCentras | GT15-143 [x1] | 1.60 € | |
| Thrust flinger | TurboCentras | GT15-130 [x1] | 3.64 € | |
| Piston ring | TurboCentras | GT15-160 [x1] | 2.90 € | |
| Piston ring | TurboCentras | GT15-170 [x1] | 2.89 € | |
| Screw | TurboCentras | SC-96-0007 [x4] | 1.04 € | |
| Washer | TurboCentras | WA-95-0001 [x4] | 1.04 € |
756062-0003-R Main info
Turbo brand: Garrett
Reference: 756062-0003-R
Series: GT17
Model: GT1749V
Technology: VGT
Actuation: Pneumatic
756062-0003-R Alternative numbers
OEM: 03G253010H
GHT: 756062-0003-R
OEM: MN980201
756062-0003-R Turbo replacements
Replaced by 756062-0004 (GTA1749MV)
756062-0003-R Interchangeable with
756062-0001 (Garrett GT1749V)
756062-0002 (Garrett GT1749V)
756062-0003 (Garrett GT1749V)
756062-0004 (Garrett GTA1749MV)
756062-9003S (Garrett GT1749V)
756062-0003-R Remark
No turbo remark
756062-0003-R Shopping - 756062-0003-R

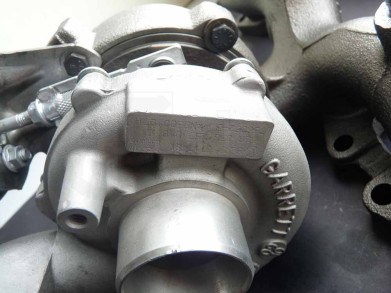

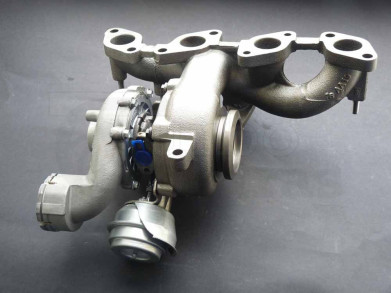

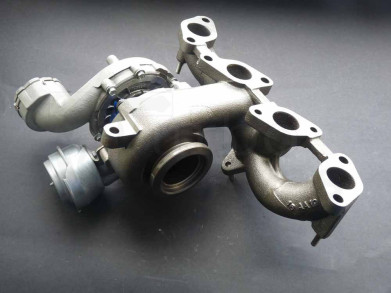

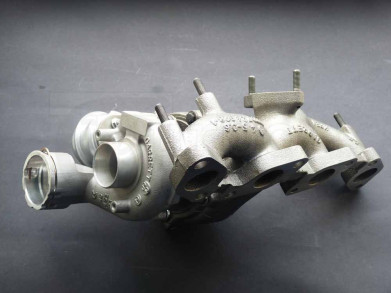

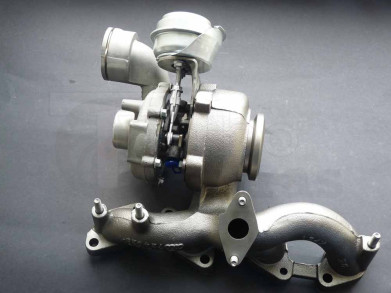

756062-0003-R Turbo images
Alternative products
756062-9003S
Out of stock
