- Новое
0.3 kg (10x6x10 cm)

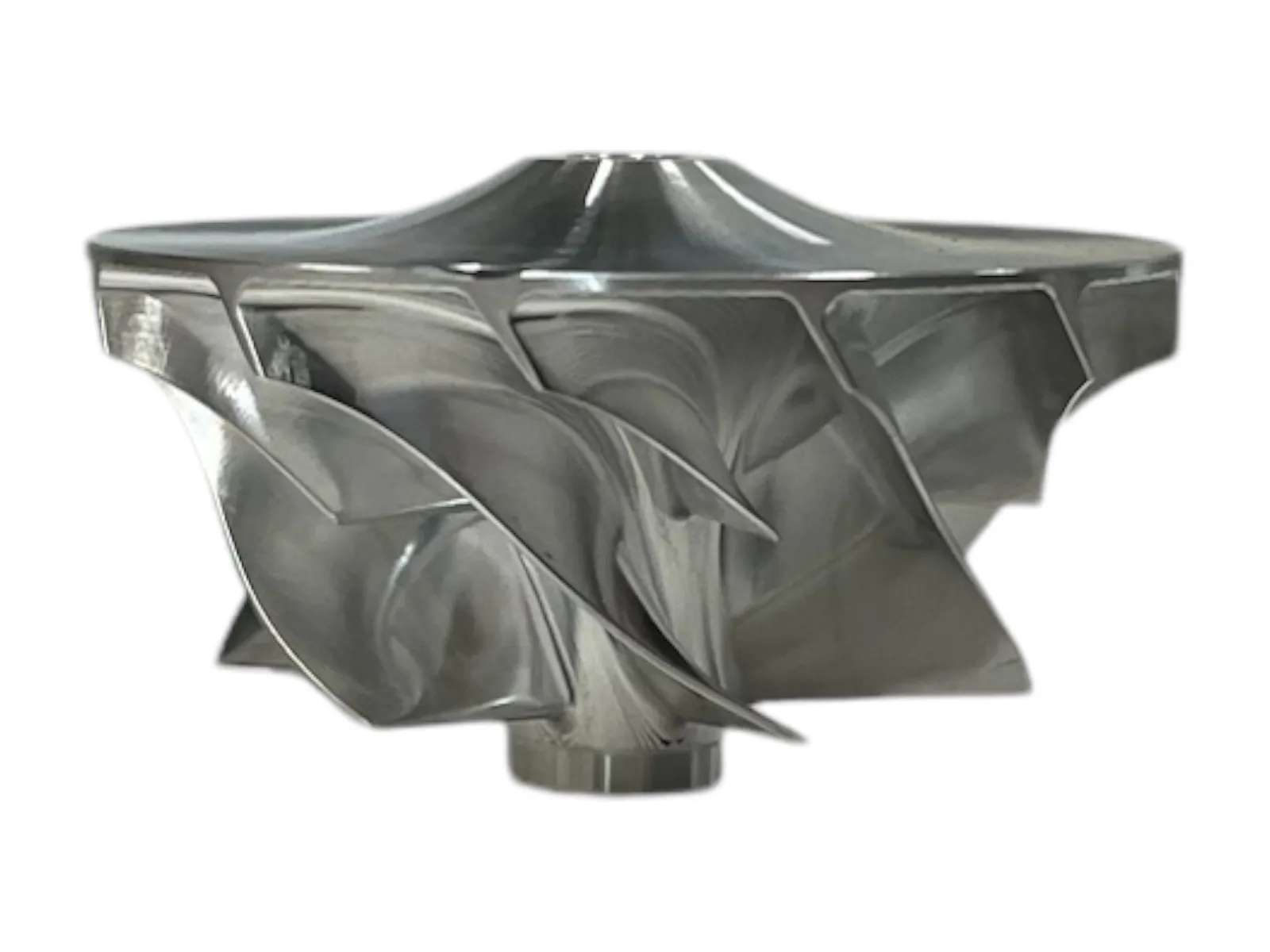

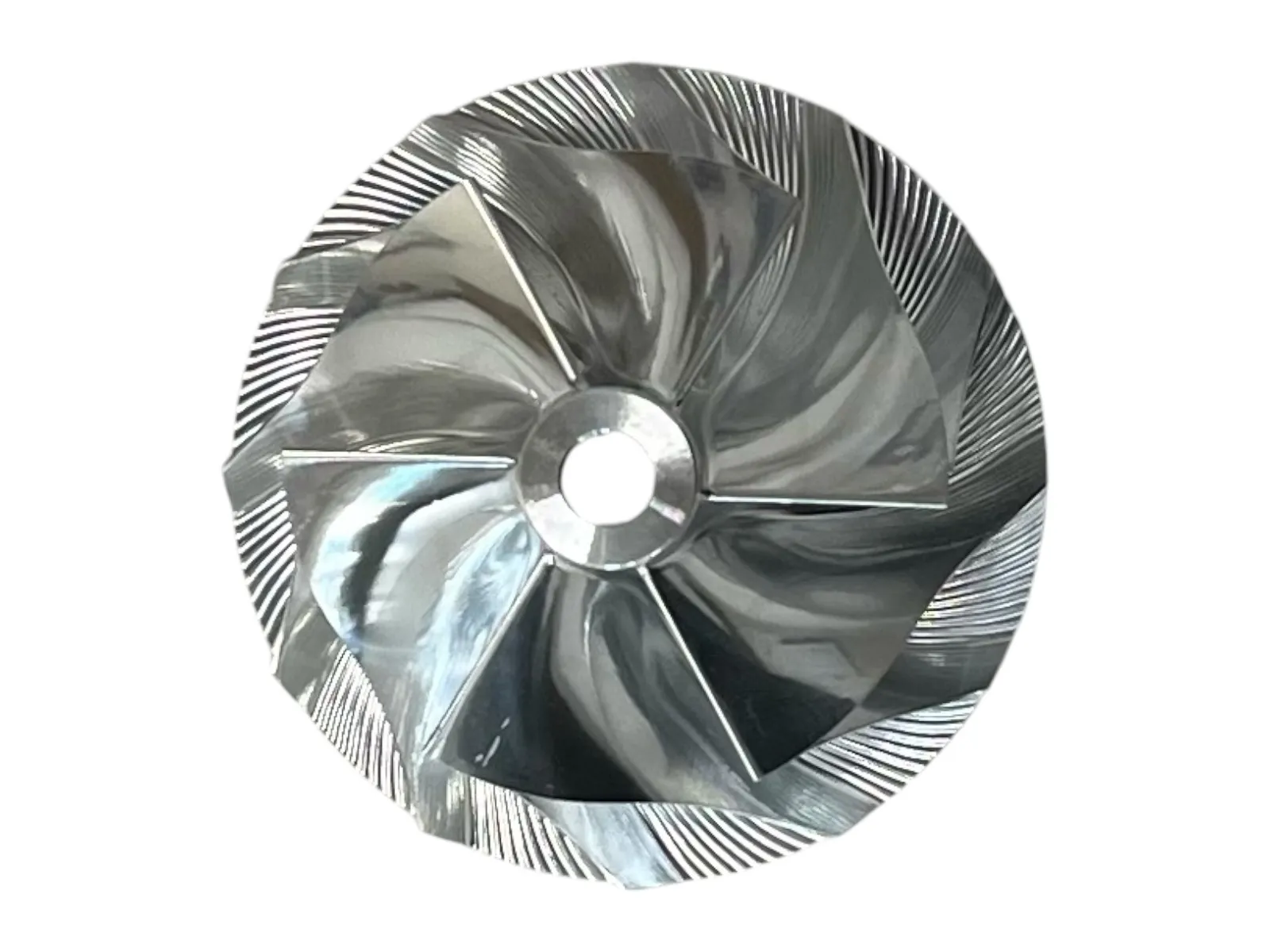

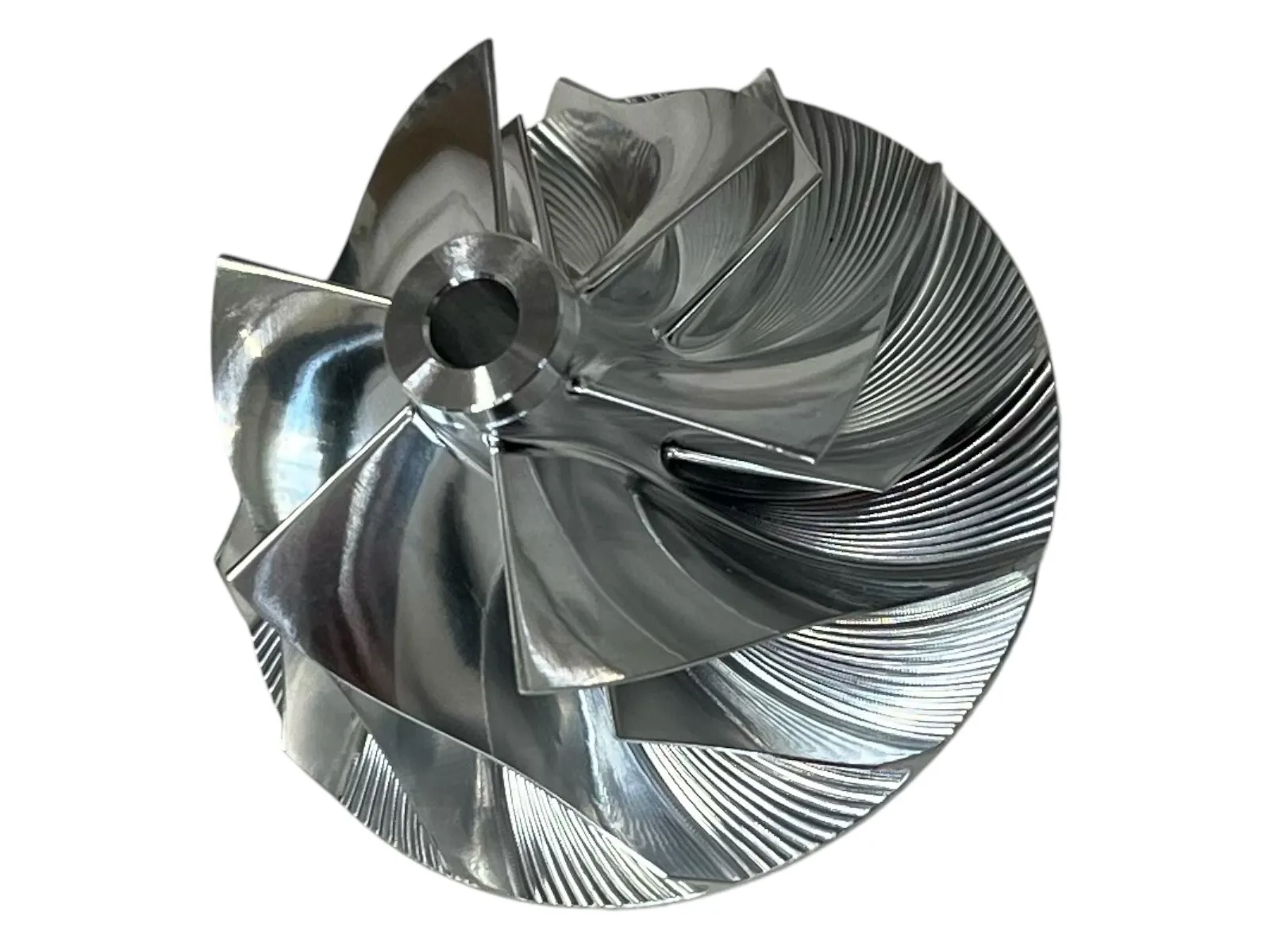

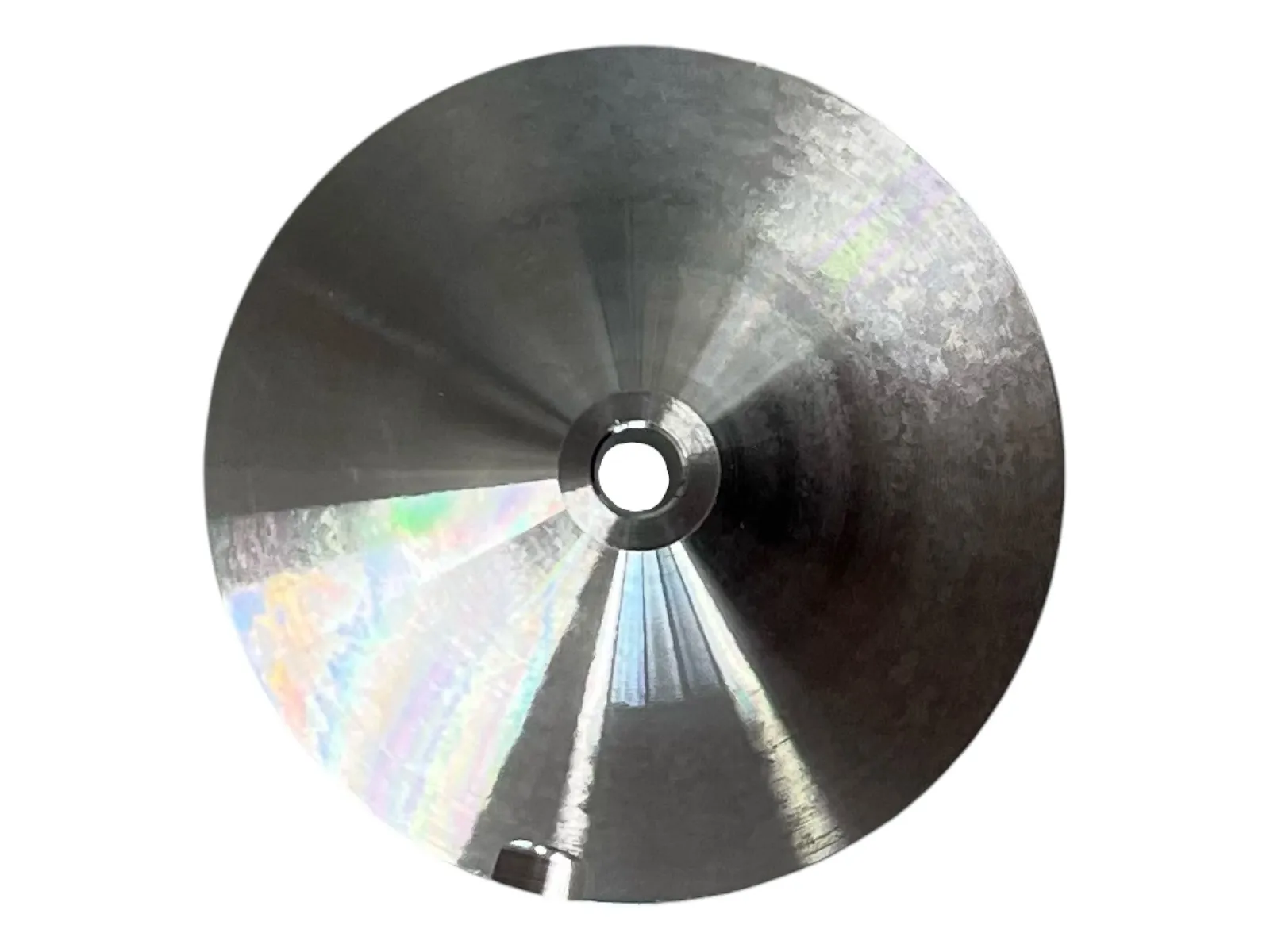

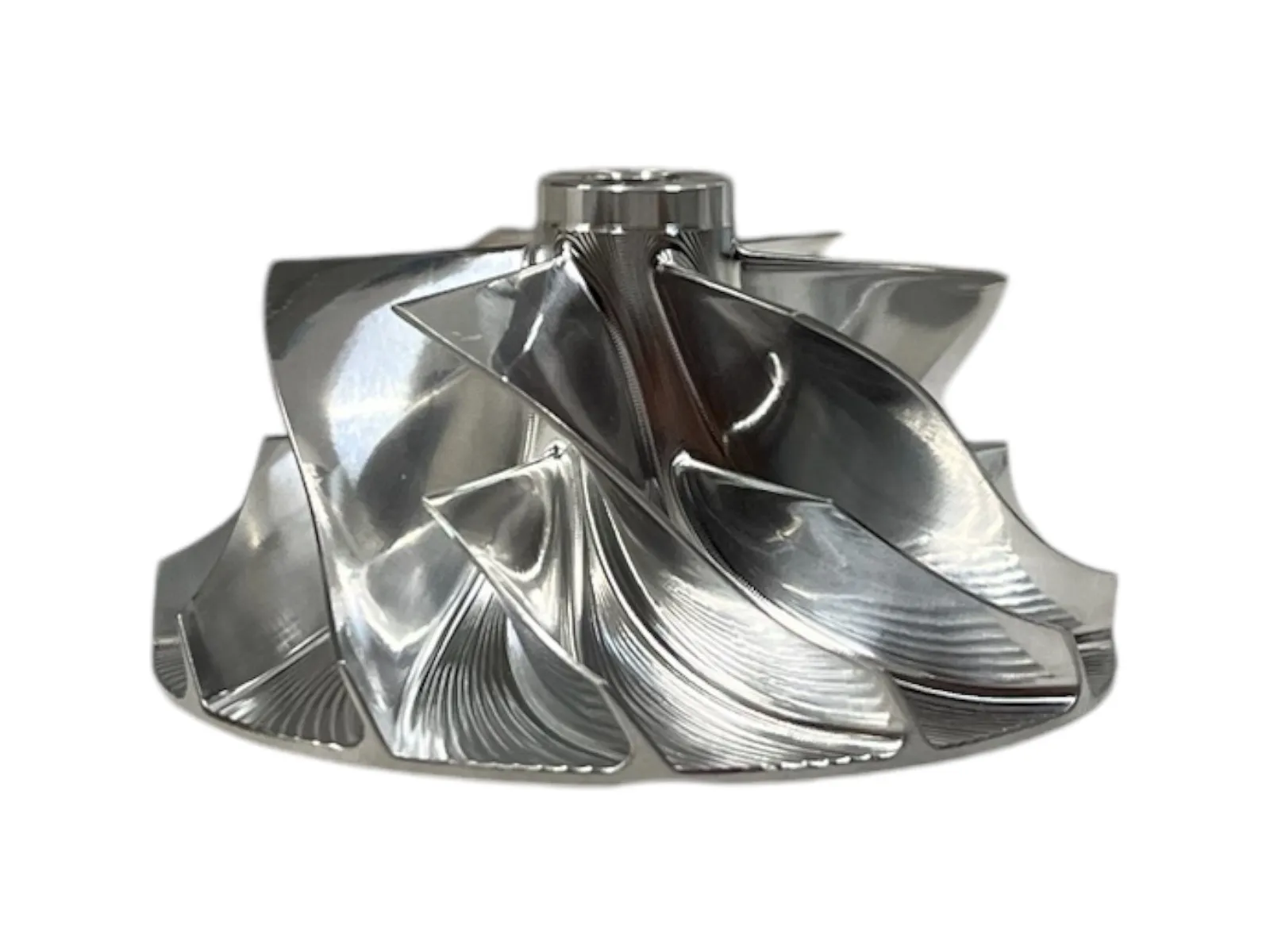

IH-03-0049 - Крыльчатка компрессора
Бренд: TurboCentras
TurboCentras Артикул: IH-03-0049
IH-03-0049 - Альтернативные номера
TCP (TurboCentras part number): IH-03-0049
IH-03-0049 - Таблица совместимости
ПРОИЗВОДИТЕЛЬ ТУРБИНЫ | МОДЕЛЬ ТУРБИНЫ | АРТИКУЛ ТУРБИНЫ | НОМЕР ТУРБИНЫ | OE НОМЕР ТУРБИНЫ |
---|---|---|---|---|
IHI | JHJ-RHF4 | 9V105 | 9V105, AL0068, F41CAY-SR056B | A2700901280, A2700901780, A2700901980, A2700902880 |
IHI | JHJ-RHF4 | 9V106 | 9V106, AL0069 | 141119-0086, A2700901880 |
IHI | JHJ-RHF4 | 9V109 | 150318-0324, 150318-0374, 9V109, AL0071, F31CAY-SR060B | A2740900880, A2740902680, A2740903080, A2740904180 |
IHI | JHJ | 9V110 | 9V110, AL0072 | A2740900780, A2740901980, A2740902380, A2740902480, A2740902580, A2740903180, A2740903280, A2740903300, A2740903480, A2740903580, A2740904080, A2740904280, A2740904380, A2740906080 |
IHI | JHJ-RHF4 | 9V121 | 9V121, AL0087, AL0087Q17, AL0087Q20, AL0087Q21 | A2600902500 |
IHI | JHJ-RHF4 | A2600902500 | 9V121, AL0087, AL0087Q17, AL0087Q20, AL0087Q21 | A2600902500 |
IHI | JHJ-RHF4 | A2700901880 | 9V106, AL0069 | A2700901880 |
IHI | JHJ-RHF4 | A2700901880-R | 9V106, AL0069 | A2700901880 |
IHI | RHF4 | A2740900780 | 9V110, AL0072 | A2740900780 |
IHI | RHF4 | A2740901980 | 9V110, 9V112, AL0072 | A2740901980 |
IHI | RHF4 | A2740902380 | 170412-0106, 170412-0124, 9V112, AL0072 | A2740902380 |
IHI | RHF4 | A2740902480 | 9V110, AL0072 | A2740902480 |
IHI | RHF4 | A2740902580 | 9V110, AL0072 | A2740902580 |
IHI | RHF4 | A2740903180 | 170412-0106, 170412-0124, 9V110, AL0072 | A2740903180 |
IHI | RHF4 | A2740903280 | 170412-0106, 170412-0124, 9V110, AL0072, AL0072 Q07 | A2740903280 |
IHI | RHF4 | A2740903300 | 9V110, AL0072, AL0072 Q7 | A2740903300, AL0072 Q07 |
IHI | RHF4 | A2740903480 | 9V112, AL0072 | A2740903480 |
IHI | RHF4 | A2740903580 | 170412-0106, 170412-0124, 9V110, AL0072 | A2740903580 |
IHI | RHF4 | A2740904080 | 9V112, AL0072 | A2740904080 |
IHI | RHF4 | A2740904280 | 9V110, AL0072 | A2740904280 |
IHI | RHF4 | A2740904380 | 9V110, AL0072 | A2740904380 |
IHI | RHF4 | A2740906080 | 9V110, AL0072 | A2740906080 |
IHI | JHJ-RHF4 | AL0069 | 9V106, AL0069 | 141119-0086, A2700901880 |
IHI | JHJ | AL0072 | 9V110, AL0072 | A2740900780, A2740901980, A2740902380, A2740902480, A2740902580, A2740903180, A2740903280, A2740903300, A2740903480, A2740903580, A2740904080, A2740904280, A2740904380, A2740906080 |
IHI | JHJ-RHF4 | AL0087 | 9V121, AL0087 | A2600902500 |
IH-03-0049 - Свойства детали
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Billet
Back (Compressor wheel back design): Super
A (Size A): 51.00
A1 (Size A1): 51.00
B (Size B): 38.90
C (Size C): 5.02
C1 (Size C1): 3.85
D (Size D): 29.70
E (Size E): 5.10
![IH-03-0049](/modules/turbocatalog/views/img/drawings/4.png)
IH-03-0049
AL0072Q7, AL0072Q07, AL0072Q07, 9V105, A2700901280, A2700901780, A2700901980, A2700902880, AL0068, F41CAY-SR056B, 141119-0086, 9V106, A2700901880, AL0069, 150318-0324, 150318-0374, 9V109, A2740900880, A2740902680, A2740903080, A2740904180, AL0071, F31CAY-SR060B, 9V110, A2740900780, A2740901980, A2740902380, A2740902480, A2740902580, A2740903180, A2740903280, A2740903300, A2740903480, A2740903580, A2740904080, A2740904280, A2740904380, A2740906080, AL0072, 9V121, A2600902500, AL0087, AL0087Q17, AL0087Q20, AL0087Q21, 9V121, A2600902500, AL0087, AL0087Q17, AL0087Q20, AL0087Q21, 9V106, A2700901880, AL0069, 9V106, A2700901880, AL0069, 9V110, A2740900780, AL0072, 9V110, 9V112, A2740901980, AL0072, 170412-0106, 170412-0124, 9V112, A2740902380, AL0072, 9V110, A2740902480, AL0072, 9V110, A2740902580, AL0072, 170412-0106, 170412-0124, 9V110, A2740903180, AL0072, 170412-0106, 170412-0124, 9V110, A2740903280, AL0072, AL0072 Q07, 9V110, A2740903300, AL0072, AL0072 Q07, AL0072 Q7, 9V112, A2740903480, AL0072, 170412-0106, 170412-0124, 9V110, A2740903580, AL0072, 9V112, A2740904080, AL0072, 9V110, A2740904280, AL0072, 9V110, A2740904380, AL0072, 9V110, A2740906080, AL0072, 141119-0086, 9V106, A2700901880, AL0069, 9V110, A2740900780, A2740901980, A2740902380, A2740902480, A2740902580, A2740903180, A2740903280, A2740903300, A2740903480, A2740903580, A2740904080, A2740904280, A2740904380, A2740906080, AL0072, 9V121, A2600902500, AL0087
Данные обновлены: 2024-09-17 09:13:05
4 шт.
Новое
No reviews
