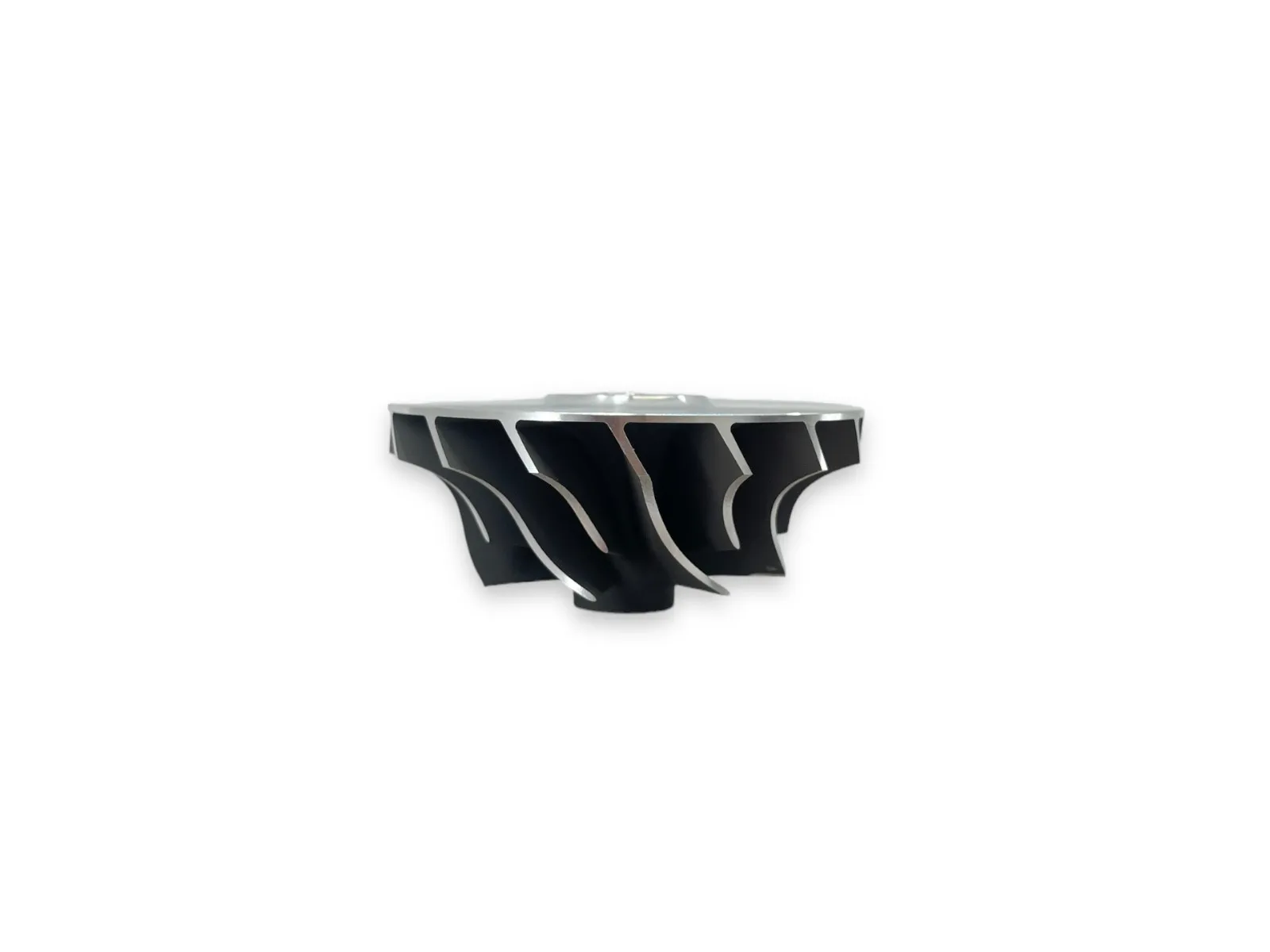

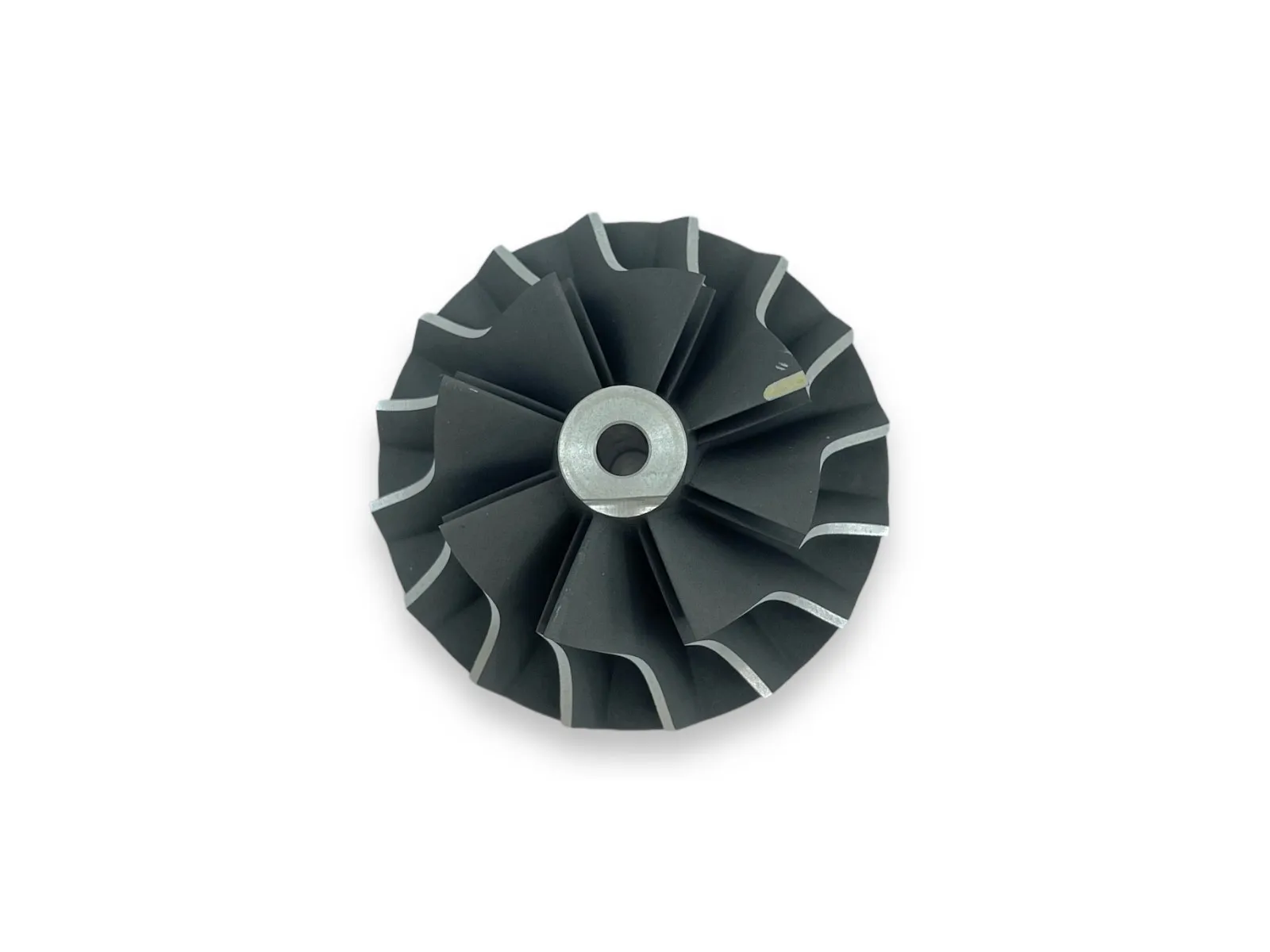

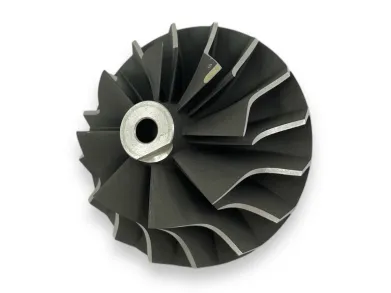

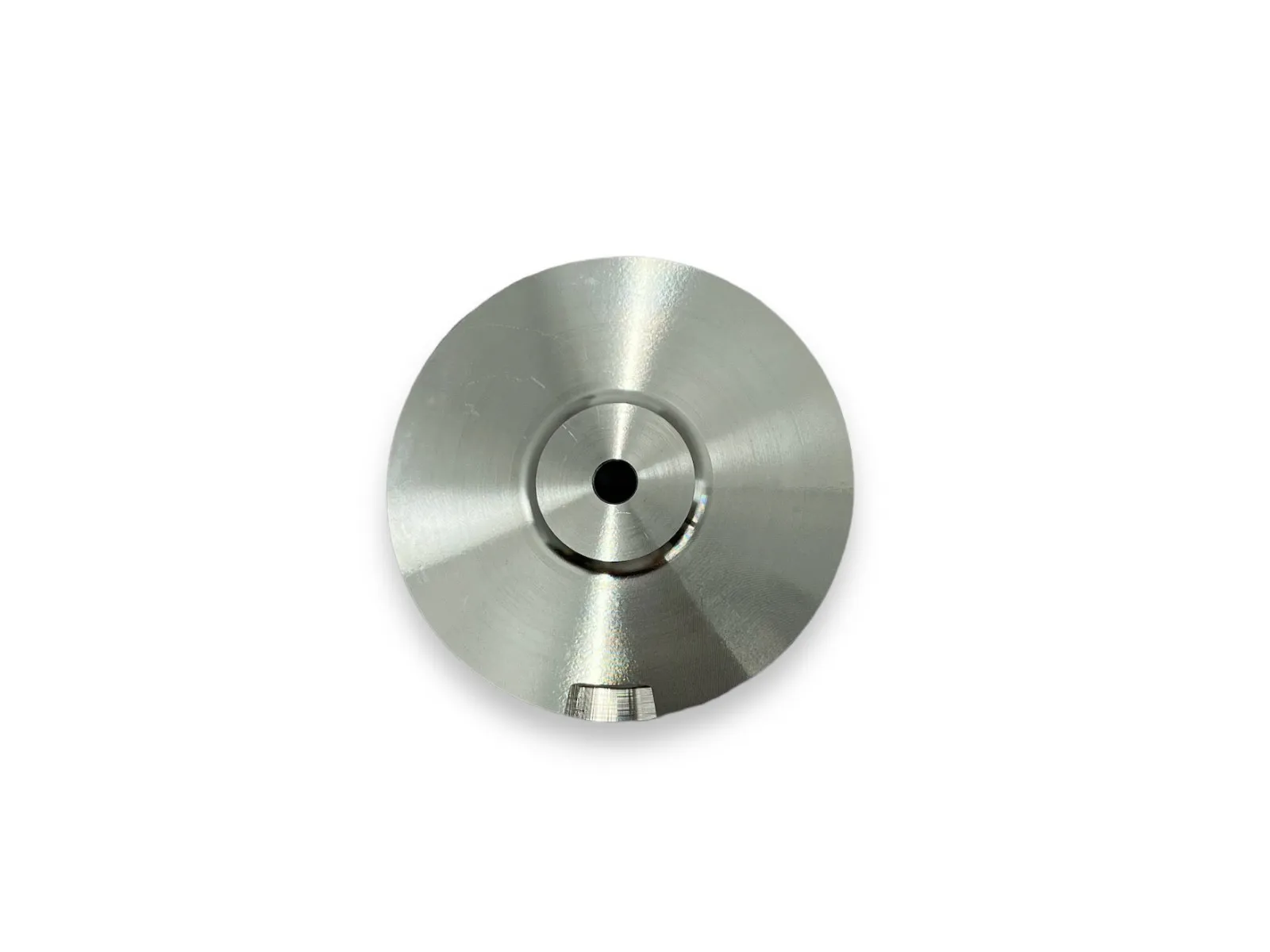

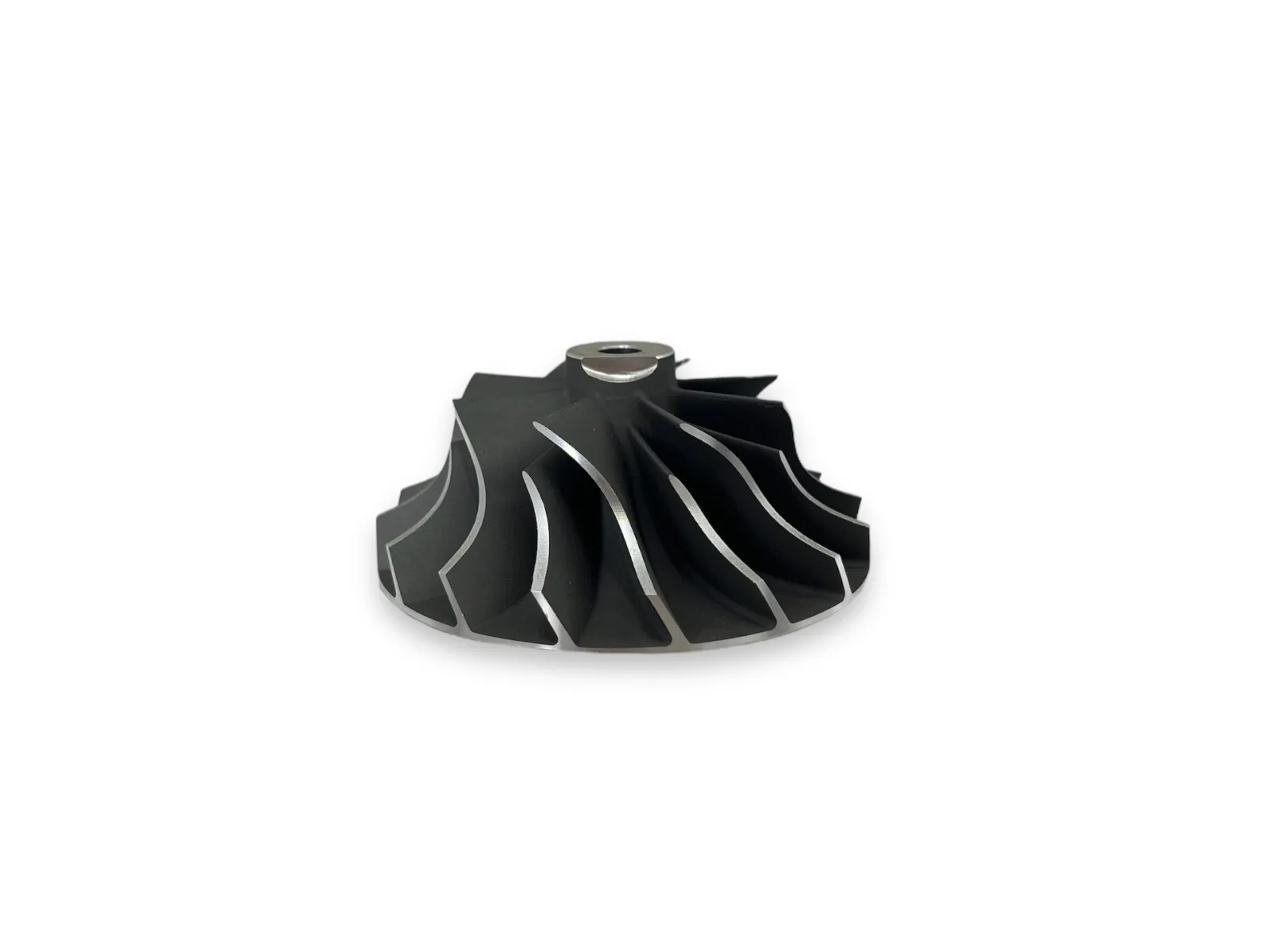

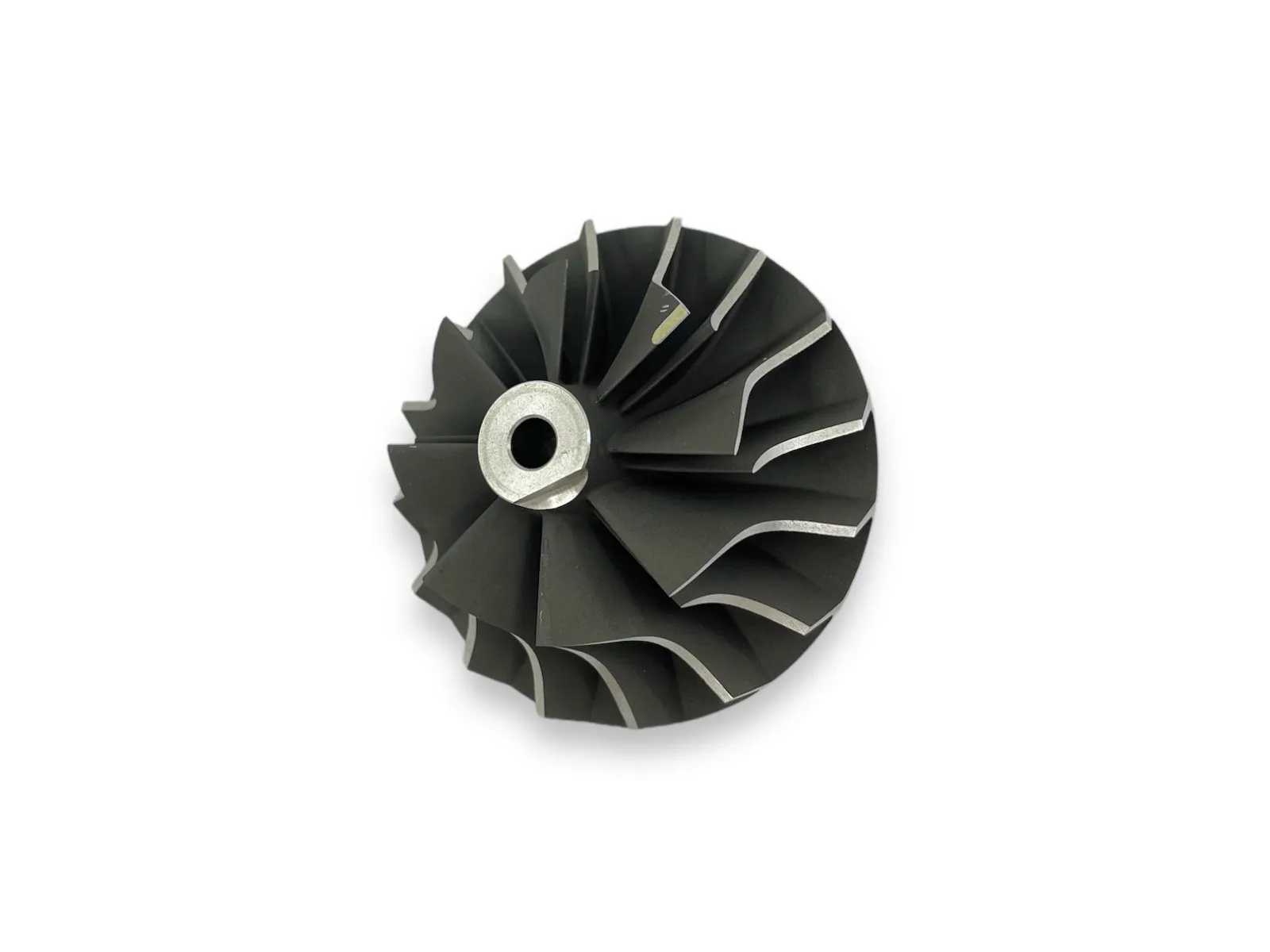

Крыльчатка компрессора GA-03-0135
GA-03-0135
Новое
В наличии (8 шт.) 10,34 €
Без НДС Доставка в течении 3-8 дней
409179-0018, GA-03-0135, T4-00
Крыльчатка компрессора GA-03-0135 для турбин 408850-0001, 408850-0002, 408850-0003, 408851-0001, 408851-0002, 408851-0003, 409410-0001, 409410-0002, 409410-0003, 409410-0004.
Подробности ниже
GA-03-0135 (409179-0018) - Крыльчатка компрессора
Бренд: TurboCentras
TurboCentras Артикул: GA-03-0135
OEM номера: 409179-0018
GA-03-0135 - Альтернативные номера
TCP (TurboCentras part number): GA-03-0135
TCO (TurboCentras old part number): T4-00
GA-03-0135 - Таблица совместимости
| ПРОИЗВОДИТЕЛЬ ТУРБИНЫ | МОДЕЛЬ ТУРБИНЫ | АРТИКУЛ ТУРБИНЫ | НОМЕР ТУРБИНЫ | OE НОМЕР ТУРБИНЫ |
|---|---|---|---|---|
| Garrett | T04B20 | 408850-0001 | 408850-0001 | -- |
| Garrett | T04B20 | 408850-0002 | 408850-0002 | -- |
| Garrett | T04B20 | 408850-0003 | 408850-0003 | -- |
| Garrett | T04 | 408851-0001 | 408851-0001 | -- |
| Garrett | T04B20 | 408851-0002 | 408851-0002 | 243084 |
| Garrett | T04B20 | 408851-0003 | 408851-0003 | 346230 |
| Garrett | T04B91 | 409410-0001 | 409410-0001 | 4N-6858 |
| Garrett | T04B91 | 409410-0002 | 409410-0002 | -- |
| Garrett | T04B91 | 409410-0003 | 409410-0003 | 4N-9714 |
| Garrett | T04B91 | 409410-0004 | 409410-0004 | 7N-1709 |
| Garrett | T04B91 | 409410-0005 | 409410-0005 | 7N-2342 |
| Garrett | T04B91 | 409410-0006 | 409410-0006, 409410-5006S | 7N-4651, 7N4651 |
| Garrett | T04B91 | 409410-0007 | 409410-0007 | 7N-9851 |
| Garrett | T04B91 | 409410-0008 | 409410-0008 | 1W-5160 |
| Garrett | T04B91 | 409410-0009 | 409410-0009 | 1W-5210 |
| Garrett | T04B91 | 409410-0010 | 409410-0010 | 2W-8139 |
| Garrett | T04B91 | 409410-0011 | 409410-0011 | 2W-1953 |
| Garrett | T04B91 | 409410-0012 | 409410-0012 | 7C-2175 |
| Garrett | T04B91 | 409410-0013 | 409410-0013 | 7E-2601 |
| Garrett | T04B91 | 409410-0014 | 409410-0014 | 6I-2975 |
| Garrett | T04B91 | 409410-0015 | 409410-0015 | 110-8762 |
| Garrett | T04B29 | 409840-0001 | 409840-0001 | -- |
| Garrett | T04B29 | 409840-0002 | 409840-0002 | 466730 |
| Garrett | T04B29 | 409840-0003 | 409840-0003 | 466395 |
| Garrett | T04B29 | 409840-0004 | 409840-0004 | 466466 |
| Garrett | T04B29 | 409840-0005 | 409840-0005, 409840-5005S | 466730 |
| Garrett | T04B29 | 409840-0006 | 409840-0006 | 466876 |
| Garrett | T04B29 | 409840-0007 | 409840-0007 | 466877 |
| Garrett | T04B29 | 409840-0008 | 409840-0008 | 844034 |
| Garrett | T04B29 | 409840-0009 | 409840-0009 | -- |
| Garrett | T04B29 | 409840-0010 | 409840-0010 | -- |
| Garrett | T04B63 | 465078-0004 | 465078-0004 | -- |
| Garrett | T04B63 | 465078-0005 | 465078-0005 | -- |
| Garrett | T04B63 | 465078-0006 | 465078-0006 | -- |
| Garrett | T04B77 | 465212-0002 | 465212-0002 | 836331385 |
| Garrett | T04B93 | 465254-0004 | 465254-0004 | 14201-Z5517, 4032912 |
| Garrett | T04B94 | 465288-0001 | 465288-0001 | 3218454R91 |
| Garrett | T04B94 | 465288-0002 | 465288-0002 | 3218309R91 |
| Garrett | T04B94 | 465288-0004 | 465288-0004, 465288-5004S | 3228208R91 |
| Garrett | T04B82 | 465472-0002 | 465472-0002 | -- |
| Garrett | T04B82 | 465472-0013 | 465472-0013 | -- |
| Garrett | T04B44 | 465570-0005 | 465570-0005 | -- |
| Garrett | TW4B91 | 465592-0001 | 465592-0001 | 8N-5501 |
| Garrett | TW4B91 | 465592-0002 | 465592-0002 | 2W-7095 |
| Garrett | T04B4 | 465600-0001 | 465600-0001 | -- |
| Garrett | T04B4 | 465600-0002 | 465600-0002, 465600-5002S | -- |
| Garrett | T04B4 | 465600-0003 | 465600-0003, 465600-5003S | -- |
| Garrett | T04B46 | 465600-0004 | 465600-0004 | 843509 |
| Garrett | T04B4 | 465600-0006 | 465600-0006 | -- |
| Garrett | T04B46 | 465600-0009 | 465600-0009, 465600-5009S | -- |
| Garrett | T04B4 | 465600-0010 | 465600-0010, 465600-5010S | -- |
| Garrett | T04B53 | 465800-0001 | 465800-0001 | -- |
| Garrett | T04B53 | 465800-0002 | 465800-0002 | -- |
| Garrett | T04B53 | 465800-0003 | 465800-0003 | -- |
| Garrett | T04B53 | 465800-0004 | 465800-0004 | -- |
| Garrett | T04B53 | 465800-0006 | 465800-0006 | -- |
| Garrett | T04B57 | 465970-0004 | 465970-0004 | AAU3504 |
| Garrett | TW4B92 | 466897-0001 | 466897-0001 | 121-6630 |
GA-03-0135 - Свойства детали
Blades (Compressor wheel blades count): 8/8
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 70.00
A1 (Size A1): 70.00
B (Size B): 48.40
C (Size C): 6.85
C1 (Size C1): 1.60
D (Size D): 32.10
E (Size E): 6.35
409179-0018, GA-03-0135, T4-00
408850-0001, 408850-0002, 408850-0003, 408851-0001, 243084, 408851-0002, 346230, 408851-0003, 409410-0001, 4N-6858, 409410-0002, 409410-0003, 4N-9714, 409410-0004, 7N-1709, 409410-0005, 7N-2342, 409410-0006, 409410-5006S, 7N-4651, 7N4651, 409410-0007, 7N-9851, 1W-5160, 409410-0008, 1W-5210, 409410-0009, 2W-8139, 409410-0010, 2W-1953, 409410-0011, 409410-0012, 7C-2175, 409410-0013, 7E-2601, 409410-0014, 6I-2975, 110-8762, 409410-0015, 409840-0001, 409840-0002, 466730, 409840-0003, 466395, 409840-0004, 466466, 409840-0005, 409840-5005S, 466730, 409840-0006, 466876, 409840-0007, 466877, 409840-0008, 844034, 409840-0009, 409840-0010, 465078-0004, 465078-0005, 465078-0006, 465212-0002, 836331385, 14201-Z5517, 4032912, 465254-0004, 3218454R91, 465288-0001, 3218309R91, 465288-0002, 3228208R91, 465288-0004, 465288-5004S, 465472-0002, 465472-0013, 465570-0005, 465592-0001, 8N-5501, 2W-7095, 465592-0002, 465600-0001, 465600-0002, 465600-5002S, 465600-0003, 465600-5003S, 465600-0004, 843509, 465600-0006, 465600-0009, 465600-5009S, 465600-0010, 465600-5010S, 465800-0001, 465800-0002, 465800-0003, 465800-0004, 465800-0006, 465970-0004, AAU3504, 121-6630, 466897-0001
