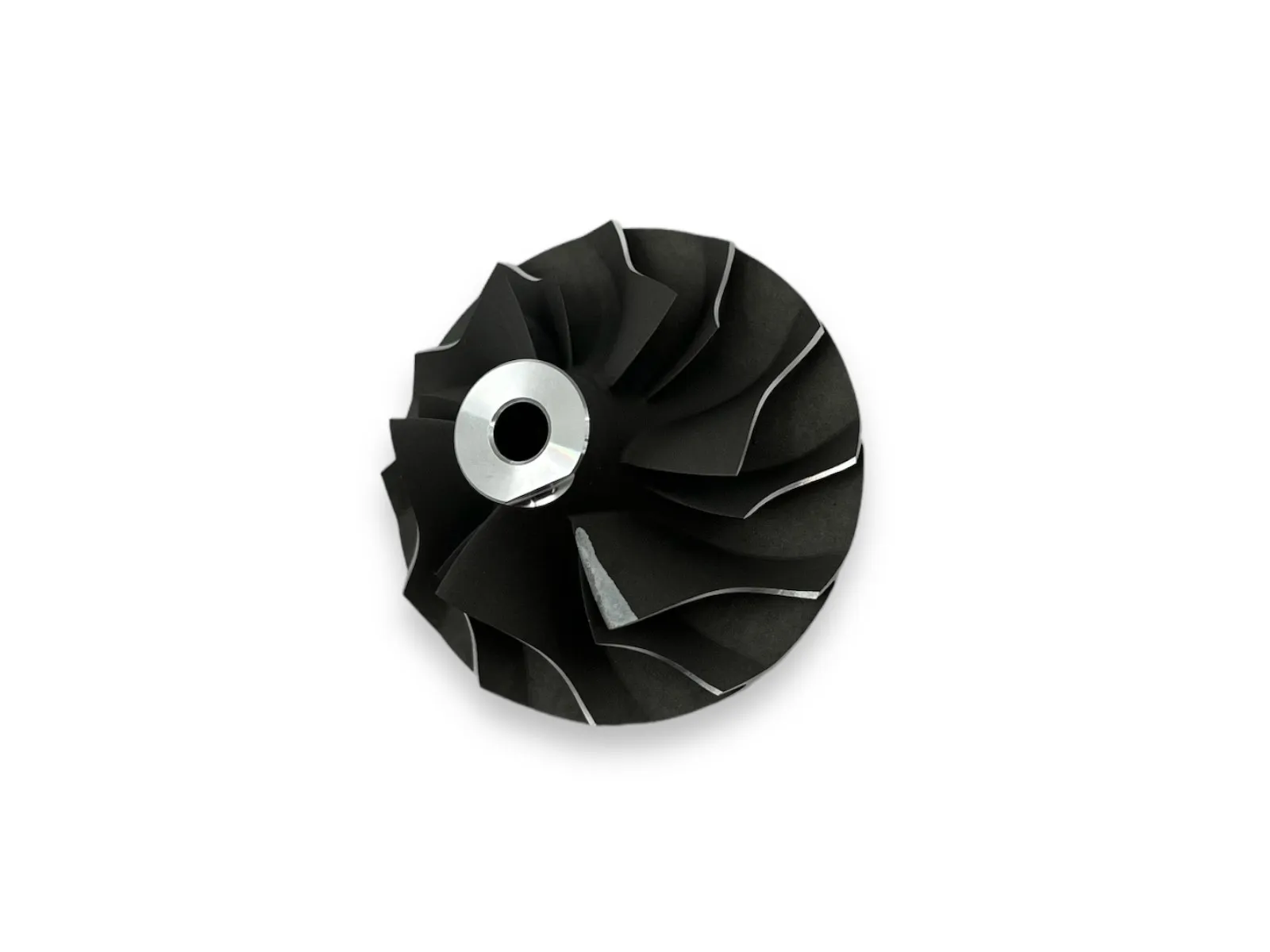

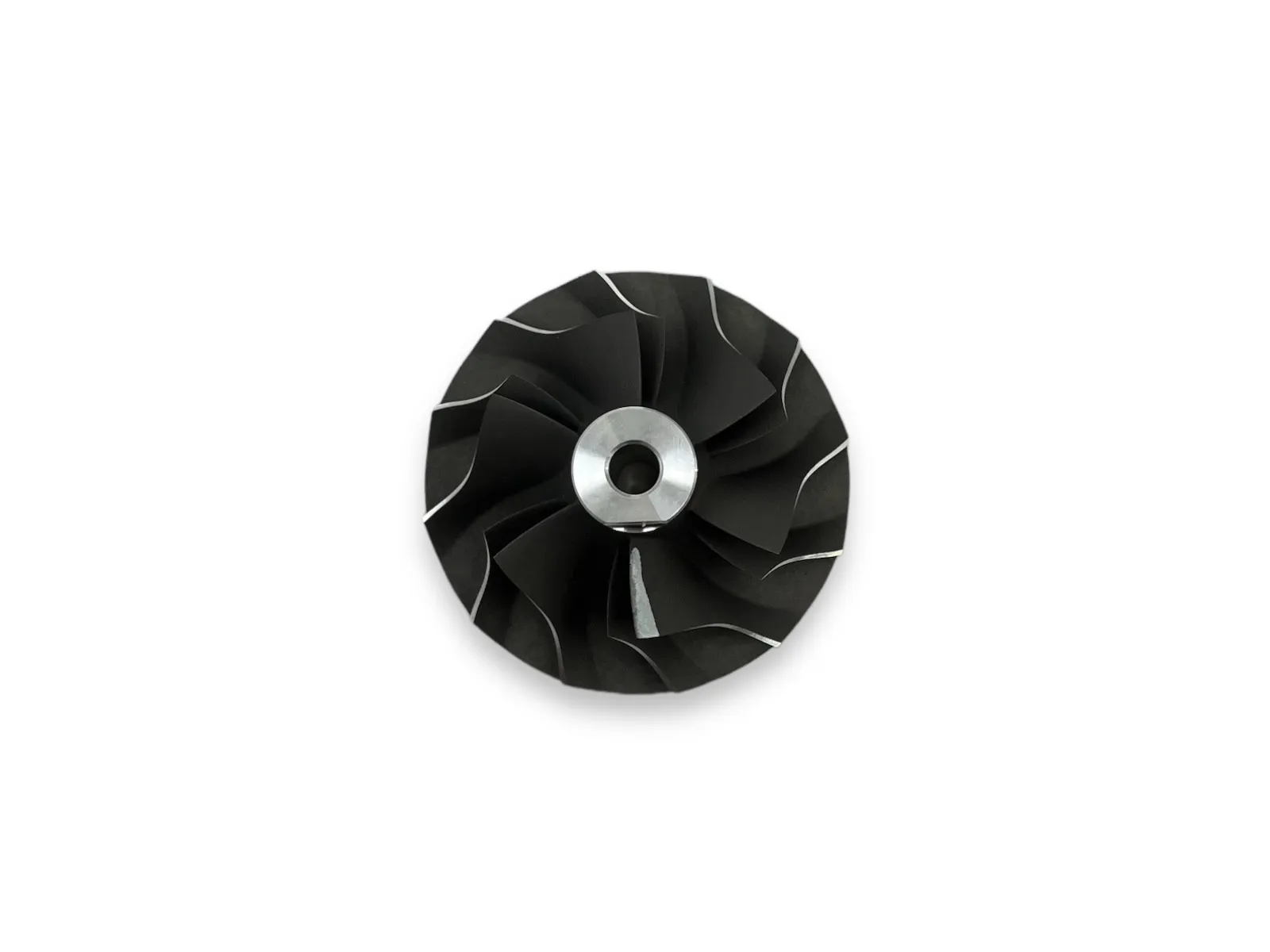

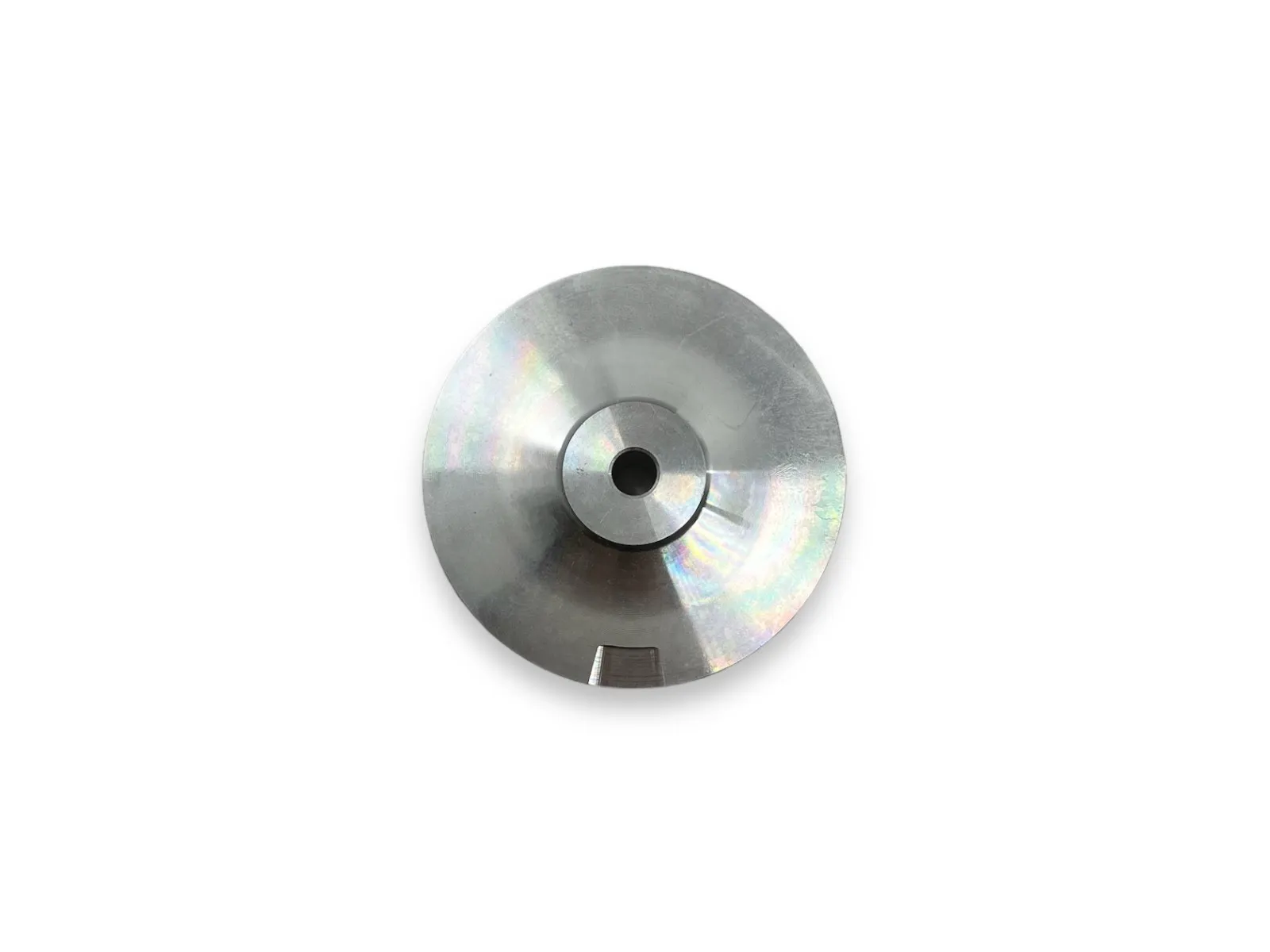

Крыльчатка компрессора GA-03-0131
GA-03-0131
Новое
9,38 €
Без НДС Доставка в течении 3-8 дней
409096-0005, 409096-0014, GA-03-0131, T3-02
Крыльчатка компрессора GA-03-0131 для турбин 452012-0003, 454114-0001, 454114-0002, 454177-0001, 465103-0001, 465103-0003, 465103-0004, 465103-0005, 465103-0006, 465103-0007.
Подробности ниже
GA-03-0131 (409096-0005, 409096-0014) - Крыльчатка компрессора
Бренд: TurboCentras
TurboCentras Артикул: GA-03-0131
OEM номера: 409096-0005, 409096-0014
GA-03-0131 - Альтернативные номера
TCP (TurboCentras part number): GA-03-0131
TCO (TurboCentras old part number): T3-02
GA-03-0131 - Таблица совместимости
| ПРОИЗВОДИТЕЛЬ ТУРБИНЫ | МОДЕЛЬ ТУРБИНЫ | АРТИКУЛ ТУРБИНЫ | НОМЕР ТУРБИНЫ | OE НОМЕР ТУРБИНЫ |
|---|---|---|---|---|
| Garrett | TA3131 | 452012-0003 | 452012-0003 | -- |
| Garrett | TA3133 | 454114-0001 | 454114-0001 | -- |
| Garrett | TA3133 | 454114-0002 | 454114-0002 | -- |
| Garrett | TA3136 | 454177-0001 | 454177-0001, 454177-5001S | 99458969 |
| Garrett | TB0367 | 465103-0001 | 465103-0001 | 75980720 |
| Garrett | TB0367 | 465103-0003 | 465103-0003 | -- |
| Garrett | TB0367 | 465103-0004 | 465103-0004 | 77202760 |
| Garrett | TB0367 | 465103-0005 | 465103-0005 | -- |
| Garrett | TB0367 | 465103-0006 | 465103-0006 | 75980720 |
| Garrett | TB0367 | 465103-0007 | 465103-0007, 465103-5007S | 76981030 |
| Garrett | TB0373 | 465133-0003 | 465133-0003 | A920E6002F |
| Garrett | TB0379 | 465143-0001 | 465143-0001 | -- |
| Garrett | TB0379 | 465143-0002 | 465143-0002 | -- |
| Garrett | TB0379 | 465143-0003 | 465143-0003 | -- |
| Garrett | TB0379 | 465143-0004 | 465143-0004 | -- |
| Garrett | TB0379 | 465143-0005 | 465143-0005 | -- |
| Garrett | TB0379 | 465143-0006 | 465143-0006 | -- |
| Garrett | TB0379 | 465143-0007 | 465143-0007 | -- |
| Garrett | TB0379 | 465143-0008 | 465143-0008 | -- |
| Garrett | TB0379 | 465143-0009 | 465143-0009 | -- |
| Garrett | TB0379 | 465143-0010 | 465143-0010 | -- |
| Garrett | TB0379 | 465143-0011 | 465143-0011 | -- |
| Garrett | TB0379 | 465143-0012 | 465143-0012 | -- |
| Garrett | TB0356 | 465163-0001 | 465163-0001 | 748602 |
| Garrett | TB0356 | 465163-0002 | 465163-0002 | -- |
| Garrett | TB0382 | 465163-0003 | 465163-0003 | 748602 |
| Garrett | TB0382 | 465163-0004 | 465163-0004 | 748603 |
| Garrett | TB0382 | 465163-0005 | 465163-0005 | -- |
| Garrett | TB0382 | 465163-0006 | 465163-0006 | -- |
| Garrett | TB0382 | 465163-0008 | 465163-0008 | 748603 |
| Garrett | TA3124 | 465245-0002 | 465245-0002 | 403095327 |
| Garrett | TE0302 | 465273-0001 | 465273-0001 | -- |
| Garrett | TB0369 | 465285-0001 | 465285-0001 | -- |
| Garrett | TB0369 | 465285-0002 | 465285-0002 | -- |
| Garrett | TA0302 | 465318-0007 | 465318-0007 | 4810558 |
| Garrett | TA0302 | 465318-0008 | 465318-0008, 465318-5008S | -- |
| Garrett | TA0302 | 465318-0010 | 465318-0010 | 4846414 |
| Garrett | TB0371 | 465339-0001 | 465339-0001 | -- |
| Garrett | TB0371 | 465339-0002 | 465339-0002 | -- |
| Garrett | TA3101 | 465354-0004 | 465354-0004 | 4008871 |
| Garrett | TA3101 | 465354-0005 | 465354-0005 | -- |
| Garrett | TA0318 | 465379-0001 | 465379-0001 | 4848601 |
| Garrett | TA0318 | 465379-0002 | 465379-0002 | -- |
| Garrett | TA0318 | 465379-0003 | 465379-0003, 465379-5003S | 4848601 |
| Garrett | TB0313 | 465446-0011 | 465446-0011 | 8360604 |
| Garrett | T04B05 | 465468-0009 | 465468-0009 | 8280.22.009 |
| Garrett | T04B05 | 465468-0015 | 465468-0015, 465468-5015S | 4805335 |
| Garrett | T04B05 | 465468-0016 | 465468-0016, 465468-5016S | 4805334 |
| Garrett | TA3130 | 465493-0001 | 465493-0001 | 9018534 |
| Garrett | TA3130 | 465493-0002 | 465493-0002, 465493-5002S | 1361324 |
| Garrett | TA3130 | 465493-0003 | 465493-0003, 465493-5003S | 0.007.0921.4, 70921.4 |
| Garrett | TA3102 | 465506-0001 | 465506-0001, 465506-5001S | AR91570 |
| Garrett | TA3102 | 465506-0002 | 465506-0002 | -- |
| Garrett | TA3102 | 465506-0005 | 465506-0005 | RE25330 |
| Garrett | TA3404 | 465593-0002 | 465593-0002 | RE26391 |
| Garrett | TA3404 | 465593-0004 | 465593-0004, 465593-5004S | RE40414 |
| Garrett | TA3404 | 465593-0005 | 465593-0005 | RE26341 |
| Garrett | TA3404 | 465593-0006 | 465593-0006 | RE26342 |
| Garrett | TA3404 | 465593-0008 | 465593-0008 | RE40414 |
| Garrett | TA3404 | 465593-0010 | 465593-0010 | RE39100 |
| Garrett | TA3404 | 465593-0011 | 465593-0011 | -- |
| Garrett | TA3404 | 465593-0012 | 465593-0012 | RE16618 |
| Garrett | TA3404 | 465593-0014 | 465593-0014 | -- |
| Garrett | TB3102 | 465606-0001 | 465606-0001 | -- |
| Garrett | TB3102 | 465606-0002 | 465606-0002 | -- |
| Garrett | TA0303 | 465632-0002 | 465632-0002 | -- |
| Garrett | TA0303 | 465632-0003 | 465632-0003 | -- |
| Garrett | TA0303 | 465632-0005 | 465632-0005, 465632-5005S | -- |
| Garrett | TA0303 | 465632-0006 | 465632-0006 | 98424853 |
| Garrett | TA0303 | 465632-0007 | 465632-0007, 465632-5007S | 98444659 |
| Garrett | TA3103 | 465636-0003 | 465636-0003 | -- |
| Garrett | TA3103 | 465636-0005 | 465636-0005 | -- |
| Garrett | TA3103 | 465636-0007 | 465636-0007 | -- |
| Garrett | TA3103 | 465636-0008 | 465636-0008 | -- |
| Garrett | TA3103 | 465636-0103 | 465636-0103 | -- |
| Garrett | TA3103 | 465636-0107 | 465636-0107 | -- |
| Garrett | TA3103 | 465636-0108 | 465636-0108 | 6206-81-8110 |
| Garrett | TA3103 | 465636-0111 | 465636-0111 | 6207-81-8150 |
| Garrett | TA3103 | 465636-0113 | 465636-0113 | 6206-81-8120 |
| Garrett | TA3103 | 465636-0204 | 465636-0204, 465636-5204S | 6207818120 |
| Garrett | TA3103 | 465636-0205 | 465636-0205, 465636-5205S | -- |
| Garrett | TA3103 | 465636-0210 | 465636-0210 | 6207-81-8120 |
| Garrett | TA3103 | 465636-0212 | 465636-0212 | 6207-81-8230 |
| Garrett | TA3103 | 465636-0214 | 465636-0214 | 6207-81-8240 |
| Garrett | TA3103 | 465636-0217 | 465636-0217, 465636-5217S | 6207818240 |
| Garrett | TB0378 | 465733-0002 | 465733-0002 | -- |
| Garrett | TB0378 | 465733-0003 | 465733-0003 | -- |
| Garrett | TA3106 | 465776-0005 | 465776-0005 | -- |
| Garrett | TA3106 | 465776-0006 | 465776-0006 | -- |
| Garrett | TA3106 | 465776-0007 | 465776-0007 | -- |
| Garrett | TA3106 | 465776-0008 | 465776-0008, 465776-5008S | 4881547 |
| Garrett | TA3106 | 465776-0009 | 465776-0009 | 4881547 |
| Garrett | TA3107 | 465776-0015 | 465776-0015 | 4881432 |
| Garrett | TA3107 | 465778-0008 | 465778-0008 | 4881091 |
| Garrett | TA3107 | 465778-0014 | 465778-0014 | -- |
| Garrett | TA3107 | 465778-0015 | 465778-0015, 465778-5015S | -- |
| Garrett | TA3128 | 465805-0002 | 465805-0002, 465805-5002S | 905292010036 |
| Garrett | TA3113 | 465936-0001 | 465936-0001, 465936-5001S | 1544117011 |
| Garrett | TA3113 | 465936-0002 | 465936-0002 | 14201-90000 |
| Garrett | TA3113 | 465936-0003 | 465936-0003 | -- |
| Garrett | TB0327 | 465994-0005 | 465994-0005 | -- |
| Garrett | TB032 | 466016-0002 | 466016-0002, 466016-5002S | 1284171 |
| Garrett | TB0324 | 466016-0003 | 466016-0003, 466016-5003S | 2249026 |
| Garrett | TB0326 | 466032-0001 | 466032-0001 | 1317424 |
| Garrett | TB0326 | 466032-0002 | 466032-0002 | 1326425 |
| Garrett | TB0326 | 466032-0003 | 466032-0003 | 1367019 |
| Garrett | TA03 | 466088-0001 | 466088-0001, 466088-5001S | 75145703 |
| Garrett | TA03 | 466088-0002 | 466088-0002 | -- |
| Garrett | TA3164 | 466192-0004 | 466192-0004 | 3640961199KZ |
| Garrett | TA3164 | 466192-0007 | 466192-0007 | 3640961499 |
| Garrett | TB0331 | 466216-0001 | 466216-0001 | -- |
| Garrett | TB0335 | 466298-0001 | 466298-0001 | 4105798 |
| Garrett | TB0335 | 466298-0002 | 466298-0002 | -- |
| Garrett | TB0335 | 466298-0003 | 466298-0003 | -- |
| Garrett | TB0335 | 466298-0004 | 466298-0004 | 4105794 |
| Garrett | TB0335 | 466298-0005 | 466298-0005 | 4105797 |
| Garrett | TB0335 | 466298-0006 | 466298-0006 | -- |
| Garrett | TB0335 | 466298-0007 | 466298-0007, 466298-5007S | 4105800 |
| Garrett | TB0335 | 466298-0008 | 466298-0008 | -- |
| Garrett | TA3404 | 466334-0001 | 466334-0001 | RE16611 |
| Garrett | TA3401 | 466334-0002 | 466334-0002, 466334-5002S | RE26287 |
| Garrett | TA3404 | 466334-0003 | 466334-0003 | RE26288 |
| Garrett | TA3401 | 466334-0004 | 466334-0004, 466334-5004S | RE36513 |
| Garrett | TA3401 | 466334-0005 | 466334-0005 | RE26342 |
| Garrett | TA3404 | 466334-0014 | 466334-0014 | RE36513 |
| Garrett | TA3401 | 466334-0015 | 466334-0015 | RE58898 |
| Garrett | TA3404 | 466334-0016 | 466334-0016 | RE36514 |
| Garrett | TA3401 | 466334-0017 | 466334-0017 | RE58898 |
| Garrett | TA3401 | 466334-0019 | 466334-0019 | -- |
| Garrett | TB0338 | 466384-0001 | 466384-0001 | 59966290 |
| Garrett | TB0338 | 466384-0002 | 466384-0002 | -- |
| Garrett | TB0338 | 466384-0003 | 466384-0003, 466384-5003S | 7574229 |
| Garrett | TB0338 | 466384-0004 | 466384-0004 | 75894190 |
| Garrett | TB0338 | 466384-0005 | 466384-0005 | -- |
| Garrett | TB0338 | 466384-0006 | 466384-0006 | 46234218 |
| Garrett | TB0338 | 466384-0007 | 466384-0007 | 46234257, 76301260 |
| Garrett | TB0338 | 466384-0008 | 466384-0008 | 76479490 |
| Garrett | TB0338 | 466384-0009 | 466384-0009 | -- |
| Garrett | TC0304 | 466404-0001 | 466404-0001 | 9563336880 |
| Garrett | TC0304 | 466404-0002 | 466404-0002 | 9563336880 |
| Garrett | TC0304 | 466404-0003 | 466404-0003 | 9563336880 |
| Garrett | TB0339 | 466420-0001 | 466420-0001 | 750995 |
| Garrett | TB0339 | 466420-0002 | 466420-0002 | 752140 |
| Garrett | TB0341 | 466448-0001 | 466448-0001 | -- |
| Garrett | TB0341 | 466448-0002 | 466448-0002 | -- |
| Garrett | TB034 | 466448-0003 | 466448-0003 | -- |
| Garrett | TB0343 | 466456-0001 | 466456-0001 | 751776 |
| Garrett | TB0343 | 466456-0002 | 466456-0002 | 756217 |
| Garrett | TB0363 | 466672-0001 | 466672-0001 | 1367867 |
| Garrett | TB0363 | 466672-0002 | 466672-0002 | 1367867 |
| Garrett | TB0363 | 466672-0003 | 466672-0003 | 1367868 |
| Garrett | TB0363 | 466672-0004 | 466672-0004 | 1367866/8 |
| Garrett | TB0363 | 466672-0005 | 466672-0005 | 1367867 |
| Garrett | TB0363 | 466672-0006 | 466672-0006 | 1367868 |
| Garrett | TB0363 | 466672-0007 | 466672-0007 | -- |
| Garrett | TB0363 | 466672-0008 | 466672-0008 | -- |
| Garrett | TB0363 | 466672-0009 | 466672-0009 | -- |
| Garrett | TB0363 | 466672-0010 | 466672-0010 | -- |
| Garrett | TB0363 | 466672-0012 | 466672-0012 | 1367868 |
| Garrett | TB0346 | 466718-0002 | 466718-0002 | 9154167380 |
| Garrett | TB0347 | 466726-0001 | 466726-0001, 466726-5001S | 75700322 |
| Garrett | TB0349 | 466794-0001 | 466794-0001, 466794-5001S | 1328579 |
| Garrett | TB0349 | 466794-0002 | 466794-0002 | 1328579 |
| Garrett | TB0352 | 466798-0002 | 466798-0002 | 4387321 |
| Garrett | TB0352 | 466798-0003 | 466798-0003 | -- |
| Garrett | TB0352 | 466798-0005 | 466798-0005 | -- |
| Garrett | TB0352 | 466798-0006 | 466798-0006 | -- |
| Garrett | TB0359 | 466802-0001 | 466802-0001 | 20969299 |
| Garrett | TB0360 | 466846-0001 | 466846-0001 | 20969799 |
| Garrett | TA0316 | 466868-0001 | 466868-0001 | 4831083 |
| Garrett | TA0316 | 466868-0002 | 466868-0002 | 4820098 |
| Garrett | TA3112 | 466932-0001 | 466932-0001 | -- |
| Garrett | TA3122 | 466932-0002 | 466932-0002 | -- |
| Garrett | TA3122 | 466932-0003 | 466932-0003 | -- |
| Garrett | TB0368 | 466948-0001 | 466948-0001, 466948-5001S | 7700736562 |
| Garrett | TB0356 | 466952-0001 | 466952-0001 | 8823437 |
| Garrett | TB0356 | 466952-0002 | 466952-0002 | 7486079 |
| Garrett | TB0356 | 466952-0003 | 466952-0003 | 7872096 |
| Garrett | TB0356 | 466952-0004 | 466952-0004 | 748606, 8788796 |
| Garrett | TB0356 | 466952-0005 | 466952-0005 | .8823031, 748607, 8823023 |
| Garrett | TB0356 | 466952-0006 | 466952-0006 | -- |
| Garrett | TB0356 | 466952-0007 | 466952-0007 | -- |
| Garrett | TB0356 | 466954-0001 | 466954-0001 | 756774, 8823163, 8823171, 9119306 |
| Garrett | TB0356 | 466954-0002 | 466954-0002 | 756776 |
| Garrett | TA31 | 704944-0001 | 704944-0001, 704944-5001S, 704944-9001S | 79019 |
| Garrett | TA3103 | 709784-0001 | 709784-0001, 709784-5001S | 65.09100-7044 |
GA-03-0131 - Свойства детали
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 60.10
A1 (Size A1): 60.10
B (Size B): 42.50
C (Size C): 5.00
C1 (Size C1): 3.75
D (Size D): 32.20
E (Size E): 6.35
409096-0005, 409096-0014, GA-03-0131, T3-02
452012-0003, 454114-0001, 454114-0002, 454177-0001, 454177-5001S, 99458969, 465103-0001, 75980720, 465103-0003, 465103-0004, 77202760, 465103-0005, 465103-0006, 75980720, 465103-0007, 465103-5007S, 76981030, 465133-0003, A920E6002F, 465143-0001, 465143-0002, 465143-0003, 465143-0004, 465143-0005, 465143-0006, 465143-0007, 465143-0008, 465143-0009, 465143-0010, 465143-0011, 465143-0012, 465163-0001, 748602, 465163-0002, 465163-0003, 748602, 465163-0004, 748603, 465163-0005, 465163-0006, 465163-0008, 748603, 403095327, 465245-0002, 465273-0001, 465285-0001, 465285-0002, 465318-0007, 4810558, 465318-0008, 465318-5008S, 465318-0010, 4846414, 465339-0001, 465339-0002, 4008871, 465354-0004, 465354-0005, 465379-0001, 4848601, 465379-0002, 465379-0003, 465379-5003S, 4848601, 465446-0011, 8360604, 465468-0009, 8280.22.009, 465468-0015, 465468-5015S, 4805335, 465468-0016, 465468-5016S, 4805334, 465493-0001, 9018534, 1361324, 465493-0002, 465493-5002S, 0.007.0921.4, 465493-0003, 465493-5003S, 70921.4, 465506-0001, 465506-5001S, AR91570, 465506-0002, 465506-0005, RE25330, 465593-0002, RE26391, 465593-0004, 465593-5004S, RE40414, 465593-0005, RE26341, 465593-0006, RE26342, 465593-0008, RE40414, 465593-0010, RE39100, 465593-0011, 465593-0012, RE16618, 465593-0014, 465606-0001, 465606-0002, 465632-0002, 465632-0003, 465632-0005, 465632-5005S, 465632-0006, 98424853, 465632-0007, 465632-5007S, 98444659, 465636-0003, 465636-0005, 465636-0007, 465636-0008, 465636-0103, 465636-0107, 465636-0108, 6206-81-8110, 465636-0111, 6207-81-8150, 465636-0113, 6206-81-8120, 465636-0204, 465636-5204S, 6207818120, 465636-0205, 465636-5205S, 465636-0210, 6207-81-8120, 465636-0212, 6207-81-8230, 465636-0214, 6207-81-8240, 465636-0217, 465636-5217S, 6207818240, 465733-0002, 465733-0003, 465776-0005, 465776-0006, 465776-0007, 465776-0008, 465776-5008S, 4881547, 465776-0009, 4881547, 465776-0015, 4881432, 465778-0008, 4881091, 465778-0014, 465778-0015, 465778-5015S, 465805-0002, 465805-5002S, 905292010036, 1544117011, 465936-0001, 465936-5001S, 14201-90000, 465936-0002, 465936-0003, 465994-0005, 1284171, 466016-0002, 466016-5002S, 2249026, 466016-0003, 466016-5003S, 1317424, 466032-0001, 1326425, 466032-0002, 1367019, 466032-0003, 466088-0001, 466088-5001S, 75145703, 466088-0002, 3640961199KZ, 466192-0004, 3640961499, 466192-0007, 466216-0001, 4105798, 466298-0001, 466298-0002, 466298-0003, 4105794, 466298-0004, 4105797, 466298-0005, 466298-0006, 4105800, 466298-0007, 466298-5007S, 466298-0008, 466334-0001, RE16611, 466334-0002, 466334-5002S, RE26287, 466334-0003, RE26288, 466334-0004, 466334-5004S, RE36513, 466334-0005, RE26342, 466334-0014, RE36513, 466334-0015, RE58898, 466334-0016, RE36514, 466334-0017, RE58898, 466334-0019, 466384-0001, 59966290, 466384-0002, 466384-0003, 466384-5003S, 7574229, 466384-0004, 75894190, 466384-0005, 46234218, 466384-0006, 46234257, 466384-0007, 76301260, 466384-0008, 76479490, 466384-0009, 466404-0001, 9563336880, 466404-0002, 9563336880, 466404-0003, 9563336880, 466420-0001, 750995, 466420-0002, 752140, 466448-0001, 466448-0002, 466448-0003, 466456-0001, 751776, 466456-0002, 756217, 1367867, 466672-0001, 1367867, 466672-0002, 1367868, 466672-0003, 1367866/8, 466672-0004, 1367867, 466672-0005, 1367868, 466672-0006, 466672-0007, 466672-0008, 466672-0009, 466672-0010, 1367868, 466672-0012, 466718-0002, 9154167380, 466726-0001, 466726-5001S, 75700322, 1328579, 466794-0001, 466794-5001S, 1328579, 466794-0002, 4387321, 466798-0002, 466798-0003, 466798-0005, 466798-0006, 20969299, 466802-0001, 20969799, 466846-0001, 466868-0001, 4831083, 466868-0002, 4820098, 466932-0001, 466932-0002, 466932-0003, 466948-0001, 466948-5001S, 7700736562, 466952-0001, 8823437, 466952-0002, 7486079, 466952-0003, 7872096, 466952-0004, 748606, 8788796, .8823031, 466952-0005, 748607, 8823023, 466952-0006, 466952-0007, 466954-0001, 756774, 8823163, 8823171, 9119306, 466954-0002, 756776, 704944-0001, 704944-5001S, 704944-9001S, 79019, 65.09100-7044, 709784-0001, 709784-5001S
Данные обновлены: 2024-05-10 16:44:19
Новое
No reviews
Нажмите, чтобы увеличить
