Nozzle ring assy. GA-06-0036 GT20-92
Nozzle ring assy. GA-06-0036 GT20-92
Nozzle ring assy. GA-06-0036 GT20-92
Nozzle ring assy. GA-06-0036 GT20-92
Nozzle ring assy. GA-06-0036 GT20-92
Nozzle ring assy. GA-06-0036 GT20-92

0.4 kg (20x20x20 cm)

Nozzle ring assy GA-06-0036

GA-06-0036
Nowy
Na stanie (253 Przedmioty)
44,80 €
Netto Dostawa w ciągu 3-8 dni

GA-06-0036, GT20-92

Nozzle ring assy. GA-06-0036 for turbos 454135-0003, 454135-0005, 454135-0007, 454135-0008, 454135-0010, 709837-0001, 709837-0002, 709837-0003, 709838-0001, 709838-0002.

See below for more info



GA-06-0036 - Nozzle ring assy.

Marka: TurboCentras

TurboCentras Indeks: GA-06-0036

GA-06-0036 - Alternative numbers

TCP (TurboCentras part number): GA-06-0036

TCO (TurboCentras old part number): GT20-92

GA-06-0036 - Compatibility table

Nozzle ring assy. GA-06-0036 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO PART NUMBERTURBO OE NUMBER
GarrettGT2052V454135-0003454135-0003, 454135-5003S059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0005454135-0005059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0007454135-0007059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0008454135-0008059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGTA2052V454135-0010454135-0010059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGTA2256V709837-0001709837-0001A6120960299
GarrettGTA2256V709837-0002709837-0002A6120960299
GarrettGTA2256V709837-0003709837-0003, 709837-5003S, 709837-9003WA6120960299
GarrettGTA2256V709838-0001709838-0001, 709838-5001S6120960399
GarrettGT2256V709838-0002709838-0002A6120960399
GarrettGTA2256V709838-0003709838-00036120960399
GarrettGTA2256V709838-0004709838-00046120960399
GarrettGTA2256V709838-0005709838-00056120960399
GarrettGT2052V710415-0001710415-0001, 710415-5001S11657780199, 11657781434, 7780199C, 7780199D
GarrettGT2052V710415-0002710415-00021165 7780199, 7780199D
GarrettGT2052V710415-0003710415-0003, 710415-5003S1165 7781434, 1165 7781435, 7780199D, 77814359
GarrettGT2052V710415-5006710415-5006--
GarrettGTA2256V710811-0001710811-0001, 710811-5001S46769104, 46799071, 55191597
GarrettGTA2256V710811-0002710811-0002, 710811-5002S46769104, 46799071, 55191597
GarrettGTA2256V710812-0001710812-0001, 710812-5001S46767677
GarrettGTA2256V710812-0002710812-0002, 710812-5002S55191598
GarrettGT2256V711009-0001711009-0001, 711009-5001S612096049980, A6120960499
GarrettGTA2256V711009-0002711009-0002, 711009-5002S612096049980, A6120960499
GarrettGTA2256V711009-0003711009-0003, 711009-5003S, 711009-9003S612096049980, A6120960499
GarrettGT2256V712541-0001712541-00017785838F
GarrettGT2256V712541-0002712541-00027785839F
GarrettGT2256V712541-0003712541-00037785840F
GarrettGT2256V712541-0004712541-00047785838G04
GarrettGT2256V712541-0005712541-00057785839G04, LR018264, LR06705
GarrettGTA2256V712541-0007712541-0007, 712541-5007S, 712541-9007S7785839G04, LR018264, LR06705
GarrettGTA2256V715910-0001715910-0001, 715910-5001S612096059980, A6120960599
GarrettGTA2256V715910-0002715910-0002, 715910-5002S612096059980, A6120960599
GarrettGT2256V716625-0001716625-0001--
GarrettGT2256V716626-0001716626-000146799071
GarrettGT2056V716885-0001716885-0001, 716885-5001S070145701J, 070145701JV244, 070145702B
GarrettGT2056V716885-0002716885-0002070145701J, 070145701JV246, 070145702B
GarrettGT2056V716885-0003716885-0003070145701J, 070145701JV250, 070145702B
GarrettGT2056V716885-0004716885-0004070145701J, 070145702B, 070145702BV100
GarrettGT2559VK717410-0005717410-0005--
GarrettGT2559V717410-0007717410-0007, 717410-5007S860064, 8972506762, 97250676
GarrettGT2256V717661-0001717661-0001--
GarrettGTA2056V720931-0001720931-0001, 720931-5001S070145701HV244
GarrettGTA2056V720931-0002720931-0002070145701HV246
GarrettGTA2056V720931-0003720931-0003070145701HV250, 070145701K
GarrettGTA2056V720931-0004720931-0004070145702AV100
GarrettGTA2056V720931-9004S-R720931-0004, 720931-9004S, 720931-9004S-R070145702AV100
GarrettGTA2256V721020-0001721020-0001--
GarrettGT2556V721204-0001721204-0001--
GarrettGT2052S723167-0001723167-0001, 723167-5001S8602480, 8603296, 8627752, 8653146
GarrettGT2052S723167-0002723167-0002, 723167-5002S8602480, 8603296, 8653146
GarrettGT2052S723167-0003723167-0003, 723167-5003S8602480, 8603296, 8653122
GarrettGT2052S723167-0004723167-0004, 723167-5004S8602480, 8603296, 8689592
GarrettGTA2052V723167-0007723167-0007, 723167-5007S3847392
GarrettGT2052V723739-0001723739-000114411-VC200, 14411VC200
GarrettGT2052V723739-0002723739-0002, 723739-5002S14411-VC200, 14411VC200
GarrettGT2052V723739-0003723739-000314411-VC200, 14411VC200
GarrettGT2052V724639-0002724639-0002, 724639-5002S144112X900
GarrettGT2052V724639-0003724639-0003--
GarrettGT2052V724639-0004724639-0004, 724639-5004S144112X900
GarrettGTA2052V724639-0006724639-0006, 724639-5006S, 724639-9006W144112X90A
GarrettGT2052V724639-0008724639-0008--
GarrettGT2052V724639-0009724639-000914411-VC100
GarrettGT2052V724639-0011724639-0011--
GarrettGT2052V724639-0013724639-0013--
GarrettGT2052V724639-0015724639-0015--
GarrettGT2052V724639-0019724639-0019--
GarrettGT2256V724652-0001724652-0001, 724652-5001S79517, AR79517
GarrettGT2256V724652-0007724652-000779517
GarrettGT2360V726372-0005726372-0005, 726372-5005S14411DC001
GarrettGT2360V726372-0010726372-0010, 726372-5010S14411DC00B
GarrettGT2360V726372-0013726372-0013, 726372-5013S14411DC00B
GarrettGT2360V726372-0014726372-0014, 726372-5014S14411DC01A
GarrettGT1852V727463-0001727463-0001, 727463-5001SA6470960099
GarrettGT1852V727463-0002727463-0002, 727463-5002SA6470960099
GarrettGT1852V727463-0003727463-0003, 727463-5003SA6470960099
GarrettGT1852V727463-0004727463-0004, 727463-5004SA6470900180
GarrettGTA2256V729403-0001729403-0001--
GarrettGTA2256V729403-0003729403-0003, 729403-5003SA6120960999
GarrettGT2256VK736088-0001736088-0001--
GarrettGTA2256VK736088-0003736088-0003, 736088-5003SA6470900280
GarrettGT2256VK736088-0005736088-0005--
GarrettGTA2256VK736088-0006736088-0006, 736088-5006SA6470900280
GarrettGTA2056V750080-0001750080-0001, 750080-5001S11657791758, 7791709E
GarrettGTA2056V750080-0007750080-000711657791758, 7791709G
GarrettGTA2056V750080-0013750080-001311657791758, 7791709I
GarrettGTA2056V750080-0015750080-00157791758I
GarrettGTA2056V750080-0016750080-001611657791758, 7791709K
GarrettGTA2056V750080-0018750080-00187791758K
GarrettGTA2056V750080-0019750080-0019, 750080-5019S, 750080-9019S7791758K
GarrettGT2256V750639-0002750639-0002--
GarrettGTA2056V751243-0002751243-0002, 751243-5002S, 751243-9002S14411EB300
GarrettGTA2056V757246-0001757246-0001--
GarrettGTA2052GVK757608-0001757608-0001, 757608-5001SA6420900280
GarrettGTA2052GVK757608-0002757608-0002--
GarrettGTA2052GVK757608-0003757608-0003--
GarrettGTA2052GVK757608-0004757608-0004--
GarrettGTA2052GVK757608-0005757608-0005--
GarrettGTA2052GVK757608-0006757608-0006--
GarrettGT2056761154-0003761154-0003, 761154-5003SA6420901080
GarrettGTA2056VK761154-0004761154-0004, 761154-5004SA6420901080
GarrettGTA2056VK761154-0007761154-0007, 761154-5007SA6420901080
GarrettGTA2056VK761399-0001761399-0001, 761399-5001SA6420900180
GarrettGTA2056VK761399-0002761399-0002, 761399-5002SA6420900180
GarrettGTA2056V763263-0002763263-0002, 763263-5002S3819920
GarrettGTA2056V763263-0003763263-0003, 763263-5003S3847393
GarrettGTA2056V763263-0005763263-0005, 763263-5005S21354008
GarrettGT2056V763360-0001763360-0001--
GarrettGTA2056VK765155-0004765155-0004, 765155-5004SA6420901480
GarrettGTA2056VK765155-0007765155-0007, 765155-5007S, 765155-9007WA6420901480
GarrettGTA2056VK765155-0008765155-0008, 765155-5008SA6420901480
GarrettGTA2056VK765156-0003765156-0003, 765156-5003S6420906180
GarrettGTA2056VK765156-0004765156-0004, 765156-5004SA6420901580
GarrettGTA2056VK765156-0007765156-0007, 765156-5007S, 765156-9007W6420906180
GarrettGTA2056VK765156-0008765156-0008, 765156-5008SA6420901580
GarrettGTA2056767720-0001767720-0001--
GarrettGTA2056767720-0002767720-0002--
GarrettGTA2056767720-0003767720-0003--
GarrettGTA2056767720-0004767720-0004, 767720-5004S14411EB70D
GarrettGTA2056767720-0005767720-0005--
GarrettGTA2056767720-0006767720-0006, 767720-5006S14411EB71E
GarrettGT2360V767851-0001767851-0001, 767851-5001S14411MA70A
GarrettGTA2056V769708-0001769708-0001, 769708-5001S14411EC00B
GarrettGTA2056V769708-0002769708-0002--
GarrettGTA2056V769708-0003769708-0003--
GarrettGTA2056V769708-0004769708-0004, 769708-5004W, 769708-9004W14411EC00E
GarrettGTA2056VK770895-0001770895-0001--
GarrettGTA2056VK770895-0002770895-0002--
GarrettGTA2056VK770895-0007770895-0007A6420902880
GarrettGTA2056VK770895-0008770895-0008, 770895-5008SA6420902880

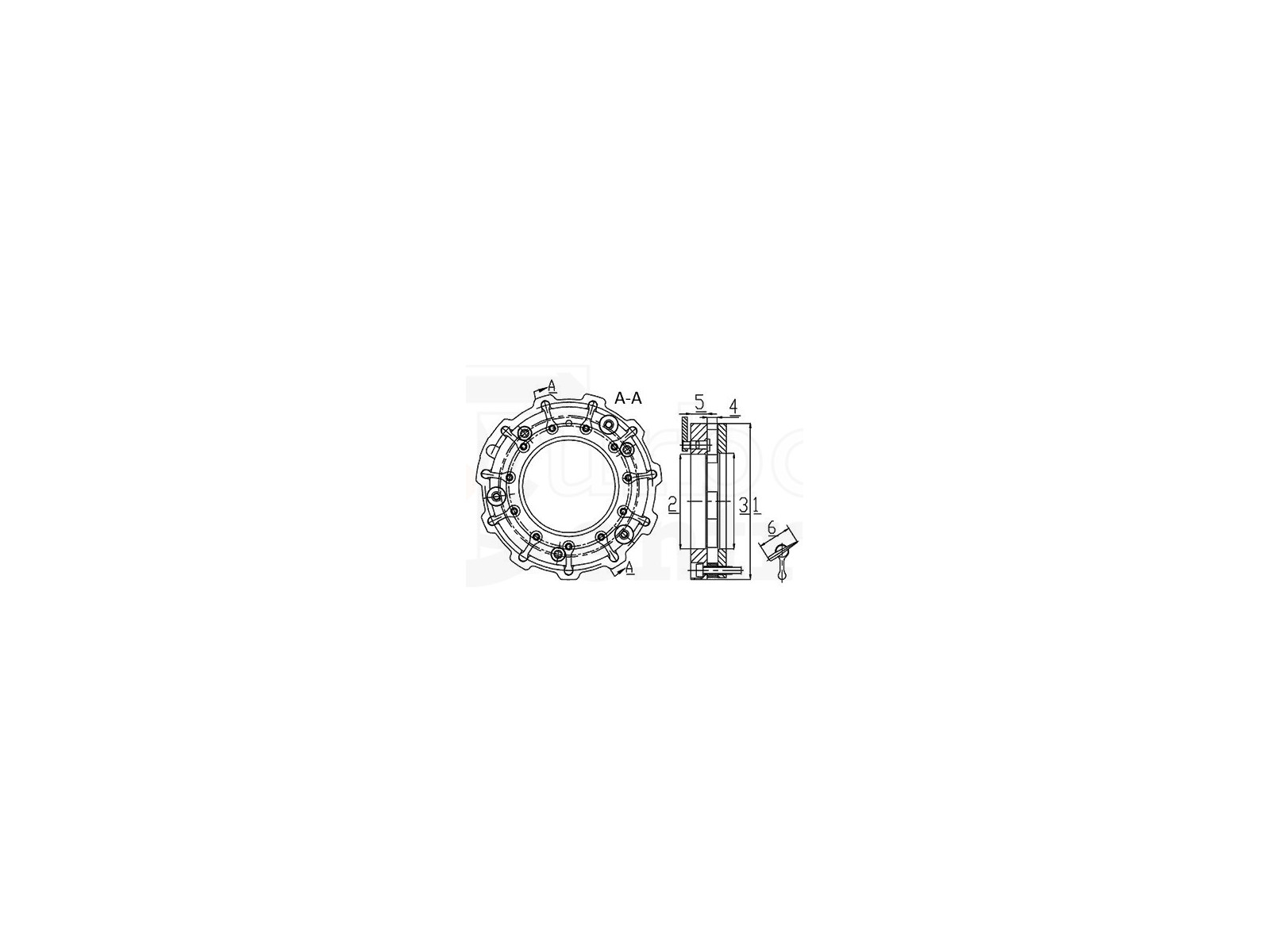

GA-06-0036 - Part Properties

A (Size A): 90.00

B (Size B): 57.50

C (Size C): 55.00

D (Size D): 7.50

E (Size E): 8.50

F (Size F): 17.50

GA-06-0036

GA-06-0036, GT20-92
11657781435, 11657781434, 11657780199, 059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0003, 454135-5003S, 059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0005, 059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0007, 059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0008, 059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0010, 709837-0001, A6120960299, 709837-0002, A6120960299, 709837-0003, 709837-5003S, 709837-9003W, A6120960299, 6120960399, 709838-0001, 709838-5001S, 709838-0002, A6120960399, 6120960399, 709838-0003, 6120960399, 709838-0004, 6120960399, 709838-0005, 11657780199, 11657781434, 710415-0001, 710415-5001S, 7780199C, 7780199D, 1165 7780199, 710415-0002, 7780199D, 1165 7781434, 1165 7781435, 710415-0003, 710415-5003S, 7780199D, 77814359, 710415-5006, 46769104, 46799071, 55191597, 710811-0001, 710811-5001S, 46769104, 46799071, 55191597, 710811-0002, 710811-5002S, 46767677, 710812-0001, 710812-5001S, 55191598, 710812-0002, 710812-5002S, 612096049980, 711009-0001, 711009-5001S, A6120960499, 612096049980, 711009-0002, 711009-5002S, A6120960499, 612096049980, 711009-0003, 711009-5003S, 711009-9003S, A6120960499, 712541-0001, 7785838F, 712541-0002, 7785839F, 712541-0003, 7785840F, 712541-0004, 7785838G04, 712541-0005, 7785839G04, LR018264, LR06705, 712541-0007, 712541-5007S, 712541-9007S, 7785839G04, LR018264, LR06705, 612096059980, 715910-0001, 715910-5001S, A6120960599, 612096059980, 715910-0002, 715910-5002S, A6120960599, 716625-0001, 46799071, 716626-0001, 070145701J, 070145701JV244, 070145702B, 716885-0001, 716885-5001S, 070145701J, 070145701JV246, 070145702B, 716885-0002, 070145701J, 070145701JV250, 070145702B, 716885-0003, 070145701J, 070145702B, 070145702BV100, 716885-0004, 717410-0005, 717410-0007, 717410-5007S, 860064, 8972506762, 97250676, 717661-0001, 070145701HV244, 720931-0001, 720931-5001S, 070145701HV246, 720931-0002, 070145701HV250, 070145701K, 720931-0003, 070145702AV100, 720931-0004, 070145702AV100, 720931-0004, 720931-9004S, 720931-9004S-R, 721020-0001, 721204-0001, 723167-0001, 723167-5001S, 8602480, 8603296, 8627752, 8653146, 723167-0002, 723167-5002S, 8602480, 8603296, 8653146, 723167-0003, 723167-5003S, 8602480, 8603296, 8653122, 723167-0004, 723167-5004S, 8602480, 8603296, 8689592, 3847392, 723167-0007, 723167-5007S, 14411-VC200, 14411VC200, 723739-0001, 14411-VC200, 14411VC200, 723739-0002, 723739-5002S, 14411-VC200, 14411VC200, 723739-0003, 144112X900, 724639-0002, 724639-5002S, 724639-0003, 144112X900, 724639-0004, 724639-5004S, 144112X90A, 724639-0006, 724639-5006S, 724639-9006W, 724639-0008, 14411-VC100, 724639-0009, 724639-0011, 724639-0013, 724639-0015, 724639-0019, 724652-0001, 724652-5001S, 79517, AR79517, 724652-0007, 79517, 14411DC001, 726372-0005, 726372-5005S, 14411DC00B, 726372-0010, 726372-5010S, 14411DC00B, 726372-0013, 726372-5013S, 14411DC01A, 726372-0014, 726372-5014S, 727463-0001, 727463-5001S, A6470960099, 727463-0002, 727463-5002S, A6470960099, 727463-0003, 727463-5003S, A6470960099, 727463-0004, 727463-5004S, A6470900180, 729403-0001, 729403-0003, 729403-5003S, A6120960999, 736088-0001, 736088-0003, 736088-5003S, A6470900280, 736088-0005, 736088-0006, 736088-5006S, A6470900280, 11657791758, 750080-0001, 750080-5001S, 7791709E, 11657791758, 750080-0007, 7791709G, 11657791758, 750080-0013, 7791709I, 750080-0015, 7791758I, 11657791758, 750080-0016, 7791709K, 750080-0018, 7791758K, 750080-0019, 750080-5019S, 750080-9019S, 7791758K, 750639-0002, 14411EB300, 751243-0002, 751243-5002S, 751243-9002S, 757246-0001, 757608-0001, 757608-5001S, A6420900280, 757608-0002, 757608-0003, 757608-0004, 757608-0005, 757608-0006, 761154-0003, 761154-5003S, A6420901080, 761154-0004, 761154-5004S, A6420901080, 761154-0007, 761154-5007S, A6420901080, 761399-0001, 761399-5001S, A6420900180, 761399-0002, 761399-5002S, A6420900180, 3819920, 763263-0002, 763263-5002S, 3847393, 763263-0003, 763263-5003S, 21354008, 763263-0005, 763263-5005S, 763360-0001, 765155-0004, 765155-5004S, A6420901480, 765155-0007, 765155-5007S, 765155-9007W, A6420901480, 765155-0008, 765155-5008S, A6420901480, 6420906180, 765156-0003, 765156-5003S, 765156-0004, 765156-5004S, A6420901580, 6420906180, 765156-0007, 765156-5007S, 765156-9007W, 765156-0008, 765156-5008S, A6420901580, 767720-0001, 767720-0002, 767720-0003, 14411EB70D, 767720-0004, 767720-5004S, 767720-0005, 14411EB71E, 767720-0006, 767720-5006S, 14411MA70A, 767851-0001, 767851-5001S, 14411EC00B, 769708-0001, 769708-5001S, 769708-0002, 769708-0003, 14411EC00E, 769708-0004, 769708-5004W, 769708-9004W, 770895-0001, 770895-0002, 770895-0007, A6420902880, 770895-0008, 770895-5008S, A6420902880
