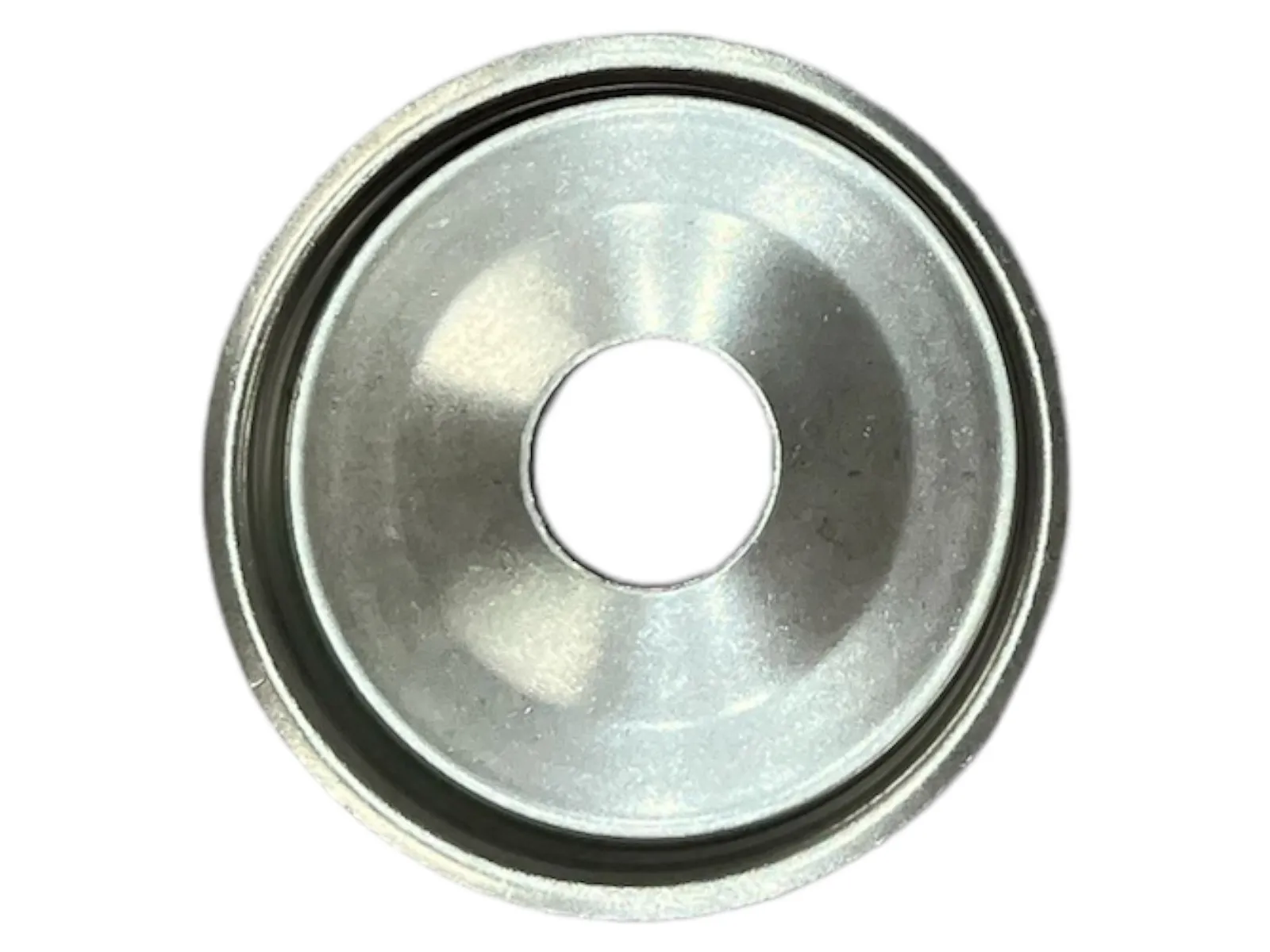

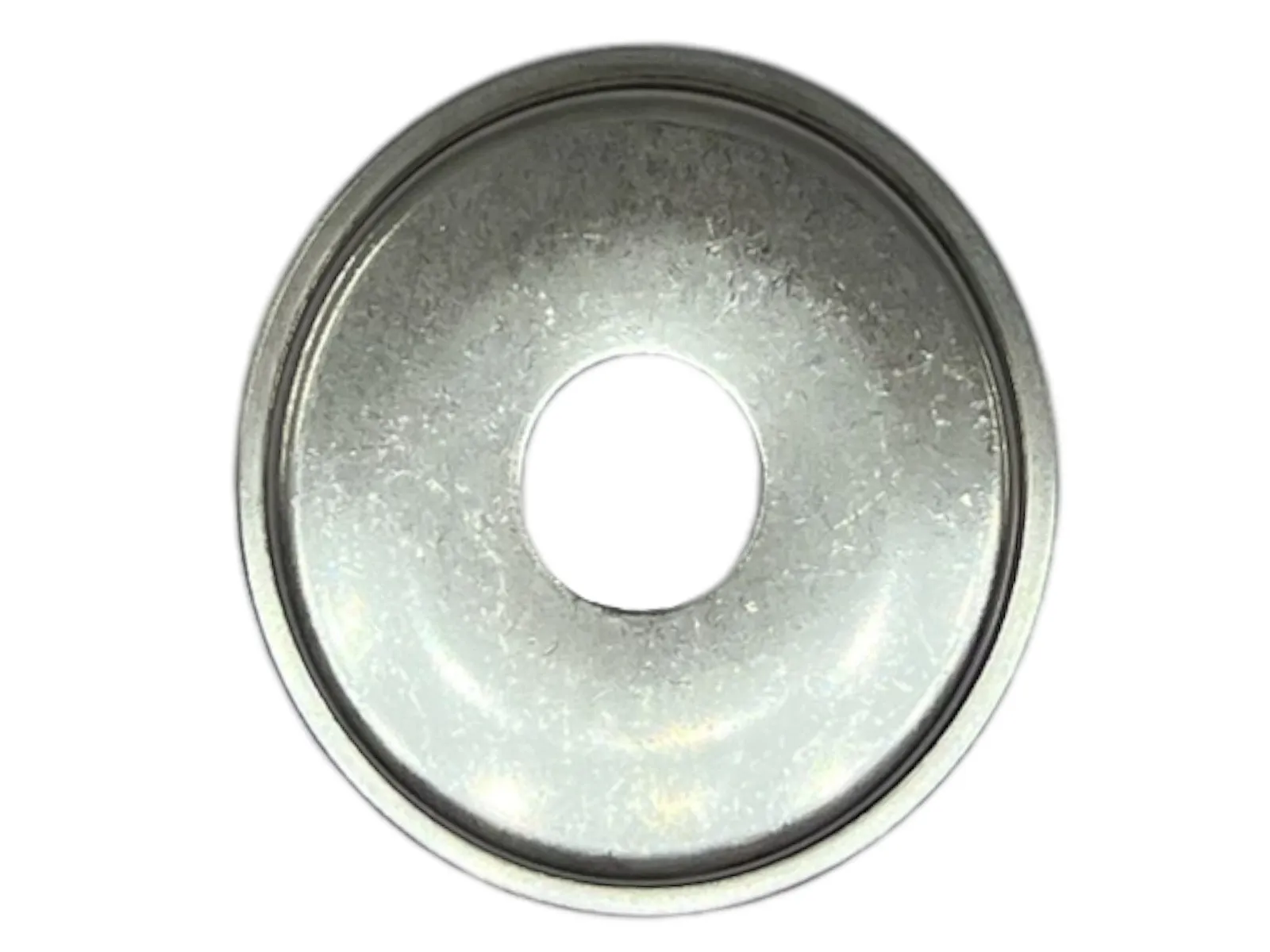

Šilumos reflektorius IH-05-0023
IH-05-0023
Nauja
3,80 €
Be mokesčių Pristatoma per 3-8 dienas
Šilumos reflektorius IH-05-0023 tubinoms CIES, CIFK, CIJG, VD57, VF54.
Daugiau info rasite žemiau
IH-05-0023 - Šilumos reflektorius
Markė: TurboCentras
TurboCentras Kodas: IH-05-0023
IH-05-0023 - Alternatyvūs numeriai
TCP (TurboCentras part number): IH-05-0023
IH-05-0023 - Suderinamumo lentelė
| TURBINOS MARKĖ | TURBINOS MODELIS | TURBINOS KODAS | TURBINOS DALIES NUMERIS | TURBINOS OE NUMERIS |
|---|---|---|---|---|
| IHI | RHF55-117003P20NHBRL449CA | CIES | CIES, F56CND-S0031B, F56CND-S0031G, VA440031, VB440031, VC440031 | 8-97362-8390, 8973628390 |
| IHI | RHF55-117003P20NHBRL449CA | CIFK | 5T-649, CIFK, F56CND-S0051B, F56CND-S0051G, VA440051, VB440051, VC440051 | 8-98030-2170, 8980302170 |
| IHI | RHF55 | CIJG | CIJG, F56CAD-S0095B, F56CAD-S0095G | 8982593710 |
| IHI | RHF5H | VD57 | VA430123, VD57 | 14411-MA71A |
| IHI | RHF5H | VF54 | F51CAD-S0143B, F51CAD-S0143G, V*430143, VF54 | 14411AA760 |
IH-05-0023 - Dalies savybės
D1 (OD) (D1 outer diameter mm): 66.00
D2 (ID) (D2 inner diameter mm): 19.00
D3 (s) (D3 metal thickness (s) mm): 1.00
D4 (h) (D4 Height mm): 7.80
D5 (IND) (D5 Inducer area diameter mm): 60.00
IH-05-0023
8-97362-8390, 8973628390, CIES, F56CND-S0031B, F56CND-S0031G, VA440031, VB440031, VC440031, 5T-649, 8-98030-2170, 8980302170, CIFK, F56CND-S0051B, F56CND-S0051G, VA440051, VB440051, VC440051, 8982593710, CIJG, F56CAD-S0095B, F56CAD-S0095G, 14411-MA71A, VA430123, VD57, 14411AA760, F51CAD-S0143B, F51CAD-S0143G, V*430143, VF54
Duomenys atnaujinti: 2024-05-22 15:42:04
Nauja
