Šilumos reflektorius RHV4-321-1
Šilumos reflektorius RHV4-321-1
Šilumos reflektorius RHV4-321-1
Šilumos reflektorius RHV4-321-1

0.1 kg (10x5x10 cm)

Šilumos reflektorius IH-05-0021

IH-05-0021
Nauja
Išparduota
7,20 €
Be mokesčių

IH-05-0021, RHV4-321-1

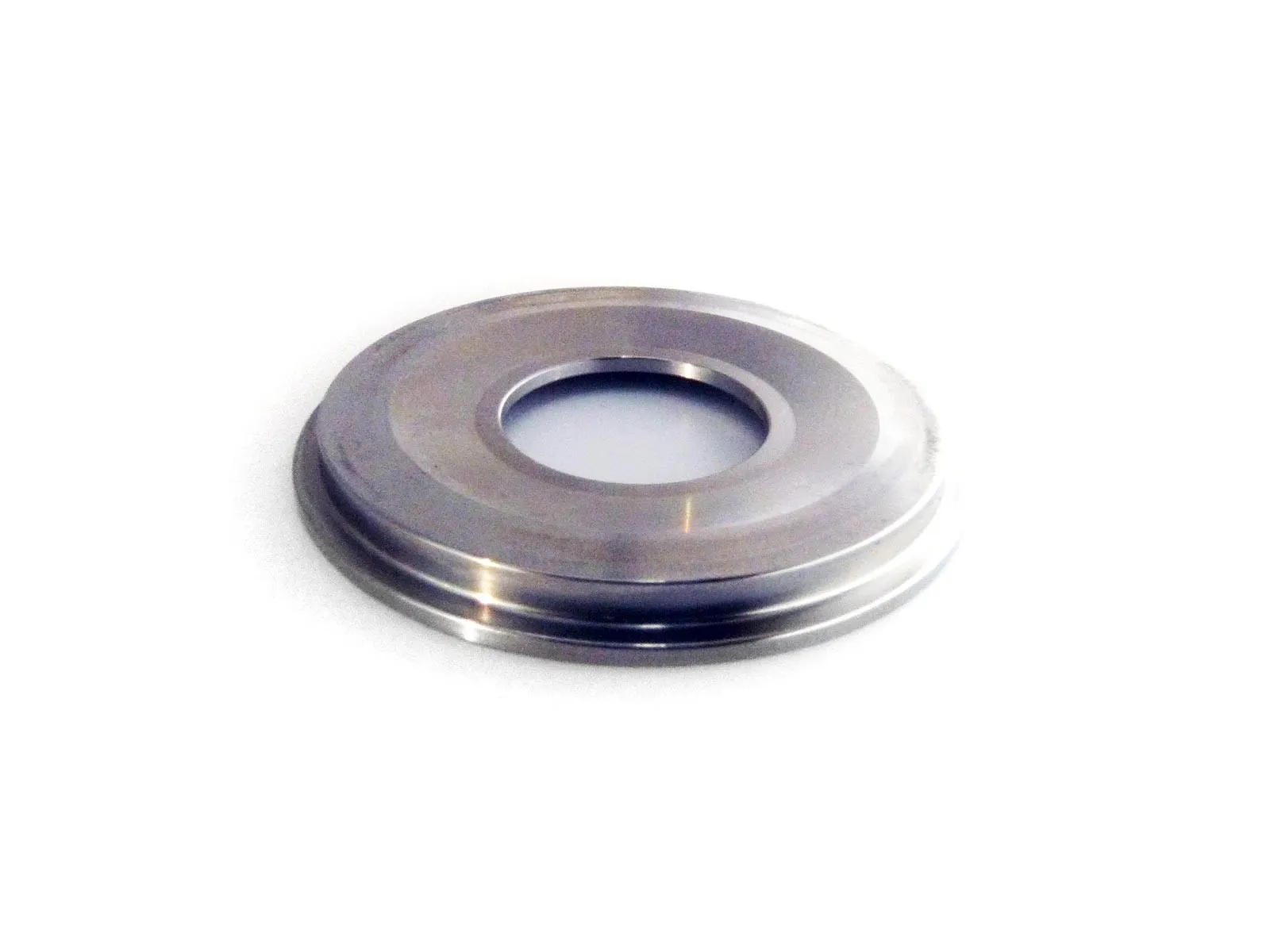

Šilumos reflektorius IH-05-0021 tubinoms 8573107, 8573108, 9V102, 9VB01, 9VB02, AL-0079.

Daugiau info rasite žemiau



IH-05-0021 - Šilumos reflektorius

Markė: TurboCentras

TurboCentras Kodas: IH-05-0021

IH-05-0021 - Alternatyvūs numeriai

TCP (TurboCentras part number): IH-05-0021

TCO (TurboCentras old part number): RHV4-321-1

IH-05-0021 - Suderinamumo lentelė

Šilumos reflektorius IH-05-0021 - Suderinami turbokompresoriai
TURBINOS MARKĖTURBINOS MODELISTURBINOS KODASTURBINOS DALIES NUMERISTURBINOS OE NUMERIS
IHIRHV4-T3985731079VB0311658573107, 8573107, 8573107-03, 8573107.03
IHIRHV4-T3985731089VB0311658573108, 8573108, 8573108-03, 8573108.03
IHIRHV49V1029V102, AL-0058, V41VEY-SR025BA6510900886, A6510901780, A6510903400
IHIRHV4-T399VB019VB01, V41VEG-SR022B11657812321, 1165781232102, 1165781232103, 11658506722, 11658513122, 1165851312202, 11658513123, 11658513124, 11658518204, 1165851820401, 1165851820402, 11658518205, 1165851820502, 7812321, 7812321.03, 781232102, 781232103, 8506722, 8513122, 8513123, 8513124, 8518204, 8518204.02, 851820402, 8518205, 8518205.02, 851820502
IHIRHV4-T399VB029VB02, V41VEG-SR066B11658512379, 1165851237902, 1165851237903, 1165851237907, 11658512454, 8512379.02, 8512379.03, 8512379.04, 8512379.05, 8512379.07, 851237902, 851237903, 851237907, 8512454
IHIRHV4AL-0079AL-00796510903580, 6511800022, 6519063900, A6510903580, A6511800022, A6519063900

IH-05-0021 - Dalies savybės

D1 (OD) (D1 outer diameter mm): 50.00

D2 (ID) (D2 inner diameter mm): 20.00

D3 (s) (D3 metal thickness (s) mm): 2.20

D4 (h) (D4 Height mm): 4.50

D5 (IND) (D5 Inducer area diameter mm): 40.00

IH-05-0021

IH-05-0021, RHV4-321-1
11658573107, 8573107, 8573107-03, 8573107.03, 9VB03, 11658573108, 8573108, 8573108-03, 8573108.03, 9VB03, 9V102, A6510900886, A6510901780, A6510903400, AL-0058, V41VEY-SR025B, 11657812321, 1165781232102, 1165781232103, 11658506722, 11658513122, 1165851312202, 11658513123, 11658513124, 11658518204, 1165851820401, 1165851820402, 11658518205, 1165851820502, 7812321, 7812321.03, 781232102, 781232103, 8506722, 8513122, 8513123, 8513124, 8518204, 8518204.02, 851820402, 8518205, 8518205.02, 851820502, 9VB01, V41VEG-SR022B, 11658512379, 1165851237902, 1165851237903, 1165851237907, 11658512454, 8512379.02, 8512379.03, 8512379.04, 8512379.05, 8512379.07, 851237902, 851237903, 851237907, 8512454, 9VB02, V41VEG-SR066B, 6510903580, 6511800022, 6519063900, A6510903580, A6511800022, A6519063900, AL-0079

Duomenys atnaujinti: 2023-08-17 14:10:33
