GA-03-0027, GT14-13B

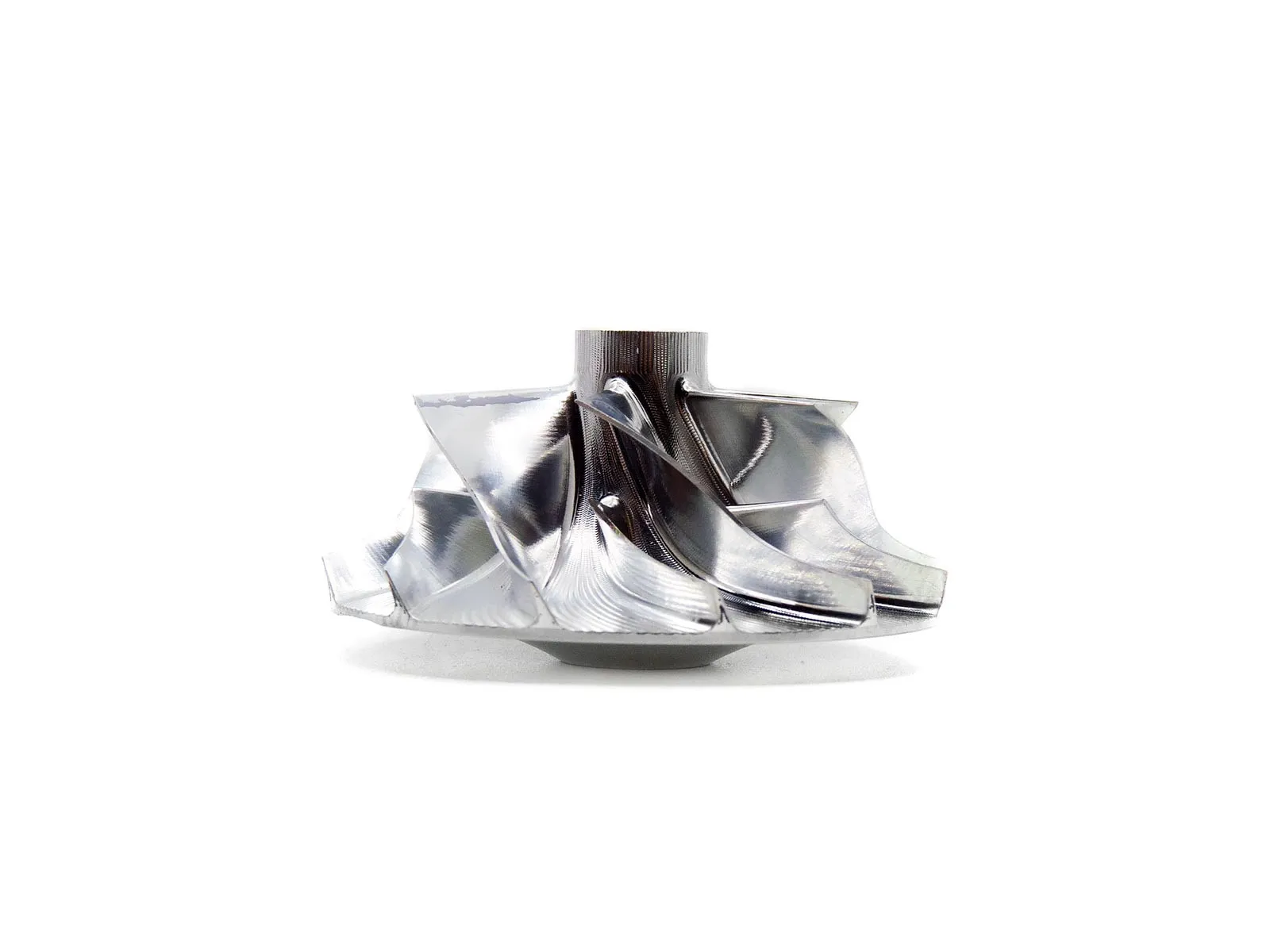

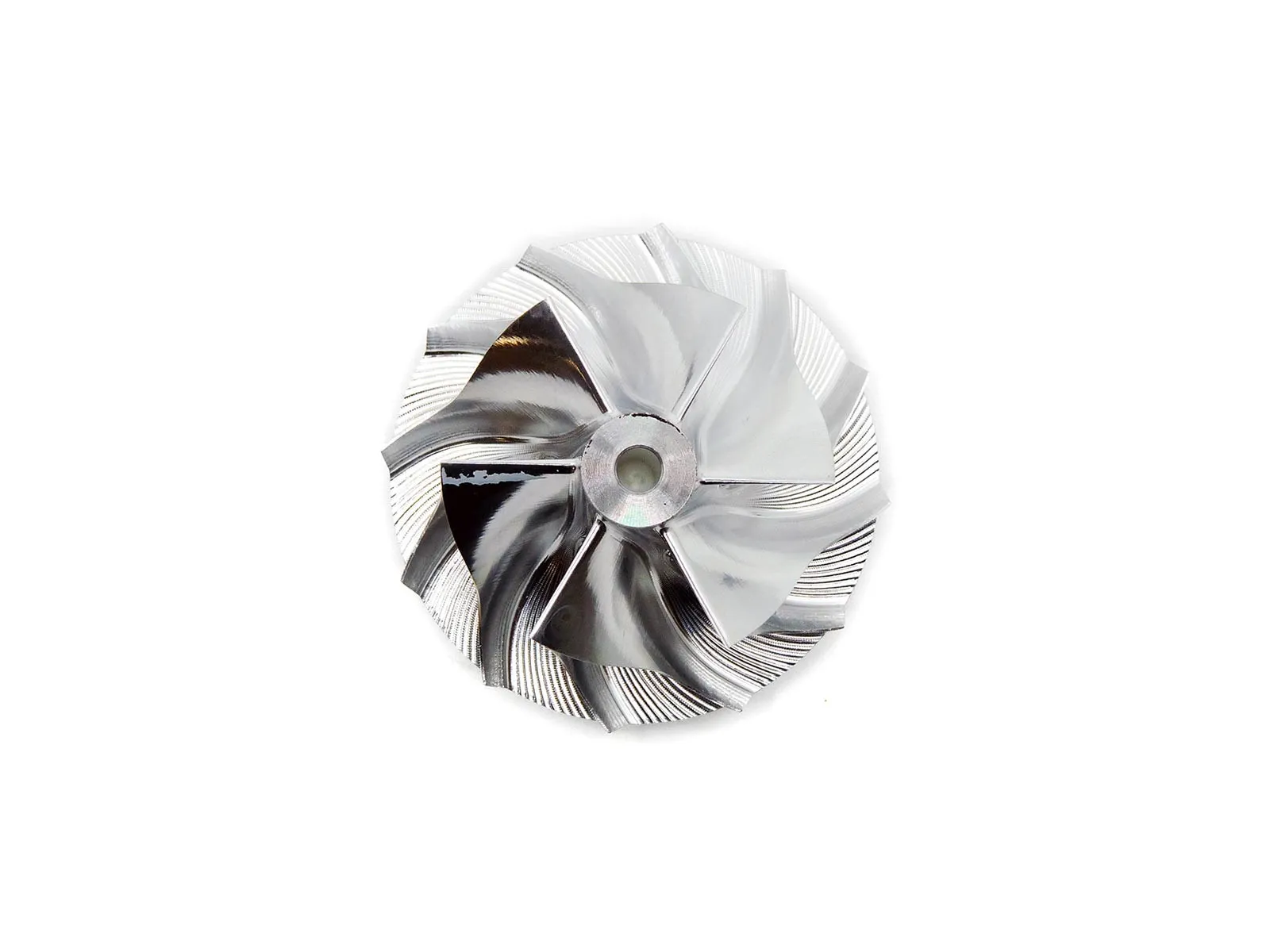

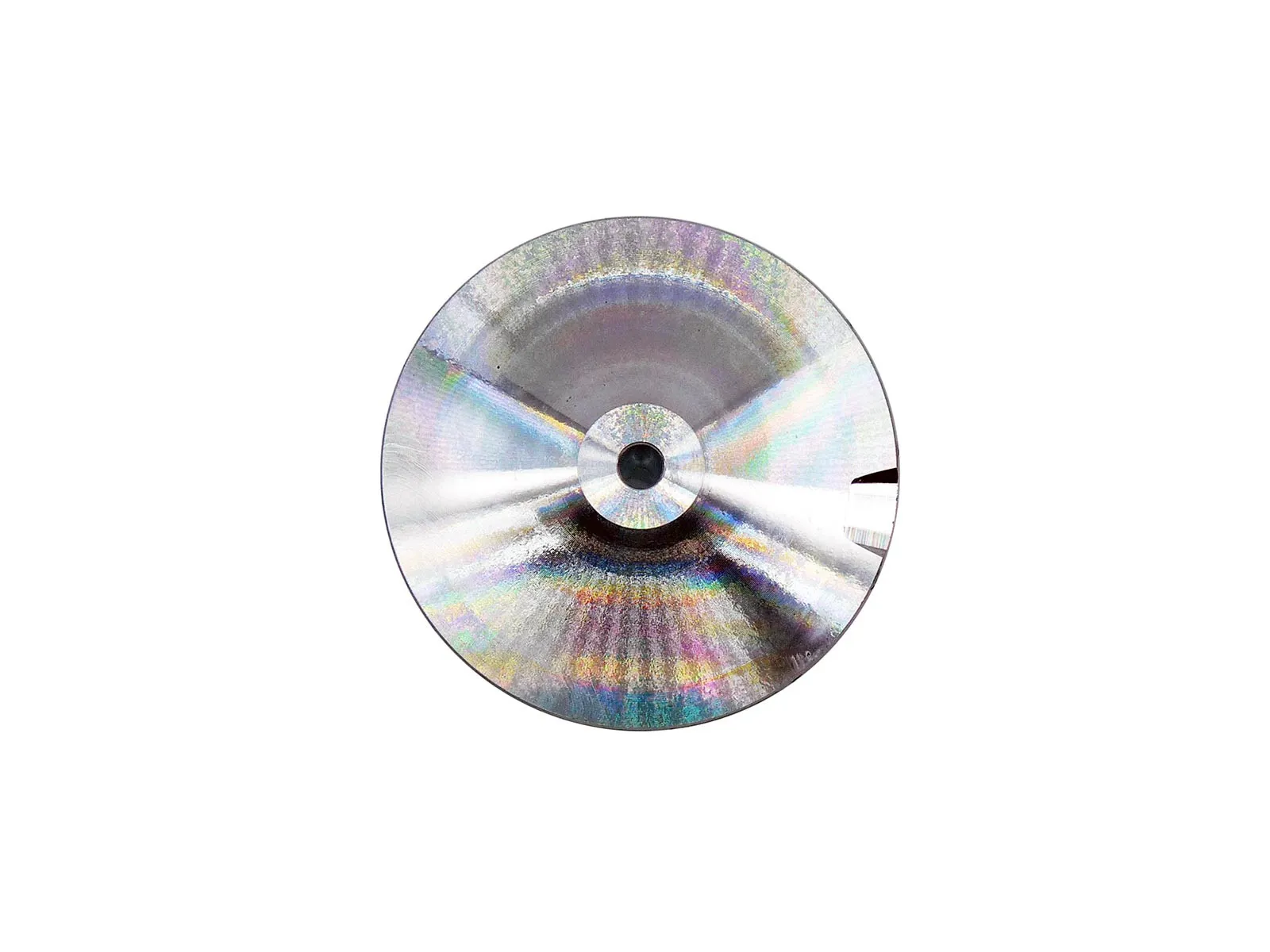

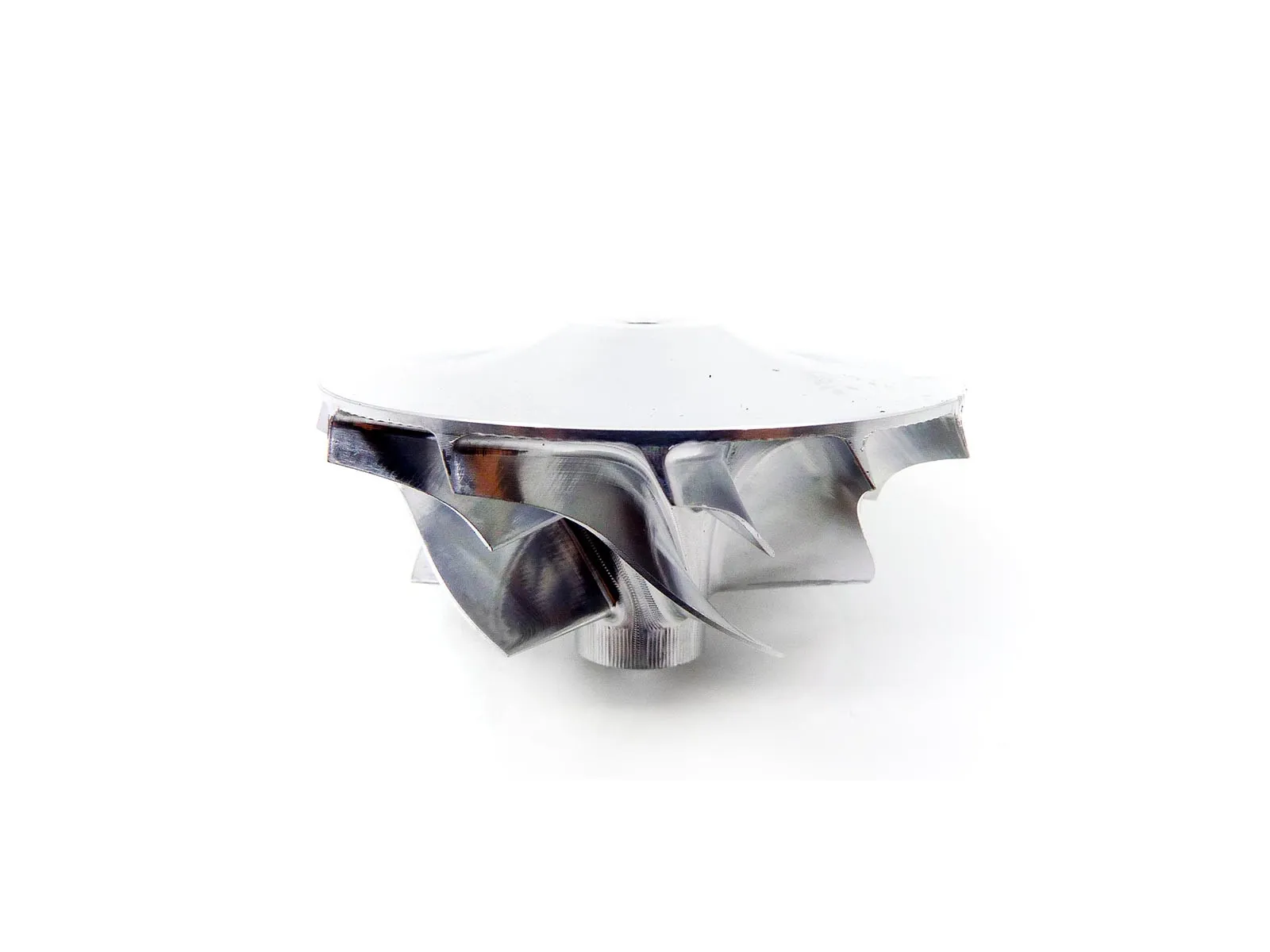

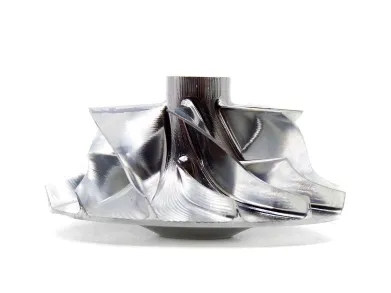

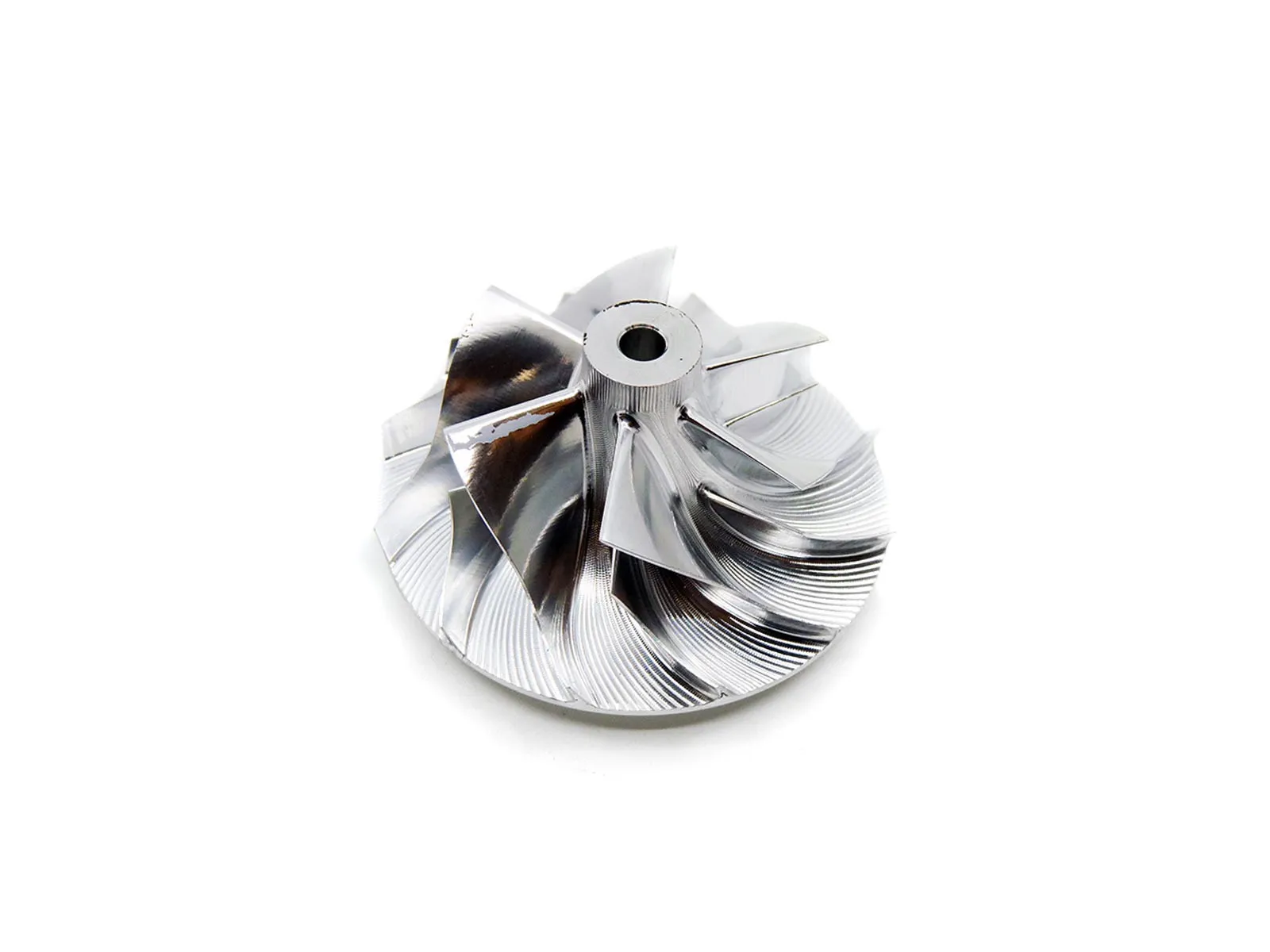

Kompresoriaus sparnuotė GA-03-0027 tubinoms 819891-0005, 819891-0009, 821866-0001, 821866-0002, 821866-0003, 821866-0004, 821866-0006, 821866-0007, 821866-0009, 822051-0003.
Daugiau info rasite žemiau
Markė: TurboCentras
TurboCentras Kodas: GA-03-0027
TCP (TurboCentras part number): GA-03-0027
TCO (TurboCentras old part number): GT14-13B
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Billet
Back (Compressor wheel back design): Deep Super
A (Size A): 49.00
A1 (Size A1): 50.80
B (Size B): 37.00
C (Size C): 4.30
C1 (Size C1): 4.00
D (Size D): 26.50
E (Size E): 4.08
| TURBINOS MARKĖ | TURBINOS MODELIS | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| Garrett | GTD1449VZ | 819891-0005, 819891-5005S | 04L253010EV310 |
| Garrett | GTD1449MVZK | 819891-0009 | -- |
| Garrett | GTD1449VZ | 821866-0001 | 04L253010H |
| Garrett | GTD1449V | 821866-0002, 821866-5002S | 04L253010HV260 |
| Garrett | GTD1449V | 821866-0003, 821866-5003S | 04L253010HV280 |
| Garrett | GTD1449V | 821866-0004, 821866-5004S | 04L253010H, 04L253010HV310 |
| Garrett | GTD1449V | 821866-0006, 821866-5006S | 04L253010HV310 |
| Garrett | GTD1449VZ | 821866-0007 | 04L253010H |
| Garrett | GTD1449V | 821866-0009, 821866-5009S, 821866-9009S | 04L253056P |
| Garrett | GTD1449MVZ | 822051-0003, 822051-5003S | 04L253010JV300 |
| Garrett | GTD1449VZ | 822051-0006 | 04L253056Q |
| Garrett | GTD1449VK | 831120-0001 | -- |
| Garrett | GTD1449VKZ | 831120-0005 | -- |
| Garrett | GTD1449VZ | 831120-0006, 831120-5006S | A6540900800 |
| Garrett | GTD1449VK | 831120-0007, 831120-5007S | A6540902400 |
| Garrett | GTD1449VK | 831120-0008, 831120-5008S | A6540904500 |
| Garrett | GTD1449VKZ | 831120-0009 | A6540904500 |
| Garrett | GTD1449VK | 831120-0010, 831120-5010S | A6540904500, A6540907300 |
| Garrett | GTD1749V | 839765-0001, 839765-5001S, 839765-9001S | 5801930226 |
| Garrett | GTD1449VKZL | 873798-0003, 873798-5003S | A6540905000 |
| Garrett | GTD1449KVZ | 882740-0001, 882740-1, 882740-5001S | A6540902001 |
| Garrett | GTD1449VKZL | 883947-0001 | -- |
| Garrett | GTD1449VK | 887526-0001, 887526-5001S | A6540901901 |
| Garrett | GTD1449VZ | 894474-0001, 894474-5001S | A 654 090 3601, A6540903601 |
| Garrett | GTD1449VKZL | 911025-0001, 911025-5001S | A6540905000 |
| Garrett | GTD1449VKZL | 912016-0001 | -- |
Duomenys atnaujinti: 2025-09-24 10:07:44
