0.2 kg (10x10x10 cm)

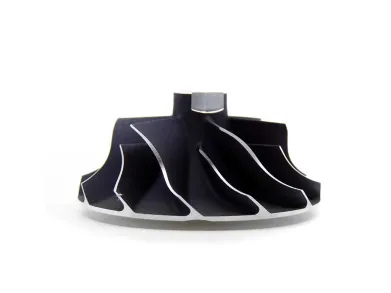

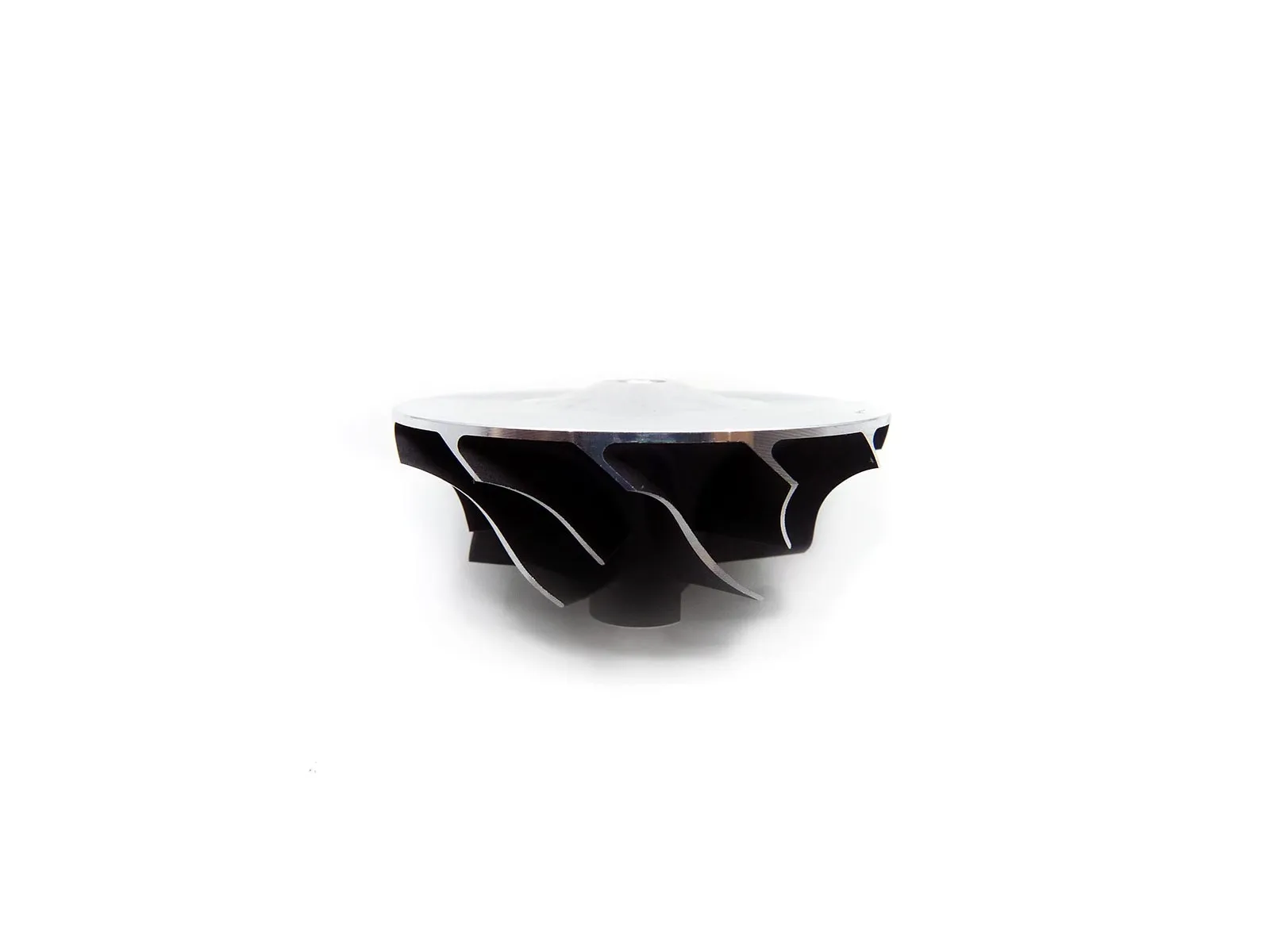

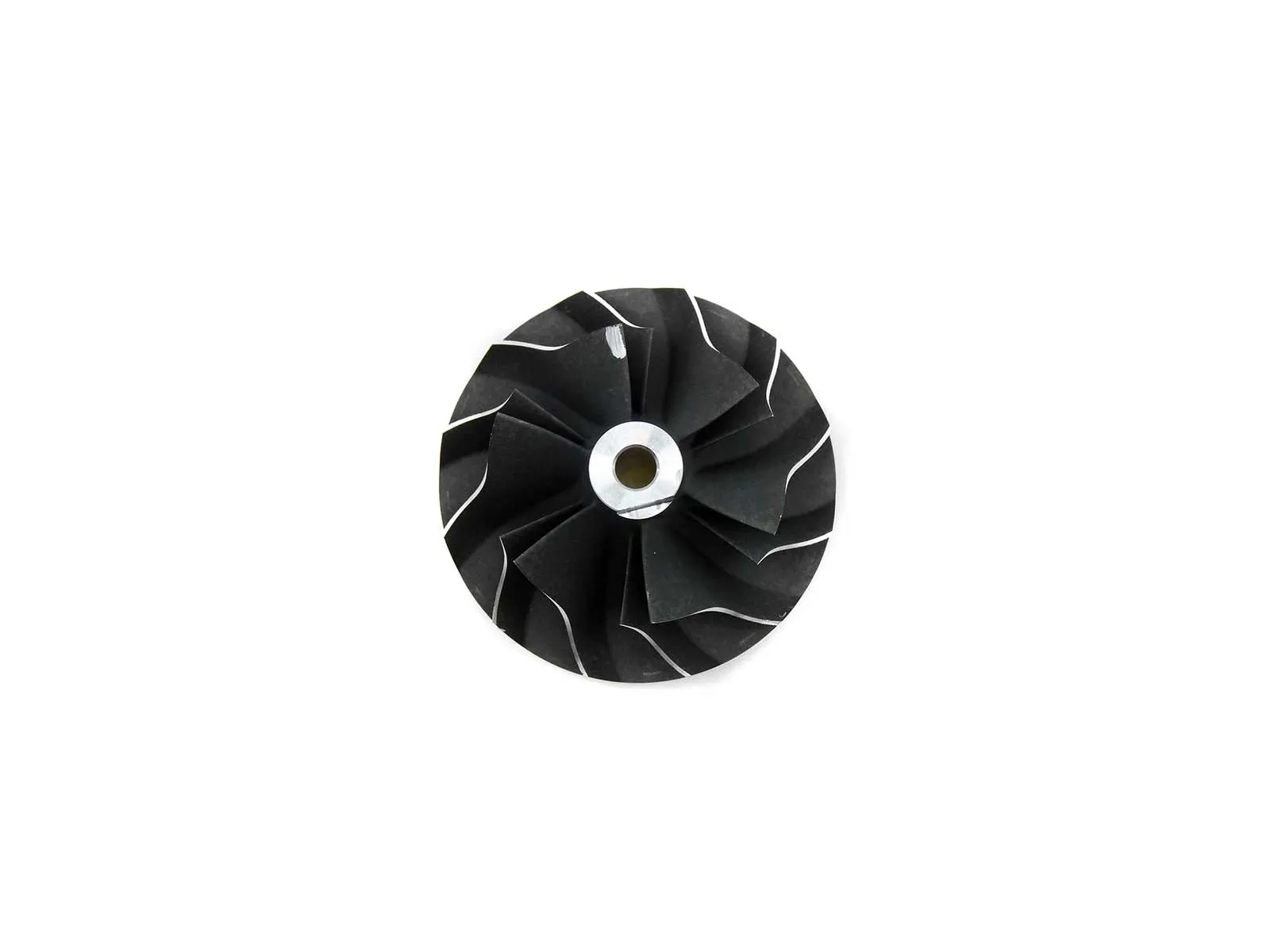

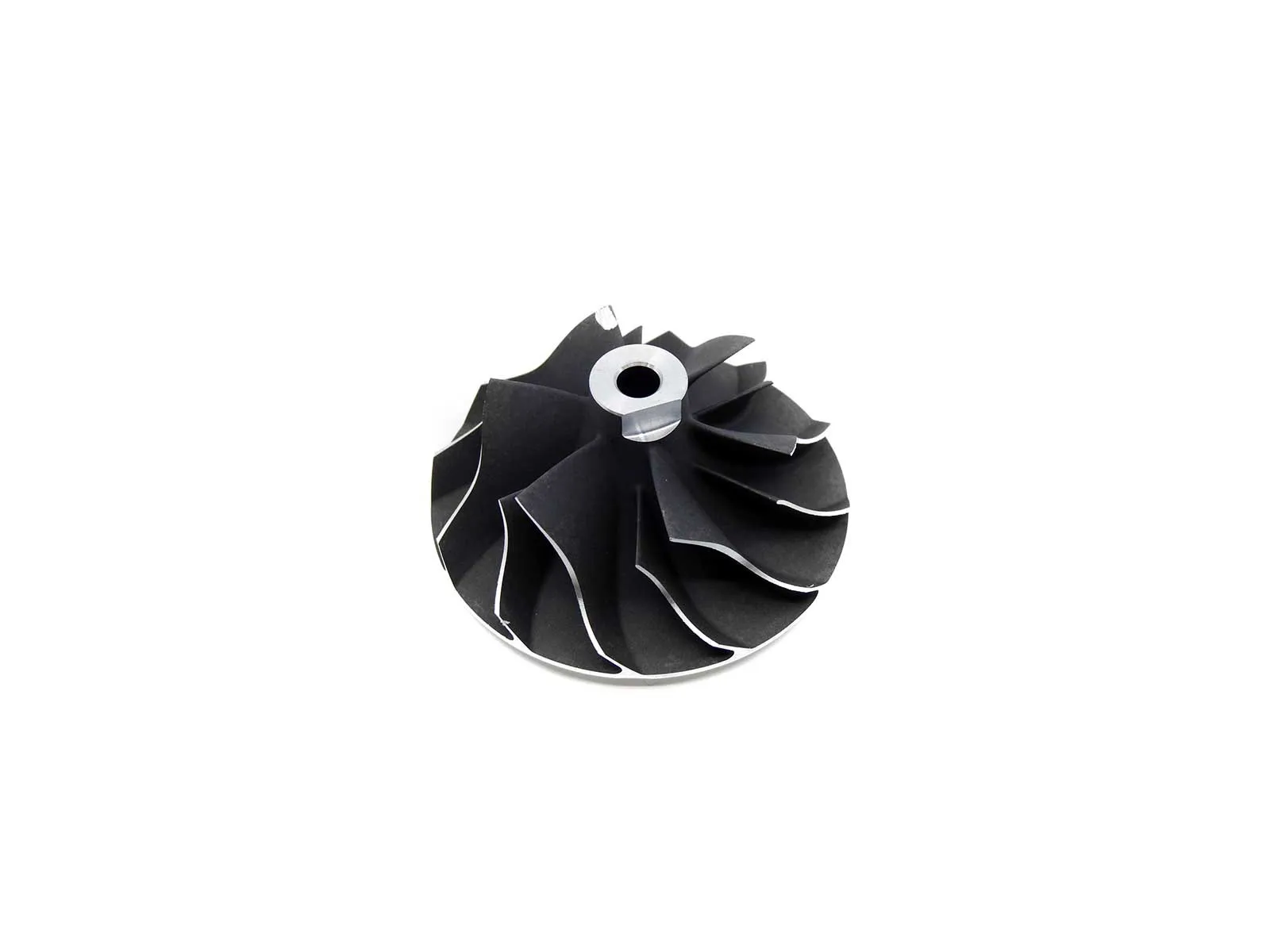

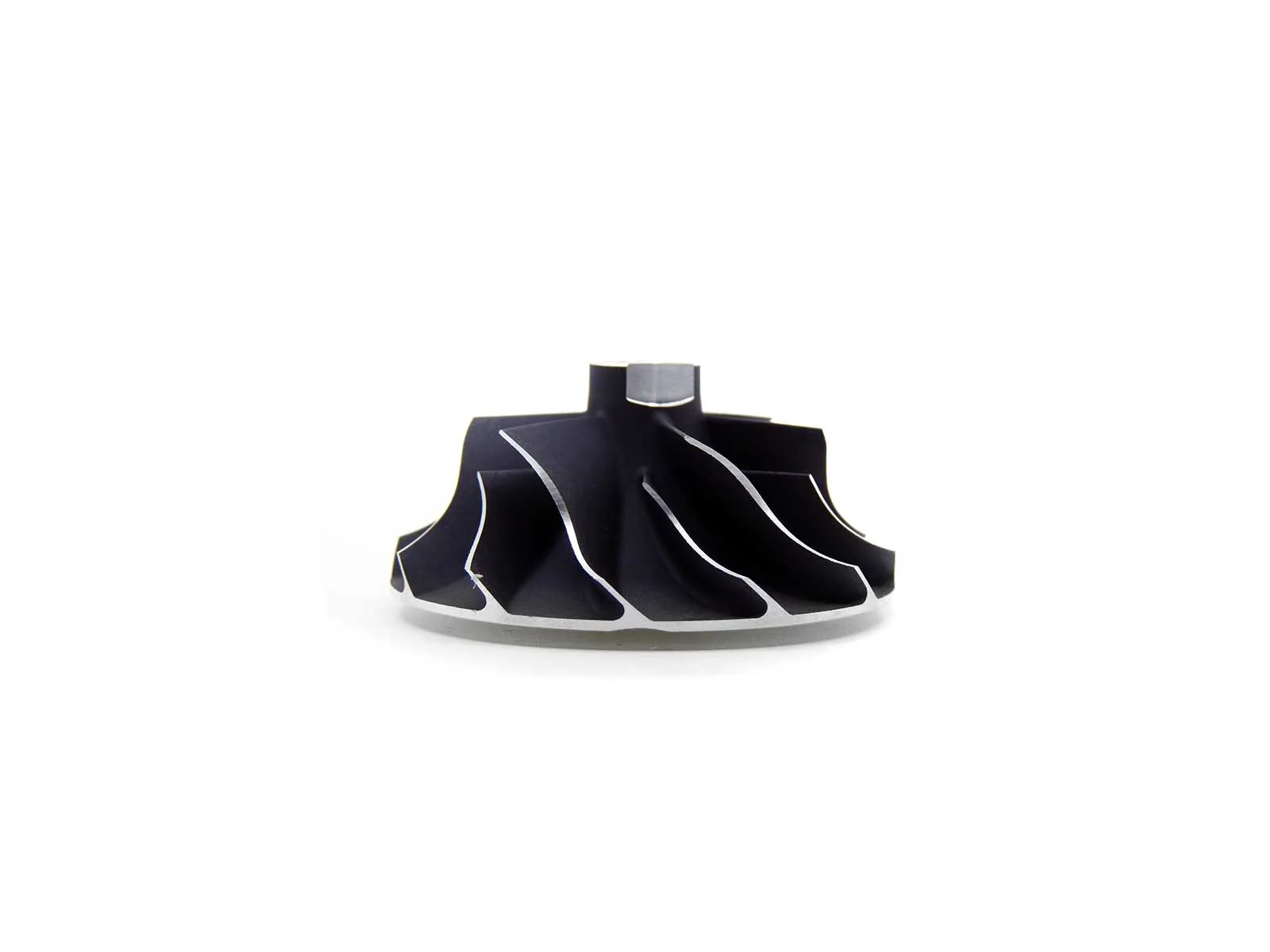

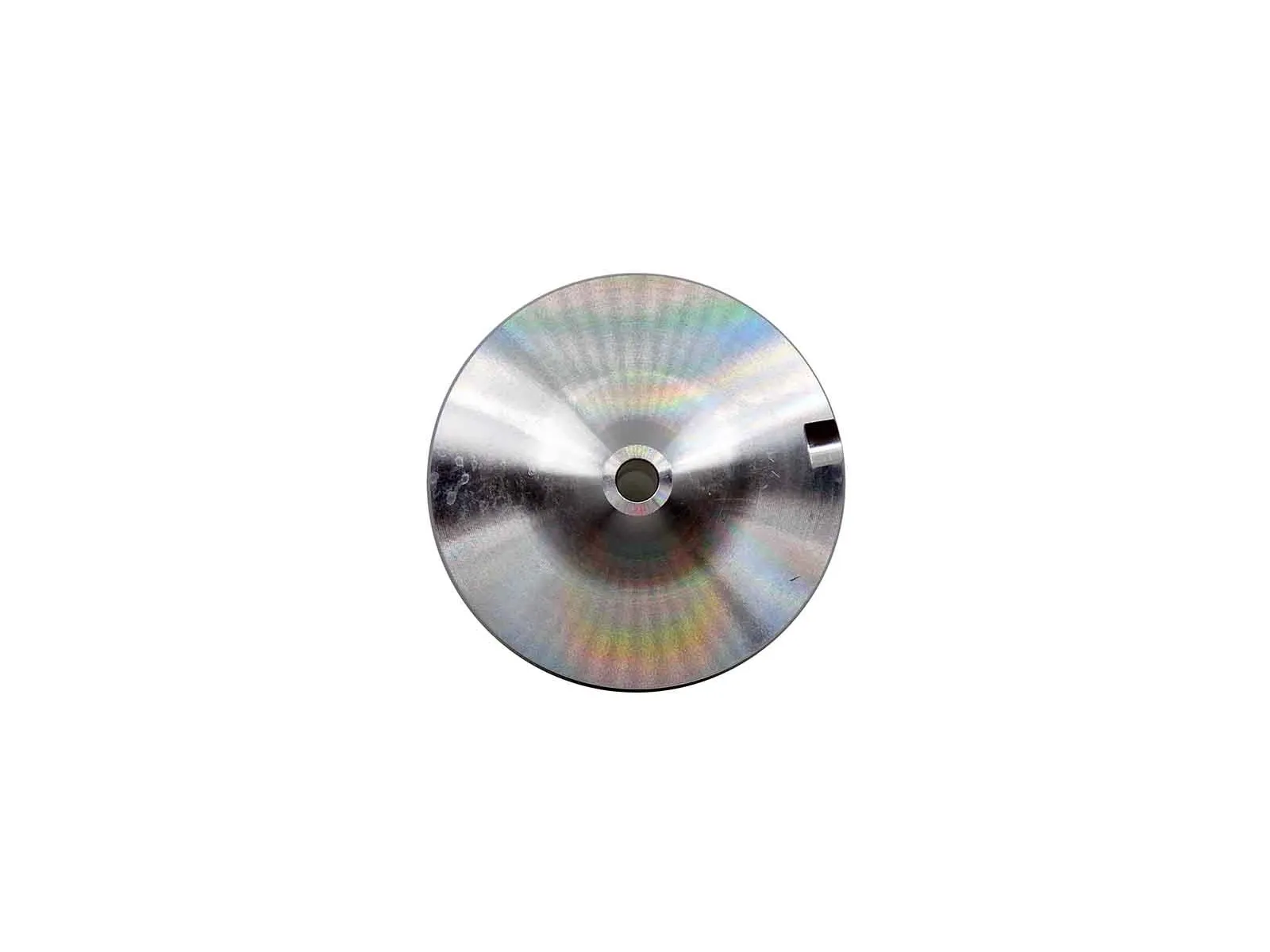

Kompresoriaus sparnuotė GA-03-0078
451584-0008, 451584-0022, GA-03-0078, GT20-07
Kompresoriaus sparnuotė GA-03-0078 tubinoms 452191-0001, 452191-0002, 452222-0008, 452222-0009, 708257-0001, 708258-0001, 717264-0001, 727262-0008, 727262-0009, 727264-0001.
Daugiau info rasite žemiau
GA-03-0078 (451584-0008, 451584-0022) - Kompresoriaus sparnuotė
Markė: TurboCentras
TurboCentras Kodas: GA-03-0078
OEM numeriai: 451584-0008, 451584-0022
GA-03-0078 - Alternatyvūs numeriai
TCP (TurboCentras part number): GA-03-0078
TCO (TurboCentras old part number): GT20-07
GA-03-0078 - Suderinamumo lentelė
TURBINOS MARKĖ | TURBINOS MODELIS | TURBINOS KODAS | TURBINOS DALIES NUMERIS | TURBINOS OE NUMERIS |
---|---|---|---|---|
Garrett | GT2052S | 452191-0001 | 452191-0001 | -- |
Garrett | GT2052S | 452191-0002 | 452191-0002 | -- |
Garrett | GT2052 | 452222-0008 | 452222-0008 | 2674A339 |
Garrett | GT2052 | 452222-0009 | 452222-0009 | 2674A341 |
Garrett | GT2052S | 708257-0001 | 708257-0001, 708257-5001S | 79050 |
Garrett | GT2052S | 708258-0001 | 708258-0001, 708258-5001S | 79054 |
Garrett | GT2052S | 717264-0001 | 717264-0001 | -- |
Garrett | GT2052S | 727262-0008 | 727262-0008, 727262-5008S | 2674A358 |
Garrett | GT2052 | 727262-0009 | 727262-0009, 727262-5009S | 2674A359 |
Garrett | GT2052S | 727264-0001 | 727264-0001, 727264-5001S, 727264-5001W | -- |
Garrett | GT2052S | 727264-0002 | 727264-0002, 727264-5002S | -- |
Garrett | GT2052S | 727264-0003 | 727264-0003, 727264-5003S | -- |
GA-03-0078 - Dalies savybės
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 52.20
A1 (Size A1): 52.20
B (Size B): 37.70
C (Size C): 4.85
C1 (Size C1): 2.40
D (Size D): 26.10
E (Size E): 5.08
![GA-03-0078](/modules/turbocatalog/views/img/drawings/4.png)
451584-0008, 451584-0022, GA-03-0078, GT20-07
452191-0001, 452191-0002, 2674A339, 452222-0008, 2674A341, 452222-0009, 708257-0001, 708257-5001S, 79050, 708258-0001, 708258-5001S, 79054, 717264-0001, 2674A358, 727262-0008, 727262-5008S, 2674A359, 727262-0009, 727262-5009S, 727264-0001, 727264-5001S, 727264-5001W, 727264-0002, 727264-5002S, 727264-0003, 727264-5003S
Duomenys atnaujinti: 2024-06-20 13:56:21
