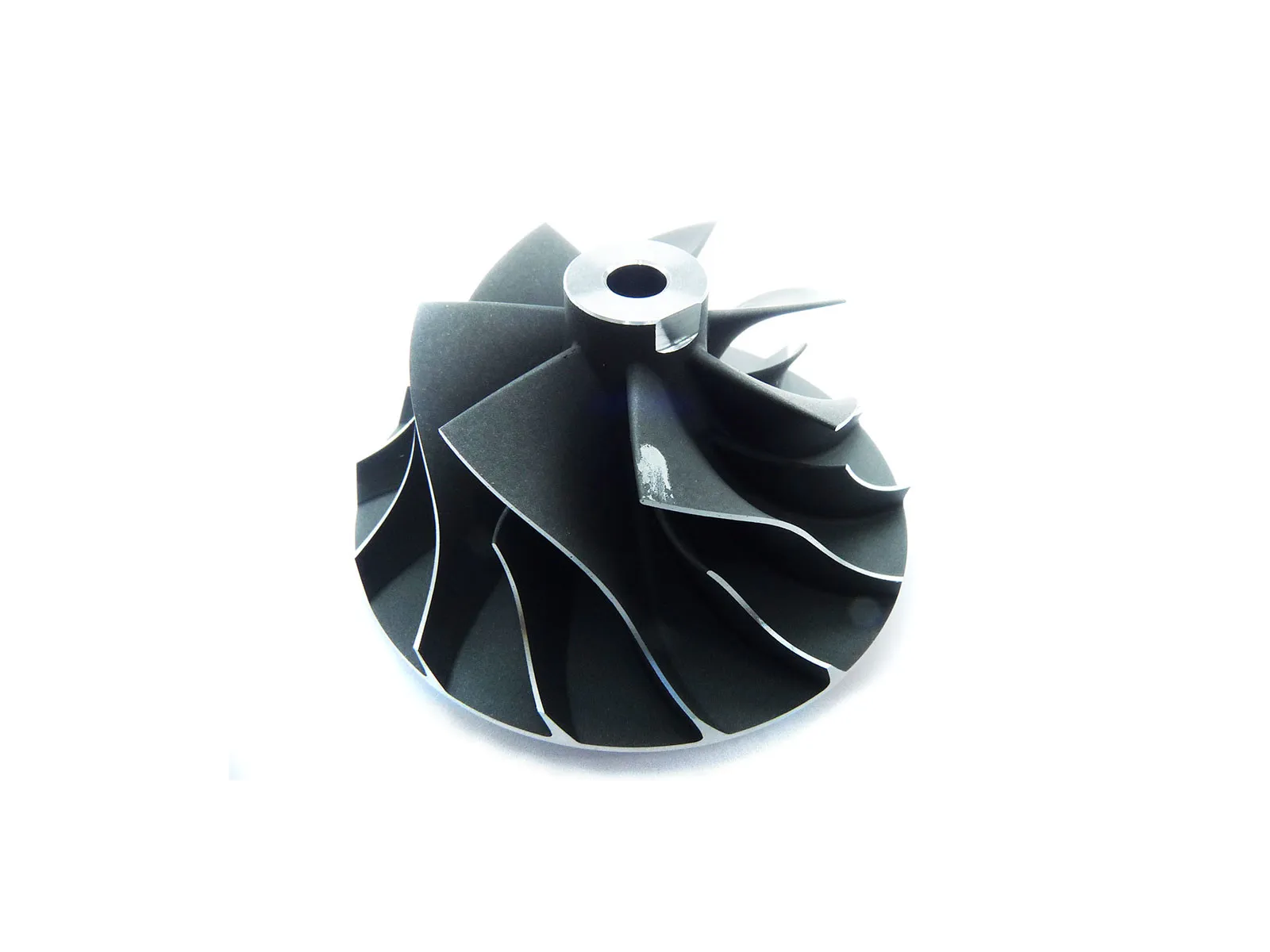

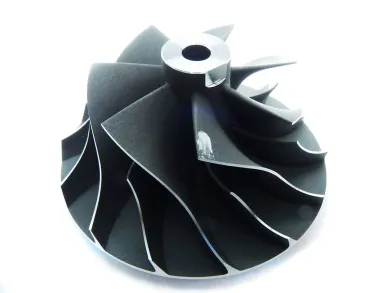

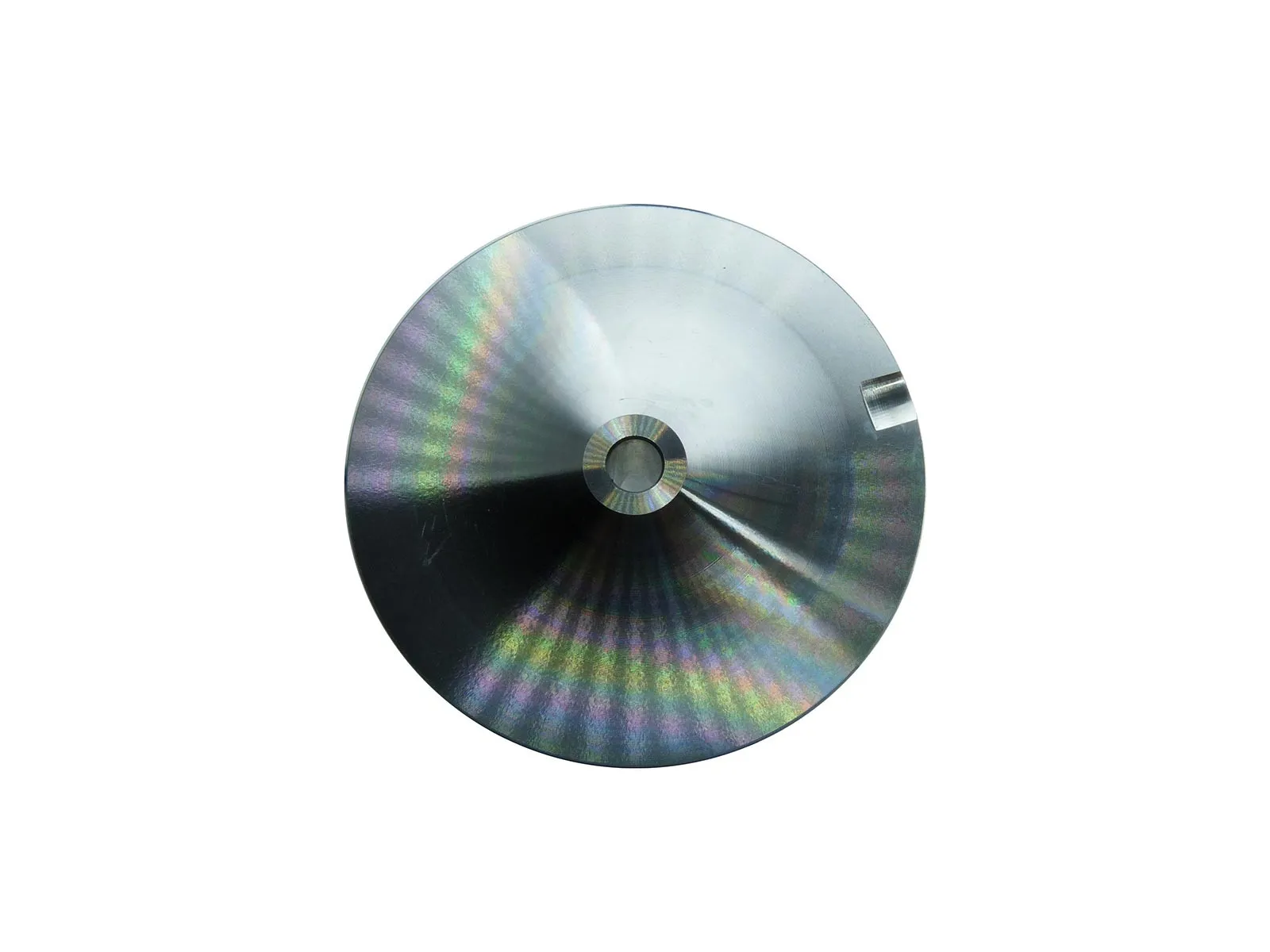

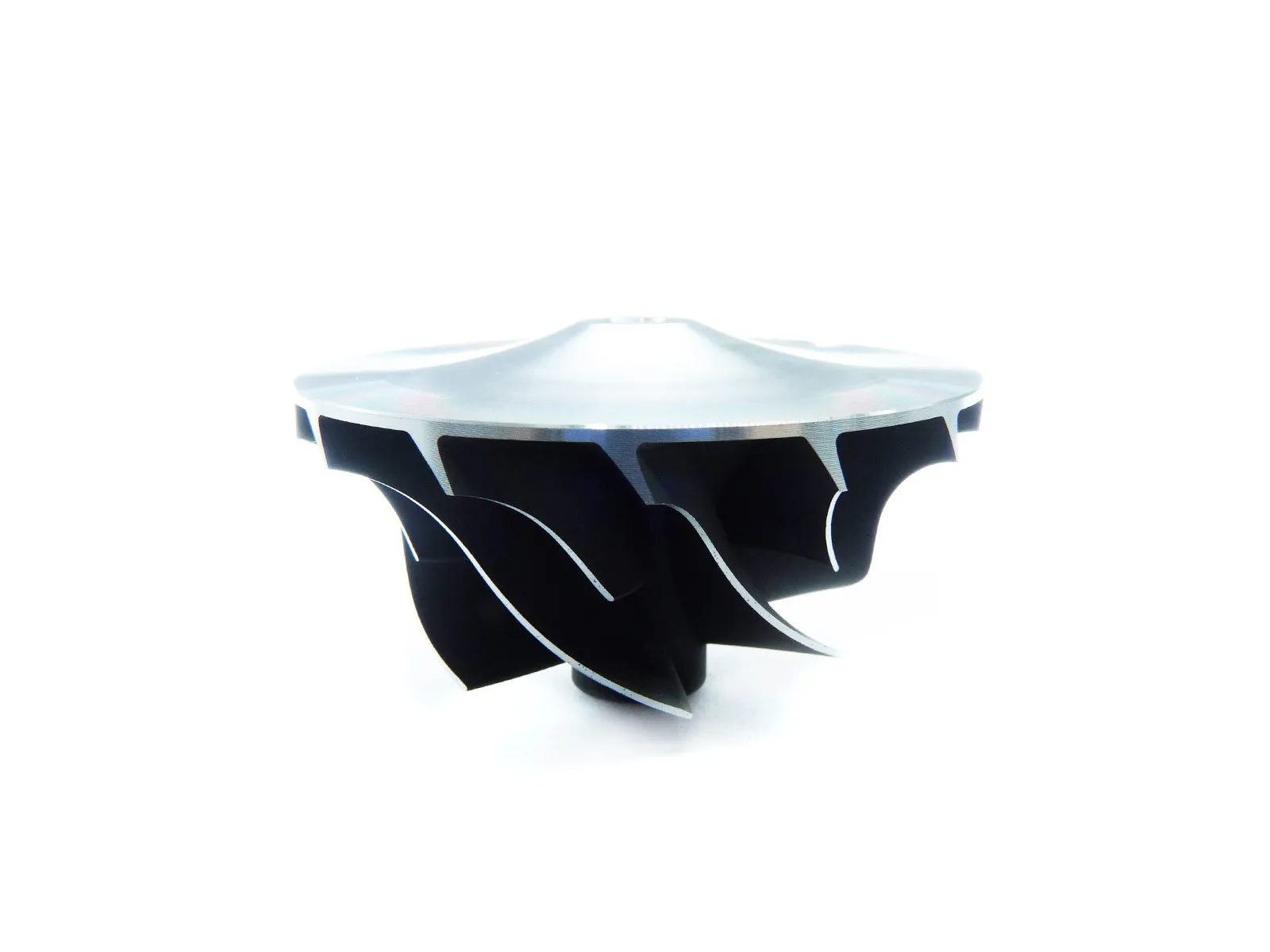

Kompresoriaus sparnuotė IH-03-0029

IH-03-0029 - Kompresoriaus sparnuotė

Markė: TurboCentras

TurboCentras Kodas: IH-03-0029

IH-03-0029 - Alternatyvūs numeriai

TCP (TurboCentras part number): IH-03-0029

TCO (TurboCentras old part number): RHF5-03

IH-03-0029 - Suderinamumo lentelė

Kompresoriaus sparnuotė IH-03-0029 - Suderinami turbokompresoriai
TURBINOS MARKĖ	TURBINOS MODELIS	TURBINOS KODAS	TURBO PART NUMBER	TURBINOS OE NUMERIS
IHI	RHF5V	VB13	VB13	17201-0R020, 17201-0R021, 17201-0R022, 17201-440FP, 172010R020, 172010R021, 172010R022, 17201440FP
IHI	RHF5	VB15	VB15	17201-26090, 1720126090
IHI	RHF5	VB16	VB16	17201-0R010, 17201-0R011, 17201-26031, 172010R010, 172010R011, 1720126031
IHI	RHF5V	VIHJ	F54VAD-S0049B, F54VAD-S0049G, VIHJ	8981654481

IH-03-0029 - Dalies savybės

Blades (Compressor wheel blades count): 7/7

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method type): Cast

Back (Compressor wheel back design): Deep Super

A (Size A): 56.10

A1 (Size A1): 56.10

B (Size B): 40.00

C (Size C): 4.50

C1 (Size C1): 4.00

D (Size D): 31.90

E (Size E): 5.10

---

IH-03-0029, RHF5-03

---

17201-0R020, 17201-0R021, 17201-0R022, 17201-440FP, 172010R020, 172010R021, 172010R022, 17201440FP, VB13, 17201-26090, 1720126090, VB15, 17201-0R010, 17201-0R011, 17201-26031, 172010R010, 172010R011, 1720126031, VB16, 8981654481, F54VAD-S0049B, F54VAD-S0049G, VIHJ

---

Duomenys atnaujinti: 2023-03-31 15:52:30
