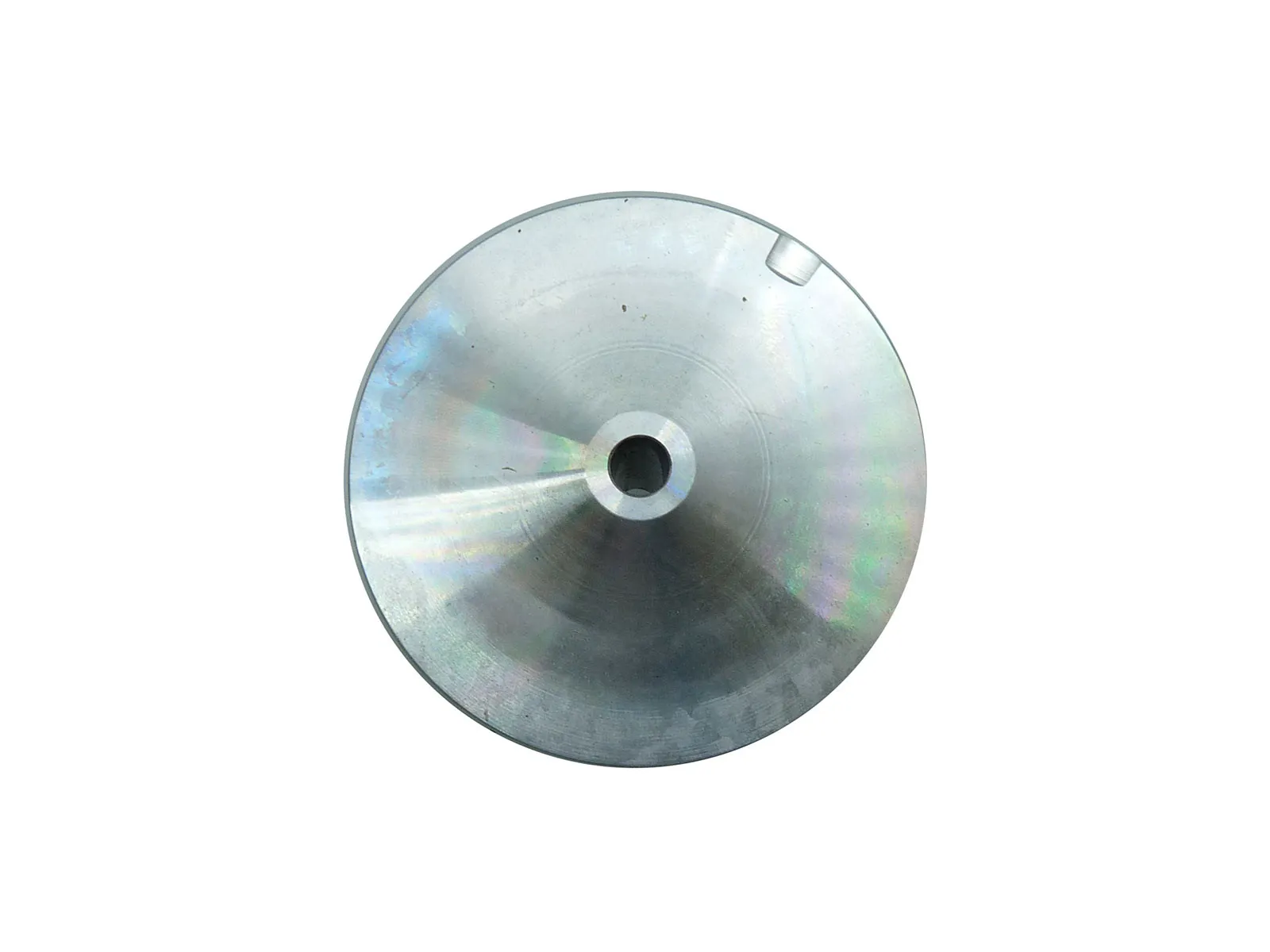

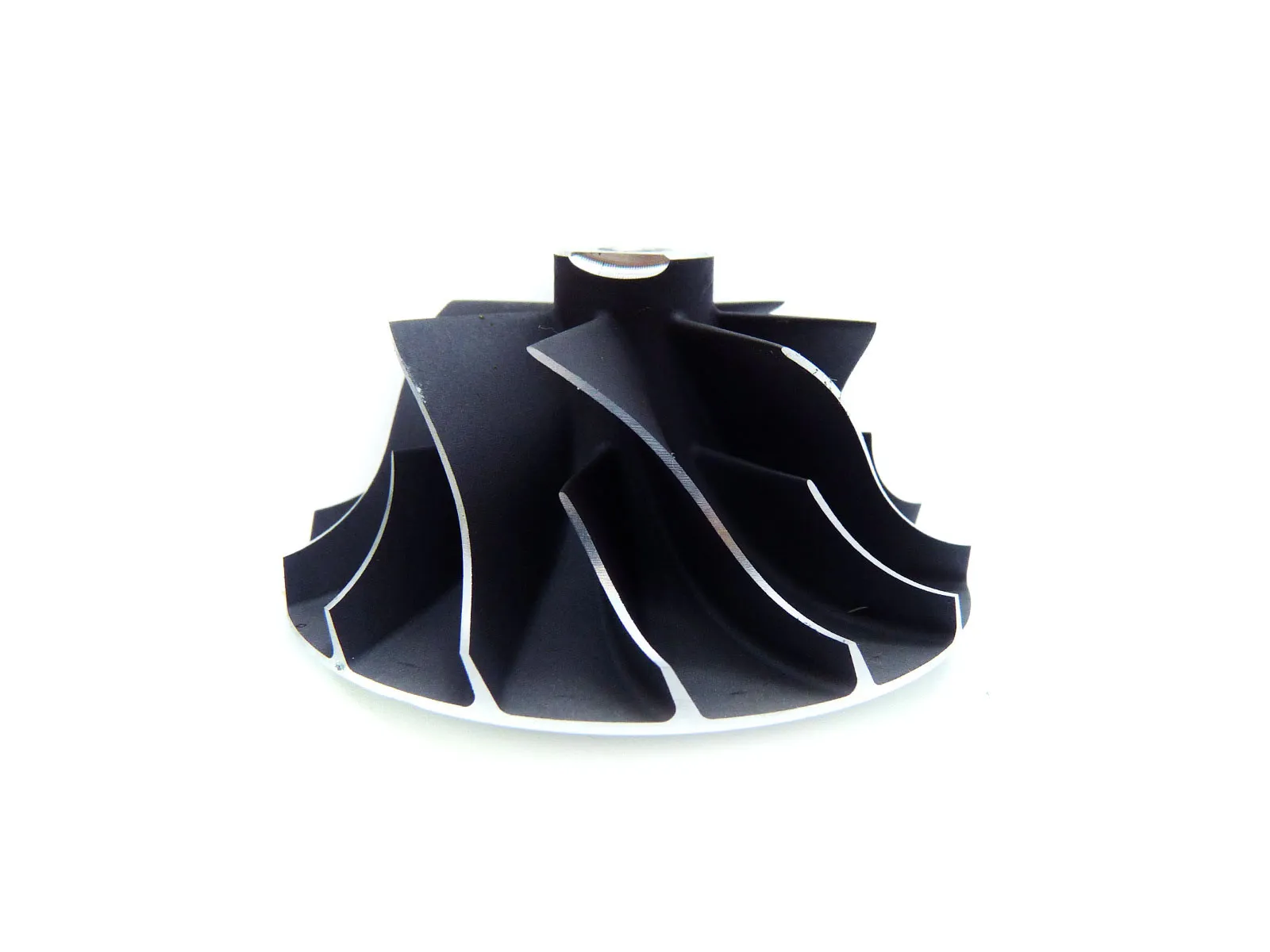

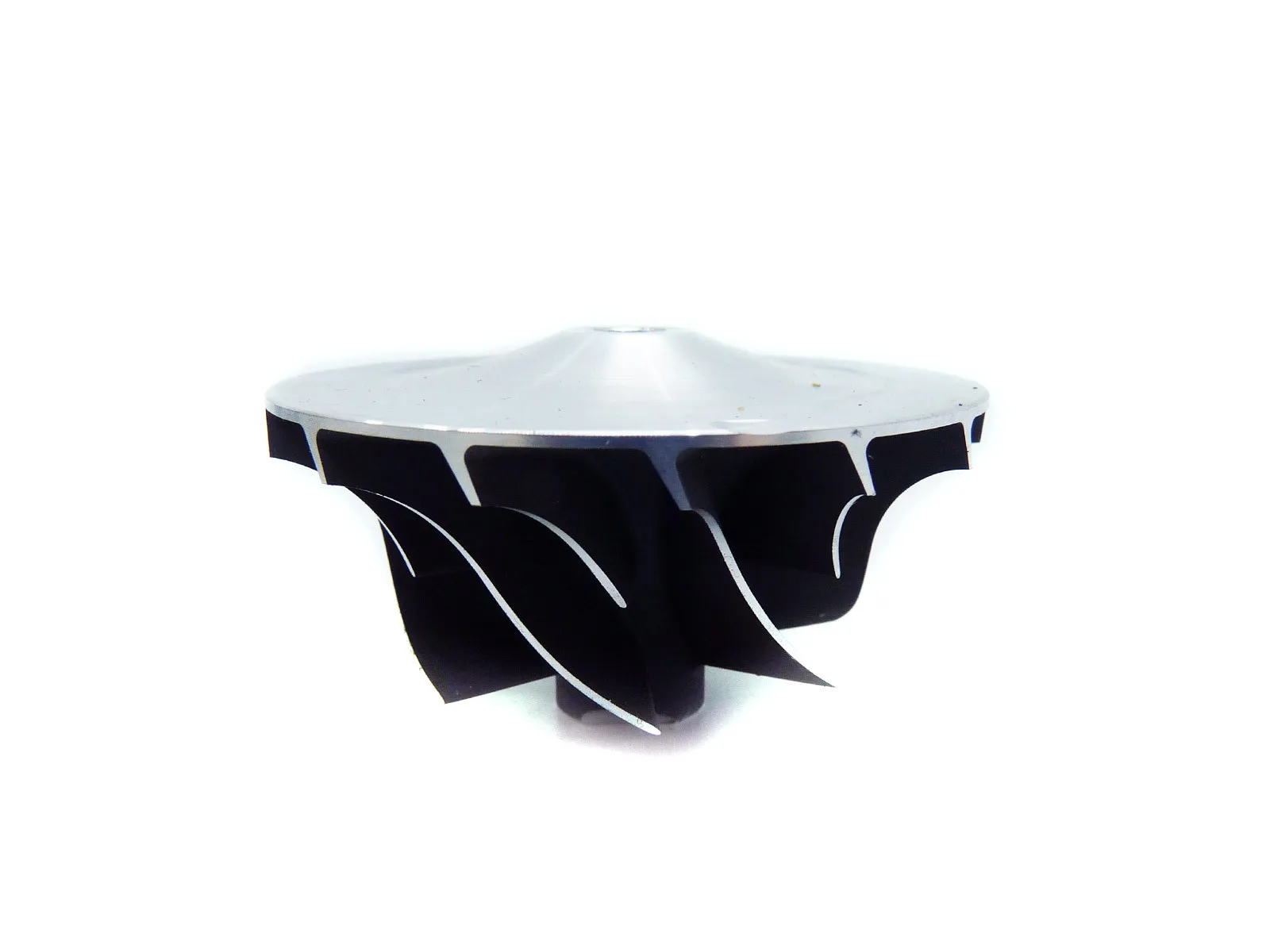

Kompresoriaus sparnuotė IH-03-0017

IH-03-0017 - Kompresoriaus sparnuotė

Markė: TurboCentras

TurboCentras Kodas: IH-03-0017

IH-03-0017 - Alternatyvūs numeriai

TCP (TurboCentras part number): IH-03-0017

TCO (TurboCentras old part number): RHF4-07

IH-03-0017 - Suderinamumo lentelė

Kompresoriaus sparnuotė IH-03-0017 - Suderinami turbokompresoriai
TURBINOS MARKĖ	TURBINOS MODELIS	TURBINOS KODAS	TURBO PART NUMBER	TURBINOS OE NUMERIS
IHI	RHF4	VB19	VB19	17201-0R040, 17201-0R041, 17201-26051, 17201-26053
IHI	RHF4	VB21	VB21	17201-0R040, 17201-0R041, 17201-26051, 17201-26053, 172010R040, 172010R041, 1720126051, 1720126053

IH-03-0017 - Dalies savybės

Blades (Compressor wheel blades count): 7/7

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method type): Cast

Back (Compressor wheel back design): Deep Super

A (Size A): 52.50

A1 (Size A1): 52.50

B (Size B): 36.30

C (Size C): 4.25

C1 (Size C1): 3.75

D (Size D): 29.70

E (Size E): 5.10

---

IH-03-0017, RHF4-07

---

17201-0R040, 17201-0R041, 17201-26051, 17201-26053, VB19, 17201-0R040, 17201-0R041, 17201-26051, 17201-26053, 172010R040, 172010R041, 1720126051, 1720126053, VB21

---

Duomenys atnaujinti: 2023-03-14 13:03:53
