0.2 kg (10x10x10 cm)
Kompresoriaus sparnuotė GA-03-0108
Thread: M6X1 LH
434292-0011, GA-03-0108, GT35-00
Kompresoriaus sparnuotė GA-03-0108 tubinoms 479016-0001, 479016-0002, 479016-0006, 701281-0002, 701281-0003, 701281-0004, 702172-0002, 702172-0003, 702172-0005, 702172-0006.
Daugiau info rasite žemiau

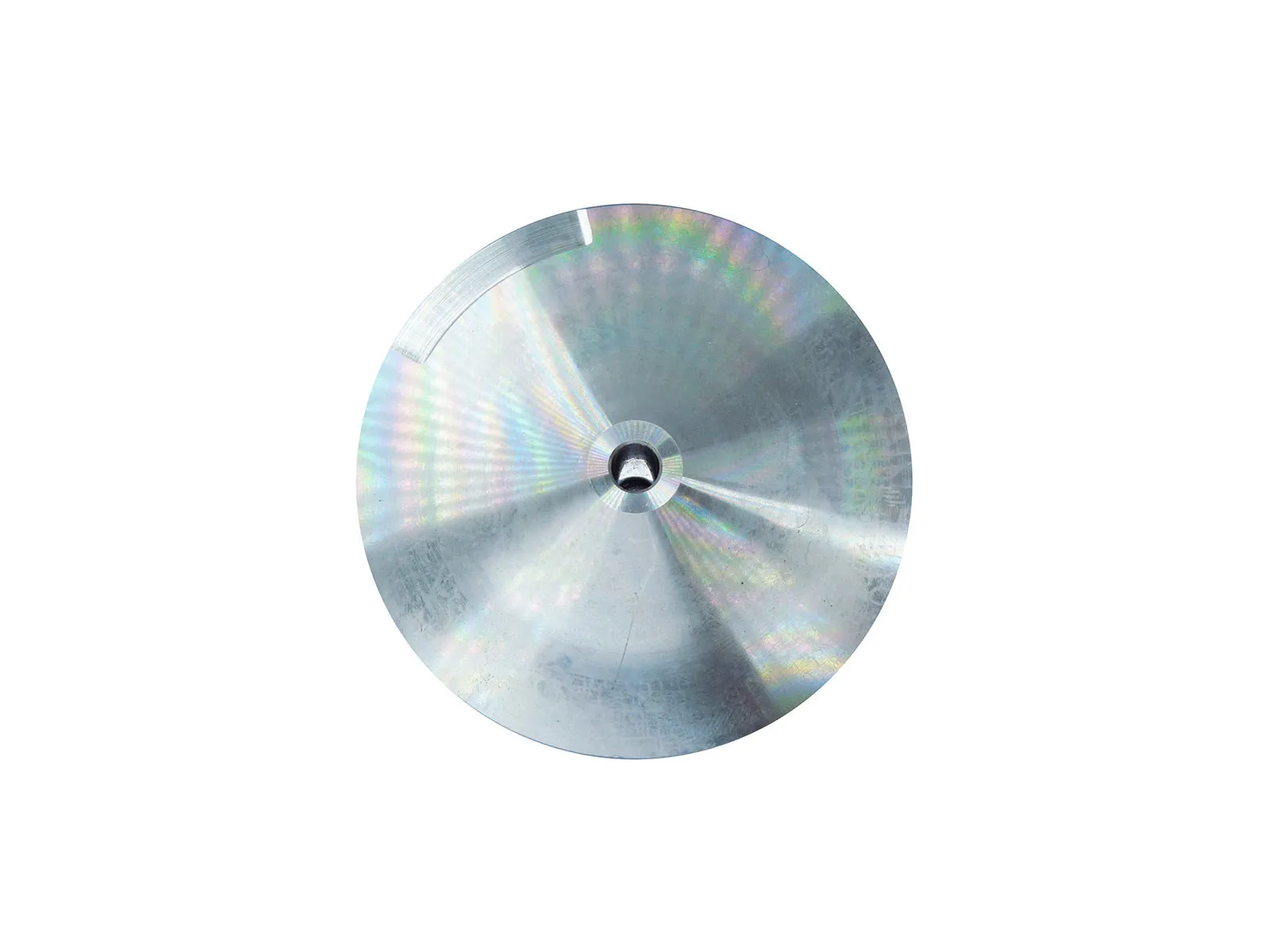

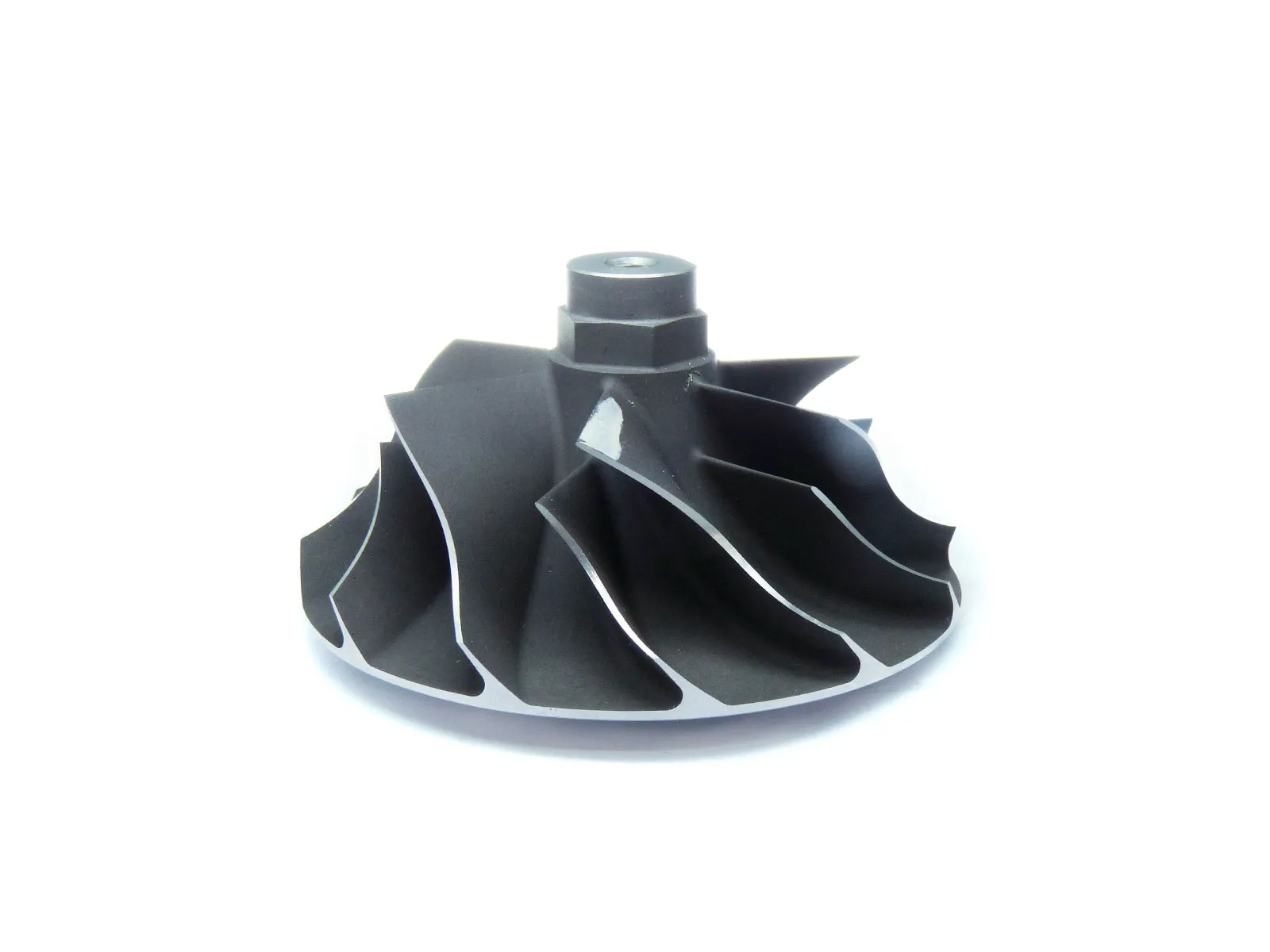

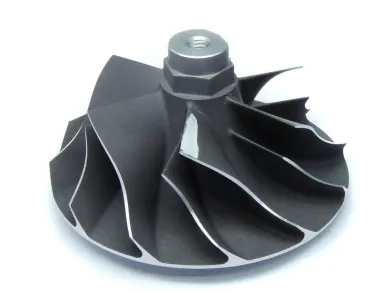

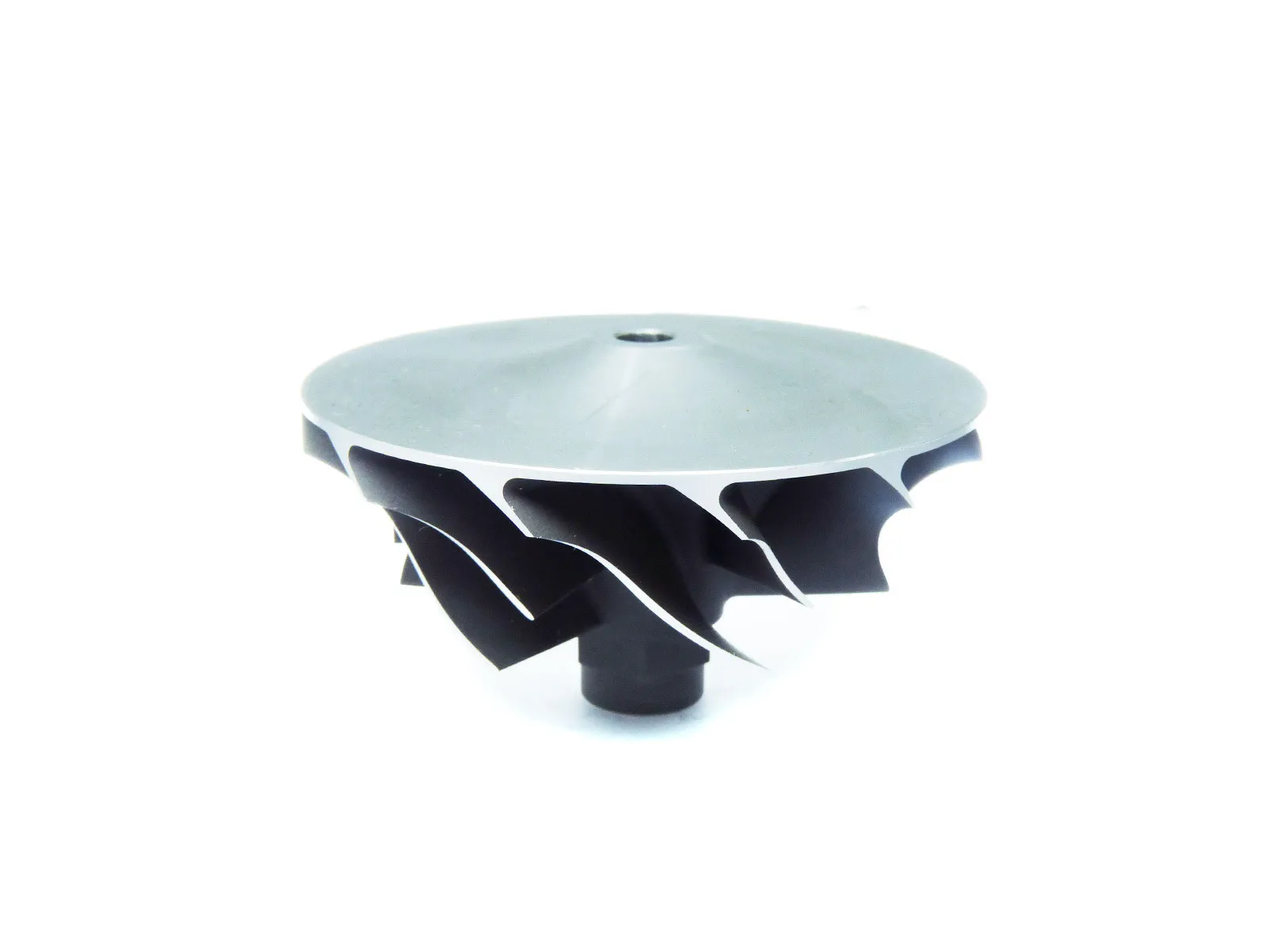

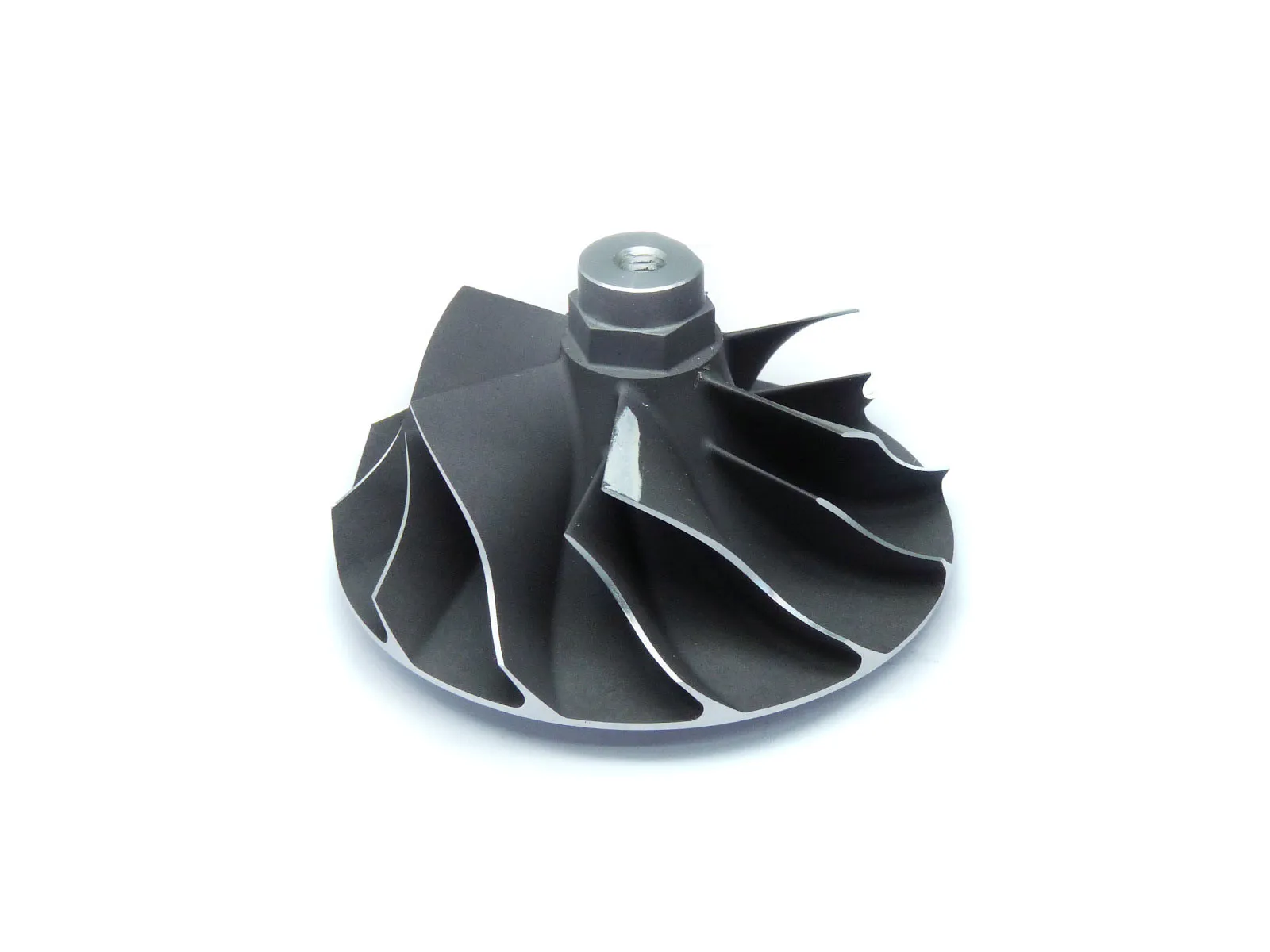

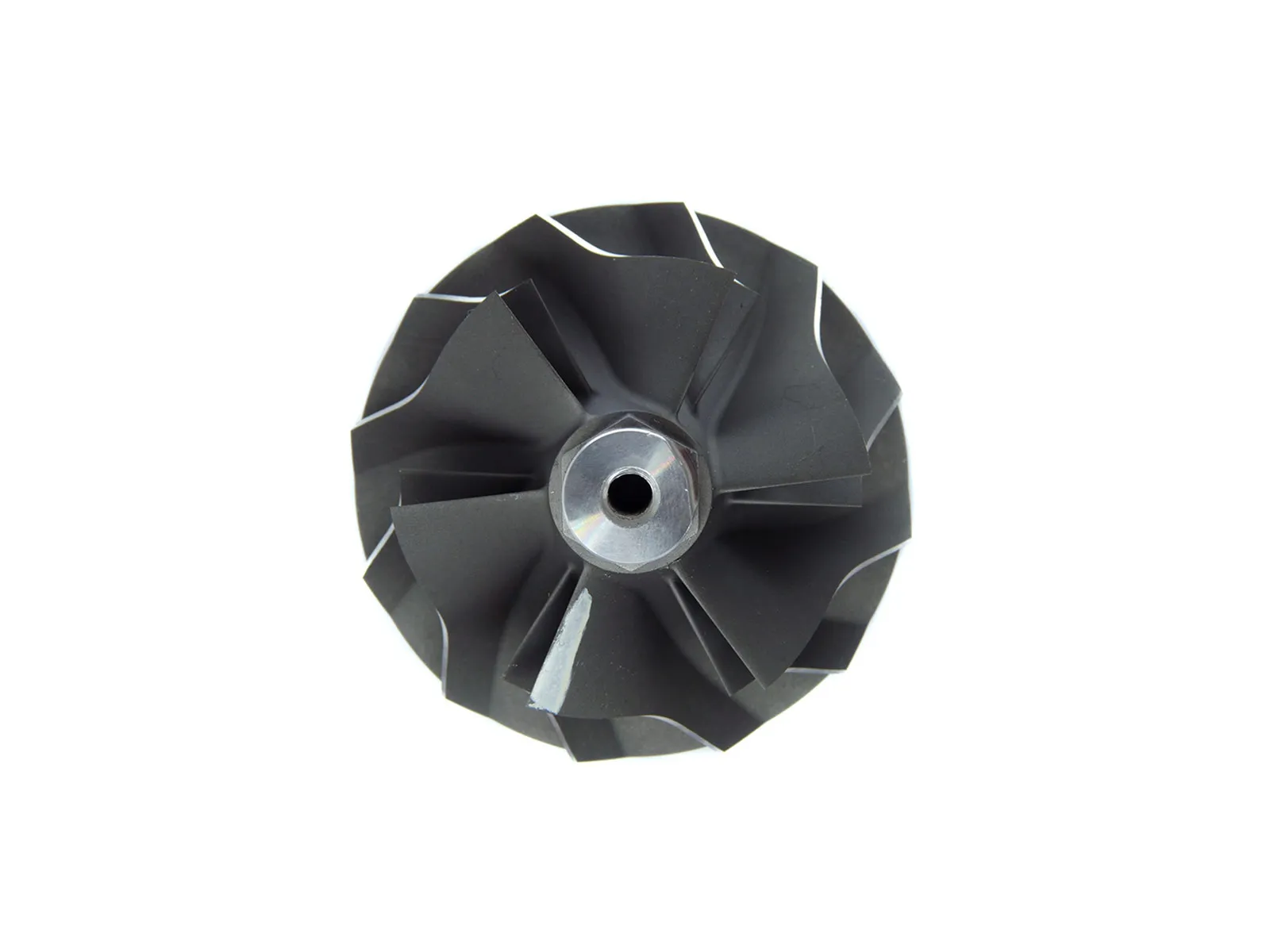

GA-03-0108 (434292-0011) - Kompresoriaus sparnuotė
Markė: TurboCentras
TurboCentras Kodas: GA-03-0108
OEM numeriai: 434292-0011
GA-03-0108 - Alternatyvūs numeriai
TCP (TurboCentras part number): GA-03-0108
TCO (TurboCentras old part number): GT35-00
GA-03-0108 - Suderinamumo lentelė
TURBINOS MARKĖ | TURBINOS MODELIS | TURBINOS KODAS | TURBINOS DALIES NUMERIS | TURBINOS OE NUMERIS |
---|---|---|---|---|
Garrett | GT3576DL | 479016-0001 | 479016-0001, 479016-5001S | -- |
Garrett | GT3576 | 479016-0002 | 479016-0002 | -- |
Garrett | GT3576DL | 479016-0006 | 479016-0006, 479016-5006S | 17201-EW010 |
Garrett | GT3576D | 701281-0002 | 701281-0002 | -- |
Garrett | GT3576D | 701281-0003 | 701281-0003, 701281-5003S | 8943906392 |
Garrett | GT3576D | 701281-0004 | 701281-0004, 701281-5004S | 8976028090 |
Garrett | GT3576DL | 702172-0002 | 702172-0002 | -- |
Garrett | GT3576DL | 702172-0003 | 702172-0003 | -- |
Garrett | GT3576DL | 702172-0005 | 702172-0005, 702172-5005S | 14201Z5711 |
Garrett | GT3576DL | 702172-0006 | 702172-0006 | -- |
Garrett | GT3576DL | 702172-0008 | 702172-0008 | -- |
Garrett | GT3576DL | 702172-0009 | 702172-0009 | -- |
Garrett | GT3576DN | 702172-0010 | 702172-0010, 702172-5010S | 14201-Z5778 |
Garrett | GT3576DL | 702172-0012 | 702172-0012, 702172-5012S | 14201Z5905 |
Garrett | GT3576DL | 702172-0013 | 702172-0013, 702172-5013S | 14201Z5907 |
Garrett | GT3576 | 702173-0001 | 702173-0001 | -- |
Garrett | GT35 | 724671-0001 | 724671-0001 | -- |
Garrett | GT3576D | 750849-0001 | 750849-0001, 750849-5001S | 241003251C |
Garrett | GT3576DL | 750849-0002 | 750849-0002 | -- |
Garrett | GT3576DL | 825366-0004 | 825366-0004, 825366-5004S | 17201-EW040 |
Garrett | GT3576DL | 860786-0002 | 860786-0002 | 17201-EW041 |
GA-03-0108 - Dalies savybės
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 76.20
A1 (Size A1): 76.20
B (Size B): 57.00
C (Size C): 6.65
C1 (Size C1): 4.50
D (Size D): 42.80
E (Size E): 6.35
434292-0011, GA-03-0108, GT35-00
479016-0001, 479016-5001S, 479016-0002, 17201-EW010, 479016-0006, 479016-5006S, 701281-0002, 701281-0003, 701281-5003S, 8943906392, 701281-0004, 701281-5004S, 8976028090, 702172-0002, 702172-0003, 14201Z5711, 702172-0005, 702172-5005S, 702172-0006, 702172-0008, 702172-0009, 14201-Z5778, 702172-0010, 702172-5010S, 14201Z5905, 702172-0012, 702172-5012S, 14201Z5907, 702172-0013, 702172-5013S, 702173-0001, 724671-0001, 241003251C, 750849-0001, 750849-5001S, 750849-0002, 17201-EW040, 825366-0004, 825366-5004S, 17201-EW041, 860786-0002
Duomenys atnaujinti: 2024-06-10 17:21:02
