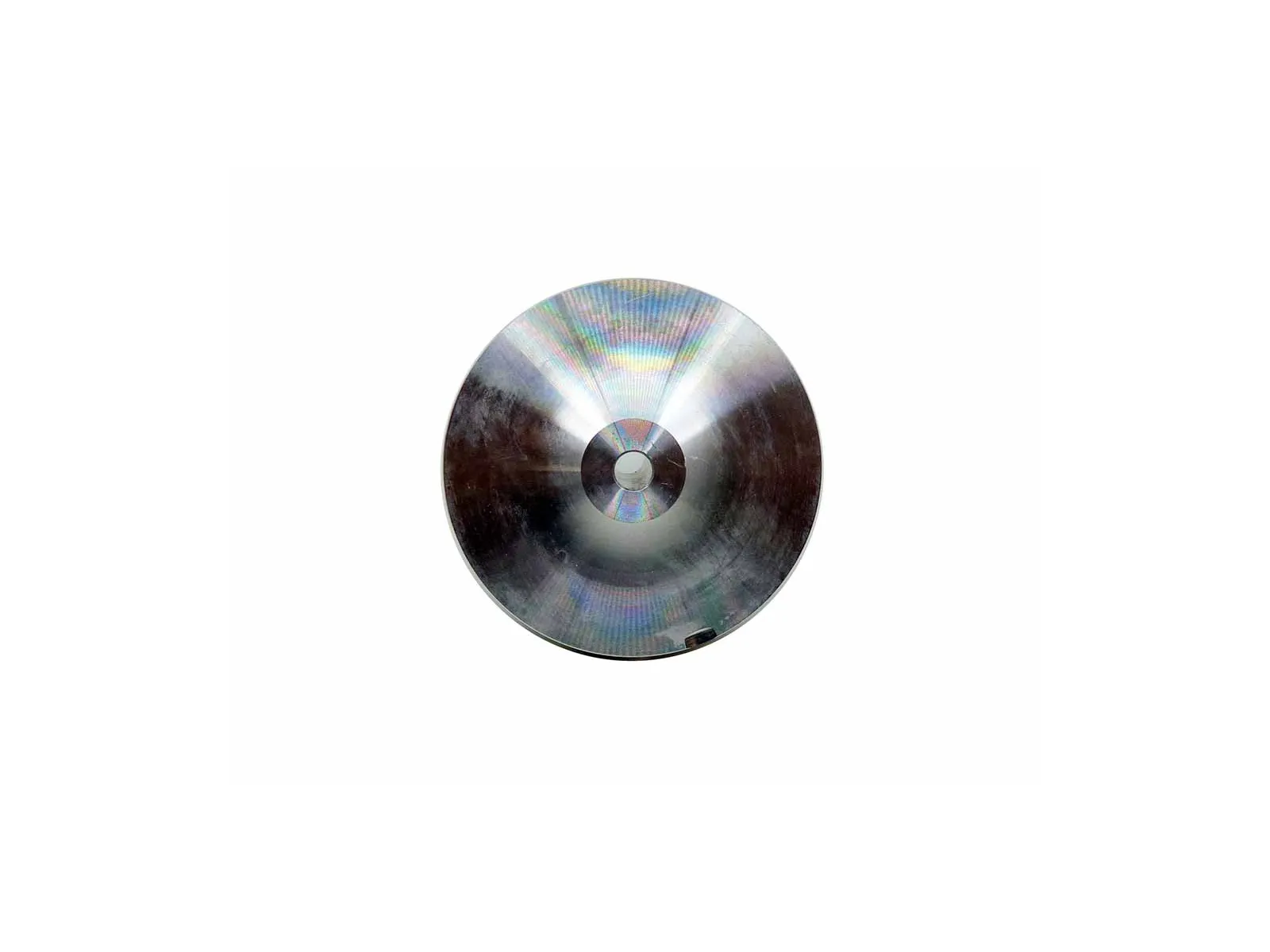

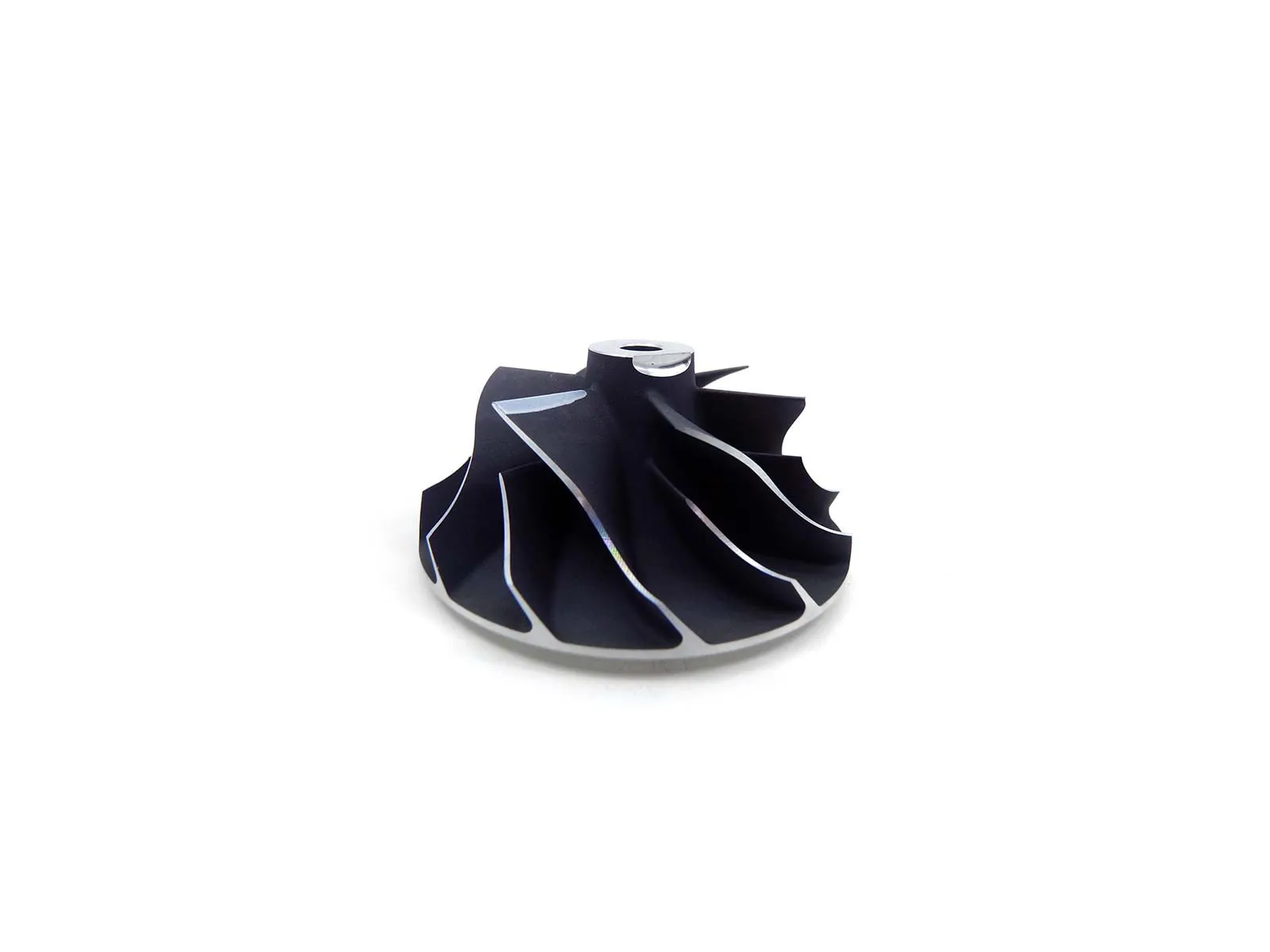

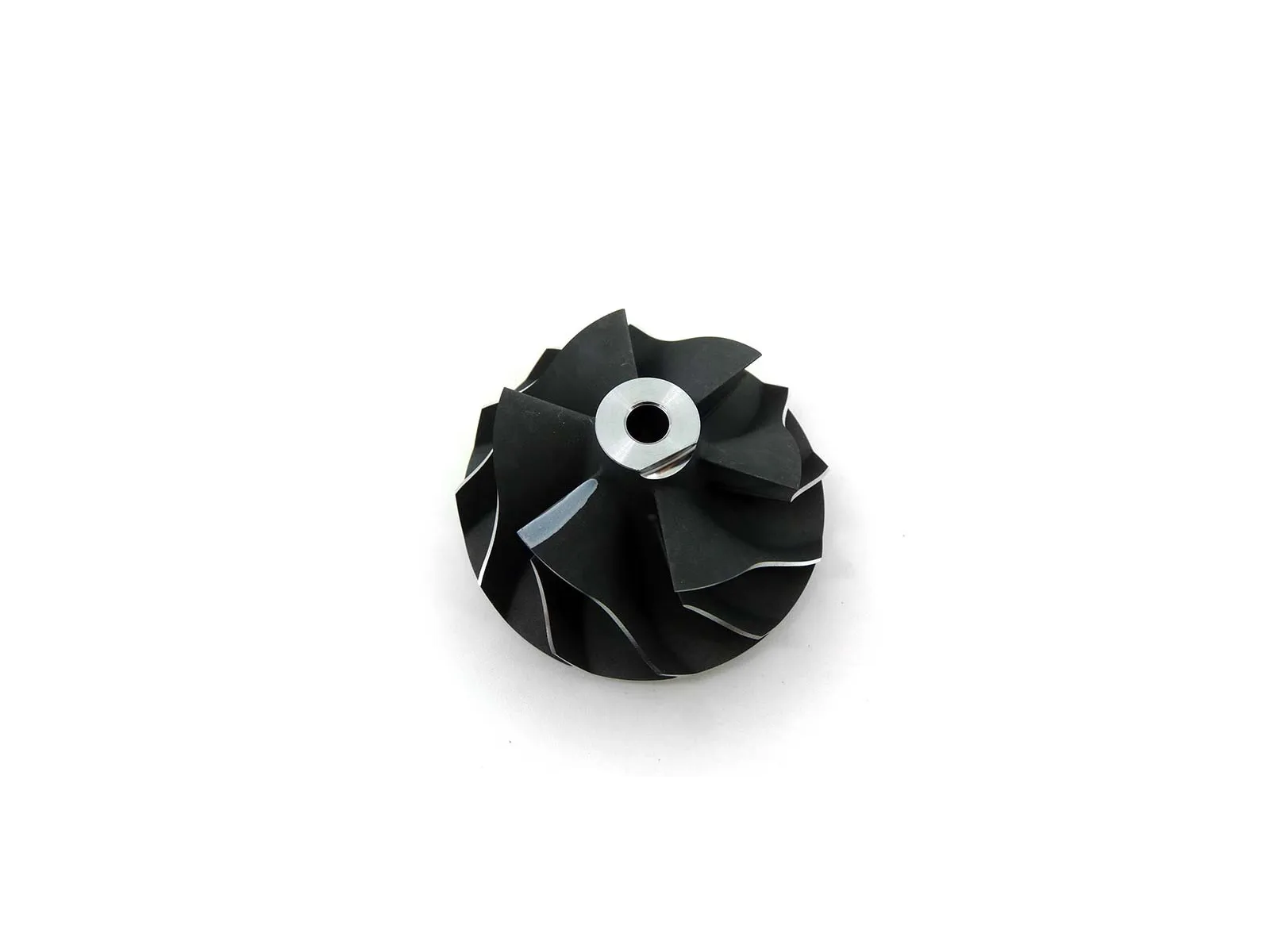

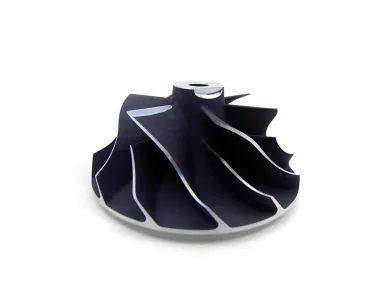

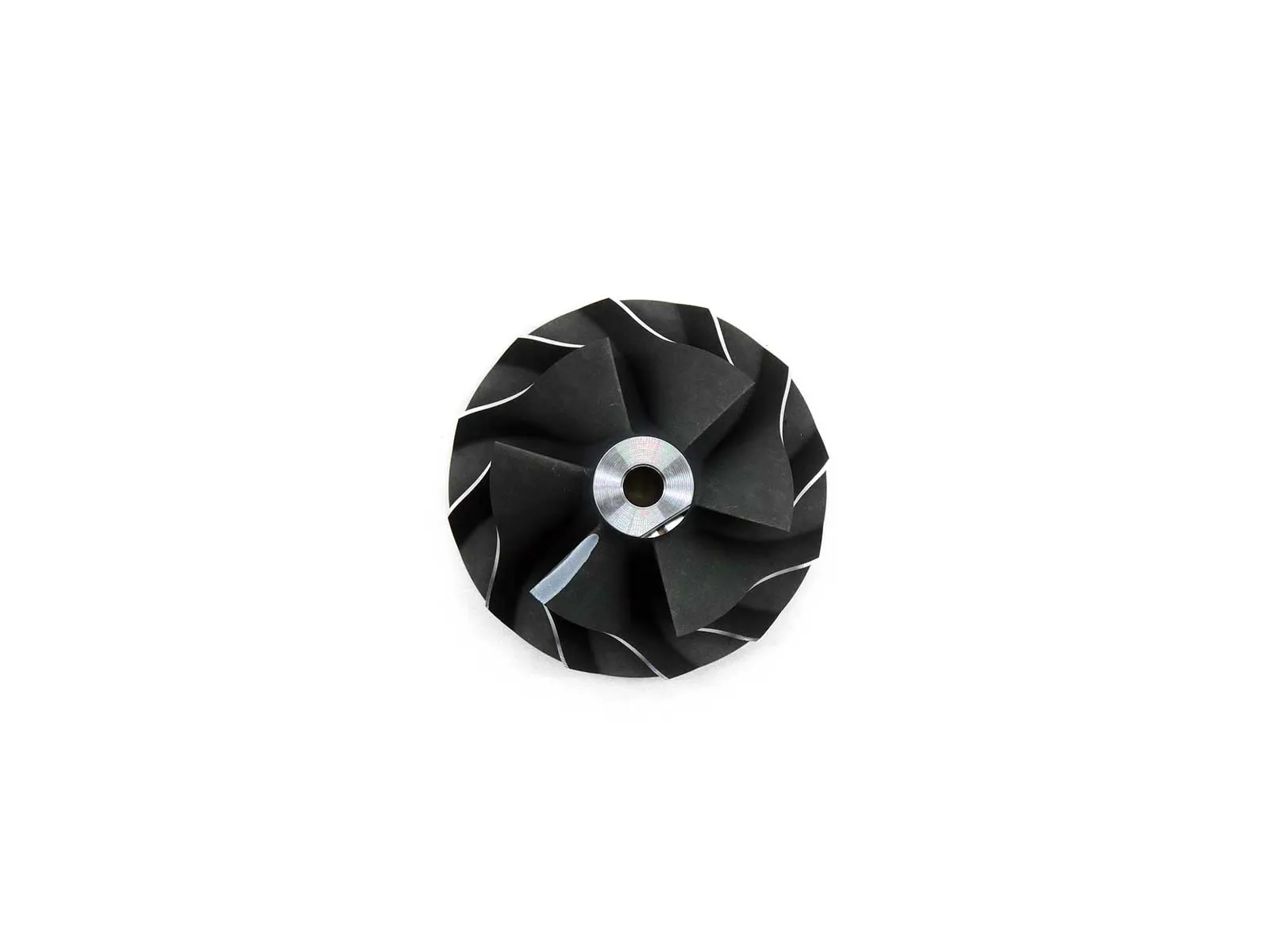

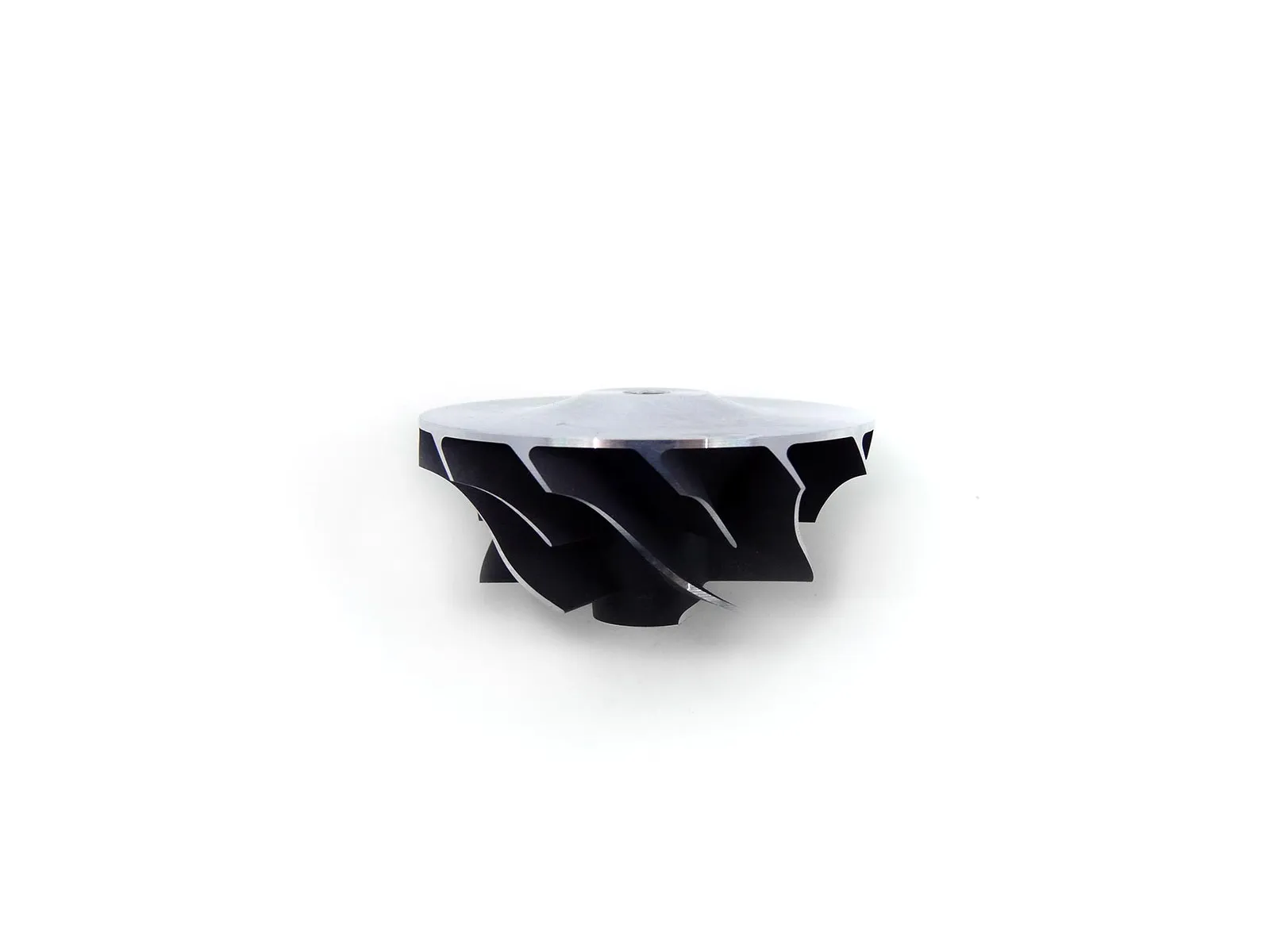

Kompresoriaus sparnuotė GA-03-0071
729612-0002, 729612-0005, GA-03-0071, GT20-00
Kompresoriaus sparnuotė GA-03-0071 tubinoms 731320-0001, 751479-0003, 755013-0003, 755013-0004, 755013-0005, 755013-0006, 760986-0007, 760986-0009, 760986-0010, 760986-0011.
Daugiau info rasite žemiau
GA-03-0071 (729612-0002, 729612-0005) - Kompresoriaus sparnuotė
Markė: TurboCentras
TurboCentras Kodas: GA-03-0071
OEM numeriai: 729612-0002, 729612-0005
GA-03-0071 - Alternatyvūs numeriai
TCP (TurboCentras part number): GA-03-0071
TCO (TurboCentras old part number): GT20-00
GA-03-0071 - Suderinamumo lentelė
| TURBINOS MARKĖ | TURBINOS MODELIS | TURBINOS KODAS | TURBINOS DALIES NUMERIS | TURBINOS OE NUMERIS |
|---|---|---|---|---|
| Garrett | GT2052GLS | 731320-0001 | 731320-0001 | PMF00009, PMF000090 |
| Garrett | GT1752S | 751479-0003 | 751479-0003 | 30014076 |
| Garrett | GT2052LS | 755013-0003 | 755013-0003 | -- |
| Garrett | GT2052LS | 755013-0004 | 755013-0004 | -- |
| Garrett | GT2052LS | 755013-0005 | 755013-0005 | 1016500GD030 |
| Garrett | GT2052LS | 755013-0006 | 755013-0006 | 1016500GD037 |
| Garrett | GT2056S | 760986-0007 | 760986-0007 | -- |
| Garrett | GT2056S | 760986-0009 | 760986-0009 | 40226009C |
| Garrett | GT2056S | 760986-0010 | 760986-0010 | -- |
| Garrett | GT2056S | 760986-0011 | 760986-0011 | 40226305A |
| Garrett | GT2052GLS | 765472-0001 | 765472-0001 | PMF000090 |
| Garrett | GT2052GLS | 765472-0002 | 765472-0002 | PMF000090 |
| Garrett | GT2052LS | 771722-0001 | 771722-0001 | 710000477 |
| Garrett | GT2052LS | 771722-0002 | 771722-0002 | -- |
GA-03-0071 - Dalies savybės
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 52.00
A1 (Size A1): 52.00
B (Size B): 38.60
C (Size C): 5.70
C1 (Size C1): 2.40
D (Size D): 26.10
E (Size E): 5.08
729612-0002, 729612-0005, GA-03-0071, GT20-00
731320-0001, PMF00009, PMF000090, 30014076, 751479-0003, 755013-0003, 755013-0004, 1016500GD030, 755013-0005, 1016500GD037, 755013-0006, 760986-0007, 40226009C, 760986-0009, 760986-0010, 40226305A, 760986-0011, 765472-0001, PMF000090, 765472-0002, PMF000090, 710000477, 771722-0001, 771722-0002
Duomenys atnaujinti: 2024-05-15 16:43:41
