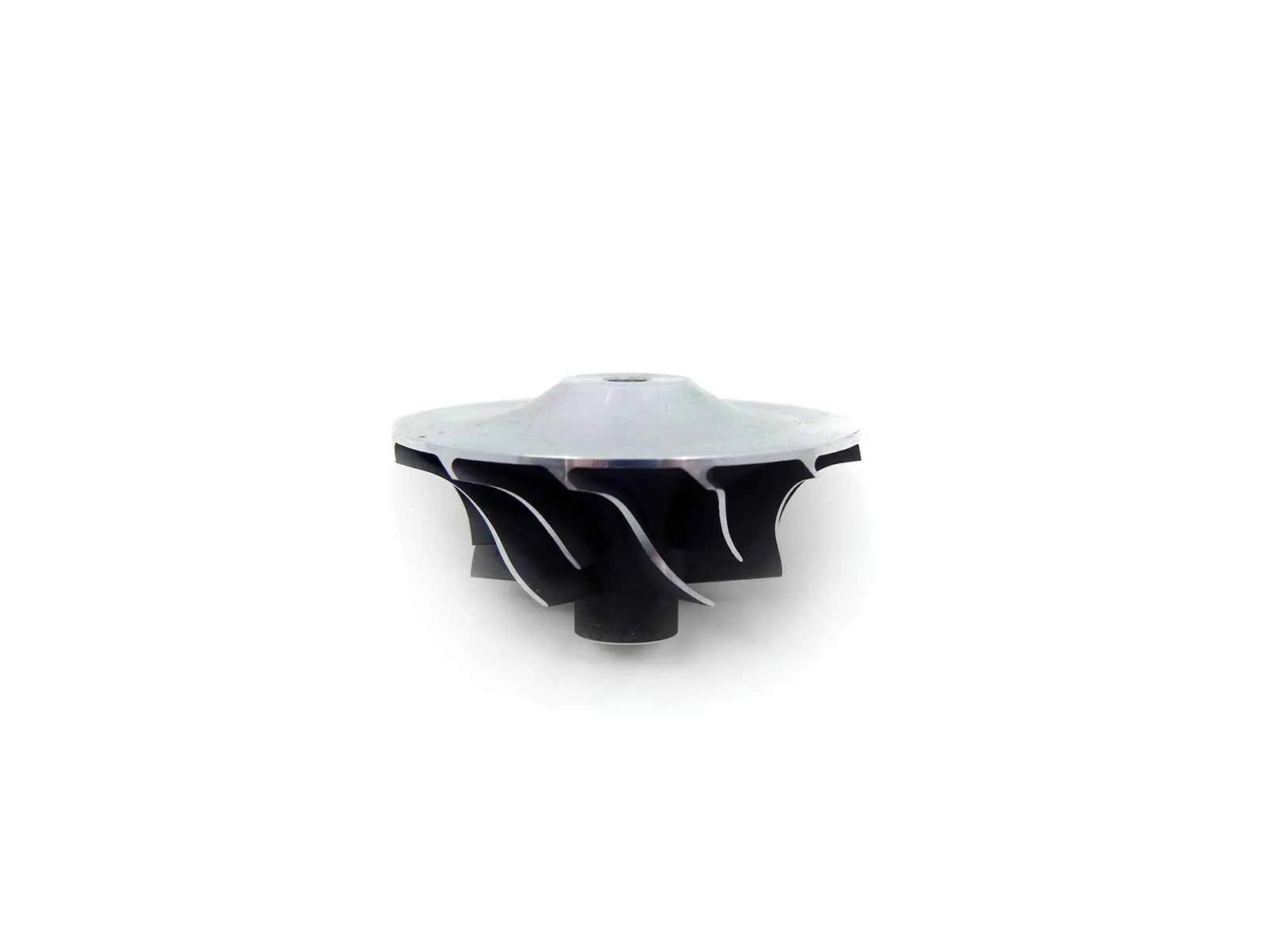

Kompresoriaus sparnuotė GA-03-0020

GA-03-0020 - Kompresoriaus sparnuotė

Markė: TurboCentras

TurboCentras Kodas: GA-03-0020

GA-03-0020 - Alternatyvūs numeriai

TCP (TurboCentras part number): GA-03-0020

TCO (TurboCentras old part number): GT14-07

GA-03-0020 - Suderinamumo lentelė

Kompresoriaus sparnuotė GA-03-0020 - Suderinami turbokompresoriai
TURBINOS MARKĖ	TURBINOS MODELIS	TURBINOS KODAS	TURBO PART NUMBER	TURBINOS OE NUMERIS
Garrett	GT1444Z	778401-0004	778401-0004	AH2Q6K682AC, LR013205
Garrett	GT1444Z	778401-0005	778401-0005	AH2Q6K682AD, AH2Q6K682AF, LR013205, LR021254, LR032370, LR038620, LR056370, LR063777
Garrett	GT1444Z+VTC	778401-0006	778401-0006	AH2Q6K682AE, LR032370
Garrett	GT1444Z	778401-0007	778401-0007	LR029236
Garrett	GT1444Z	778401-0008	778401-0008	AH2Q6K682AF, LR038620
Garrett	GT1444Z VTC	778401-0010	778401-0010	AH2Q6K682AH
Garrett	GT1444Z+VTC	778401-0011	778401-0011	AH2Q6K682AJ, LR063777
Garrett	GT1444Z+VTC	778401-0012	778401-0012	AH2Q6K682AK, LR063777
Garrett	GT1444Z+VTC	778402-0004	778402-0004, 778402-5004S	02C2C40365, AX2Q6K682BC
Garrett	GT1444Z+VTC	778402-0005	778402-0005, 778402-5005S	AX2Q6K682BD
Garrett	GT1444Z+VTC	778402-0006	778402-0006, 778402-5006S	AX2Q6K682BE
Garrett	GT1444Z+VTC	778402-0008	778402-0008, 778402-5008S	AX2Q6K682BF
Garrett	GT1444Z+VTC	778402-0010	778402-0010, 778402-5010S	AX2Q6K682BH

GA-03-0020 - Dalies savybės

Blades (Compressor wheel blades count): 6/6

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method type): Cast

Back (Compressor wheel back design): Deep Super

A (Size A): 44.00

A1 (Size A1): 44.00

B (Size B): 29.50

C (Size C): 2.90

C1 (Size C1): 4.00

D (Size D): 24.20

E (Size E): 4.08

---

GA-03-0020, GT14-07

---

778401-0004, AH2Q6K682AC, LR013205, 778401-0005, AH2Q6K682AD, AH2Q6K682AF, LR013205, LR021254, LR032370, LR038620, LR056370, LR063777, 778401-0006, AH2Q6K682AE, LR032370, 778401-0007, LR029236, 778401-0008, AH2Q6K682AF, LR038620, 778401-0010, AH2Q6K682AH, 778401-0011, AH2Q6K682AJ, LR063777, 778401-0012, AH2Q6K682AK, LR063777, 02C2C40365, 778402-0004, 778402-5004S, AX2Q6K682BC, 778402-0005, 778402-5005S, AX2Q6K682BD, 778402-0006, 778402-5006S, AX2Q6K682BE, 778402-0008, 778402-5008S, AX2Q6K682BF, 778402-0010, 778402-5010S, AX2Q6K682BH

---

Duomenys atnaujinti: 2023-02-20 11:02:11
