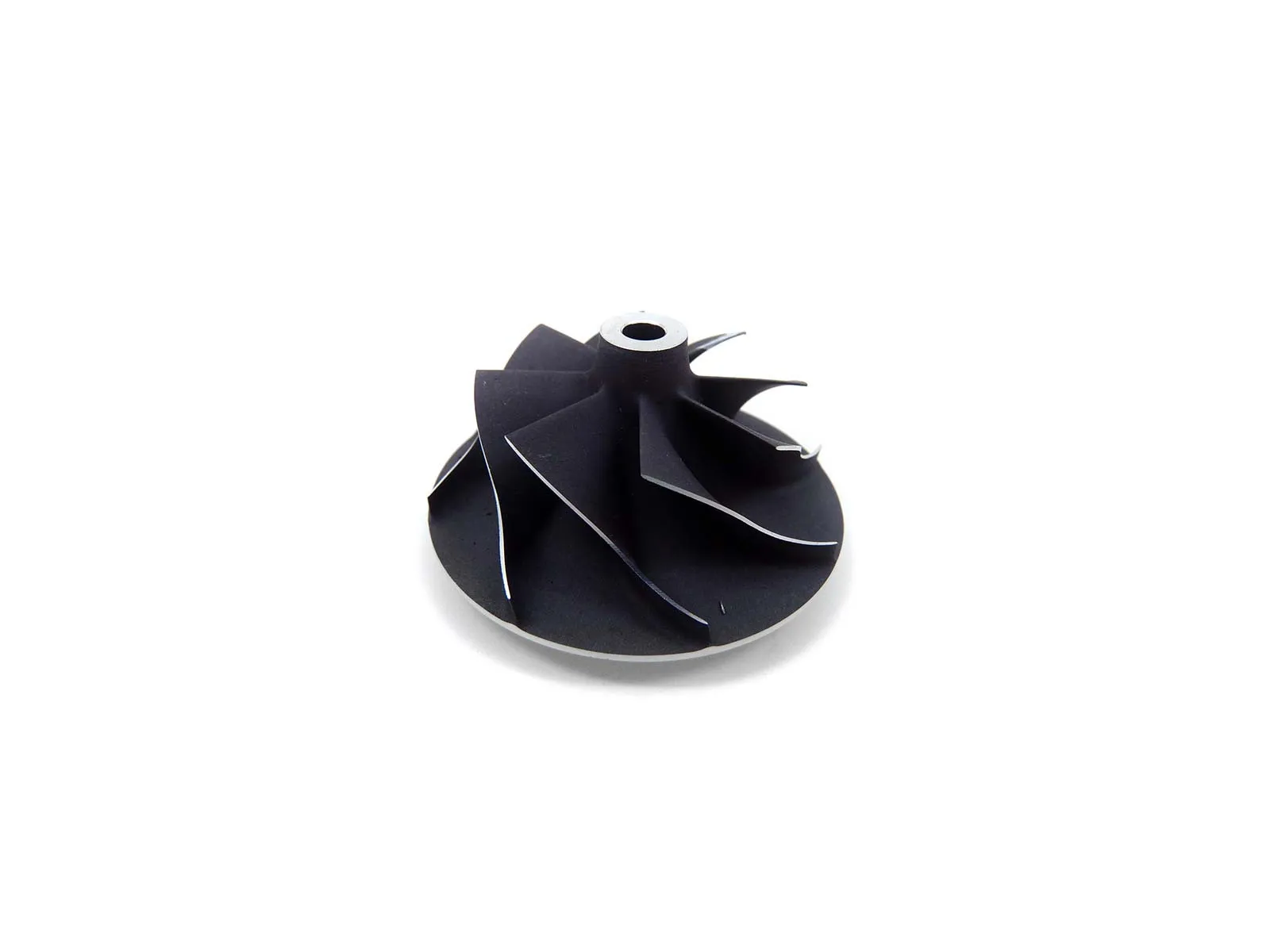

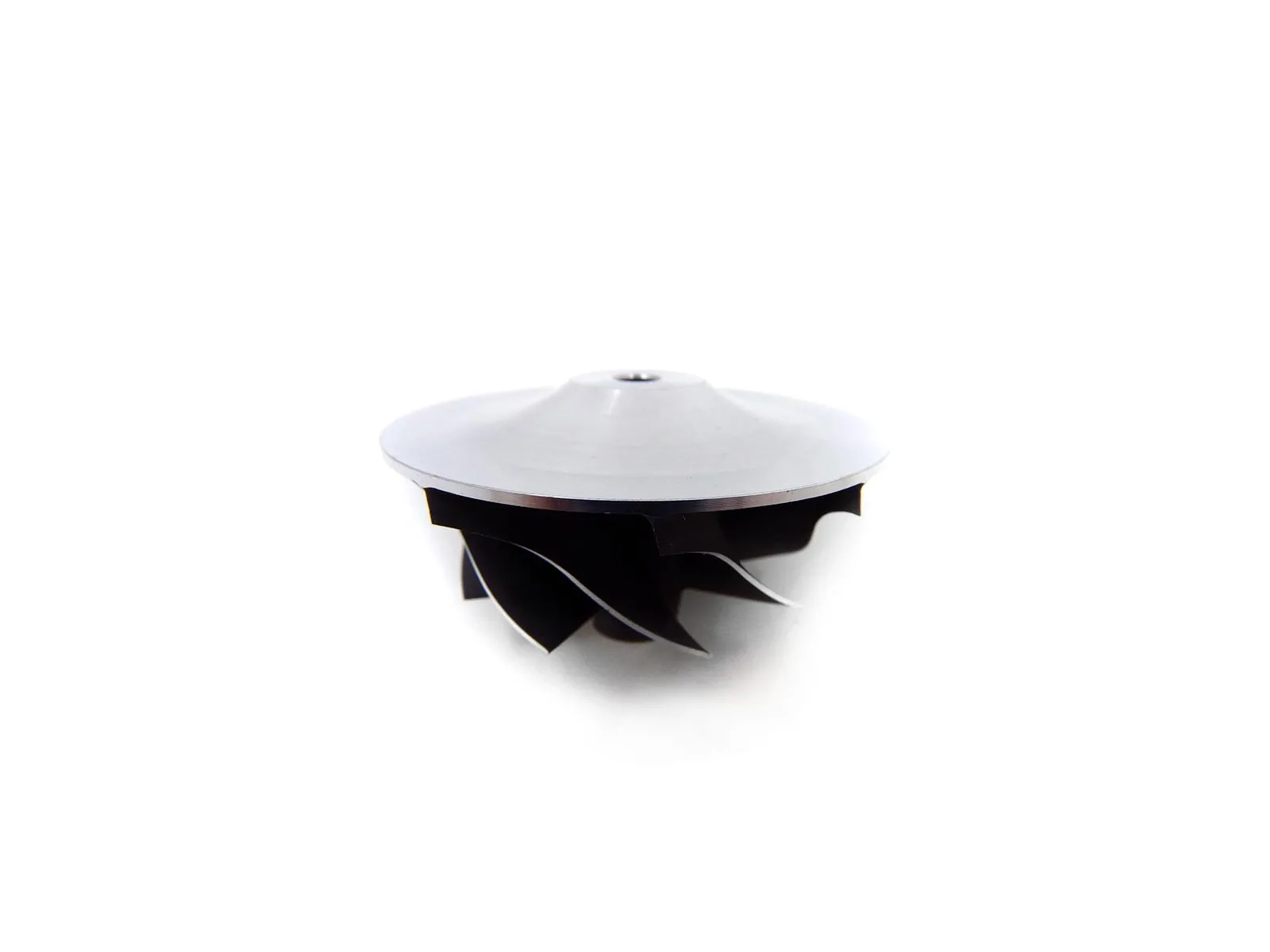

Kompresoriaus sparnuotė GA-03-0014

GA-03-0014 - Kompresoriaus sparnuotė

Markė: TurboCentras

TurboCentras Kodas: GA-03-0014

GA-03-0014 - Alternatyvūs numeriai

TCP (TurboCentras part number): GA-03-0014

TCO (TurboCentras old part number): GT14-02

GA-03-0014 - Suderinamumo lentelė

Kompresoriaus sparnuotė GA-03-0014 - Suderinami turbokompresoriai
TURBINOS MARKĖ	TURBINOS MODELIS	TURBINOS KODAS	TURBO PART NUMBER	TURBINOS OE NUMERIS
Garrett	GTB1444VZ	775274-0002	775274-0002, 775274-5002S	28201-2A701, 282012A701, M28201-2A700, M28201-2A701, M282012A700, M282012A701
Garrett	GTB1444VZ	775274-0003	775274-0003, 775274-5003S	28201-2A710, 282012A710
Garrett	GTB1444VZ	794097-0001	794097-0001, 794097-5001S	28201-2A800, 282012A800

GA-03-0014 - Dalies savybės

Blades (Compressor wheel blades count): 8/8

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method type): Cast

Back (Compressor wheel back design): Deep Super

A (Size A): 44.50

A1 (Size A1): 44.50

B (Size B): 32.60

C (Size C): 3.90

C1 (Size C1): 4.00

D (Size D): 24.20

E (Size E): 4.08

---

GA-03-0014, GT14-02

---

28201-2A701, 282012A701, 775274-0002, 775274-5002S, M28201-2A700, M28201-2A701, M282012A700, M282012A701, 28201-2A710, 282012A710, 775274-0003, 775274-5003S, 28201-2A800, 282012A800, 794097-0001, 794097-5001S

---

Duomenys atnaujinti: 2023-02-16 12:09:29
