Product package: 1.9 kg (20x20x20 cm)

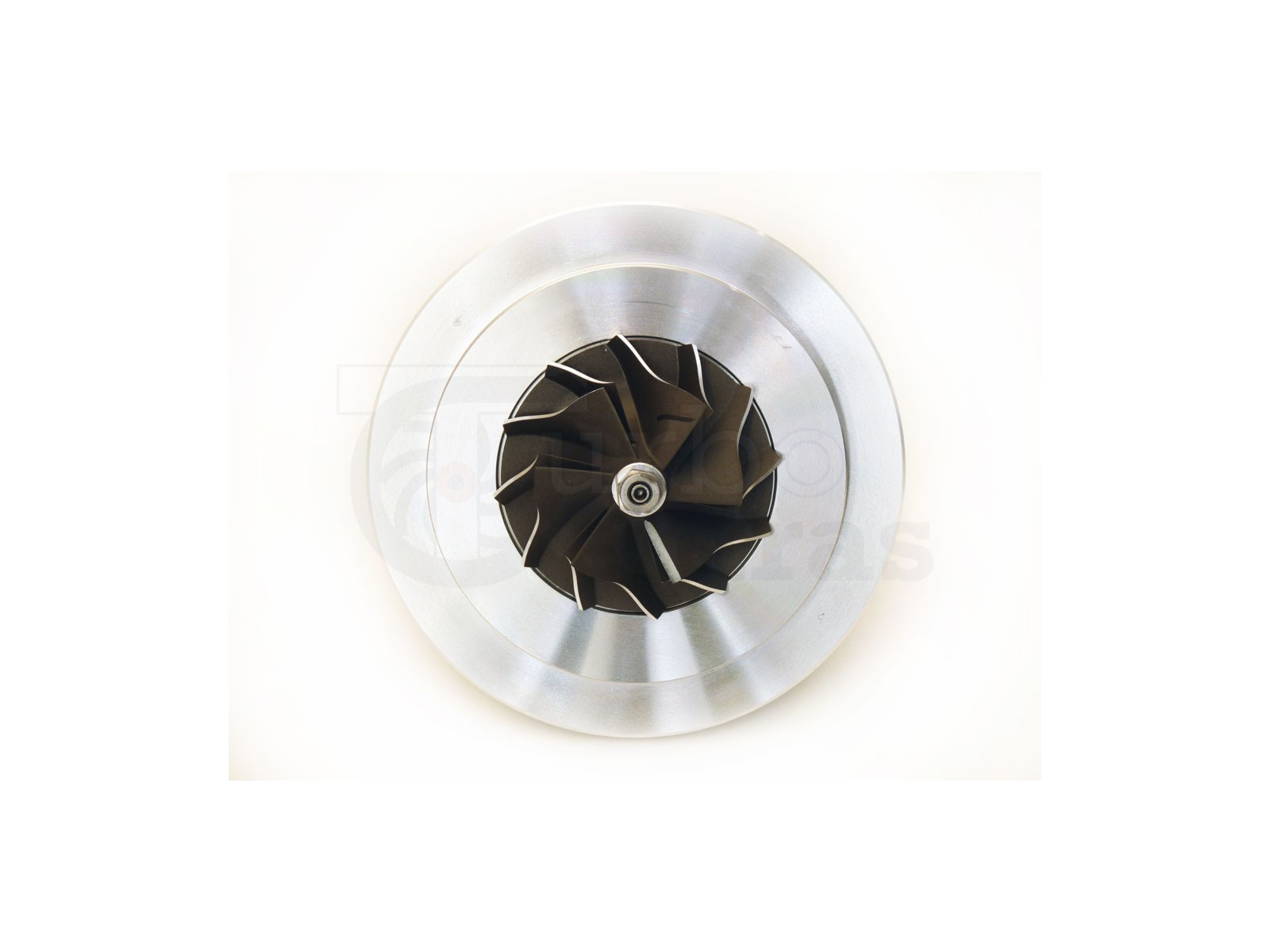

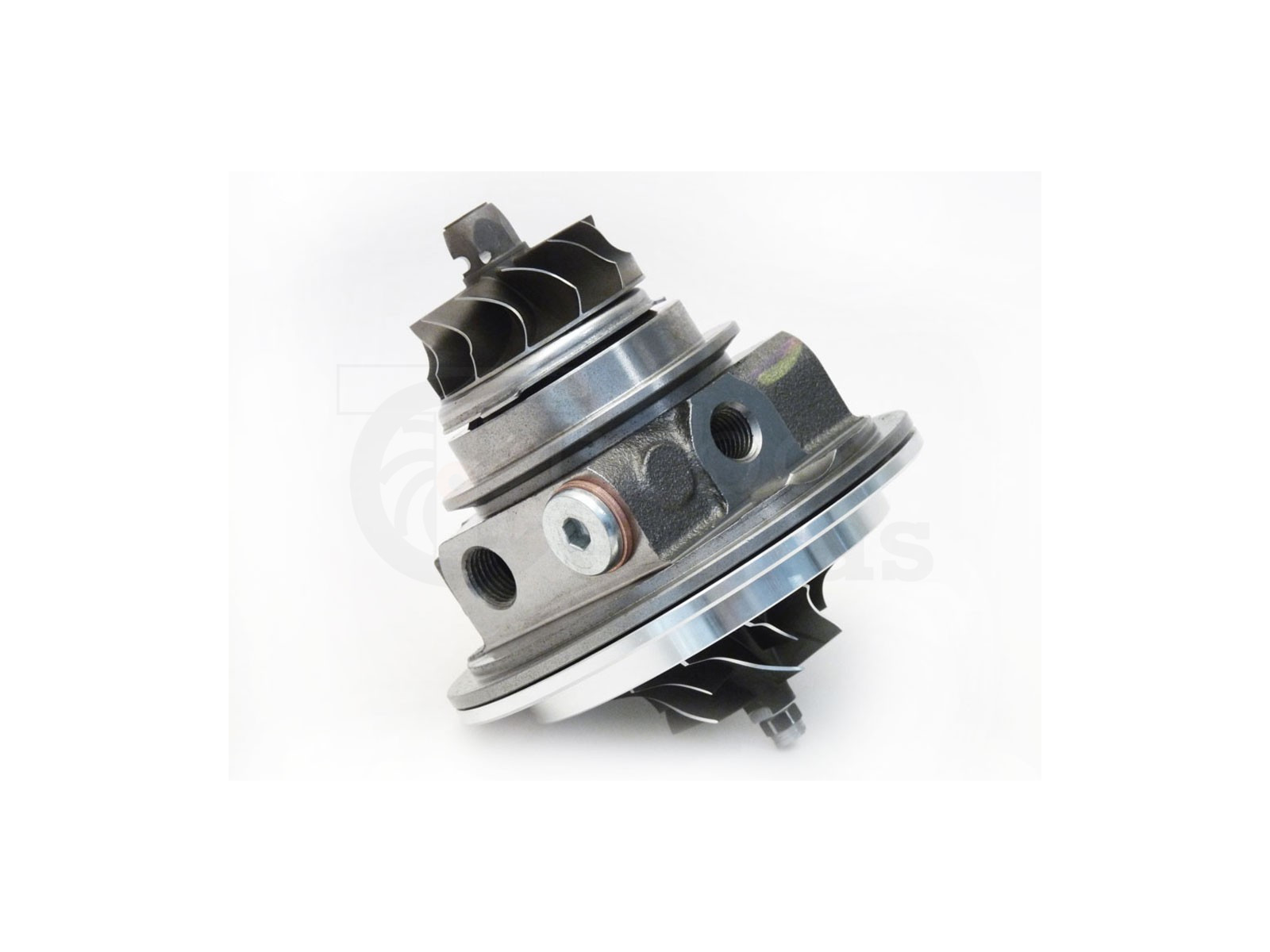

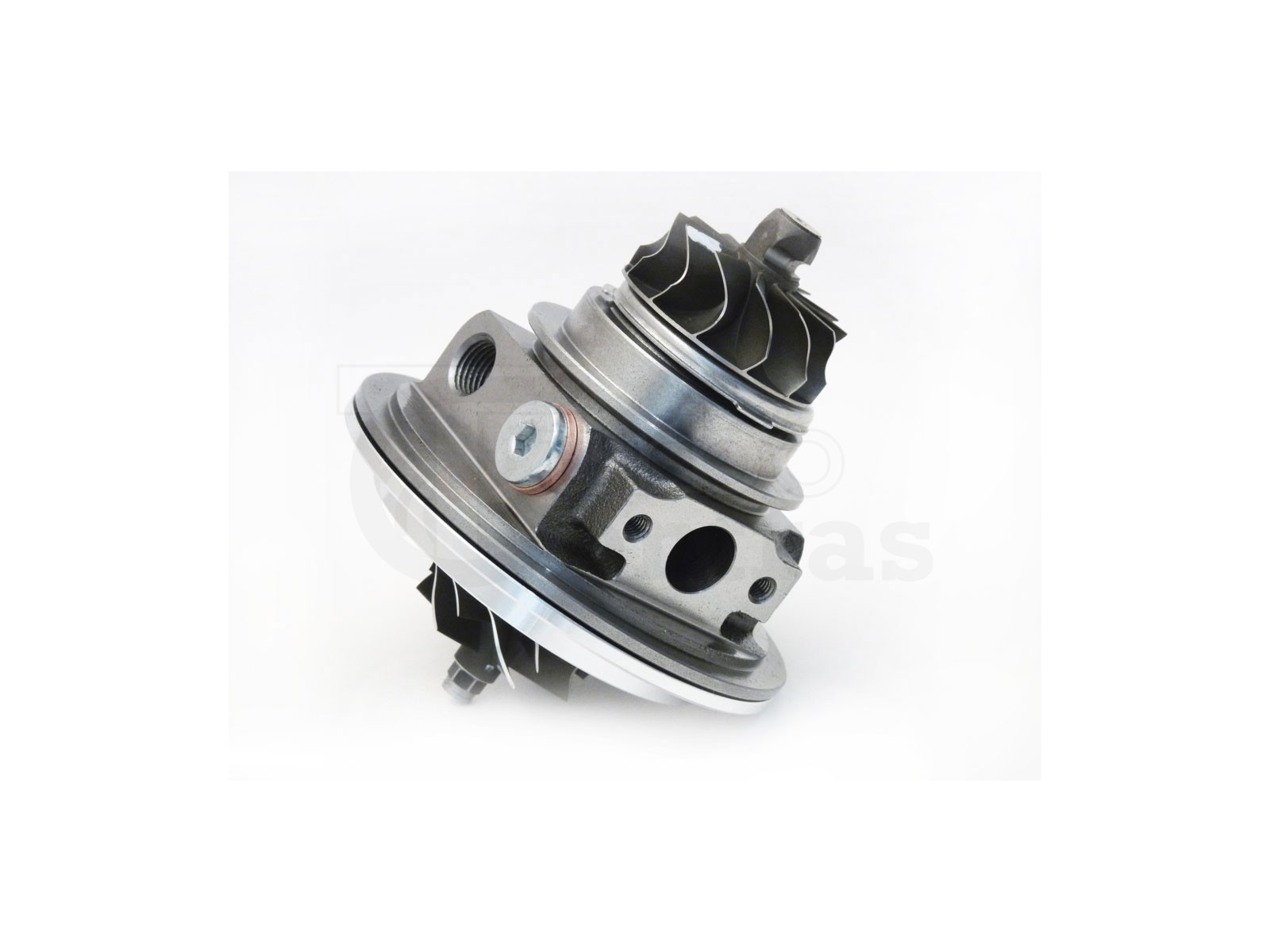

Rdzeń do turbosprężareki K04-215

Name: Rdzeń do turbosprężareki K04-215
Brand: TurboCentras
SKU: K04-215
Price: 100.22 EUR
Availability: InStock

Indeks K04-215

Stan: Nowy

Na stanie (2 Przedmioty)

100,22 €

Dostawa w ciągu 3-8 dni

BW-00-0099, K04-215

Rdzeń do turbosprężareki K04-215 for turbos K0422-582.

See below for more info

K04-215

K04-215

Marka: TurboCentras

Indeks: K04-215

Part numbers

TCP: BW-00-0099

TCO: K04-215

Used in turbochargers

Hitachi K0422-582 K04

Included parts

Shaft and wheel BW-02-0054

Compressor wheel BW-03-0088

Back plate BW-08-0019

Piston ring GT15-170

Heat shield K03-326

Journal bearing K03/04-110

Thrust bearing K03/04-120

Thrust flinger K03/04-130

Retaining ring K03/04-143

Retaining ring K03/04-144

Retaining ring K03/04-145

Oil deflector K03/04-146

Thrust washer K03/04-155

Piston ring K03/04-160

Shaft nut K03/04-180

O-ring K03/04-200

Bearing housing K04-306

Gasket oil outlet T-1

K04-215 - Rdzeń do turbosprężareki

Marka: TurboCentras

TurboCentras Reference: K04-215

K04-215 - Alternative numbers

TCN (TurboCentras part number): BW-00-0099

TCO (TurboCentras old part number): K04-215

K04-215 - Compatibility table

Rdzeń do turbosprężareki K04-215 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO OE NUMBER
Hitachi	K04-2274DCB TG HWTS	K0422-582	GL214770-C, L33L13700B

BW-00-0099, K04-215

Data updated: 2022-06-14 16:48:55

W magazynie 2 Przedmioty

Stan: Nowy

Na stanie

Oil Deflectors

Oil deflector K03/04-146

TurboCentras

K03/04-146

0,84 €

BW-33-0001, K03/04-146Oil deflector K03/04-146 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info.

Na stanie

Thrust flingers

Thrust flinger K03/04-130

TurboCentras

K03/04-130

5,44 €

Thrust flinger K03/04-130 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info.

Na stanie

Thrust washers

Thrust washer K03/04-155

TurboCentras

K03/04-155

2,00 €

BW-43-0006, K03/04-155Thrust washer K03/04-155 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info

Na stanie

Thrust Bearings

Thrust bearing K03/04-120

TurboCentras

K03/04-120

4,80 €

Thrust bearing K03/04-120 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info.

Na stanie

Bearing housings

Bearing housing K04-306

TurboCentras

K04-306

30,86 €

BW-01-0077, K04-306Bearing housing K04-306 for turbos 53049700033, K0422-582, K0422-881, K0422-882.See below for more info.

Na stanie

Back plates

Back plate BW-08-0019

TurboCentras

BW-08-0019

5,68 €

5304-151-5708, BW-08-0019, K03-64Back plate BW-08-0019 for turbos 53049700020, 53049700022, 53049700023, 53049700028, 53049700029.See below for more info

Na stanie

Piston rings

Piston ring GT15-170

TurboCentras

GT15-170

4,32 €

GT15-170, PR-37-0003Piston ring GT15-170 for turbos 452084-0004, 452084-0007, 452084-0009, 452084-0011, 452098-0001, 452098-0002, 452124-0004, 452191-0001, 452191-0002, 452191-0003.See below for more info

Na stanie

Piston rings

Piston ring K03/04-160

TurboCentras

K03/04-160

2,80 €

Piston ring K03/04-160 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info

Na stanie

Heat Shields

Heat shield K03-326

TurboCentras

K03-326

3,42 €

BW-05-0021, K03-326Heat shield K03-326 for turbos 53039707200, 53049700033, K0422-582, K0422-881, K0422-882.See below for more info.

Na stanie

Journal Bearings

Journal bearing K03/04-110

TurboCentras

K03/04-110

8,76 €

BW-41-0016, K03/04-110Journal bearing K03/04-110 for turbos 53039700003, 53039700006, 53039700007, 53039700008, 53039700009, 53039700013, 53039700014, 53039700015, 53039700018, 53039700019.See below for more info

Na stanie

Compressor wheels

Compressor wheel BW-03-0088

TurboCentras

BW-03-0088

10,74 €

5306-123-2005, BW-03-0088, K03/04-18Compressor wheel BW-03-0088 for turbos 53049700062, 53049700066, K0422-581, K0422-582, K0422-583.See below for more info

Na stanie

Gasket oil outlet

Gasket oil outlet T-1

TurboCentras

T-1

0,36 €

Gasket oil outlet T-1 for turbos 030TC11002000, 030TC11003000, 030TC11004000, 030TC11005000, 06H145702G, 06H145702L, 06H145702Q, 06H145702R, 06H145702S, 10009700005.See below for more info.

Na stanie

Shaft Nuts

Shaft nut K03/04-180

TurboCentras

K03/04-180

1,20 €

BW-21-0004, K03/04-180Shaft nut K03/04-180 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info.

Na stanie

Retaining rings

Retaining ring K03/04-143

TurboCentras

K03/04-143

0,04 €

Retaining ring K03/04-143 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info

Na stanie

Retaining rings

Retaining ring K03/04-144

TurboCentras

K03/04-144

0,32 €

Retaining ring K03/04-144 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info

Na stanie

Retaining rings

Retaining ring K03/04-145

TurboCentras

K03/04-145

0,80 €

Retaining ring K03/04-145 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info

Na stanie

O-rings

O-ring (back/seal-plate) K03/04-200

TurboCentras

K03/04-200

0,92 €

O-ring (back/seal-plate) K03/04-200 for turbos 53039700003, 53039700005, 53039700006, 53039700007, 53039700008, 53039700009, 53039700010, 53039700011, 53039700013, 53039700014.See below for more info.

Na stanie

Shaft & Wheels

Shaft and wheel BW-02-0054

TurboCentras

BW-02-0054

22,98 €

5304-120-6503, 5304-120-6506, 5304-120-6511, BW-02-0054Shaft and wheel BW-02-0054 for turbos 53049700033, 53049700064, 53049700085, 53049700094, 53049700130, 53049700162, 53049700191, 53049880162.See below for more info
