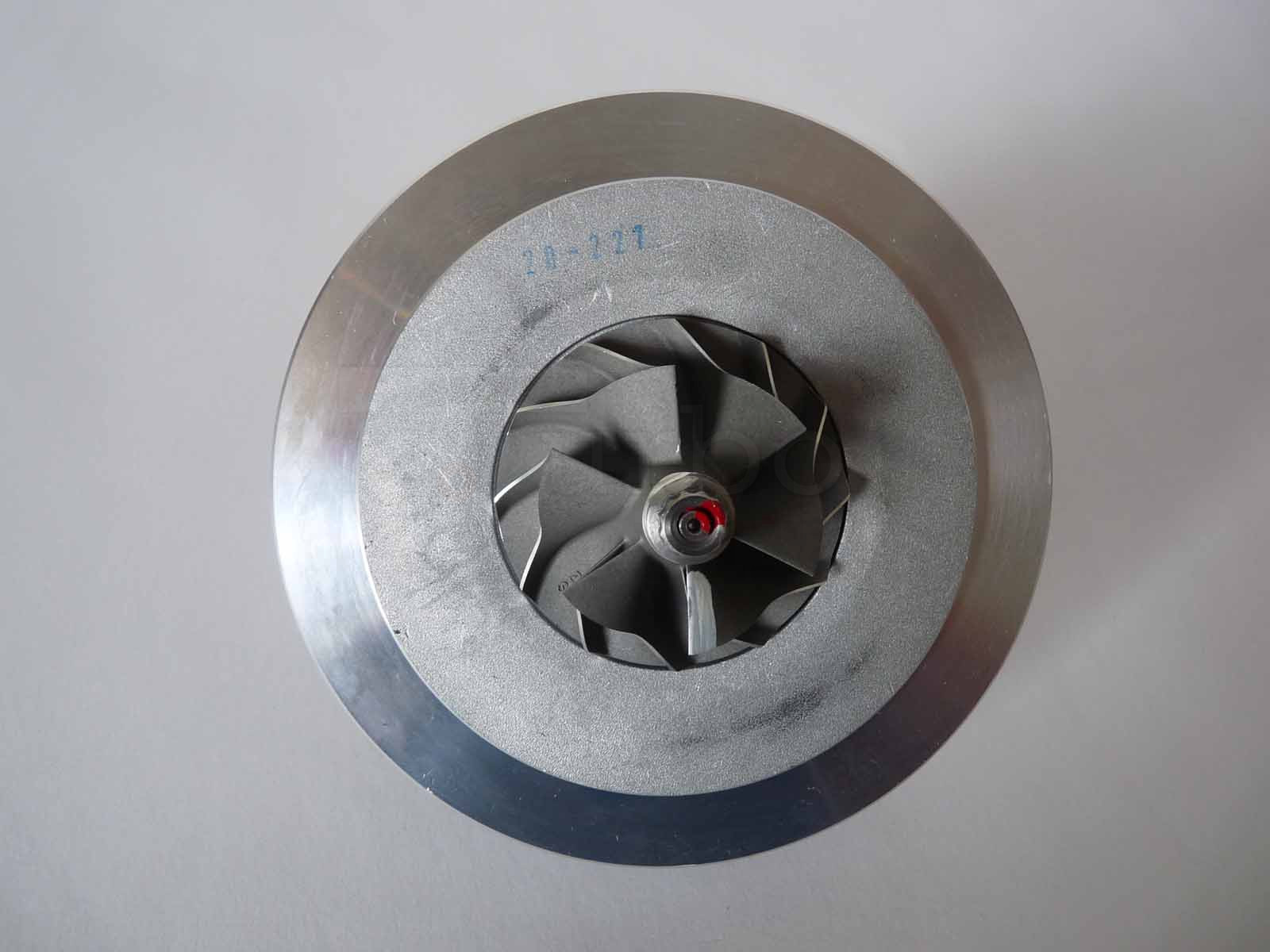

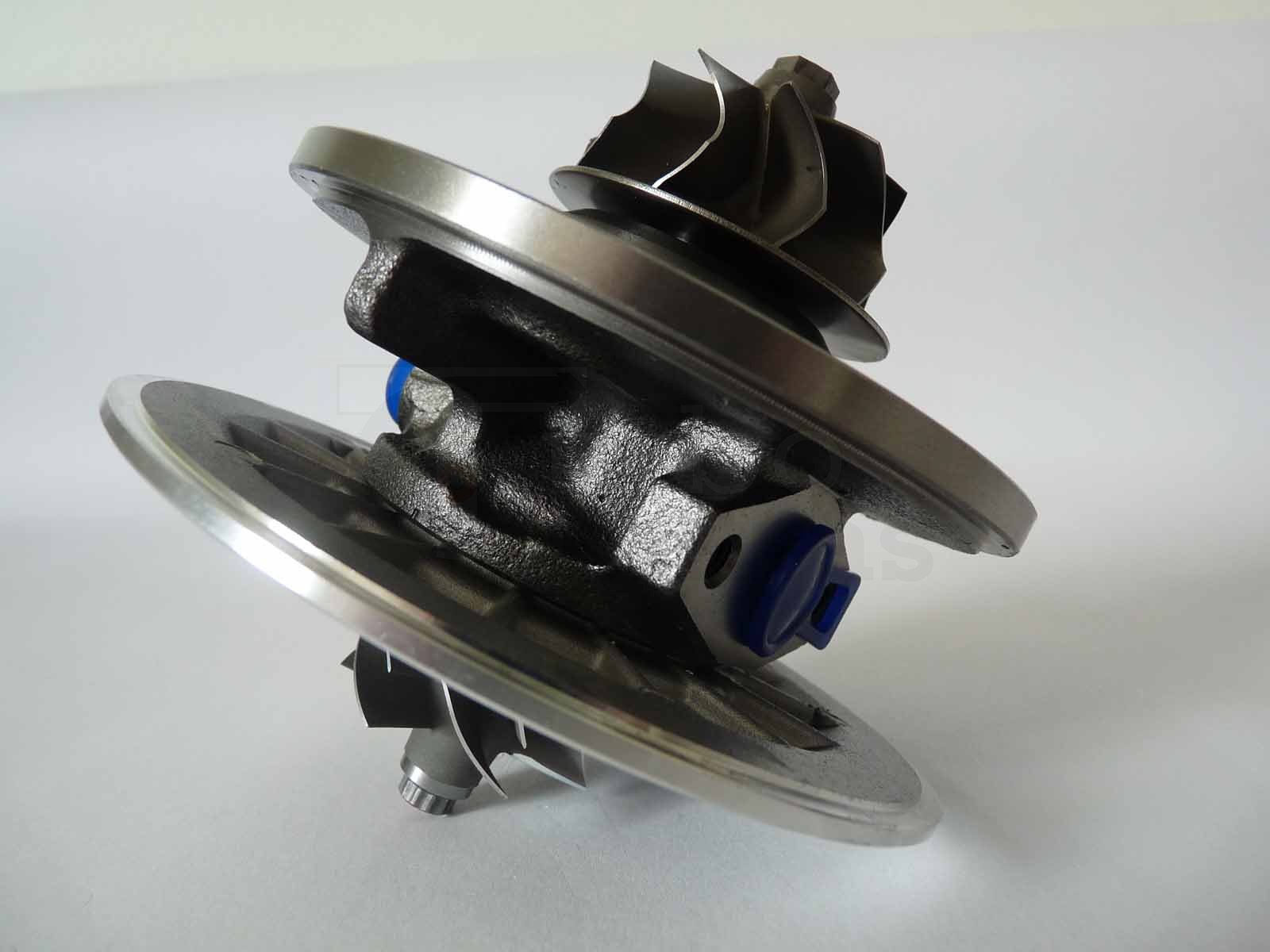

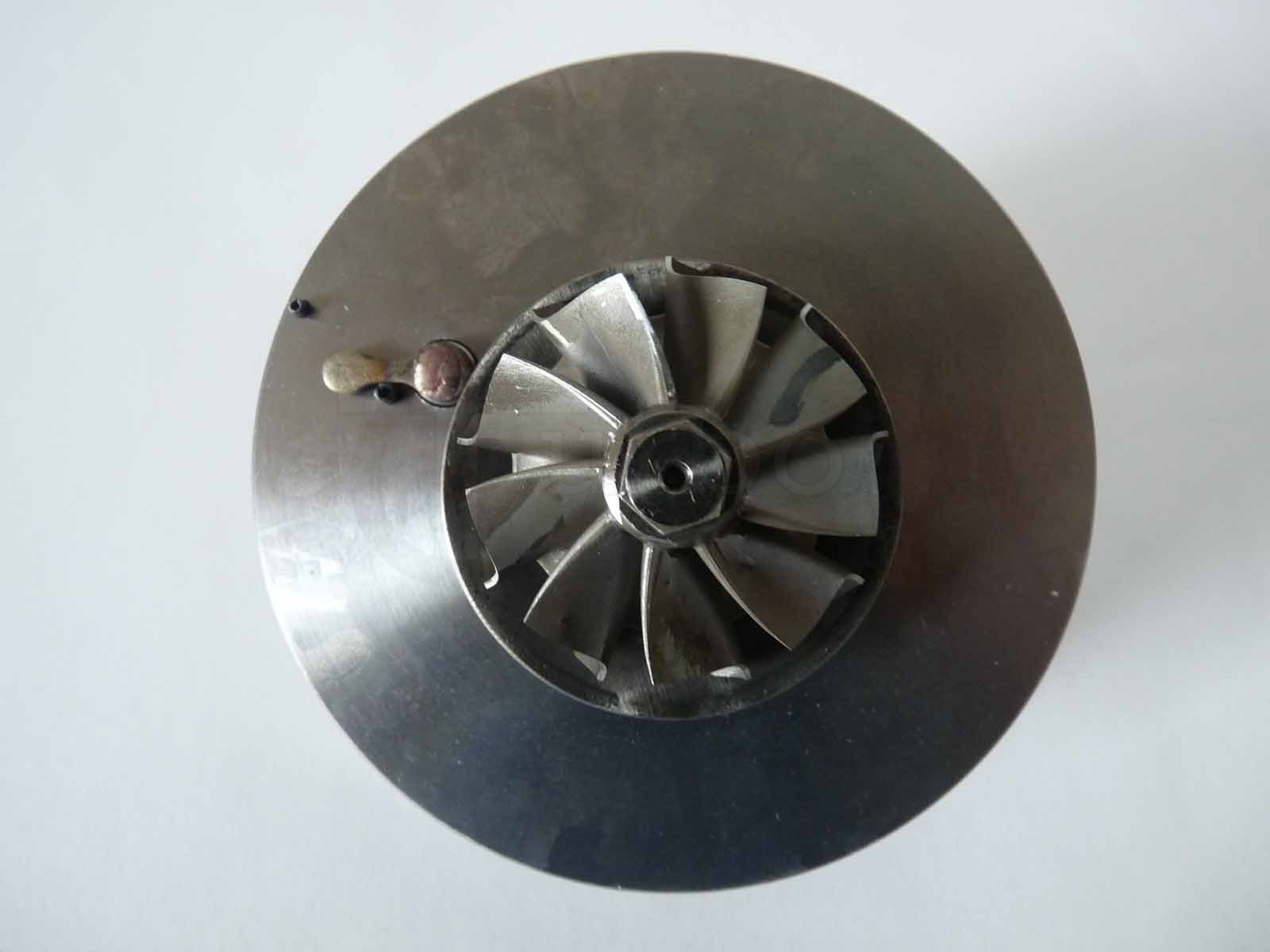

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Rdzeń do turbosprężareki GT20-227

Product package: 1.8 kg (20x20x20 cm)

Rdzeń do turbosprężareki GT20-227

Indeks GT20-227

Stan: Nowy

Obecnie brak na stanie

88,14 €

703891-0033, GA-00-0174, GT20-227

Rdzeń do turbosprężareki GT20-227 for turbos 711009-0001, 711009-0002, 711009-0003.

See below for more info

GT20-227

Marka: TurboCentras

Indeks: GT20-227

Part numbers

GHP: 703891-0033

TCP: GA-00-0174

TCO: GT20-227

Used in turbochargers

Garrett 711009-0001 GT22

Garrett 711009-0002 GT22

Garrett 711009-0003 GT22

Included parts

Shaft and wheel GA-02-0103

Compressor wheel GA-03-0080

Back plate GA-08-0050

O-ring GT15-203

Heat shield GT15-323

Repair kit GT15-52

Bearing housing GT22-300

Wkręt SC-96-0007

Gasket oil outlet T-1

GT20-227 - Rdzeń do turbosprężareki

Marka: TurboCentras

TurboCentras Reference: GT20-227

GT20-227 - Alternative numbers

GHP (Garrett original part number): 703891-0033

TCP (TurboCentras part number): GA-00-0174

TCO (TurboCentras old part number): GT20-227

GT20-227 - Compatibility table

Rdzeń do turbosprężareki GT20-227 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT2256V	711009-0001	711009-0001, 711009-5001S	612096049980, A6120960499
Garrett	GTA2256V	711009-0002	711009-0002, 711009-5002S	612096049980, A6120960499
Garrett	GTA2256V	711009-0003	711009-0003, 711009-5003S, 711009-9003S	612096049980, A6120960499

703891-0033, GA-00-0174, GT20-227

612096049980, 711009-0001, 711009-5001S, A6120960499, 612096049980, 711009-0002, 711009-5002S, A6120960499, 612096049980, 711009-0003, 711009-5003S, 711009-9003S, A6120960499

Data updated: 2023-06-07 13:37:05
