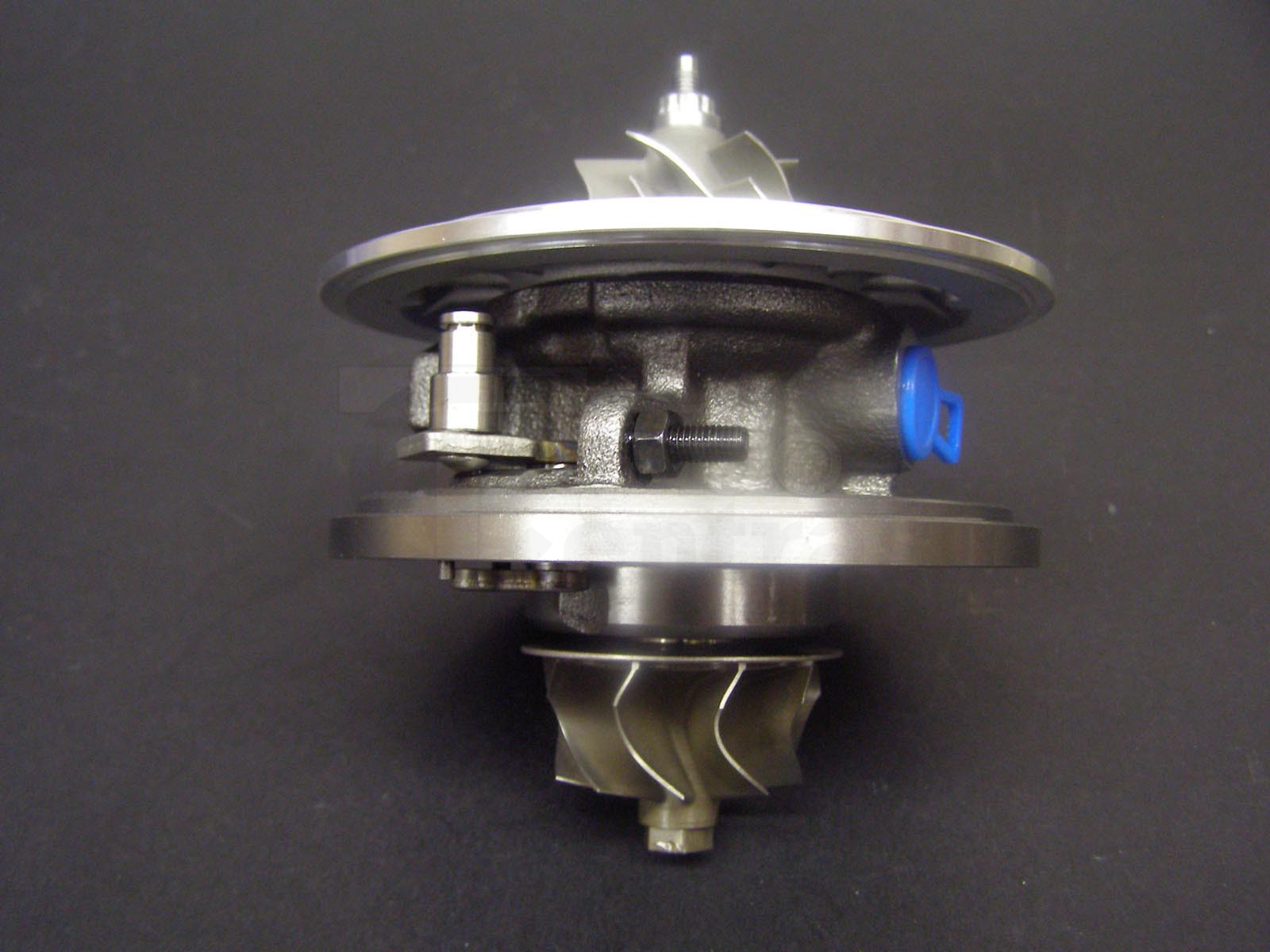

Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221
Koras rdzeń turbiny GT15-221

1.7 kg (20x20x20 cm)

Koras rdzeń turbiny GT15-221

GT15-221
Nowy
Na stanie (18 Przedmioty)
94,16 €
Dostawa w ciągu 3-8 dni

703890-0012, GA-00-0038, GT15-221

Rdzeń do turbosprężareki GT15-221 for turbos 708639-0002, 708639-0003, 708639-0004, 708639-0005, 708639-0006, 708639-0007, 708639-0008, 708639-0010, 708639-0011.

See below for more info.

GT15-221

Marka: TurboCentras
Reference: GT15-221

Part numbers

GHP: 703890-0012
TCP: GA-00-0038
TCO: GT15-221

Used in turbochargers

Garrett 708639-0002
Garrett 708639-0003
Garrett 708639-0004
Garrett 708639-0005
Garrett 708639-0006
Garrett 708639-0007
Garrett 708639-0008
Garrett 708639-0010
Garrett 708639-0011

Included parts

Compressor wheel: GA-03-0030
Actuator clip: GR.5
Journal bearing: GT15-101
Thrust bearing: GT15-120
Thrust flinger: GT15-130
Thrust Collar: GT15-135
Retaining ring (B): GT15-143
Piston ring (turbine): GT15-160
Piston ring (compr.): GT15-170
Shaft nut: GT15-180
O-ring (compr.): GT15-202
O-ring (backplate): GT15-206
Heat shield: GT15-324
Anti-rotation pin: GT15-330
Back plate: GT15-61
Bearing housing: GT17-302
Shaft and wheel: GT17-36
Śruba: M5X18
Gasket oil outlet: T-1


GT15-221 - Rdzeń do turbosprężareki

Brand: TurboCentras

TurboCentras Reference: GT15-221

GT15-221 - Alternative numbers

GHO (Garrett original part number): 703890-0012

TCN (): GA-00-0038

TCO (TurboCentras old part number): GT15-221

GT15-221 - Compatibility table

Rdzeń do turbosprężareki GT15-221 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V708639-000236000721, 36002419, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519
GarrettGT1749V708639-000336000721, 36002419, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A
GarrettGT1749V708639-00047701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200256077
GarrettGT1749V708639-00057701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200332125
GarrettGT1749V708639-00067701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200369581
GarrettGT1749V708639-00077701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200381645
GarrettGT1749V708639-00087701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200544912
GarrettGT1749V708639-00107701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A, 8200683855
GarrettGT1749V708639-00117701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A, 8200683855

Data updated: 2022-01-18 14:30:42
