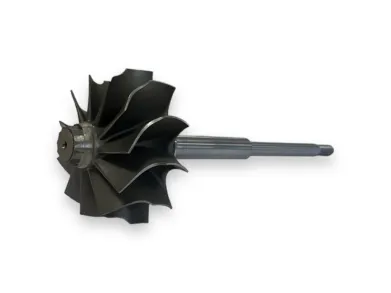

Shaft and wheel IH-02-0004
IH-02-0004
Neu
44,22 €
zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen
IH-02-0004, NH261301, RHC6-35
Shaft and wheel IH-02-0004 for turbos GM-3, GM-4, GM-6, MYDA, MYDH, MYDN.
See below for more info
IH-02-0004 (NH261301) - Shaft and wheel
Marke: TurboCentras
TurboCentras Artikel-Nr.: IH-02-0004
OEM Numbers: NH261301
IH-02-0004 - Alternative numbers
TCP (TurboCentras part number): IH-02-0004
TCO (TurboCentras old part number): RHC6-35
IH-02-0004 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHC6 | GM-3 | 10154686, 10183934, 10226226, 125129989, 12515808, 12521577, 12522149, 6T-592, GM-1, GM-2, GM-3 | -- |
| IHI | RHC6 | GM-4 | 10154652, 12369017, 12512988, 12530336, 12530339, 1253034, 12533738, 1253374, 12552738, 12556124, 171077, GM-4 | GM-4, GM-5, GM-8 |
| IHI | RHC6 | GM-6 | 5762 990 0000, 650006, GM-6 | 10241690, 12530339, 125553949, 599TC21002000, GM-7 |
| IHI | RHC6 | MYDA | MYDA | -- |
| IHI | RHC61W-1063P16NWBRLL4715CC | MYDH | C61CND-S0101B, C61CND-S0101G, MYDH, V*240101, VA240101, VB240101, VC240101, VD240101 | 119173-18040, 119173-18041 |
| IHI | RHC6 | MYDN | MYDN | -- |
IH-02-0004 - Part Properties
Blades (Shaft & Wheel blades count): 11
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 62.00
A1 (Size A1): 62.00
B (Size B): 54.70
C (Size C): 10.84
D (Size D): 10.40
E (Size E): 7.10
H (Size H): 25.40
L (Size L): 119.00
T (Size T): M6.0X0.75LH
IH-02-0004, NH261301, RHC6-35
57629900000, 10154686, 10183934, 10226226, 125129989, 12515808, 12521577, 12522149, 6T-592, GM-1, GM-2, GM-3, 10154652, 12369017, 12512988, 12530336, 12530339, 1253034, 12533738, 1253374, 12552738, 12556124, 171077, GM-4, GM-4, GM-5, GM-8, 10241690, 12530339, 125553949, 5762 990 0000, 599TC21002000, 650006, GM-6, GM-7, MYDA, 119173-18040, 119173-18041, C61CND-S0101B, C61CND-S0101G, MYDH, V*240101, VA240101, VB240101, VC240101, VD240101, MYDN
Data updated: 2024-07-15 16:58:17
