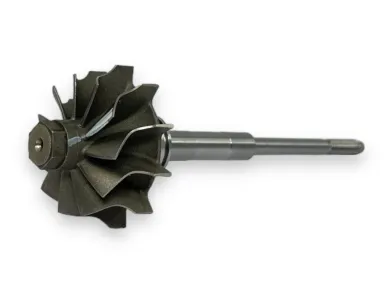

Shaft and wheel GA-02-0049
GA-02-0049
Neu
Auf Lager (130 Artikel) 25,16 €
zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen
GA-02-0049, GT15-41
Shaft and wheel GA-02-0049 for turbos 740611-0001, 740611-0002, 740611-0003, 740611-0005, 766111-0001, 782403-0001, 782403-0002, 782403-0003, 782403-0005, 782404-0001.
See below for more info
GA-02-0049 - Shaft and wheel
Marke: TurboCentras
TurboCentras Reference: GA-02-0049
GA-02-0049 - Alternative numbers
TCP (TurboCentras part number): GA-02-0049
TCO (TurboCentras old part number): GT15-41
GA-02-0049 - Compatibility table
| Shaft and wheel GA-02-0049 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| Garrett | GT1544V | 740611-0001 | 740611-0001, 740611-5001S | 28201-2A100, 282012A100 |
| Garrett | GT1544V | 740611-0002 | 740611-0002, 740611-5002S, 740611-5002W, 740611-9002W | 28201-2A400, 282012A400 |
| Garrett | GT1544V | 740611-0003 | 740611-0003, 740611-5003S | 282012A110 |
| Garrett | GT1544V | 740611-0005 | 740611-0005, 740611-5005S | 282112A510A |
| Garrett | GT1544V | 766111-0001 | 766111-0001, 766111-5001S, 766111-9001S | 282012A610 |
| Garrett | GT1544V | 782403-0001 | 782403-0001, 782403-5001S | 28201A100 |
| Garrett | GT1544V | 782403-0002 | 782403-0002 | 28201A120 |
| Garrett | GT1544V | 782403-0003 | 782403-0003 | -- |
| Garrett | GT1544V | 782403-0005 | 782403-0005 | -- |
| Garrett | GT1544V | 782404-0001 | 782404-0001, 782404-5001S | 282012A410 |
GA-02-0049 - Part Properties
Blades (Shaft & Wheel blades count): 11
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 39.00
A1 (Size A1): 39.00
B (Size B): 33.10
C (Size C): 5.40
D (Size D): 7.88
E (Size E): 5.08
H (Size H): 15.00
L (Size L): 92.50
T (Size T): M5.0X0.8LH
GA-02-0049, GT15-41
28201-2A100, 282012A100, 740611-0001, 740611-5001S, 28201-2A400, 282012A400, 740611-0002, 740611-5002S, 740611-5002W, 740611-9002W, 282012A110, 740611-0003, 740611-5003S, 282112A510A, 740611-0005, 740611-5005S, 282012A610, 766111-0001, 766111-5001S, 766111-9001S, 28201A100, 782403-0001, 782403-5001S, 28201A120, 782403-0002, 782403-0003, 782403-0005, 282012A410, 782404-0001, 782404-5001S
