Product package: 1.7 kg (20x20x20 cm)

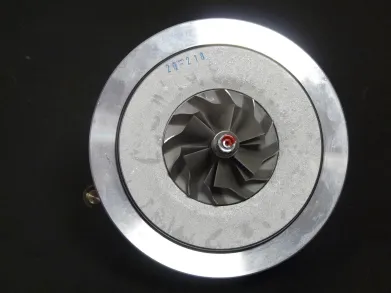

Rumpfgruppe GA-00-0165

Artikel-Nr. GA-00-0165

Zustand Neu

Nur noch wenige Teile verfügbar (1 Artikel)

102,08 €

zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen

GA-00-0165, GT20-218

Rumpfgruppe GA-00-0165 for turbos 736088-0001, 736088-0003, 736088-0005, 736088-0006.

See below for more info

GT20-218

GA-00-0165

Marke: TurboCentras

Artikel-Nr.: GA-00-0165

Part numbers

TCP: GA-00-0165

TCO: GT20-218

EEC: GT22-002

Used in turbochargers

Garrett 736088-0001 GT22

Garrett 736088-0003 GT22

Garrett 736088-0005 GT22

Garrett 736088-0006 GT22

Included parts

Bearing housing GA-01-0114

Shaft and wheel GA-02-0149

Compressor wheel GA-03-0077

Heat shield GA-05-0012

Back plate GA-08-0050

Shaft nut GA-21-0005

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

O-ring GT15-203

O-ring GT15-206

Anti-rotation pin GT15-330

Schraube SC-96-0007

Gasket oil outlet T-1

GA-00-0165 - Rumpfgruppe

Marke: TurboCentras

TurboCentras Artikel-Nr.: GA-00-0165

GA-00-0165 - Alternative numbers

TCP (TurboCentras part number): GA-00-0165

TCO (TurboCentras old part number): GT20-218

GA-00-0165 - Compatibility table

Rumpfgruppe GA-00-0165 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT2256VK	736088-0001	736088-0001	--
Garrett	GTA2256VK	736088-0003	736088-0003, 736088-5003S	A6470900280
Garrett	GT2256VK	736088-0005	736088-0005	--
Garrett	GTA2256VK	736088-0006	736088-0006, 736088-5006S	A6470900280

GA-00-0165, GT20-218

736088-0001, 736088-0003, 736088-5003S, A6470900280, 736088-0005, 736088-0006, 736088-5006S, A6470900280
