0.7 kg (20x20x20 cm)
Nozzle ring assy BW-06-0010
5303-160-5010, BV43-91, BW-06-0010
Nozzle ring assy. BW-06-0010 for turbos 53039700109, 53039700109-R, 53039700129, 53039700131, 53039700137, 53039700138, 53039700189, 53039700189-R, 53039700207, 53039880109.
See below for more info

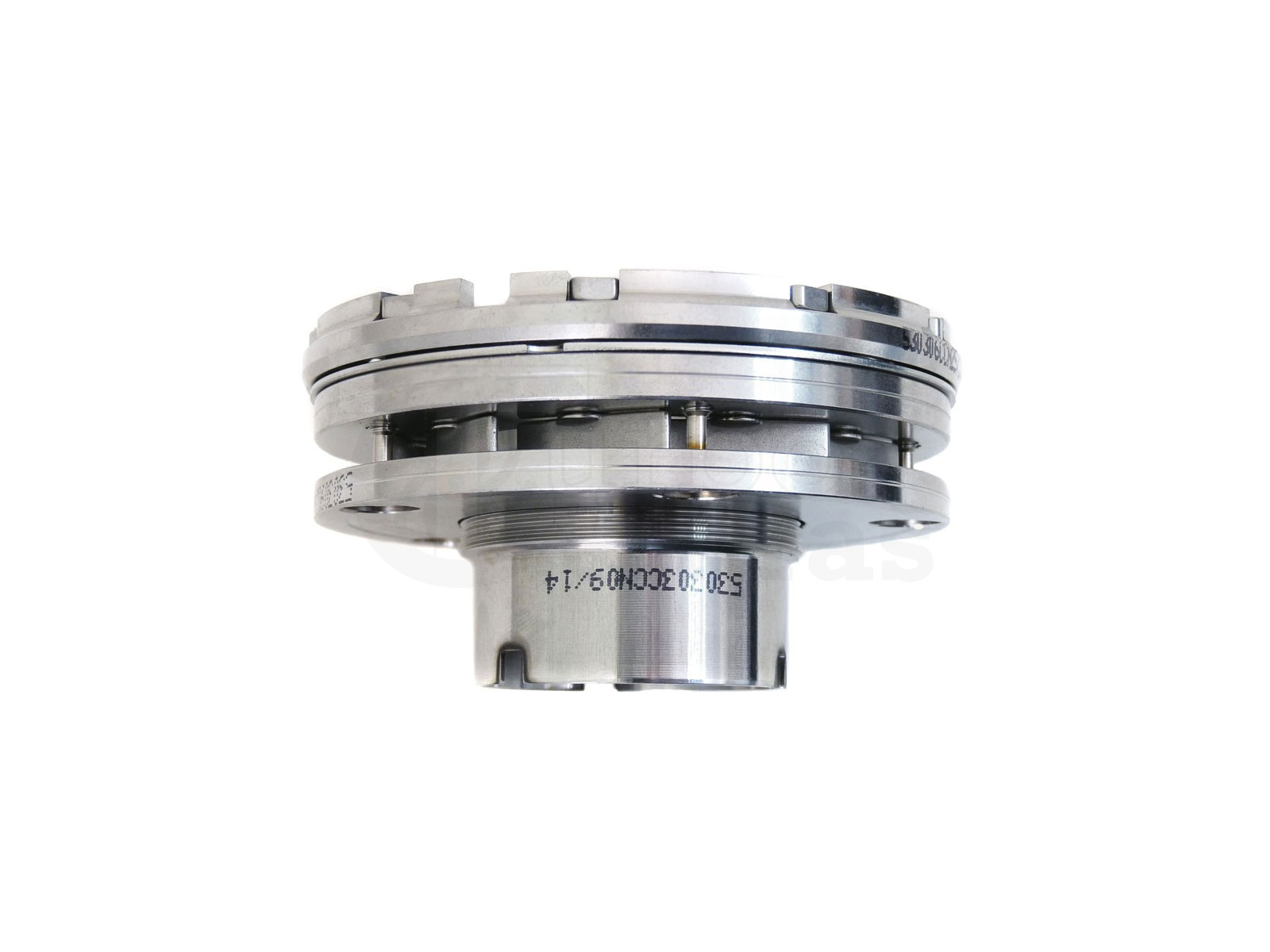

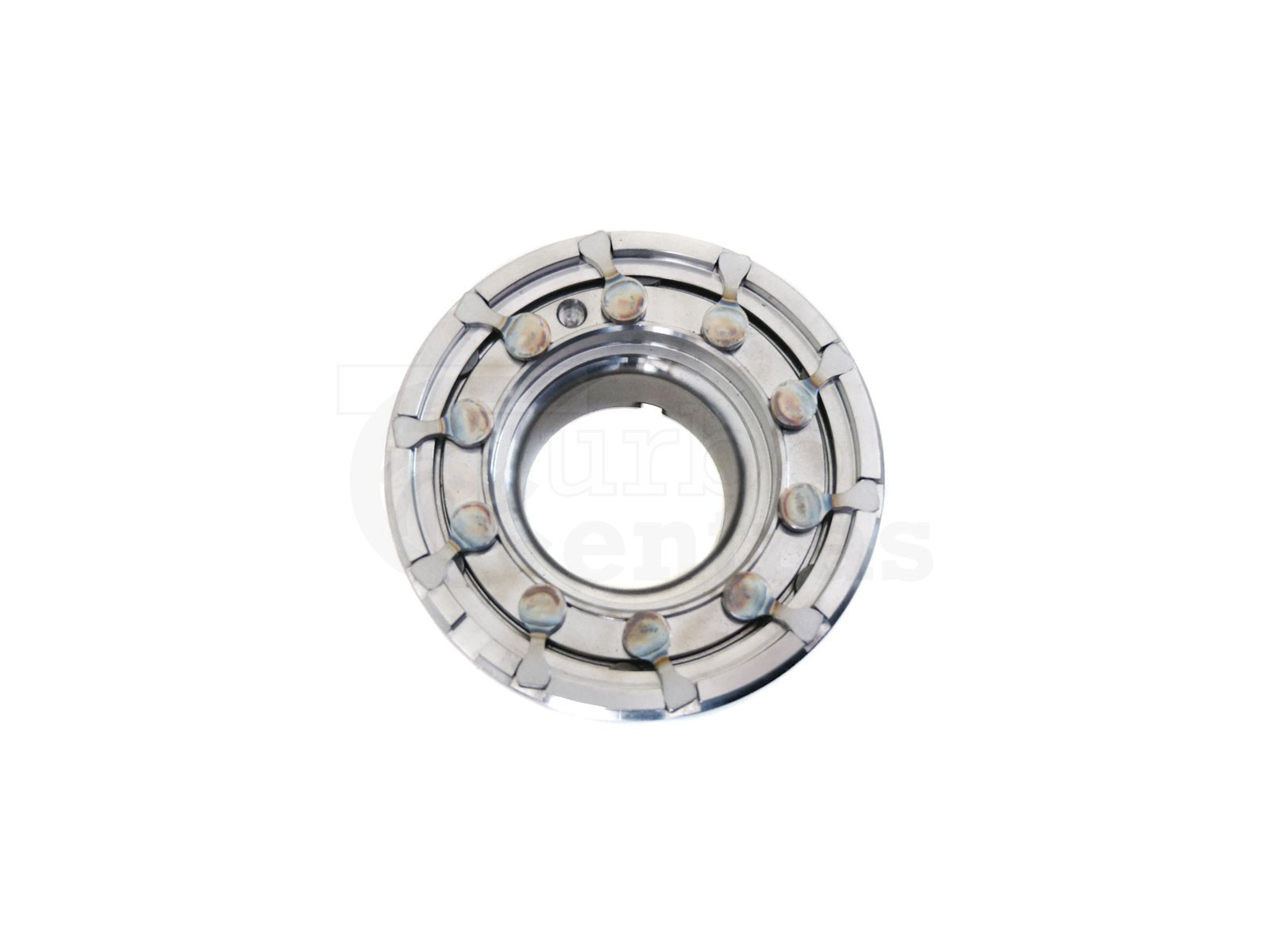

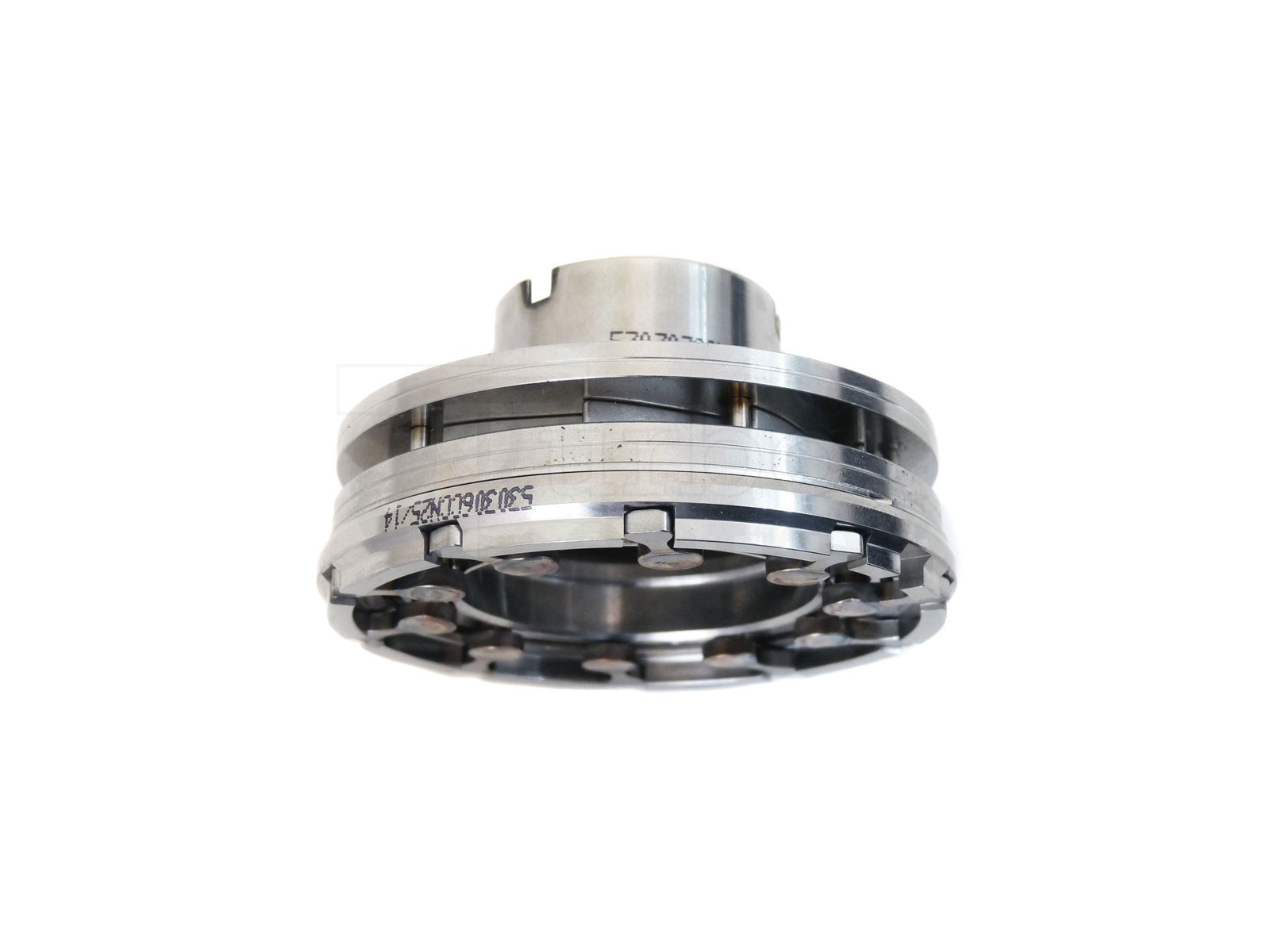

BW-06-0010 (5303-160-5010) - Nozzle ring assy.
Marke: TurboCentras
TurboCentras Artikel-Nr.: BW-06-0010
OEM Numbers: 5303-160-5010
BW-06-0010 - Alternative numbers
TCO (TurboCentras old part number): BV43-91
TCP (TurboCentras part number): BW-06-0010
BW-06-0010 - Compatibility table
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
---|---|---|---|---|
BorgWarner | BV43-1880DXF419.18BXAXC | 53039700109 | 5303 970 0109, 5303 988 0109, 5303 990 0109 | 03G145702H |
BorgWarner | BV43-1880DXF419.18BXAXC | 53039700109-R | 5303 970 0109, 5303 988 0109, 5303 990 0109 | 03G145702H |
BorgWarner | BV43-1880KCF419.18BVAXC | 53039700129 | 5303 970 0129 | 03L253019C, 03L253019M |
BorgWarner | BV43-1880KCF419.18BVAXC | 53039700131 | 5303 970 0131 | 03L145702, 03L145702J |
BorgWarner | BV43-1880KCF419.18BVAXC | 53039700137 | 5303 970 0137 | 03L253010D, 03L253016G, 03L253019K |
BorgWarner | BV43-1880KCF419.18BVAXC | 53039700138 | 5303 970 0138, 5303 971 0138, 5303 988 0138 | 03L145701A, 03L145701C, 03L145702E, 03L145702N |
BorgWarner | BV43-1880KCF419.18BVAXC | 53039700189 | 5303 970 0189, 5303 988 0189, 5303 990 0189 | 03L145701E |
BorgWarner | BV43-1880KCF419.18BVAXC | 53039700189-R | 5303 970 0189, 5303 988 0189, 5303 990 0189 | 03L145701E |
BorgWarner | BV43-1880KCF419.18BVAXC | 53039700207 | 5303 970 0207, 5303 988 0207, 5303 990 0207 | 03L253056C |
BorgWarner | BV43-1880DXF419.18BXAXC | 53039880109 | 5303 970 0109, 5303 988 0109, 5303 990 0109 | 03G145702H |

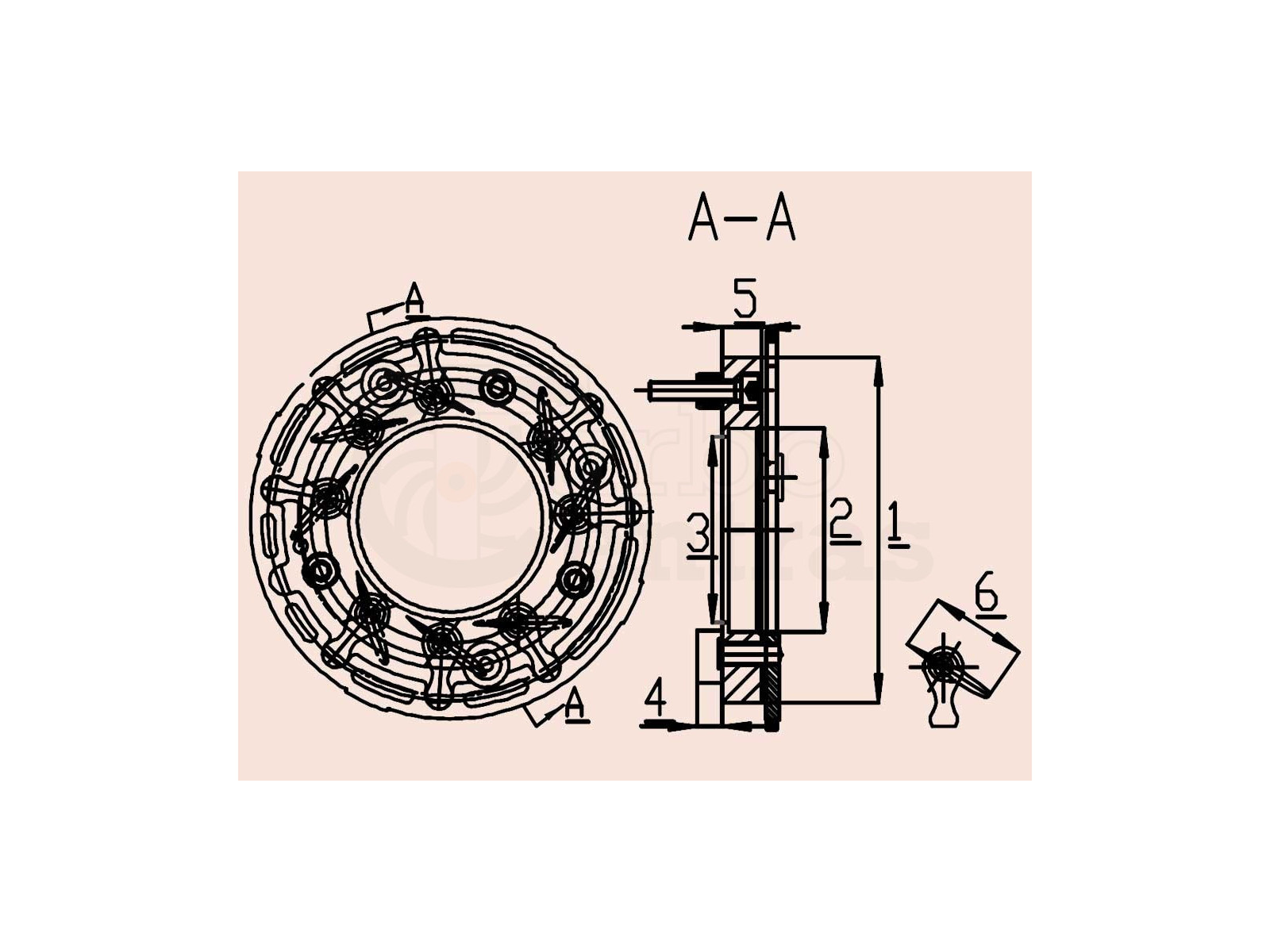

BW-06-0010 - Part Properties
Blades (Nozzle Ring blades count): 10
A (Size A): 83.00
B (Size B): 49.00
C (Size C): 38.50
D (Size D): 5.00
E (Size E): 4.00
F (Size F): 20.50
5303-160-5010, BV43-91, BW-06-0010
53039900109, 53039880109, 53039700109, 53039900207, 53039880207, 53039700207, 53039900189, 53039880189, 53039700189, 53039900189, 53039880189, 53039700189, 53039880138, 53039710138, 53039700138, 53039700137, 53039700131, 53039700129, 53039900109, 53039880109, 53039700109, 53039900109, 53039880109, 53039700109, 03G145702H, 5303 970 0109, 5303 988 0109, 5303 990 0109, 03G145702H, 5303 970 0109, 5303 988 0109, 5303 990 0109, 03L253019C, 03L253019M, 5303 970 0129, 03L145702, 03L145702J, 5303 970 0131, 03L253010D, 03L253016G, 03L253019K, 5303 970 0137, 03L145701A, 03L145701C, 03L145702E, 03L145702N, 5303 970 0138, 5303 971 0138, 5303 988 0138, 03L145701E, 5303 970 0189, 5303 988 0189, 5303 990 0189, 03L145701E, 5303 970 0189, 5303 988 0189, 5303 990 0189, 03L253056C, 5303 970 0207, 5303 988 0207, 5303 990 0207, 03G145702H, 5303 970 0109, 5303 988 0109, 5303 990 0109
Data updated: 2024-07-08 16:06:49
