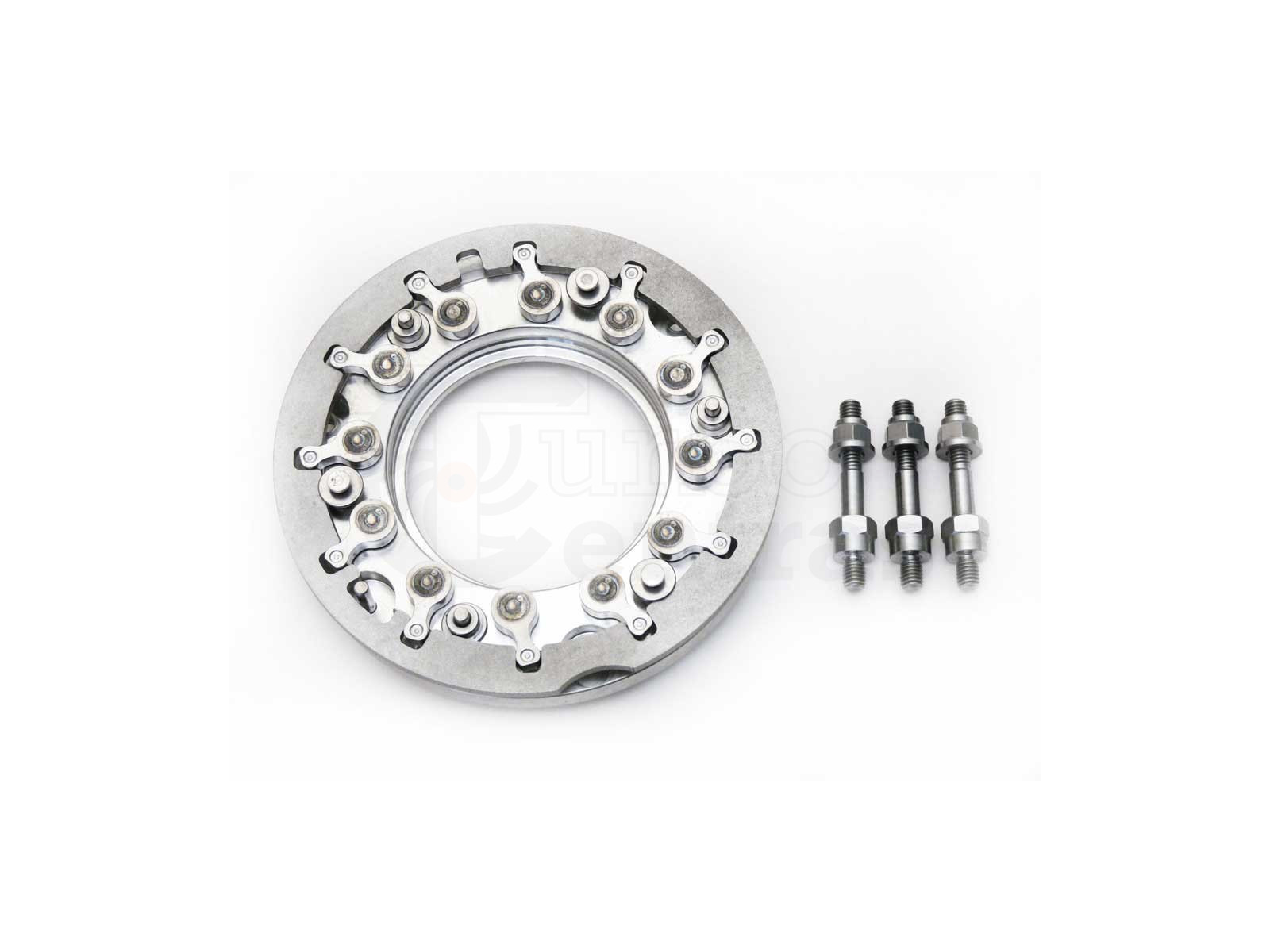

Nozzle ring assy. CT16-90 TO-06-0001
Nozzle ring assy. CT16-90 TO-06-0001
Nozzle ring assy. CT16-90 TO-06-0001
Nozzle ring assy. CT16-90 TO-06-0001
Nozzle ring assy. CT16-90 TO-06-0001
Nozzle ring assy. CT16-90 TO-06-0001

0.4 kg (20x20x20 cm)

Nozzle ring assy TO-06-0001

TO-06-0001
Neu
Auf Lager (4 Artikel)
55,40 €
zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen

CT16-90, TO-06-0001

Nozzle ring assy. TO-06-0001 for turbos 17201-0L040, 17201-0L040, 17201-0L041, 17201-0L041, 17201-0L090, 17201-30011, 17201-30060, 17201-30062, 17201-30100, 17201-30100.

See below for more info

worldwide turbocharger market

TO-06-0001

Marke: TurboCentras
Artikel-Nr.: TO-06-0001

Part numbers

TCO: CT16-90
TCP: TO-06-0001

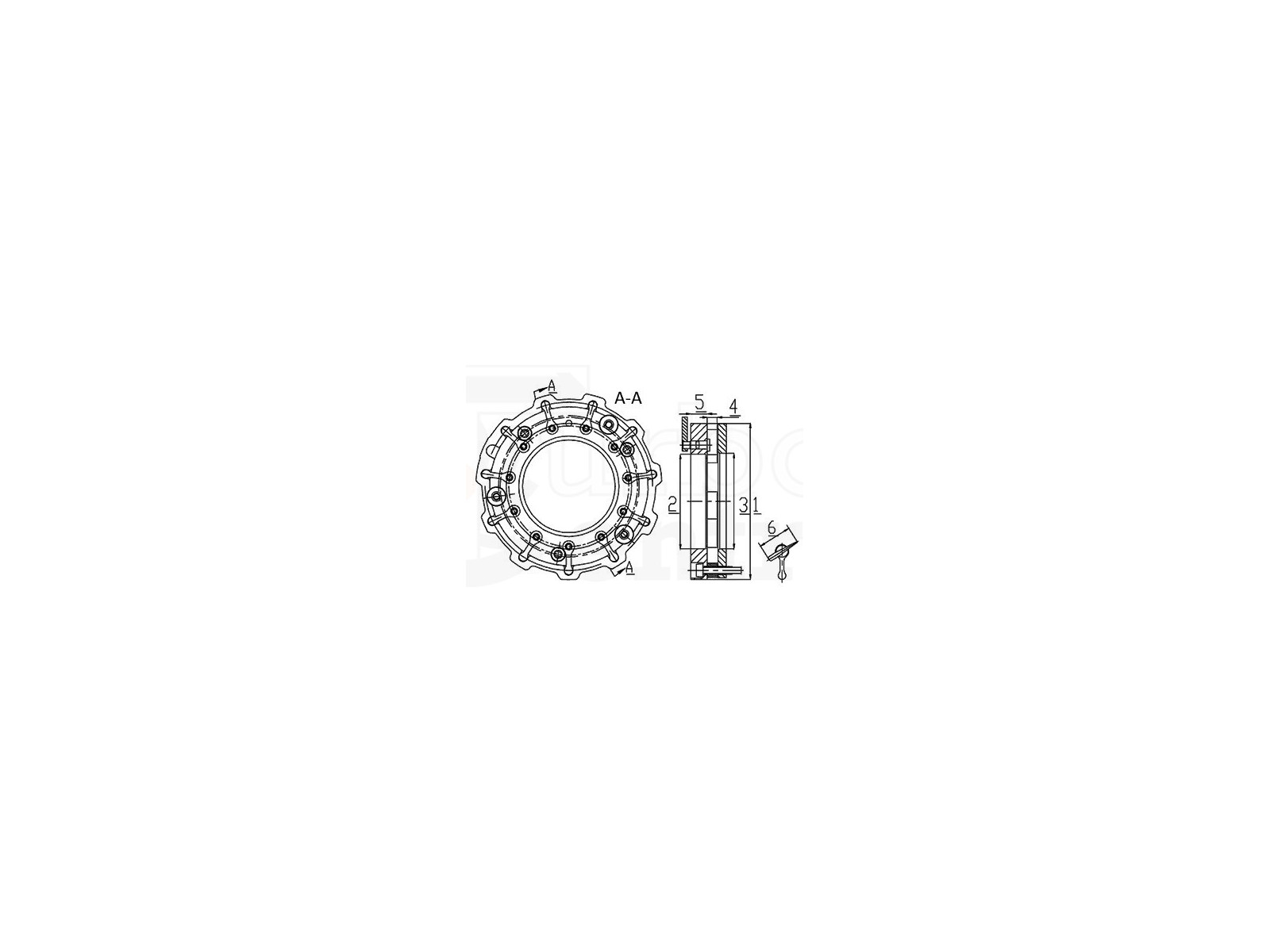

Part properties

Blades: 12
A: 99.99
B: 60.00
D: 6.50
E: 8.50
F: 21.00

Used in turbochargers

Toyota 17201-0L040
Toyota 17201-0L040
Toyota 17201-0L041
Toyota 17201-0L041
Toyota 17201-0L090
Toyota 17201-30011
Toyota 17201-30060
Toyota 17201-30062
Toyota 17201-30100
Toyota 17201-30100
Toyota 17201-30101
Toyota 17201-30101
Toyota 17201-30110
Toyota 17201-30110
Toyota 17201-30150
Toyota 17201-30150
Toyota 17201-30160
Toyota 17201-30180
Toyota 17201-30180
Toyota 17201-30181
Toyota 17201-30181
IHI 9B001
IHI 9B002
IHI 9B008


TO-06-0001 - Nozzle ring assy.

Marke: TurboCentras

TurboCentras Artikel-Nr.: TO-06-0001

TO-06-0001 - Alternative numbers

TCO (TurboCentras old part number): CT16-90

TCP (TurboCentras part number): TO-06-0001

TO-06-0001 - Compatibility table

Nozzle ring assy. TO-06-0001 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO PART NUMBERTURBO OE NUMBER
ToyotaCT1617201-0L04017201-0L040--
ToyotaCT12CV17201-0L04017201-0L040--
ToyotaCT1617201-0L04117201-0L041--
ToyotaCT12CV17201-0L04117201-0L041--
ToyotaCT12CV17201-0L09017201-0L090TC3VET-S0012B
ToyotaCT12CV17201-3001117201-30011V*BAT120013
ToyotaCT12CV17201-3006017201-30060--
ToyotaCT12CV17201-3006217201-3006217201-30062
ToyotaCT1617201-3010017201-30100--
ToyotaCT12CV17201-3010017201-30100--
ToyotaCT1617201-3010117201-30101--
ToyotaCT12CV17201-3010117201-30101--
ToyotaCT12CV17201-3011017201-30110--
ToyotaCT16V17201-3011017201-30110--
ToyotaCT16V17201-3015017201-30150--
ToyotaCT12CV17201-3015017201-30150--
ToyotaCT12CV17201-3016017201-30160--
ToyotaCT12CV17201-3018017201-30180--
ToyotaCT16V17201-3018017201-30180--
ToyotaCT16V17201-3018117201-30181--
ToyotaCT12CV17201-3018117201-30181--
IHICT16V9B0019B001, TC1VET-S0011B17201-0L040, 17201-0L041, 17201-0L042
IHICT12CV9B0029B002, TC1VED-S0017B17201-30160, 17201-30161
IHICT12CV9B0089B008, TC3VET-S0014B, V*BAT12001417201-30062

TO-06-0001 - Part Properties

Blades (Nozzle Ring blades count): 12

A (Size A): 99.99

B (Size B): 60.00

D (Size D): 6.50

E (Size E): 8.50

F (Size F): 21.00

TO-06-0001
CT16-90, TO-06-0001
17201-0L040, 17201-0L040, 17201-0L041, 17201-0L041, 17201-0L090, TC3VET-S0012B, 17201-30011, V*BAT120013, 17201-30060, 17201-30062, 17201-30062, 17201-30100, 17201-30100, 17201-30101, 17201-30101, 17201-30110, 17201-30110, 17201-30150, 17201-30150, 17201-30160, 17201-30180, 17201-30180, 17201-30181, 17201-30181, 17201-0L040, 17201-0L041, 17201-0L042, 9B001, TC1VET-S0011B, 17201-30160, 17201-30161, 9B002, TC1VED-S0017B, 17201-30062, 9B008, TC3VET-S0014B, V*BAT120014

Data updated: 2025-02-03 16:14:46
