0.4 kg (20x20x20 cm)

Nozzle ring assy GA-06-0023

GA-06-0023
Neu
Auf Lager (56 Artikel)
44,44 €
zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen

GA-06-0023, GT17-91

Nozzle ring assy. GA-06-0023 for turbos 703894-0001, 703894-0002, 703894-0003, 704412-0001, 705097-0001, 705097-0002, 705204-0001, 705204-0002, 709835-0001, 709835-0002.

See below for more info

worldwide turbocharger market

GA-06-0023

Marke: TurboCentras
Artikel-Nr.: GA-06-0023

Part numbers

TCP: GA-06-0023
TCO: GT17-91

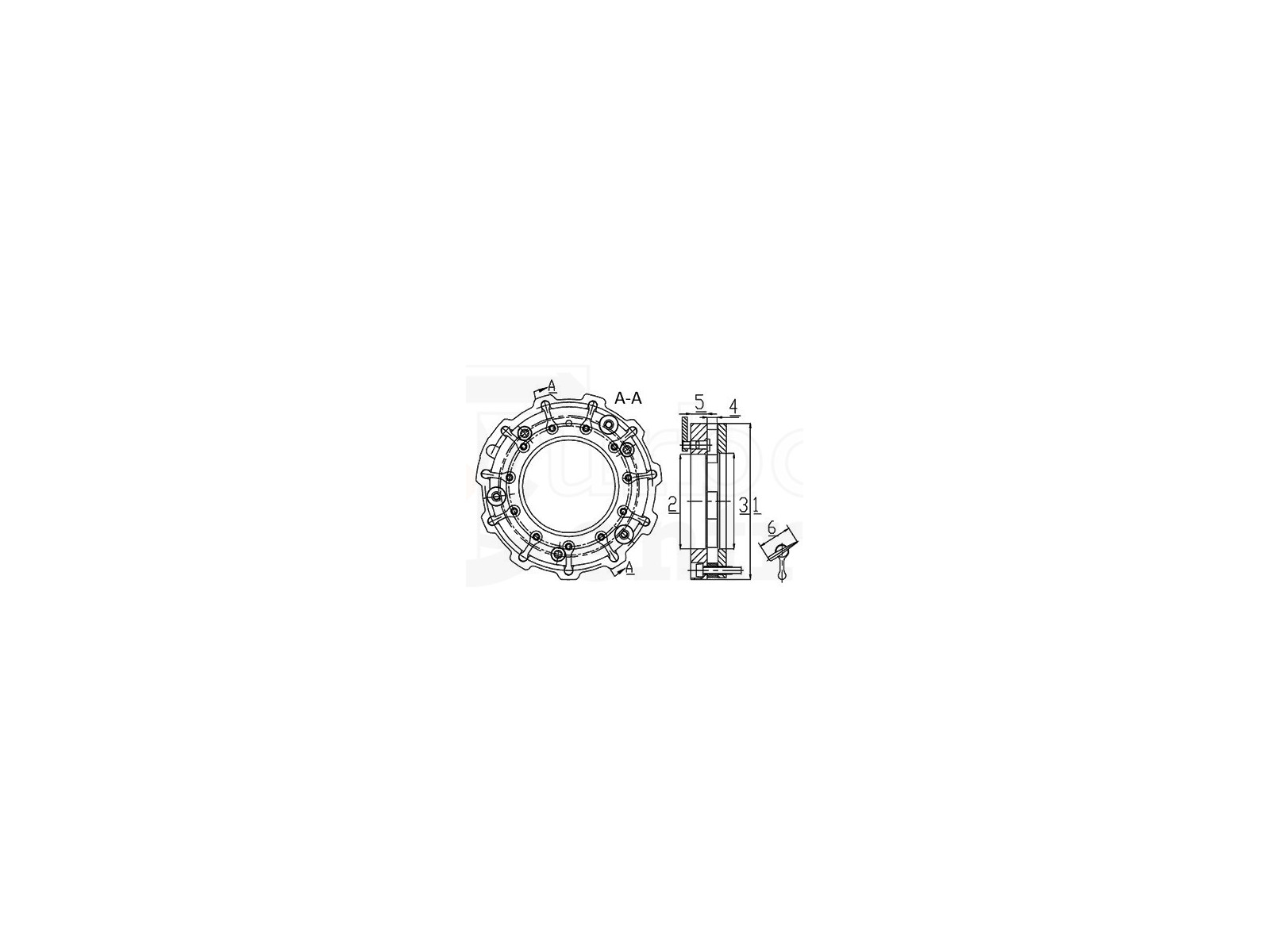

Part properties

Blades: 11
A: 81.50
B: 49.50
C: 45.50
D: 7.50
E: 8.50
F: 12.50

Used in turbochargers

Garrett 703894-0001
Garrett 703894-0002
Garrett 703894-0003
Garrett 704412-0001
Garrett 705097-0001
Garrett 705097-0002
Garrett 705204-0001
Garrett 705204-0002
Garrett 709835-0001
Garrett 709835-0002
Garrett 709836-0001
Garrett 709836-0002
Garrett 709836-0003
Garrett 709836-0004
Garrett 709836-0004-R
Garrett 709836-5004S
Garrett 711006-0001
Garrett 711006-0003
Garrett 717478-0001
Garrett 717478-0002
Garrett 717478-0003
Garrett 717478-0004
Garrett 717478-0005
Garrett 717478-0006
Garrett 717625-0001
Garrett 717625-0001-R
Garrett 717625-9001S
Garrett 717626-0001
Garrett 717626-0001-R
Garrett 717626-9001S
Garrett 717628-0001
Garrett 717628-0003
Garrett 726698-0001
Garrett 726698-0002
Garrett 726698-0003
Garrett 727271-0006
Garrett 727461-0001
Garrett 727461-0002
Garrett 727461-0003
Garrett 727461-0004
Garrett 727461-0005
Garrett 727461-0006
Garrett 727477-0001
Garrett 727477-0005
Garrett 727477-0006
Garrett 727477-0007
Garrett 728768-0004
Garrett 728768-0005
Garrett 729125-0007
Garrett 729125-0008
Garrett 729125-0009
Garrett 729125-0012
Garrett 729125-0013
Garrett 729403-0001
Garrett 729403-0003
Garrett 742693-0001
Garrett 742693-0002
Garrett 742693-0003
Garrett 742693-0004
Garrett 742693-0004-R
Garrett 742693-0018
Garrett 742693-5004S
Garrett 742693-9003S
Garrett 742807-0001
Garrett 742807-0002
Garrett 742807-0003
Garrett 742807-0005
Garrett 742810-0003
Garrett 742810-0005
Garrett 742810-0007
Garrett 750441-0005
Garrett 753556-0002
Garrett 753556-0006
Garrett 753707-0009
Garrett 753708-0005
Garrett 753847-0002
Garrett 753847-0006
Garrett 755297-0001
Garrett 755298-0001
Garrett 755300-0001
Garrett 755300-0003
Garrett 755300-0004
Garrett 755300-0005
Garrett 755300-0006
Garrett 755300-0007
Garrett 755963-0001
Garrett 755963-0003
Garrett 755963-0005
Garrett 755963-0007
Garrett 755964-0001
Garrett 755964-0003
Garrett 755964-0005
Garrett 755964-0007
Garrett 756047-0002
Garrett 756047-0004
Garrett 756047-0005
Garrett 756047-0006
Garrett 759171-0001
Garrett 759171-0002
Garrett 759171-0003
Garrett 759394-0002
Garrett 760220-0002
Garrett 760220-0003
Garrett 760220-0003-R
Garrett 760220-0004
Garrett 760220-9003S-R
Garrett 760774-0002
Garrett 760774-0003
Garrett 760774-0005
Garrett 761650-0001
Garrett 761650-5001S
Garrett 761650-5001S-R
Garrett 765015-0001
Garrett 765015-0002
Garrett 765015-0003
Garrett 765015-0004
Garrett 765015-0005
Garrett 765015-0006
Garrett 765993-0004
Garrett 769040-0001
Garrett 778794-0001
Garrett 778794-0002
Garrett 778794-0003
Garrett 802013-0001
Garrett 802014-0001


GA-06-0023 - Nozzle ring assy.

Marke: TurboCentras

TurboCentras Artikel-Nr.: GA-06-0023

GA-06-0023 - Alternative numbers

TCP (TurboCentras part number): GA-06-0023

TCO (TurboCentras old part number): GT17-91

GA-06-0023 - Compatibility table

Nozzle ring assy. GA-06-0023 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO PART NUMBERTURBO OE NUMBER
GarrettGT1849V703894-0001703894-0001--
GarrettGT1849V703894-0002703894-000209202690
GarrettGT1849V703894-0003703894-0003, 703894-5003S24442215
GarrettGT1852V704412-0001704412-0001, 704412-5001SA6110960399
GarrettGT1849V705097-0001705097-0001, 705097-5001S9202612
GarrettGT1849V705097-0002705097-0002, 705097-5002S24404592
GarrettGT1849V705204-0001705204-0001, 705204-5001S9202611
GarrettGT1849V705204-0002705204-0002--
GarrettGT1852V709835-0001709835-0001, 709835-5001SA6110960799
GarrettGT1852V709835-0002709835-0002, 709835-5002SA6110960799
GarrettGT1852V709836-0001709836-0001, 709836-5001S6110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-0002709836-0002--
GarrettGT1852V709836-0003709836-0003, 709836-5003S6110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-0004709836-0004, 709836-5004S6110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-0004-R709836-0004, 709836-9004S6110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-5004S709836-0004, 709836-5004S6110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V711006-0001711006-0001, 711006-5001S6110960999, 611096099980, A6110960999
GarrettGT1852V711006-0003711006-0003, 711006-5003S6110960999, 611096099980, A6110960999
GarrettGT1749V717478-0001717478-0001, 717478-5001S11657787628, 11657793093, 11657794144, 7787626F
GarrettGTA1749V717478-0002717478-0002, 717478-5002S11657787628, 11657793093, 11657794144, 7787626F
GarrettGTA1749V717478-0003717478-0003, 717478-5003S11657787628, 11657793093, 11657794144, 7787626F
GarrettGTA1749V717478-0004717478-0004, 717478-5004S11657787628, 11657793093, 11657794144, 7787626G
GarrettGTA1749V717478-0005717478-0005, 717478-5005S11657787628, 11657793093, 11657794144, 7787627G
GarrettGT1749V717478-0006717478-0006, 717478-5006S7787628G
GarrettGT1849V717625-0001717625-0001, 717625-5001S24445061
GarrettGT1849V717625-0001-R717625-0001, 717625-5001S, 717625-9001S24445061
GarrettGT1849V717625-9001S717625-0001, 717625-5001S, 717625-9001S24445061
GarrettGT1849V717626-0001717626-0001, 717626-5001S24445062
GarrettGT1849V717626-0001-R717626-0001, 717626-0001-R, 717626-9001S24445062
GarrettGT1849V717626-9001S717626-0001, 717626-9001S24445062
GarrettGT1849V717628-0001717628-0001, 717628-5001S24443096
GarrettGTA1849V717628-0003717628-000324443096
GarrettGT1852V726698-0001726698-0001, 726698-5001S6110960899, 6110961599, 6110961699, A6110961599
GarrettGT1852V726698-0002726698-0002, 726698-5002S6110960899, 6110961599, 6110961699, A6110961599
GarrettGT1852V726698-0003726698-0003, 726698-5003S6110960899, 6110961599, 6110961699, A6110961599
GarrettGTA1852V727271-0006727271-00068200459492A
GarrettGT1852V727461-0001727461-0001--
GarrettGTA1852VK727461-0002727461-0002, 727461-5002S6460900180, 6460960399, A6460960099
GarrettGT1852V727461-0003727461-0003, 727461-5003S6460900180, 6460960399, A6460960099
GarrettGT1852V727461-0004727461-00046460900180, 6460960399, A6460960499
GarrettGT1852V727461-0005727461-0005, 727461-5005S6460900180, 6460960399, A6460900080
GarrettGT1852V727461-0006727461-0006, 727461-5006S6460900180, 6460960399, A6460900080
GarrettGT1849V727477-0001727477-000114411AW400EP
GarrettGT1849V727477-0005727477-0005, 727477-5005S14411AW400, 14411AW400EP, 14411AW40A
GarrettGT1849V727477-0006727477-0006, 727477-5006S14411AW400, 14411AW40A
GarrettGTA1849V727477-0007727477-0007, 727477-5007S14411AW40AEP
GarrettGTA1749V728768-0004728768-0004, 728768-5004S36000059, 36000248, 36002265, 9647105580
GarrettGT1749V728768-0005728768-0005, 728768-5005S9647105580, 9654262180
GarrettGTA1752LV729125-0007729125-0007, 729125-5007S18900RBDE010M2
GarrettGTA1752LV729125-0008729125-0008, 729125-5008S18900RBDE021M2
GarrettGTA1752LV729125-0009729125-0009, 729125-5009S18900RBDE110M2
GarrettGTA1752LV729125-0012729125-0012, 729125-5012S18900RBDE022M2
GarrettGTA1752LV729125-0013729125-0013, 729125-5013S18900RBD3050
GarrettGTA2256V729403-0001729403-0001--
GarrettGTA2256V729403-0003729403-0003, 729403-5003SA6120960999
GarrettGT1852V742693-0001742693-0001, 742693-5001SA6460960399
GarrettGT1852V742693-0002742693-0002, 742693-5002SA6460900180
GarrettGT1852V742693-0003742693-0003, 742693-5003S, 742693-9003SA6460900180
GarrettGT1852V742693-0004742693-0004, 742693-5004S, 742693-9004SA6460900180
GarrettGT1852V742693-0004-R742693-0004, 742693-5004S, 742693-9004SA6460900180
GarrettGTA1852VK742693-0018742693-0018--
GarrettGT1852V742693-5004S742693-0004, 742693-5004S, 742693-9004SA6460900180
GarrettGT1852V742693-9003S742693-0003, 742693-5003S, 742693-9003SA6460900180
GarrettGT1852V742807-0001742807-0001--
GarrettGT1852V742807-0002742807-000207Z145702J
GarrettGTA1852VK742807-0003742807-000307Z145702KV620
GarrettGTA1852VK742807-0005742807-000507Z145702MV621
GarrettGT1852V742810-0003742810-0003--
GarrettGT1852V742810-0005742810-000507Z145702PV670
GarrettGT1852V742810-0007742810-0007--
GarrettGTA1849LV750441-0005750441-0005, 750441-5005S14411ES60A, 14411ES60B
GarrettGT1749V753556-0002753556-0002, 753556-5002S9654919580
GarrettGT1749VK753556-0006753556-00069654919580
GarrettGTA1752LV753707-0009753707-0009--
GarrettGT1752V753708-0005753708-0005, 753708-5005S, 753708-9005S18900-RSR-E01, 18900RSRE01
GarrettGTA1749V753847-0002753847-0002, 753847-5002S1331247, 9654931780
GarrettGTA1749V753847-0006753847-0006, 753847-5006S1406472, 9659667380
GarrettGT1852V755297-0001755297-000107Z145873EV100
GarrettGT1852V755298-0001755298-000107Z145874EV100
GarrettGTA1852VK755300-0001755300-000107Z145874DV100
GarrettGTA1852VK755300-0003755300-000307Z145874DV200
GarrettGT1852V755300-0004755300-0004--
GarrettGTA1852VK755300-0005755300-000507Z145874HV101
GarrettGTA1852VK755300-0006755300-000607Z145908HV101
GarrettGTA1852VK755300-0007755300-0007, 755300-5007S07Z145874H
GarrettGTA1852VK755963-0001755963-0001, 755963-5001S07Z145873B
GarrettGTA1852VK755963-0003755963-0003, 755963-5003S07Z145873B
GarrettGTA1852VK755963-0005755963-0005, 755963-5005S07Z145873J
GarrettGTA1852VK755963-0007755963-0007, 755963-5007S07Z145873J
GarrettGTA1852VK755964-0001755964-0001, 755964-5001S07Z145874B
GarrettGTA1852VK755964-0003755964-0003, 755964-5003S07Z145874B
GarrettGTA1852VK755964-0005755964-0005, 755964-5005S07Z145874J
GarrettGT18755964-0007755964-0007, 755964-5007S07Z145874J
GarrettGT1749V756047-0002756047-00029658673480
GarrettGT1749V756047-0004756047-00040375K8, 9662301280
GarrettGT1749V756047-0005756047-00050375K8, 9682778680
GarrettGT1749V756047-0006756047-0006, 756047-5006S, 756047-9006S0375K8, 9682778680
GarrettGTA1749V759171-0001759171-0001, 759171-5001S8200473786A
GarrettGTA1749V759171-0002759171-0002, 759171-5002S8200473786B
GarrettGTA1749V759171-0003759171-0003, 759171-5003S8200473786C
GarrettGTA1752LV759394-0002759394-0002--
GarrettGTA1749V760220-0002760220-0002, 760220-5002S9681896180
GarrettGT1749V760220-0003760220-0003, 760220-5003S9682778880
GarrettGT1749V760220-0003-R760220-0003, 760220-9003S9682778880
GarrettGTA1749V760220-0004760220-0004, 760220-5004S, 760220-9004S9682778880
GarrettGT1749V760220-9003S-R760220-0003, 760220-9003S9682778880
GarrettGT1752VK760774-0002760774-00029654931780, 9858728580
GarrettGT1749V760774-0003760774-0003, 760774-5003S1483819, 30725134, 36002265, 3M5Q6K682CD, 9662464980
GarrettGT1749V760774-0005760774-0005, 760774-5005S, 760774-9005S1483819, 30725134, 36002265, 3M5Q6K682CD, 9662464980
GarrettGTA1752LV761650-0001761650-0001, 761650-5001S18900-RBD-E03, 18900RBDE03
GarrettGTA1752LV761650-5001S761650-0001, 761650-5001S18900-RBD-E03, 18900RBDE03
GarrettGTA1752LV761650-5001S-R761650-0001, 761650-5001S18900-RBD-E03, 18900RBDE03
GarrettGTA1749V765015-0001765015-0001, 765015-5001S8200583885
GarrettGTA1749V765015-0002765015-0002, 765015-5002S8200695785
GarrettGTA1749V765015-0003765015-0003, 765015-5003S8200741528
GarrettGTA1749V765015-0004765015-0004, 765015-5004S8200741529A
GarrettGTA1749V765015-0005765015-0005, 765015-5005S8200741529A
GarrettGTA1749V765015-0006765015-0006, 765015-5006S8200583885, 8201051043C
GarrettGT1749V765993-0004765993-0004, 765993-5004S, 765993-9004S8V4Q6K682AA
GarrettGTA1752LV769040-0001769040-0001, 769040-5001S, 769040-9001S504203413
GarrettGTA1852V778794-0001778794-0001, 778794-5001S6110960899, 6110961599, 6110961699, A6110961699
GarrettGTA1852V778794-0002778794-0002, 778794-5002S6110960899, 6110961599, 6110961699, A6110961699
GarrettGT1852V778794-0003778794-0003--
GarrettGTA1752LV802013-0001802013-0001, 802013-5001S--
GarrettGT17802014-0001802014-0001, 802014-5001S18900-RMA-E01, 18900RMAE01

GA-06-0023 - Part Properties

Blades (Nozzle Ring blades count): 11

A (Size A): 81.50

B (Size B): 49.50

C (Size C): 45.50

D (Size D): 7.50

E (Size E): 8.50

F (Size F): 12.50

GA-06-0023
GA-06-0023, GT17-91
703894-0001, 09202690, 703894-0002, 24442215, 703894-0003, 703894-5003S, 704412-0001, 704412-5001S, A6110960399, 705097-0001, 705097-5001S, 9202612, 24404592, 705097-0002, 705097-5002S, 705204-0001, 705204-5001S, 9202611, 705204-0002, 709835-0001, 709835-5001S, A6110960799, 709835-0002, 709835-5002S, A6110960799, 6110960899, 6110961599, 6110961699, 709836-0001, 709836-5001S, A6110960899, 709836-0002, 6110960899, 6110961599, 6110961699, 709836-0003, 709836-5003S, A6110960899, 6110960899, 6110961599, 6110961699, 709836-0004, 709836-5004S, A6110960899, 6110960899, 6110961599, 6110961699, 709836-0004, 709836-9004S, A6110960899, 6110960899, 6110961599, 6110961699, 709836-0004, 709836-5004S, A6110960899, 6110960999, 611096099980, 711006-0001, 711006-5001S, A6110960999, 6110960999, 611096099980, 711006-0003, 711006-5003S, A6110960999, 11657787628, 11657793093, 11657794144, 717478-0001, 717478-5001S, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0002, 717478-5002S, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0003, 717478-5003S, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0004, 717478-5004S, 7787626G, 11657787628, 11657793093, 11657794144, 717478-0005, 717478-5005S, 7787627G, 717478-0006, 717478-5006S, 7787628G, 24445061, 717625-0001, 717625-5001S, 24445061, 717625-0001, 717625-5001S, 717625-9001S, 24445061, 717625-0001, 717625-5001S, 717625-9001S, 24445062, 717626-0001, 717626-5001S, 24445062, 717626-0001, 717626-0001-R, 717626-9001S, 24445062, 717626-0001, 717626-9001S, 24443096, 717628-0001, 717628-5001S, 24443096, 717628-0003, 6110960899, 6110961599, 6110961699, 726698-0001, 726698-5001S, A6110961599, 6110960899, 6110961599, 6110961699, 726698-0002, 726698-5002S, A6110961599, 6110960899, 6110961599, 6110961699, 726698-0003, 726698-5003S, A6110961599, 727271-0006, 8200459492A, 727461-0001, 6460900180, 6460960399, 727461-0002, 727461-5002S, A6460960099, 6460900180, 6460960399, 727461-0003, 727461-5003S, A6460960099, 6460900180, 6460960399, 727461-0004, A6460960499, 6460900180, 6460960399, 727461-0005, 727461-5005S, A6460900080, 6460900180, 6460960399, 727461-0006, 727461-5006S, A6460900080, 14411AW400EP, 727477-0001, 14411AW400, 14411AW400EP, 14411AW40A, 727477-0005, 727477-5005S, 14411AW400, 14411AW40A, 727477-0006, 727477-5006S, 14411AW40AEP, 727477-0007, 727477-5007S, 36000059, 36000248, 36002265, 728768-0004, 728768-5004S, 9647105580, 728768-0005, 728768-5005S, 9647105580, 9654262180, 18900RBDE010M2, 729125-0007, 729125-5007S, 18900RBDE021M2, 729125-0008, 729125-5008S, 18900RBDE110M2, 729125-0009, 729125-5009S, 18900RBDE022M2, 729125-0012, 729125-5012S, 18900RBD3050, 729125-0013, 729125-5013S, 729403-0001, 729403-0003, 729403-5003S, A6120960999, 742693-0001, 742693-5001S, A6460960399, 742693-0002, 742693-5002S, A6460900180, 742693-0003, 742693-5003S, 742693-9003S, A6460900180, 742693-0004, 742693-5004S, 742693-9004S, A6460900180, 742693-0004, 742693-5004S, 742693-9004S, A6460900180, 742693-0018, 742693-0004, 742693-5004S, 742693-9004S, A6460900180, 742693-0003, 742693-5003S, 742693-9003S, A6460900180, 742807-0001, 07Z145702J, 742807-0002, 07Z145702KV620, 742807-0003, 07Z145702MV621, 742807-0005, 742810-0003, 07Z145702PV670, 742810-0005, 742810-0007, 14411ES60A, 14411ES60B, 750441-0005, 750441-5005S, 753556-0002, 753556-5002S, 9654919580, 753556-0006, 9654919580, 753707-0009, 18900-RSR-E01, 18900RSRE01, 753708-0005, 753708-5005S, 753708-9005S, 1331247, 753847-0002, 753847-5002S, 9654931780, 1406472, 753847-0006, 753847-5006S, 9659667380, 07Z145873EV100, 755297-0001, 07Z145874EV100, 755298-0001, 07Z145874DV100, 755300-0001, 07Z145874DV200, 755300-0003, 755300-0004, 07Z145874HV101, 755300-0005, 07Z145908HV101, 755300-0006, 07Z145874H, 755300-0007, 755300-5007S, 07Z145873B, 755963-0001, 755963-5001S, 07Z145873B, 755963-0003, 755963-5003S, 07Z145873J, 755963-0005, 755963-5005S, 07Z145873J, 755963-0007, 755963-5007S, 07Z145874B, 755964-0001, 755964-5001S, 07Z145874B, 755964-0003, 755964-5003S, 07Z145874J, 755964-0005, 755964-5005S, 07Z145874J, 755964-0007, 755964-5007S, 756047-0002, 9658673480, 0375K8, 756047-0004, 9662301280, 0375K8, 756047-0005, 9682778680, 0375K8, 756047-0006, 756047-5006S, 756047-9006S, 9682778680, 759171-0001, 759171-5001S, 8200473786A, 759171-0002, 759171-5002S, 8200473786B, 759171-0003, 759171-5003S, 8200473786C, 759394-0002, 760220-0002, 760220-5002S, 9681896180, 760220-0003, 760220-5003S, 9682778880, 760220-0003, 760220-9003S, 9682778880, 760220-0004, 760220-5004S, 760220-9004S, 9682778880, 760220-0003, 760220-9003S, 9682778880, 760774-0002, 9654931780, 9858728580, 1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-0003, 760774-5003S, 9662464980, 1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-0005, 760774-5005S, 760774-9005S, 9662464980, 18900-RBD-E03, 18900RBDE03, 761650-0001, 761650-5001S, 18900-RBD-E03, 18900RBDE03, 761650-0001, 761650-5001S, 18900-RBD-E03, 18900RBDE03, 761650-0001, 761650-5001S, 765015-0001, 765015-5001S, 8200583885, 765015-0002, 765015-5002S, 8200695785, 765015-0003, 765015-5003S, 8200741528, 765015-0004, 765015-5004S, 8200741529A, 765015-0005, 765015-5005S, 8200741529A, 765015-0006, 765015-5006S, 8200583885, 8201051043C, 765993-0004, 765993-5004S, 765993-9004S, 8V4Q6K682AA, 504203413, 769040-0001, 769040-5001S, 769040-9001S, 6110960899, 6110961599, 6110961699, 778794-0001, 778794-5001S, A6110961699, 6110960899, 6110961599, 6110961699, 778794-0002, 778794-5002S, A6110961699, 778794-0003, 802013-0001, 802013-5001S, 18900-RMA-E01, 18900RMAE01, 802014-0001, 802014-5001S

Data updated: 2024-09-25 16:01:27

56 Artikel
Neu
No reviews
Product added to wishlist

This site use cookies. Find out more about personal information in our Privacy Policy page.
